JY30R-QDBH (1979)

Toyota Toyoace

Production Mar 1979 - Jan 1982
Engine 2J
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

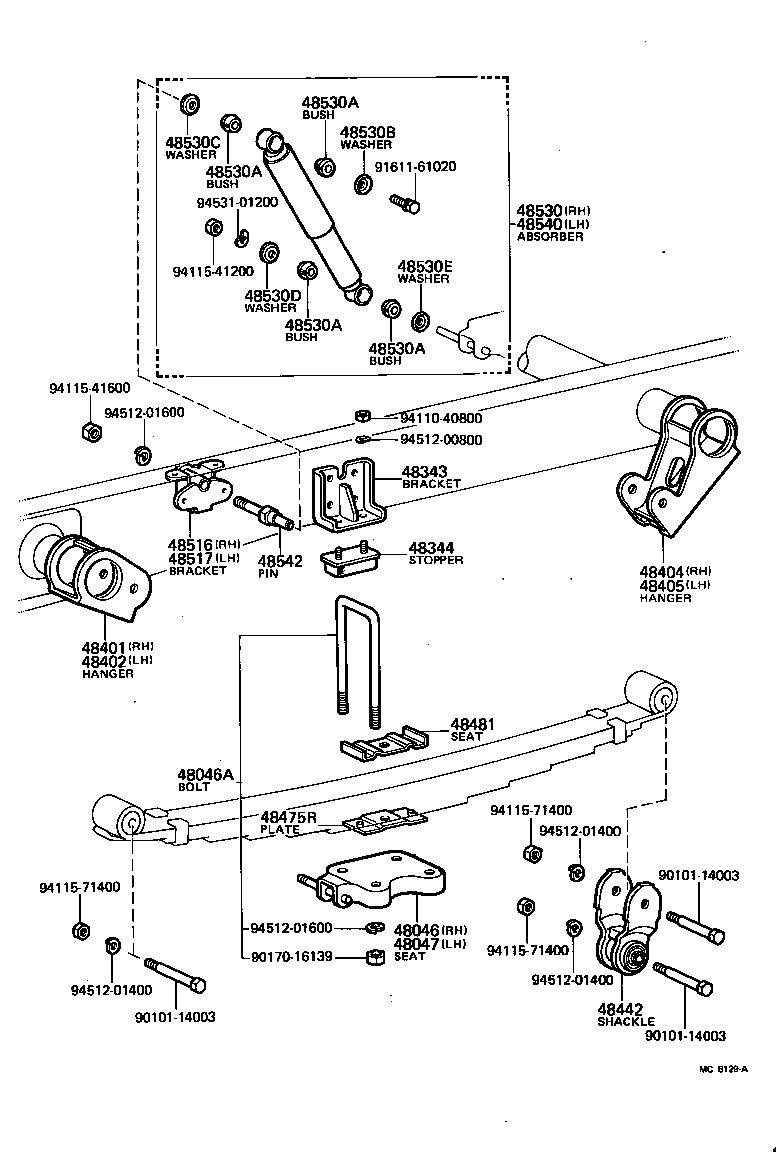

(7903- )20T

Click highlighted areas on diagram

diagram 48046 48046A 48047 48343 48344 48401 48402 48404 48405 48442 48475R 48481 48516 48517 48530 48530A 48530A 48530A 48530A 48530B 48530C 48530D 48530E 48540 48542 9010114003 9010114003 9010114003 9017016139 9161161020 9411040800 9411541200 9411541600 9411571400 9411571400 9411571400 9451200800 9451201400 9451201400 9451201400 9451201600 9451201600 9453101200
Part # Description Qty Price
48046 - SEAT SUB-ASSY, SPRING U BOLT, RH
48046-36090

JY30,RY31..20T

 1
48046A - BOLT, U(FOR REAR SPRING)
90118-16154

JY30,RY31..20T

L=225,L=225

 4
48047 - SEAT SUB-ASSY, SPRING U BOLT, LH
48047-36090

JY30,RY31..20T

 1
48343 - BRACKET, REAR AXLE CUSHION
48343-36010

JY30,RY31..20T

 2
48344 - STOPPER, BUMPER, REAR
48344-36040

JY30,RY31..20T

 2
48401 - BRACKET SUB-ASSY, REAR SPRING, FRONT RH
48414-36060

JY30,RY31..20T

 1
48402 - BRACKET SUB-ASSY, REAR SPRING, FRONT LH
48414-36060

JY30,RY31..20T

 1
48404 - BRACKET SUB-ASSY, REAR SPRING, REAR RH
48416-36080

JY30,RY31..20T

 1
48405 - BRACKET SUB-ASSY, REAR SPRING, REAR LH
48416-36080

JY30,RY31..20T

 1
48442 - SHACKLE, SPRING, NO.2
48042-36021

JY30,RY31..20T

 2
48475R - PLATE, DISTANCE(FOR REAR)
48475-36051

JY30,RY31..20T

 1
48481 - SEAT, REAR SPRING, UPPER
48481-36040

JY30,RY31..20T

 2
48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH
48516-36020

JY30,RY31..20T

 1
48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH
48516-36020

JY30,RY31..20T

 1
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-39285

JY30,RY31..20T

 1
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16007

JY30,LY20,3#,RY20,3#

 8
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16007

JY30,LY20,3#,RY20,3#

 8
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16007

JY30,LY20,3#,RY20,3#

 8
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16007

JY30,LY20,3#,RY20,3#

 8
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-03007

JY30,LY20,30,RY20,3#

 2
48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
90948-03004

JY30,LY20,3#,RY20,3#

 2
48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3
90948-03003

JY30,RY31..20T

 2
48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4
90948-03004

JY30,LY20,3#,RY20,3#

 2
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-39285

JY30,RY31..20T

 1
48542 - PIN, SHOCK ABSORBER UPPER PIVOT, REAR
48542-36020

JY30,RY31..20T

 2
Common parts
90101-14003
90170-16139
91611-61020
94110-40800
94115-41200
94115-41600
94115-71400
94512-00800
94512-01400
94512-01600
94531-01200

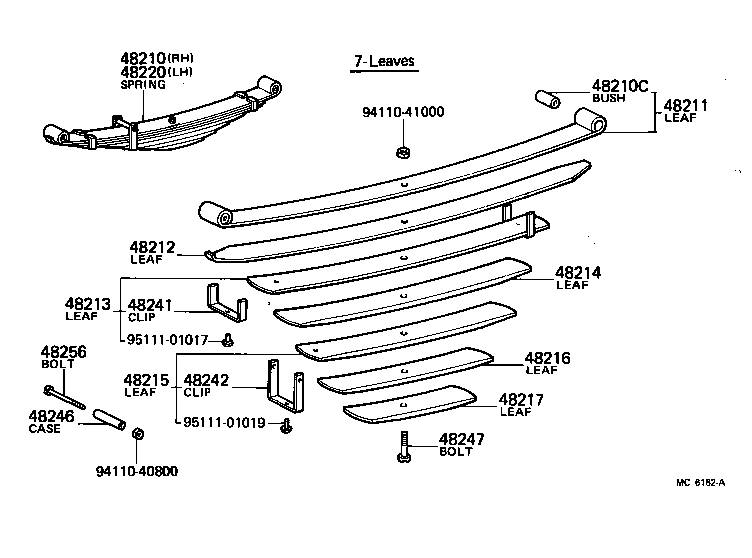

(7903- )20T

Click highlighted areas on diagram

diagram 48210 48210C 48211 48212 48213 48214 48215 48216 48217 48220 48241 48242 48246 48247 48256 9411040800 9411041000 9511101017 9511101019
Part # Description Qty Price
48210 - SPRING ASSY, REAR RH
48210-25190

JY30,RY31..20T

 1
48210C - BUSH(FOR REAR SPRING LEAF)
90389-16002

JY30,RY31..20T

 4
48211 - LEAF, REAR SPRING, NO.1
48201-25190

JY30,RY31..20T

 2
48212 - LEAF, REAR SPRING, NO.2
48212-25190

JY30,RY31..20T

 2
48213 - LEAF, REAR SPRING, NO.3
48202-25190

JY30,RY31..20T

 2
48214 - LEAF, REAR SPRING, NO.4
48214-25190

JY30,RY31..20T

 2
48215 - LEAF, REAR SPRING, NO.5
48203-25190

JY30,RY31..20T

 2
48216 - LEAF, REAR SPRING, NO.6
48216-25190

JY30,RY31..20T

 2
48217 - LEAF, REAR SPRING, NO.7
48217-25190

JY30,RY31..20T

 2
48220 - SPRING ASSY, REAR LH
48210-25190

JY30,RY31..20T

 1
48241 - CLIP, REAR SPRING, NO.1
48241-36200

JY30,RY31..20T

 4
48242 - CLIP, REAR SPRING, NO.2
48242-36200

JY30,RY31..20T

 2
48246 - CASE, REAR SPRING CLIP BOLT
48146-60010

JY30,RY31..20T

 2
48247 - BOLT, REAR SPRING, CENTER
48247-36200

JY30,RY31..20T

 2
48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET)
48256-25050

JY30,RY31..20T

 2
Common parts
94110-40800
94110-41000
95111-01017
95111-01019
