JY30R-QDBH (1979)

Toyota Toyoace

Production Mar 1979 - Jan 1982
Engine 2J
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7903-8308)2J

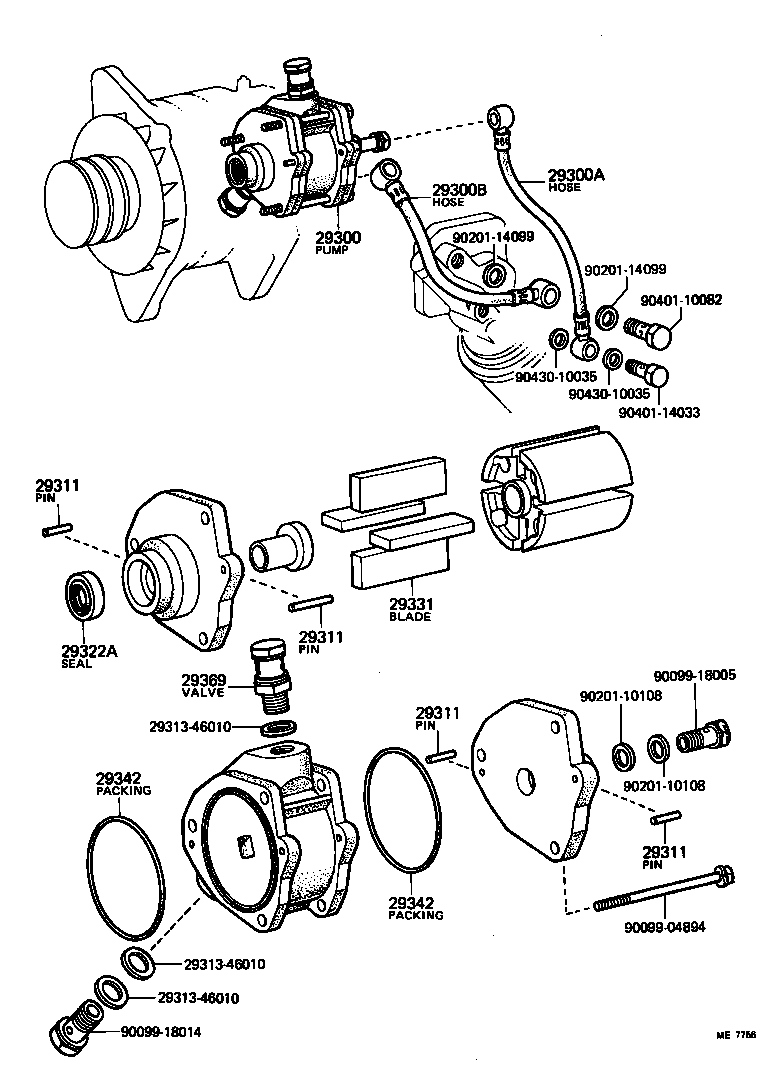

Click highlighted areas on diagram

diagram 29300 29300A 29300B 29311 29311 29311 29311 2931346010 2931346010 2931346010 29322A 29331 29342 29342 29369 9009904894 9009918005 9009918014 9020110108 9020110108 9020114099 9020114099 9040110082 9040114033 9043010035 9043010035
Part # Description Qty Price
29300 - PUMP ASSY, VACUUM
29300-48030

2J..JY30

 1
29300A - HOSE, VACUUM PUMP OIL INLET
90923-02036

2J..JY30

 1
29300B - HOSE, VACUUM PUMP OIL OUTLET
90923-02028

2J..JY30

 1
29311 - PIN, VACUUM PUMP DOWEL, NO.1
90099-08082

L,2J..JY30,LY20,30

 4
29311 - PIN, VACUUM PUMP DOWEL, NO.1
90099-08082

L,2J..JY30,LY20,30

 4
29311 - PIN, VACUUM PUMP DOWEL, NO.1
90099-08082

L,2J..JY30,LY20,30

 4
29311 - PIN, VACUUM PUMP DOWEL, NO.1
90099-08082

L,2J..JY30,LY20,30

 4
29322A - SEAL, VACUUM PUMP OIL
90099-15017

L,2J..JY30,LY20,30

 1
29331 - BLADE, VACUUM PUMP, A
29331-56010

L,2J..JY30,LY20,30

 4
29342 - PACKING, VACUUM PUMP
96740-02063

L,2J..JY30,LY20,30

 2
29342 - PACKING, VACUUM PUMP
96740-02063

L,2J..JY30,LY20,30

 2
29369 - VALVE SUB-ASSY, CHECK
29369-56020

2J..JY30

 1
Common parts
29313-46010
90099-04894
90099-18005
90099-18014
90201-10108
90201-14099
90401-10082
90401-14033
90430-10035
