JY30L-QDH (1979)
Toyota Toyoace
(7903- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33501 - SHAFT SUB-ASSY, CONTROL (FOR COLUMN SHIFT) | ||||
| 33501-25060 |
JY30,LY20,30,RY20,3# |
1 | ||
| 33504 - KNOB SUB-ASSY, SHIFT LEVER (FOR COLUMN SHIFT) | ||||
| 33504-30110 |
JY30,LY20,3#,RY20,3# |
1 | ||
| 33505 - SEAL SUB-ASSY, CONTROL SHAFT DUST (FOR COLUMN SHIFT) | ||||
| 90303-17005 |
JY30,LY20,3#,RY20,3# |
2 | ||
| 33505 - SEAL SUB-ASSY, CONTROL SHAFT DUST (FOR COLUMN SHIFT) | ||||
| 90303-17005 |
JY30,LY20,3#,RY20,3# |
2 | ||
| 33513 - SHAFT, CONTROL SHAFT BRACKET, UPPER | ||||
| 33513-36020 |
JY30,LY20,3#,RY20,3# |
1 | ||
| 33513A - SPRING, COMPRESSION (FOR BRACKET UPPER SHAFT) | ||||
| 90501-14395 |
JY30,LY20,3#,RY20,3# |
1 | ||
| 33517 - RETAINER, CONTROL SHAFT UPPER SPRING | ||||
| 33517-30010 |
JY30,LY20,3#,RY20,3# |
1 | ||
| 33518 - BUSH, UPPER CONTROL SHAFT PIECE | ||||
| 33518-36010 |
JY30,LY20,3#,RY20,3# |
1 | ||
| 33518A - WASHER, PLATE (FOR UPPER CONTROL SHAFT PIECE BUSH) | ||||
| 33515-30010 |
JY30,LY20,3#,RY20,3# |
1 | ||
| 33518B - RING, E (FOR UPPER CONTROL SHAFT PIECE BUSH) | ||||
| 90523-06019 |
JY30,LY20,3#,RY20,3# |
1 | ||
| 33522 - SEAT, SHIFT LEVER PLATE (FOR COLUMN SHIFT) | ||||
| 33522-36010 |
JY30,LY20,3#,RY20,3# |
1 | ||
| 33523 - PIN, SHIFT LEVER (FOR COLUMN SHIFT) | ||||
| 90249-07001 |
JY30,LY20,3#,RY20,3# |
1 | ||
| 33523E - RING, E (FOR SHIFT LEVER PIN) | ||||
| 96160-00500 |
JY30,LY20,3#,RY20,3# |
1 | ||
| 33530 - LEVER ASSY, SHIFT (FOR COLUMN SHIFT) | ||||
| 33541-25080 |
JY30,RY20,3#..LHD |
1 | ||
| 33535 - LEVER, CONTROL SELECT (FOR COLUMN SHIFT) | ||||
| 33535-25080 |
JY30,RY20,3#..LHD |
1 | ||
| 33535A - BUSH (FOR CONTROL SELECT LEVER) | ||||
| 90386-13007 |
JY30,LY20,3#,RY20,3# |
6 | ||
| 33535A - BUSH (FOR CONTROL SELECT LEVER) | ||||
| 90386-13007 |
JY30,LY20,3#,RY20,3# |
6 | ||
| 33535A - BUSH (FOR CONTROL SELECT LEVER) | ||||
| 90386-13007 |
JY30,LY20,3#,RY20,3# |
6 | ||
| 33535A - BUSH (FOR CONTROL SELECT LEVER) | ||||
| 90386-13007 |
JY30,LY20,3#,RY20,3# |
6 | ||
| 33535A - BUSH (FOR CONTROL SELECT LEVER) | ||||
| 90386-13007 |
JY30,LY20,3#,RY20,3# |
6 | ||
| 33535A - BUSH (FOR CONTROL SELECT LEVER) | ||||
| 90386-13007 |
JY30,LY20,3#,RY20,3# |
6 | ||
| 33535A - BUSH (FOR CONTROL SELECT LEVER) | ||||
| 90386-13007 |
JY30,LY20,3#,RY20,3# |
6 | ||
| 33535A - BUSH (FOR CONTROL SELECT LEVER) | ||||
| 90386-13007 |
JY30,LY20,3#,RY20,3# |
6 | ||
| 33535A - BUSH (FOR CONTROL SELECT LEVER) | ||||
| 90386-13007 |
JY30,LY20,3#,RY20,3# |
6 | ||
| 33535A - BUSH (FOR CONTROL SELECT LEVER) | ||||
| 90386-13007 |
JY30,LY20,3#,RY20,3# |
6 | ||
| 33536 - SHAFT, CONTROL SELECT LEVER (FOR COLUMN SHIFT) | ||||
| 33536-36040 |
JY30,LY20,3#,RY20,3# |
1 | ||
| 33538 - LINK, SHIFTING LEVER | ||||
| 33538-25100 |
JY30,RY31..LHD..20T |
1 | ||
| 33538 - LINK, SHIFTING LEVER | ||||
| 33538-25100 |
JY30,RY31..LHD..20T |
1 | ||
| 33538A - BOLT (FOR SHIFTING LEVER LINK SETTING) | ||||
| 33536-36040 |
JY30,RY31..20T |
1 | ||
| 33538A - BOLT (FOR SHIFTING LEVER LINK SETTING) | ||||
| 33536-36040 |
JY30,RY31..20T |
1 | ||
| 33571 - BRACKET, CONTROL SHAFT, LOWER (FOR COLUMN SHIFT) | ||||
| 33571-25050 |
JY30,RY20,3#..LHD |
1 | ||
| 33572 - BUSH, CONTROL SHAFT LOWER (FOR COLUMN SHIFT) | ||||
| 33572-36010 |
JY30,LY20,3#,RY20,3# |
1 | ||
| 33574 - RETAINER, DUST SEAL (FOR COLUMN SHIFT CONTROL SHAFT) | ||||
| 33574-25010 |
JY30,LY20,3#,RY20,3# |
2 | ||
| 33574 - RETAINER, DUST SEAL (FOR COLUMN SHIFT CONTROL SHAFT) | ||||
| 33574-25010 |
JY30,LY20,3#,RY20,3# |
2 | ||
| 33607 - SUPPORT SUB-ASSY, CONTROL ROD (FOR COLUMN SHIFT) | ||||
| 33607-25010 |
JY30,RY31..20T |
1 | ||
| 33641 - LINK, SELECTING (FOR COLUMN SHIFT) | ||||
| 33641-25080 |
JY30,RY31..20T |
1 | ||
| 33641 - LINK, SELECTING (FOR COLUMN SHIFT) | ||||
| 33641-25080 |
JY30,RY31..20T |
1 | ||
| 33695 - COVER, SELECTING SPRING (FOR COLUMN SHIFT) | ||||
| 33695-25020 |
JY30,RY20,3#..LHD |
1 | ||
| 33696 - SEAT, SELECT SPRING | ||||
| 33696-36010 |
JY30,LY20,3#,RY20,3# |
1 | ||
| 33696A - SPRING, COMPRESSION | ||||
| 90501-20713 |
JY30,LY20,3#,RY20,3# |
1 | ||
| 33711 - LEVER, CONTROL SHAFT (FOR COLUMN SHIFT) | ||||
| 33527-25060 |
JY30,LY20,30,RY20,3# |
1 | ||
| 33711G - BOLT, CONTROL SHAFT LEVER LOCK | ||||
| 33218-35010 |
JY30,LY20,3#,RY20,3# |
1 | ||
| 33731 - ROD, GEAR SELECTING, NO.1 (FOR COLUMN SHIFT) | ||||
| 33720-25130 |
JY30,RY31..LHD..20T |
1 | ||
| 33720-25110 |
LY20,30 |
1 | ||
| 33731 - ROD, GEAR SELECTING, NO.1 (FOR COLUMN SHIFT) | ||||
| 33720-25130 |
JY30,RY31..LHD..20T |
1 | ||
| 33720-25110 |
LY20,30 |
1 | ||
| 33731A - PIN, W/HOLE (FOR COLUMN SHIFT GEAR SELECTING ROD) | ||||
| 90240-08040 |
JY30,LY20,30,RY20,3# |
1 | ||
| 33731A - PIN, W/HOLE (FOR COLUMN SHIFT GEAR SELECTING ROD) | ||||
| 90240-08040 |
JY30,LY20,30,RY20,3# |
1 | ||
| 33732 - GUIDE, SELECTING ROD | ||||
| 33732-25030 |
JY30,RY31..LHD..20T |
1 | ||
| 33740 - END ASSY, CONNECTING ROD, NO.1(FOR COLUMN SHIFT) | ||||
| 33740-35011 |
JY30,LY20,3#,RY20,3# |
4 | ||
| 33740 - END ASSY, CONNECTING ROD, NO.1(FOR COLUMN SHIFT) | ||||
| 33740-35011 |
JY30,LY20,3#,RY20,3# |
4 | ||
| 33740 - END ASSY, CONNECTING ROD, NO.1(FOR COLUMN SHIFT) | ||||
| 33740-35011 |
JY30,LY20,3#,RY20,3# |
4 | ||
| 33740 - END ASSY, CONNECTING ROD, NO.1(FOR COLUMN SHIFT) | ||||
| 33740-35011 |
JY30,LY20,3#,RY20,3# |
4 | ||
| 33741 - ROD, GEAR SHIFTING, NO.1 (FOR COLUMN SHIFT) | ||||
| 33710-25100 |
JY30,RY31..LHD..20T |
1 | ||
| 33741 - ROD, GEAR SHIFTING, NO.1 (FOR COLUMN SHIFT) | ||||
| 33710-25100 |
JY30,RY31..LHD..20T |
1 | ||
| 33742 - ROD, GEAR SHIFTING, NO.2(FOR COLUMN SHIFT) | ||||
| 33742-25090 |
JY30..LHD |
1 | ||
| 33742 - ROD, GEAR SHIFTING, NO.2(FOR COLUMN SHIFT) | ||||
| 33742-25090 |
JY30..LHD |
1 | ||
| 33742A - BUSH(FOR SHIFTING ROD NO.2) | ||||
| 90389-08005 |
JY30,RY31..20T |
1 | ||
| 33743C - GROMMET | ||||
| 90480-17177 |
JY30,LY20,3#,RY20,3# |
2 | ||
| 33750 - END, CONNECTING ROD, NO.2 (FOR COLUMN SHIFT) | ||||
| 33750-35011 |
RY31..15T;JY30,LY20,3#,RY20,30 |
1 | ||
| Common parts | ||||
| 90170-08052 | ||||
| 90179-08146 | ||||
| 90201-10287 | ||||
| 90206-08016 | ||||
| 90206-10018 | ||||
| 90468-16012 | ||||
| 91111-50820 | ||||
| 91611-40814 | ||||
| 91611-40820 | ||||
| 91611-40825 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94120-40800 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
| 94613-10800 | ||||

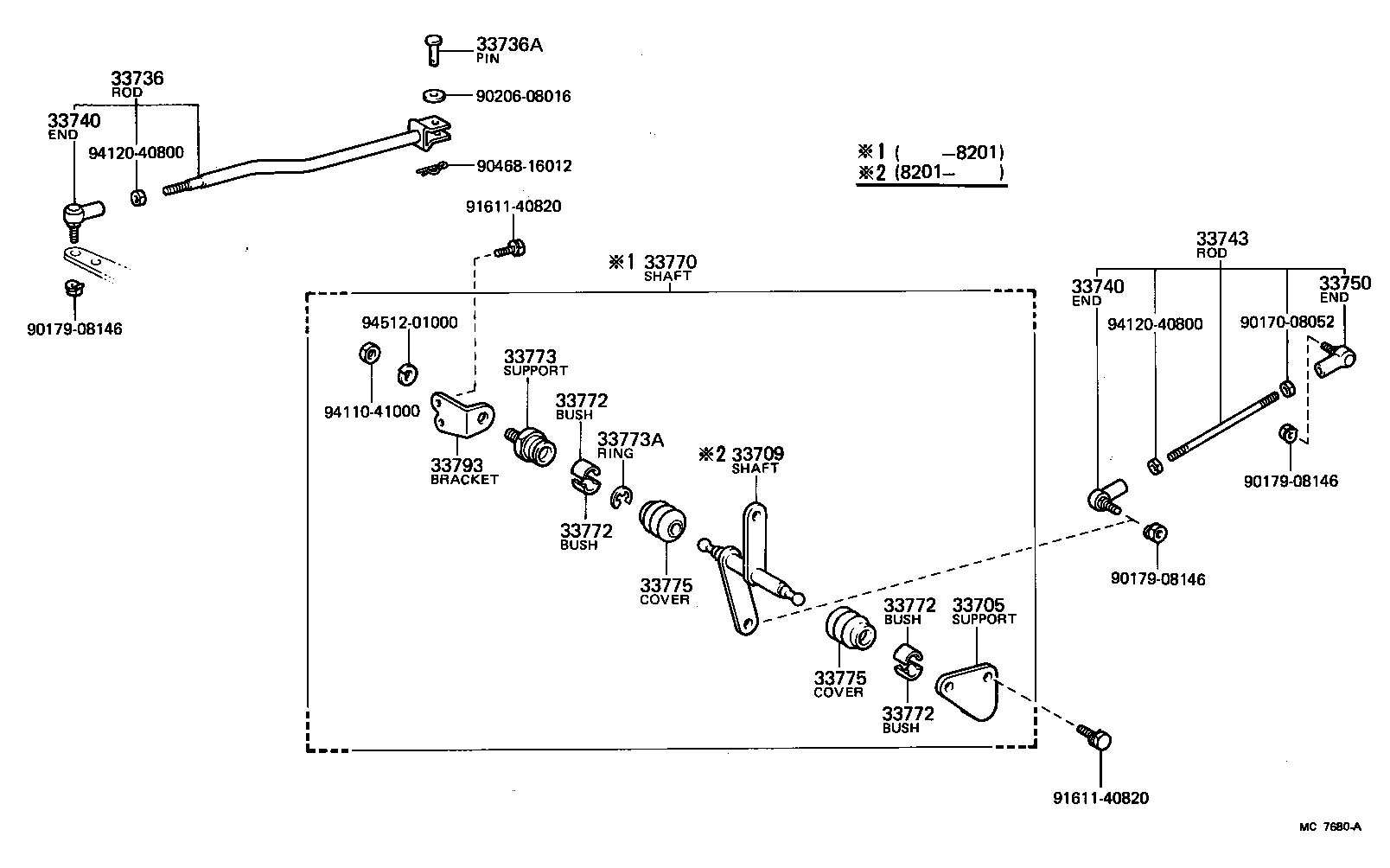

(7903-8308)JY30..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33705 - SUPPORT SUB-ASSY, CROSS SHAFT (FOR BODY SIDE) | ||||
| 33705-25110 |
JY30..LHD |
1 | ||
| 33736 - ROD, GEAR SELECTING, NO.2(FOR COLUMN SHIFT) | ||||
| 33790-25130 |
JY30..LHD |
1 | ||
| 33736A - PIN, W/HOLE | ||||
| 90240-08040 |
JY30,LY20,30,RY20,3# |
1 | ||
| 33740 - END ASSY, CONNECTING ROD, NO.1(FOR COLUMN SHIFT) | ||||
| 33740-35011 |
JY30,LY20,3#,RY20,3# |
4 | ||
| 33740 - END ASSY, CONNECTING ROD, NO.1(FOR COLUMN SHIFT) | ||||
| 33740-35011 |
JY30,LY20,3#,RY20,3# |
4 | ||
| 33743 - ROD, GEAR SHIFTING, NO.3 (FOR COLUMN SHIFT) | ||||
| 33840-25040 |
JY30..LHD |
1 | ||
| 33750 - END, CONNECTING ROD, NO.2 (FOR COLUMN SHIFT) | ||||
| 33750-35011 |
RY31..15T;JY30,LY20,3#,RY20,30 |
1 | ||
| 33770 - SHAFT ASSY, CROSS (FOR COLUMN SHIFT) | ||||
| 33770-25090 |
JY30..LHD |
1 | ||
| 33772 - BUSH, NO.1, CROSS SHAFT SUPPORT (FOR COLUMN SHIFT) | ||||
| 33772-20010 |
JY30 |
4 | ||
| 33772-35011 |
LY20,3#,RY20,3# |
1 | ||
| 33772 - BUSH, NO.1, CROSS SHAFT SUPPORT (FOR COLUMN SHIFT) | ||||
| 33772-20010 |
JY30 |
4 | ||
| 33772-35011 |
LY20,3#,RY20,3# |
1 | ||
| 33772 - BUSH, NO.1, CROSS SHAFT SUPPORT (FOR COLUMN SHIFT) | ||||
| 33772-20010 |
JY30 |
4 | ||
| 33772-35011 |
LY20,3#,RY20,3# |
1 | ||
| 33772 - BUSH, NO.1, CROSS SHAFT SUPPORT (FOR COLUMN SHIFT) | ||||
| 33772-20010 |
JY30 |
4 | ||
| 33772-35011 |
LY20,3#,RY20,3# |
1 | ||
| 33773 - SUPPORT, CROSS SHAFT, NO.1 (FOR COLUM SHIFT) | ||||
| 33773-20020 |
JY30 |
1 | ||
| 33773-25010 |
LY20,3#,RY20,3# |
1 | ||
| 33773A - RING, HOLE SNAP (FOR CROSS SHAFT SUPPORT SNAP) | ||||
| 96151-01600 |
JY30 |
1 | ||
| 33775 - COVER, CROSS SHAFT DUST (FOR COLUMN SHIFT) | ||||
| 33775-20020 |
JY30 T/M SIDE |
1 | ||
| 33775-20040 |
JY30 FRAME SIDE |
1 | ||
| 33775-25020 |
LY20,3#,RY20,3# |
1 | ||
| 33775 - COVER, CROSS SHAFT DUST (FOR COLUMN SHIFT) | ||||
| 33775-20020 |
JY30 T/M SIDE |
1 | ||
| 33775-20040 |
JY30 FRAME SIDE |
1 | ||
| 33775-25020 |
LY20,3#,RY20,3# |
1 | ||
| 33793 - BRACKET, CROSS SHAFT, NO.2(FOR COLUMN SHIFT) | ||||
| 33793-25020 |
JY30..LHD |
1 | ||
| Common parts | ||||
| 90170-08052 | ||||
| 90179-08146 | ||||
| 90206-08016 | ||||
| 90468-16012 | ||||
| 91611-40820 | ||||
| 94110-41000 | ||||
| 94120-40800 | ||||
| 94512-01000 | ||||
