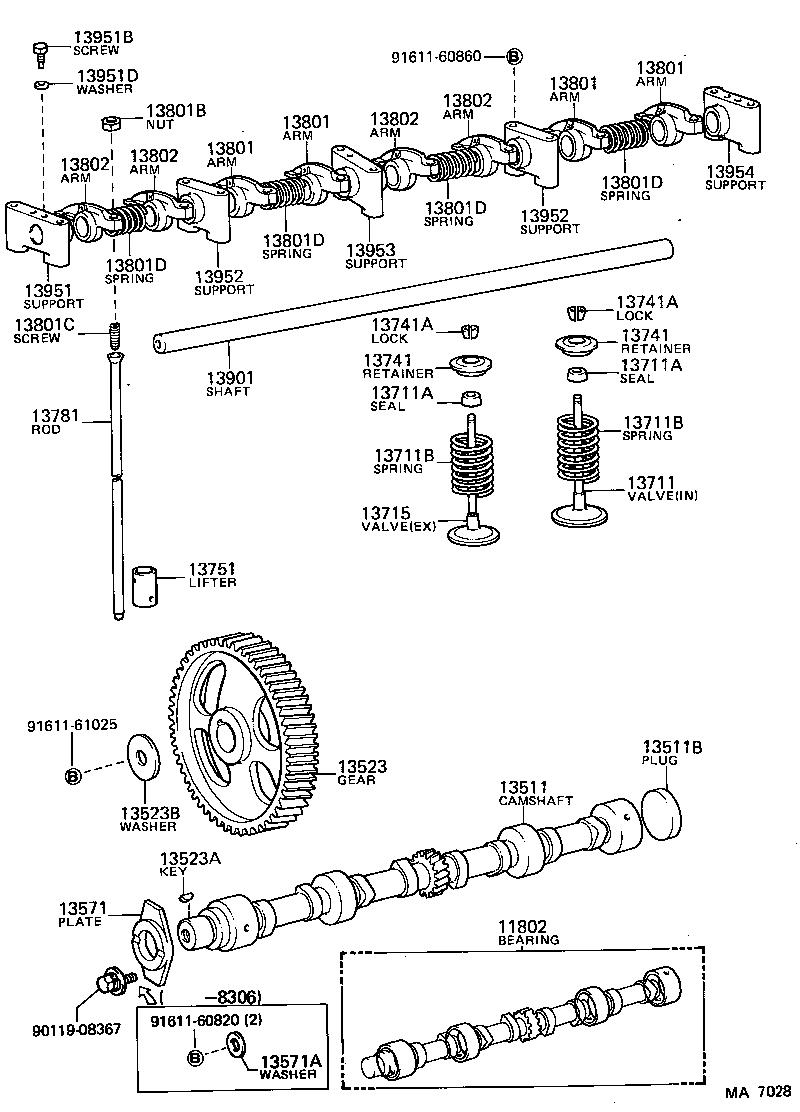

JY30L-QDH (1979)
Toyota Toyoace
(7903-8308)L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11802 - BEARING SET, CAMSHAFT | ||||
| 11802-48010 |
2J..JY30 STD |
1 | ||
| 11804-54010 |
L,2L..LY20,3# U/S 0.25,U/S 0.250 |
1 | ||
| 11803-54010 |
L,2L..LY20,3# U/S 0.125,U/S 0.125 |
1 | ||
| 11802-54010 |
L,2L..LY20,3# STD,STD |
1 | ||
| 11803-48010 |
2J..JY30 U/S 0.125 |
1 | ||
| 11804-48010 |
2J..JY30 U/S 0.250 |
1 | ||
| 13511 - CAMSHAFT | ||||
| 13511-48011 |
2J..JY30 |
1 | ||
| 13511-54010 |
L..LY20,30 |
1 | ||
| 13511 - CAMSHAFT | ||||
| 13511-48011 |
2J..JY30 |
1 | ||
| 13511-54010 |
L..LY20,30 |
1 | ||
| 13523A - KEY, WOODRUFF(FOR TIMING GEAR) | ||||
| 90280-05010 |
2J..JY30 |
1 | ||
| 90280-05008 |
L..LY20,30 |
1 | ||
| 13523B - WASHER, PLATE(FOR TIMING GEAR) | ||||
| 90201-14007 |
L..LY20,30 |
1 | ||
| 90201-10227 |
2J..JY30 |
1 | ||
| 13523P - PULLEY, CAMSHAFT TIMING | ||||
| 13523-54010 |
L..LY20,30 N=42 |
1 | ||
| 13613P - PULLEY, INJECTION PUMP DRIVE | ||||
| 13613-54010 |
L..LY20,30 N=42 |
1 | ||
| 13711 - VALVE, INTAKE | ||||
| 13711-46010 |
2J..JY30 |
4 | ||
| 13711-54010 |
L,2L..LY20,3# |
4 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02036 |
L..LY20,30 |
8 | ||
| 90913-02044 |
2J..JY30 |
8 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02036 |
L..LY20,30 |
8 | ||
| 90913-02044 |
2J..JY30 |
8 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-44002 |
L,2L..LY20,3# WD=4.35,CW=6.25 |
8 | ||
| 90501-45228 |
2J..JY30 WD=4.5,CW=6.5 |
8 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-44002 |
L,2L..LY20,3# WD=4.35,CW=6.25 |
8 | ||
| 90501-45228 |
2J..JY30 WD=4.5,CW=6.5 |
8 | ||
| 13711D - WASHER, PLATE(FOR VALVE SPRING SEAT) | ||||
| 90201-20579 |
L,2L..LY20,3# |
8 | ||
| 13711D - WASHER, PLATE(FOR VALVE SPRING SEAT) | ||||
| 90201-20579 |
L,2L..LY20,3# |
8 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-54010 |
L,2L..LY20,3# |
4 | ||
| 13715-46013 |
2J..JY30 |
4 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-46010 |
2J..JY30 |
8 | ||
| 13741-54010 |
L,2L..LY20,3# |
8 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-46010 |
2J..JY30 |
8 | ||
| 13741-54010 |
L,2L..LY20,3# |
8 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03003 |
2J..JY30 |
16 | ||
| 90913-03016 |
L,2L..LY20,3# |
16 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03003 |
2J..JY30 |
16 | ||
| 90913-03016 |
L,2L..LY20,3# |
16 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13811-48031 |
2J..JY30 |
4 | ||
| 13801-54010 |
L..LY20,30 |
4 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13811-48031 |
2J..JY30 |
4 | ||
| 13801-54010 |
L..LY20,30 |
4 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13811-48031 |
2J..JY30 |
4 | ||
| 13801-54010 |
L..LY20,30 |
4 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13811-48031 |
2J..JY30 |
4 | ||
| 13801-54010 |
L..LY20,30 |
4 | ||
| 13801B - NUT, HEXAGON(FOR VALVE ADJUSTING) | ||||
| 90170-08210 |
L,2L..LY20,3# |
8 | ||
| 90170-10074 |
2J..JY30 |
8 | ||
| 13801B - NUT, HEXAGON(FOR VALVE ADJUSTING) | ||||
| 90170-08210 |
L,2L..LY20,3# |
8 | ||
| 90170-10074 |
2J..JY30 |
8 | ||
| 13801C - SCREW, VALVE ADJUSTING | ||||
| 90913-05007 |
2J..JY30 |
8 | ||
| 90913-05016 |
L..LY20,30 |
8 | ||
| 13801C - SCREW, VALVE ADJUSTING | ||||
| 90913-05007 |
2J..JY30 |
8 | ||
| 90913-05016 |
L..LY20,30 |
8 | ||
| 13801D - SPRING, COMPRESSION(FOR ROCKER ARM) | ||||
| 90501-16163 |
2J..JY30 WD=1.6,CW=7.5 |
4 | ||
| 90501-16163 |
L,2L..LY20,3# WD=1.6,CW=7.5 |
4 | ||
| 13801D - SPRING, COMPRESSION(FOR ROCKER ARM) | ||||
| 90501-16163 |
2J..JY30 WD=1.6,CW=7.5 |
4 | ||
| 90501-16163 |
L,2L..LY20,3# WD=1.6,CW=7.5 |
4 | ||
| 13801D - SPRING, COMPRESSION(FOR ROCKER ARM) | ||||
| 90501-16163 |
2J..JY30 WD=1.6,CW=7.5 |
4 | ||
| 90501-16163 |
L,2L..LY20,3# WD=1.6,CW=7.5 |
4 | ||
| 13801D - SPRING, COMPRESSION(FOR ROCKER ARM) | ||||
| 90501-16163 |
2J..JY30 WD=1.6,CW=7.5 |
4 | ||
| 90501-16163 |
L,2L..LY20,3# WD=1.6,CW=7.5 |
4 | ||
| 13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2 | ||||
| 13812-48011 |
2J..JY30 |
4 | ||
| 13802-54010 |
L..LY20,30 |
4 | ||
| 13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2 | ||||
| 13812-48011 |
2J..JY30 |
4 | ||
| 13802-54010 |
L..LY20,30 |
4 | ||
| 13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2 | ||||
| 13812-48011 |
2J..JY30 |
4 | ||
| 13802-54010 |
L..LY20,30 |
4 | ||
| 13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2 | ||||
| 13812-48011 |
2J..JY30 |
4 | ||
| 13802-54010 |
L..LY20,30 |
4 | ||
| 13901 - SHAFT SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13901-48010 |
2J..JY30 |
1 | ||
| 13901-54010 |
L,2L..LY20,3# |
1 | ||
| 13951 - SUPPORT, VALVE ROCKER, NO.1 | ||||
| 13951-54010 |
L..LY20,30 |
2 | ||
| 13951-48021 |
2J..JY30 |
1 | ||
| 13951 - SUPPORT, VALVE ROCKER, NO.1 | ||||
| 13951-54010 |
L..LY20,30 |
2 | ||
| 13951-48021 |
2J..JY30 |
1 | ||
| 13951A - BOLT(FOR ROCKER SUPPORT SET) | ||||
| 90119-08191 |
L,2L..LY20,3# *8-1.25PX55-30 |
4 | ||
| 13951B - SCREW OR BOLT(FOR VALVE ROCKER SHAFT LOCK) | ||||
| 90109-06014 |
2J..JY30 |
2 | ||
| 91611-60614 |
L..LY20,30 |
2 | ||
| Common parts | ||||
| 90099-05166 | ||||
| 90119-14005 | ||||
| 91511-61435 | ||||
(7903-8308)2J
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11802 - BEARING SET, CAMSHAFT | ||||
| 11802-48010 |
2J..JY30 STD |
1 | ||
| 11804-54010 |
L,2L..LY20,3# U/S 0.25,U/S 0.250 |
1 | ||
| 11803-54010 |
L,2L..LY20,3# U/S 0.125,U/S 0.125 |
1 | ||
| 11802-54010 |
L,2L..LY20,3# STD,STD |
1 | ||
| 11803-48010 |
2J..JY30 U/S 0.125 |
1 | ||
| 11804-48010 |
2J..JY30 U/S 0.250 |
1 | ||
| 13511 - CAMSHAFT | ||||
| 13511-48011 |
2J..JY30 |
1 | ||
| 13511-54010 |
L..LY20,30 |
1 | ||
| 13511B - PLUG, EXPANSION(FOR CAMSHAFT) | ||||
| 90331-51032 |
2J..JY30 OD=51 |
1 | ||
| 13523 - GEAR OR SPROCKET, CAMSHAFT TIMING | ||||
| 13523-46011 |
2J..JY30 N=50 |
1 | ||
| 13523A - KEY, WOODRUFF(FOR TIMING GEAR) | ||||
| 90280-05010 |
2J..JY30 |
1 | ||
| 90280-05008 |
L..LY20,30 |
1 | ||
| 13523B - WASHER, PLATE(FOR TIMING GEAR) | ||||
| 90201-14007 |
L..LY20,30 |
1 | ||
| 90201-10227 |
2J..JY30 |
1 | ||
| 13571 - PLATE, CAMSHAFT THRUST | ||||
| 13571-46010 |
2J..JY30 |
1 | ||
| 13571A - WASHER, PLATE(FOR CAMSHAFT THRUST PLATE) | ||||
| 90201-08085 |
2J..JY30 |
2 | ||
| 13711 - VALVE, INTAKE | ||||
| 13711-46010 |
2J..JY30 |
4 | ||
| 13711-54010 |
L,2L..LY20,3# |
4 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02036 |
L..LY20,30 |
8 | ||
| 90913-02044 |
2J..JY30 |
8 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02036 |
L..LY20,30 |
8 | ||
| 90913-02044 |
2J..JY30 |
8 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-44002 |
L,2L..LY20,3# WD=4.35,CW=6.25 |
8 | ||
| 90501-45228 |
2J..JY30 WD=4.5,CW=6.5 |
8 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-44002 |
L,2L..LY20,3# WD=4.35,CW=6.25 |
8 | ||
| 90501-45228 |
2J..JY30 WD=4.5,CW=6.5 |
8 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-54010 |
L,2L..LY20,3# |
4 | ||
| 13715-46013 |
2J..JY30 |
4 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-46010 |
2J..JY30 |
8 | ||
| 13741-54010 |
L,2L..LY20,3# |
8 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-46010 |
2J..JY30 |
8 | ||
| 13741-54010 |
L,2L..LY20,3# |
8 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03003 |
2J..JY30 |
16 | ||
| 90913-03016 |
L,2L..LY20,3# |
16 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03003 |
2J..JY30 |
16 | ||
| 90913-03016 |
L,2L..LY20,3# |
16 | ||
| 13751 - LIFTER, VALVE | ||||
| 13751-47011 |
2J..JY30 STD |
8 | ||
| 13755-47011 |
2J..JY30 O/S 0.05 |
8 | ||
| 13781 - ROD, VALVE PUSH | ||||
| 13781-47020 |
2J..JY30 |
8 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13811-48031 |
2J..JY30 |
4 | ||
| 13801-54010 |
L..LY20,30 |
4 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13811-48031 |
2J..JY30 |
4 | ||
| 13801-54010 |
L..LY20,30 |
4 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13811-48031 |
2J..JY30 |
4 | ||
| 13801-54010 |
L..LY20,30 |
4 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13811-48031 |
2J..JY30 |
4 | ||
| 13801-54010 |
L..LY20,30 |
4 | ||
| 13801B - NUT, HEXAGON(FOR VALVE ADJUSTING) | ||||
| 90170-08210 |
L,2L..LY20,3# |
8 | ||
| 90170-10074 |
2J..JY30 |
8 | ||
| 13801C - SCREW, VALVE ADJUSTING | ||||
| 90913-05007 |
2J..JY30 |
8 | ||
| 90913-05016 |
L..LY20,30 |
8 | ||
| 13801D - SPRING, COMPRESSION(FOR ROCKER ARM) | ||||
| 90501-16163 |
2J..JY30 WD=1.6,CW=7.5 |
4 | ||
| 90501-16163 |
L,2L..LY20,3# WD=1.6,CW=7.5 |
4 | ||
| 13801D - SPRING, COMPRESSION(FOR ROCKER ARM) | ||||
| 90501-16163 |
2J..JY30 WD=1.6,CW=7.5 |
4 | ||
| 90501-16163 |
L,2L..LY20,3# WD=1.6,CW=7.5 |
4 | ||
| 13801D - SPRING, COMPRESSION(FOR ROCKER ARM) | ||||
| 90501-16163 |
2J..JY30 WD=1.6,CW=7.5 |
4 | ||
| 90501-16163 |
L,2L..LY20,3# WD=1.6,CW=7.5 |
4 | ||
| 13801D - SPRING, COMPRESSION(FOR ROCKER ARM) | ||||
| 90501-16163 |
2J..JY30 WD=1.6,CW=7.5 |
4 | ||
| 90501-16163 |
L,2L..LY20,3# WD=1.6,CW=7.5 |
4 | ||
| 13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2 | ||||
| 13812-48011 |
2J..JY30 |
4 | ||
| 13802-54010 |
L..LY20,30 |
4 | ||
| 13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2 | ||||
| 13812-48011 |
2J..JY30 |
4 | ||
| 13802-54010 |
L..LY20,30 |
4 | ||
| 13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2 | ||||
| 13812-48011 |
2J..JY30 |
4 | ||
| 13802-54010 |
L..LY20,30 |
4 | ||
| 13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2 | ||||
| 13812-48011 |
2J..JY30 |
4 | ||
| 13802-54010 |
L..LY20,30 |
4 | ||
| 13901 - SHAFT SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13901-48010 |
2J..JY30 |
1 | ||
| 13901-54010 |
L,2L..LY20,3# |
1 | ||
| 13951 - SUPPORT, VALVE ROCKER, NO.1 | ||||
| 13951-54010 |
L..LY20,30 |
2 | ||
| 13951-48021 |
2J..JY30 |
1 | ||
| 13951B - SCREW OR BOLT(FOR VALVE ROCKER SHAFT LOCK) | ||||
| 90109-06014 |
2J..JY30 |
2 | ||
| 91611-60614 |
L..LY20,30 |
2 | ||
| 13951D - WASHER, SEAL(FOR HEAD COVER SET) | ||||
| 94512-00600 |
2J..JY30 |
2 | ||
| 13952 - SUPPORT, VALVE ROCKER, NO.2 | ||||
| 13952-48021 |
2J..JY30 |
2 | ||
| 13952 - SUPPORT, VALVE ROCKER, NO.2 | ||||
| 13952-48021 |
2J..JY30 |
2 | ||
| 13953 - SUPPORT, VALVE ROCKER, NO.3 | ||||
| 13953-48011 |
2J..JY30 |
1 | ||
| 13954 - SUPPORT, VALVE ROCKER, NO.4 | ||||
| 13954-48011 |
2J..JY30 |
1 | ||
| Common parts | ||||
| 90119-08367 | ||||
| 91611-60820 | ||||
| 91611-60860 | ||||
| 91611-61025 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
