JY30L-QDH (1979)

Toyota Toyoace

Production Mar 1979 - Jan 1982
Engine 2J
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

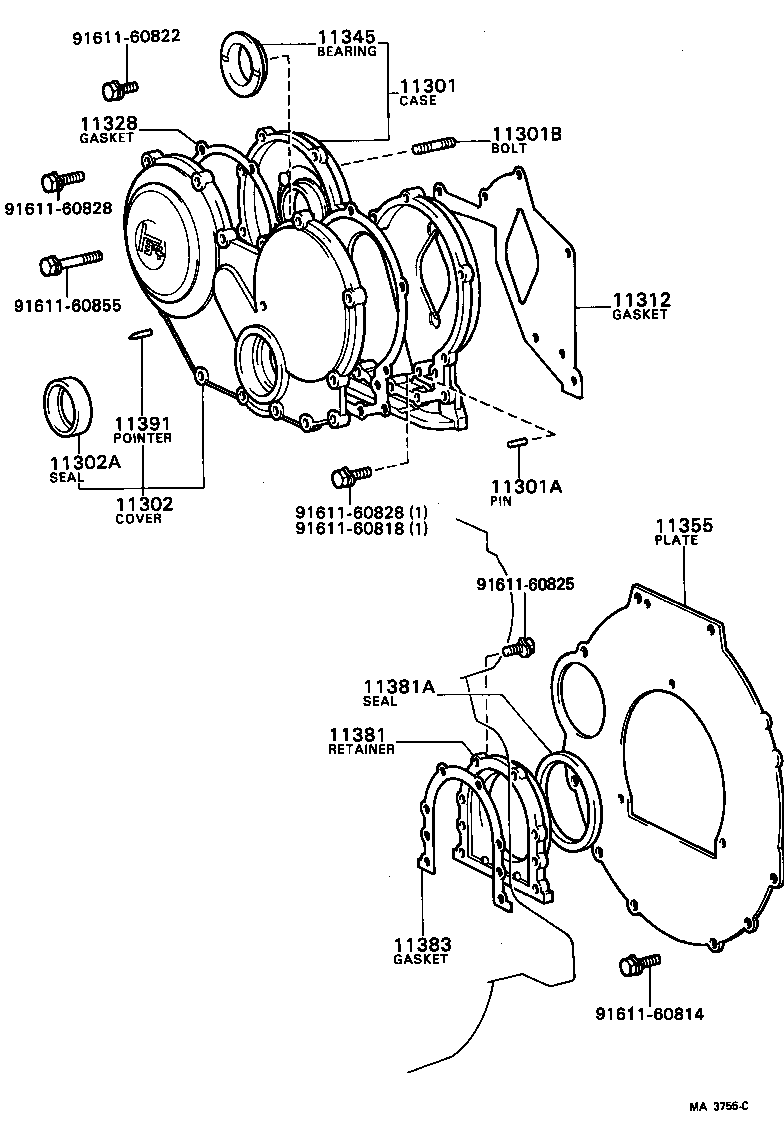

(7903-8308)2J

Click highlighted areas on diagram

diagram 11301 11301A 11301B 11302 11302A 11312 11328 11345 11355 11381 11381A 11383 11391 9161160814 9161160818 9161160822 9161160825 9161160828 9161160828 9161160855
Part # Description Qty Price
11301 - CASE SUB-ASSY, TIMING GEAR
11311-54020

L..LY20,30

 1
11301-48013

2J..JY30

 1
11311-54010

L..LY20,30

 1
11301A - PIN, STRAIGHT(FOR TIMING GEAR CASE)
90250-08120

2J..JY30

L=18,OD=8,L=18,OD=8

 2
11301B - BOLT,STUD(FOR TIMING GEAR CASE)
90116-10134

2J..JY30

L=39,S=10&20

 3
92132-60828

L,2L..LY20,3#

L=28,S=16&16

 2
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11302-48011

2J..JY30

 1
11321-54011

L..LY20,30

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-50049

2J..JY30

TC3 50 70 12

 1
11312 - GASKET, FRONT END PLATE
11312-48011

2J..JY30

 1
11312-54011

L..LY20,30

 1
11312-54010

L..LY20,30

 1
11312-54012

L..LY20,30

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-54010

L,2L..LY20,3#

 1
11328-48010

2J..JY30

 1
11345 - BEARING, INJECTION PUMP GEAR THRUST
11345-48010

2J..JY30

 1
11355 - PLATE, REAR END
11355-48020

2J..JY30

 1
11355-54010

L..LY20,30

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-47012

2J..JY30

 1
11381-54010

L,2L..LY20,3#

 1
11381A - SEAL, ENGINE REAR OIL
90311-85001

L,2L..LY20,3#

HTC 85 105 13

 1
90311-95001

2J..JY30

HTC 95 115 12

 1
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-47010

2J..JY30

 1
11383-54010

L,2L..LY20,3#

 1
11391 - POINTER, TIMING
11391-54010

L,2L..LY20,3#

 1
11391-46010

2J..JY30

 1
Common parts
91611-60814
91611-60818
91611-60822
91611-60825
91611-60828
91611-60855

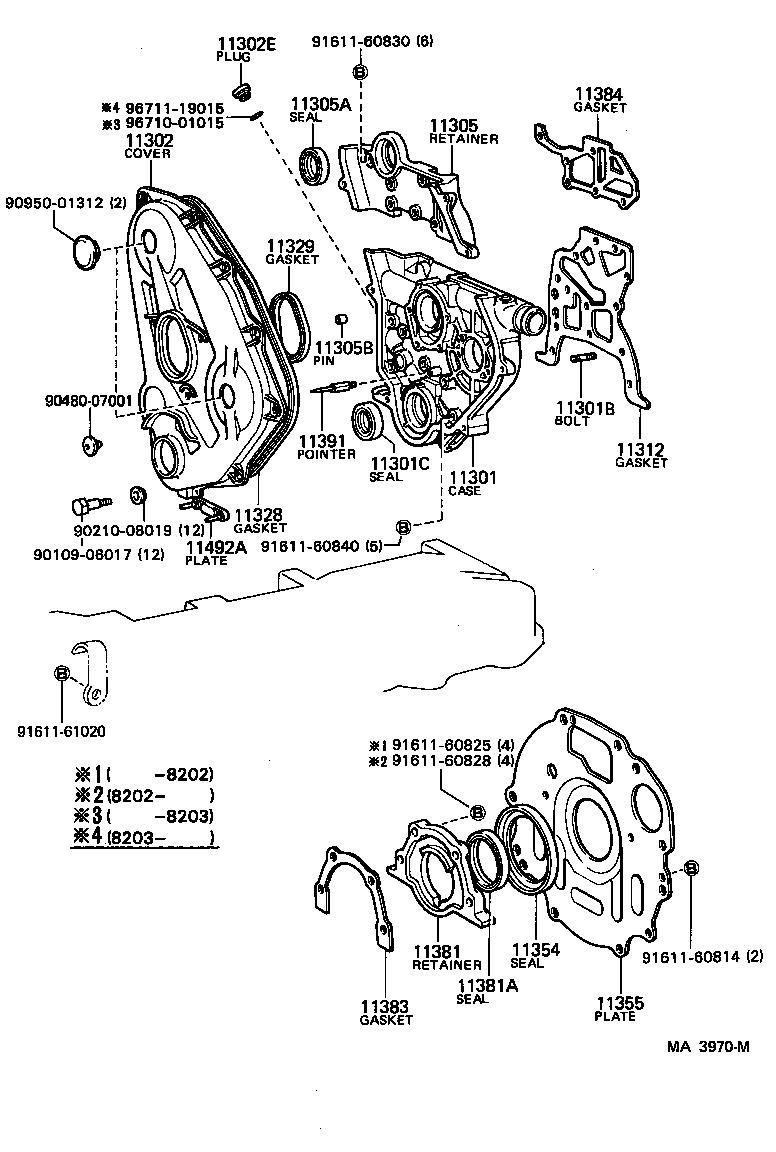

(7903- )L,2L

Click highlighted areas on diagram

diagram 11301 11301B 11301C 11302 11302E 11305 11305A 11305B 11312 11328 11329 11354 11355 11381 11381A 11383 11384 11391 11492A 9010906017 9021008019 9048007001 9095001312 9161160814 9161160825 9161160828 9161160830 9161160840 9161161020 9671001015 9671119015
Part # Description Qty Price
11301 - CASE SUB-ASSY, TIMING GEAR
11311-54020

L..LY20,30

 1
11301-48013

2J..JY30

 1
11311-54010

L..LY20,30

 1
11301B - BOLT,STUD(FOR TIMING GEAR CASE)
90116-10134

2J..JY30

L=39,S=10&20

 3
92132-60828

L,2L..LY20,3#

L=28,S=16&16

 2
11301C - SEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
90311-42001

L..LY20,30

 1
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11302-48011

2J..JY30

 1
11321-54011

L..LY20,30

 1
11302E - PLUG, STRAIGHT(FOR TIMING GEAR COVER)
90341-18004

L,2L..LY20,3#

 1
11305 - RETAINER, OIL SEAL, NO.2
11382-54010

L,2L..LY20,3#

 1
11305A - SEAL, OIL(FOR OIL SEAL RETAINER, NO.2)
90311-42001

L..LY20,30

 1
11305B - PIN, RING(FOR OIL SEAL RETAINER, NO.2)
90253-11001

L,2L..LY20,3#

 2
11312 - GASKET, FRONT END PLATE
11312-48011

2J..JY30

 1
11312-54011

L..LY20,30

 1
11312-54010

L..LY20,30

 1
11312-54012

L..LY20,30

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-54010

L,2L..LY20,3#

 1
11328-48010

2J..JY30

 1
11329 - GASKET, TIMING GEAR REAR COVER
11329-54011

L,2L..LY20,3#

 1
11354 - SEAL, FLYWHEEL HOUSING DUST
11354-54010

L,2L..LY20,3#

 1
11355 - PLATE, REAR END
11355-48020

2J..JY30

 1
11355-54010

L..LY20,30

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-47012

2J..JY30

 1
11381-54010

L,2L..LY20,3#

 1
11381A - SEAL, ENGINE REAR OIL
90311-85001

L,2L..LY20,3#

HTC 85 105 13

 1
90311-95001

2J..JY30

HTC 95 115 12

 1
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-47010

2J..JY30

 1
11383-54010

L,2L..LY20,3#

 1
11384 - GASKET, OIL SEAL RETAINER, NO.2
11384-54010

L,2L..LY20,3#

 1
11391 - POINTER, TIMING
11391-54010

L,2L..LY20,3#

 1
11391-46010

2J..JY30

 1
11492A - PLATE, WATER SEAL
11492-54010

L,2L..LY20,3#

 1
Common parts
90109-06017
90210-08019
90480-07001
90950-01312
91611-60814
91611-60825
91611-60828
91611-60830
91611-60840
91611-61020
96710-01015
96711-19015
