JY30L-QDBH3 (1979)
Toyota Toyoace

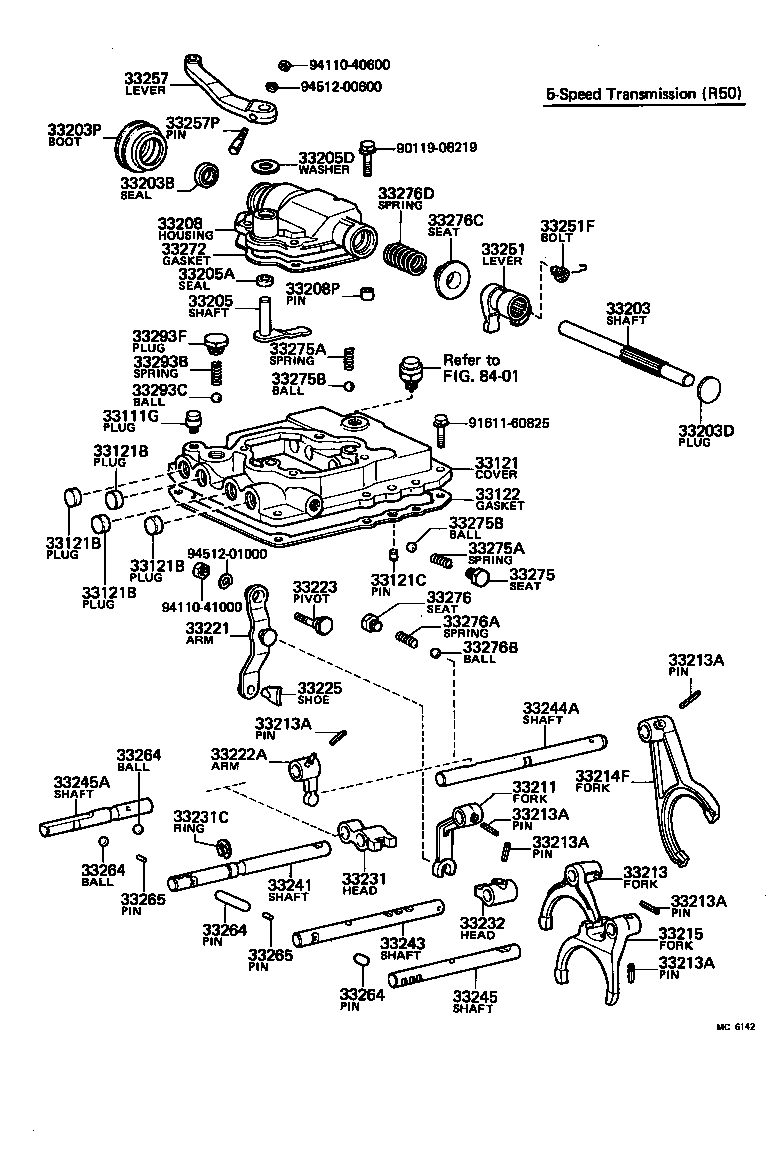

(7903- )RY20,3#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33111G - PLUG, BREATHER(FOR MANUAL TRANSMISSION) | ||||
| 90930-03065 |
JY30 |
1 | ||
| 90930-03075 |
JY30,LY20,30,RY20,3# |
1 | ||
| 90930-03072 |
LY20,30,RY20,3# |
1 | ||
| 33121 - COVER, MANUAL TRANSMISSION CASE | ||||
| 33121-25030 |
LY20,3#,RY20,3# |
1 | ||
| 33121-36080 |
JY30 |
1 | ||
| 33121B - PLUG, EXPANSION OR TIGHT(FOR TRANSMISSION CASE COVER) | ||||
| 90331-16050 |
JY30 |
6 | ||
| 90331-19003 |
LY20,3#,RY20,3# |
4 | ||
| 33121B - PLUG, EXPANSION OR TIGHT(FOR TRANSMISSION CASE COVER) | ||||
| 90331-16050 |
JY30 |
6 | ||
| 90331-19003 |
LY20,3#,RY20,3# |
4 | ||
| 33121B - PLUG, EXPANSION OR TIGHT(FOR TRANSMISSION CASE COVER) | ||||
| 90331-16050 |
JY30 |
6 | ||
| 90331-19003 |
LY20,3#,RY20,3# |
4 | ||
| 33121B - PLUG, EXPANSION OR TIGHT(FOR TRANSMISSION CASE COVER) | ||||
| 90331-16050 |
JY30 |
6 | ||
| 90331-19003 |
LY20,3#,RY20,3# |
4 | ||
| 33121C - PIN(FOR TRANSMISSION CASE COVER) | ||||
| 90250-10214 |
JY30,LY20,3#,RY20,3# L=14,OD=10 |
2 | ||
| 33122 - GASKET, MANUAL TRANSMISSION CASE COVER | ||||
| 33122-36020 |
JY30 |
1 | ||
| 33122-25010 |
LY20,3#,RY20,3# |
1 | ||
| 33203 - SHAFT SUB-ASSY, SHIFT LEVER, NO.1 | ||||
| 33261-36040 |
JY30 |
1 | ||
| 33261-25022 |
RY20,3#..LHD |
1 | ||
| 33203B - SEAL, OIL(FOR SHIFT LEVER SHAFT) | ||||
| 90312-17001 |
JY30,LY20,3#;RY20,3#..RHD |
1 | ||
| 90312-20016 |
RY20,3#..LHD |
1 | ||
| 33203D - PLUG, TIGHT(FOR SHIFT LEVER SHAFT) | ||||
| 90331-20001 |
JY30 |
1 | ||
| 96412-12000 |
RY20,3#..LHD |
1 | ||
| 90331-20044 |
JY30 |
1 | ||
| 33203P - BOOT, DUST(FOR SHIFT LEVER SHAFT) | ||||
| 33531-25010 |
LY20,3#,RY20,3# |
1 | ||
| 33531-36020 |
JY30 |
1 | ||
| 33205 - SHAFT SUB-ASSY, SELECT LEVER | ||||
| 33205-36050 |
JY30 |
1 | ||
| 33262-25020 |
RY20,3#..LHD |
1 | ||
| 33205A - SEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT) | ||||
| 90313-13001 |
JY30,LY20,3#,RY20,3# |
1 | ||
| 33205D - WASHER(FOR OUTER LEVER OIL SETTING) | ||||
| 90201-13228 |
LY20,3#,RY20,3# |
1 | ||
| 90201-13151 |
JY30 |
1 | ||
| 94612-11300 |
JY30 |
1 | ||
| 33208 - HOUSING SUB-ASSY, SHIFT LEVER SHAFT | ||||
| 33271-36070 |
JY30 |
1 | ||
| 33271-25020 |
RY20,3#..LHD |
1 | ||
| 33208P - PIN, RING(FOR SHIFT LEVER SHAFT HOUSING) | ||||
| 90253-11001 |
LY20,3#,RY20,3# |
2 | ||
| 33211 - FORK, REVERSE SHIFT | ||||
| 33211-36020 |
JY30 |
1 | ||
| 33211-25010 |
LY20,3#,RY20,3# |
1 | ||
| 33213 - FORK, 1ST & 2ND SHIFT | ||||
| 33212-36011 |
JY30 |
1 | ||
| 33213-35011 |
LY20,3#,RY20,3# |
1 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05016 |
JY30,LY20,3#,RY20,3# L=25.5 |
5 | ||
| 90254-05001 |
LY20,3# L=22 |
1 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05016 |
JY30,LY20,3#,RY20,3# L=25.5 |
5 | ||
| 90254-05001 |
LY20,3# L=22 |
1 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05016 |
JY30,LY20,3#,RY20,3# L=25.5 |
5 | ||
| 90254-05001 |
LY20,3# L=22 |
1 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05016 |
JY30,LY20,3#,RY20,3# L=25.5 |
5 | ||
| 90254-05001 |
LY20,3# L=22 |
1 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05016 |
JY30,LY20,3#,RY20,3# L=25.5 |
5 | ||
| 90254-05001 |
LY20,3# L=22 |
1 | ||
| 33215 - FORK, 3RD & 4TH SHIFT | ||||
| 33213-25010 |
LY20,3#,RY20,3# |
1 | ||
| 33213-36020 |
JY30 |
1 | ||
| 33221 - ARM, REVERSE SHIFT | ||||
| 33201-36040 |
JY30 |
1 | ||
| 33201-25010 |
LY20,3#,RY20,3# |
1 | ||
| 33223 - PIVOT, SHIFT ARM | ||||
| 33223-36010 |
JY30 |
1 | ||
| 33223-35011 |
LY20,3#,RY20,3# |
1 | ||
| 33223-36020 |
JY30 |
1 | ||
| 33225 - SHOE, SHIFT ARM | ||||
| 33225-36010 |
LY20,3#,RY20,3# |
1 | ||
| 33225-36030 |
JY30 |
1 | ||
| 33231 - HEAD, REVERSE SHIFT | ||||
| 33202-36030 |
JY30 |
1 | ||
| 33231-25010 |
RY20,3# |
1 | ||
| 33232-25011 |
LY20,3# |
1 | ||
| 33232 - HEAD, 1ST & 2ND SHIFT | ||||
| 33232-36011 |
JY30..LHD |
1 | ||
| 33231-25010 |
LY20,3#,RY20,3# |
1 | ||
| 33241 - SHAFT, REVERSE SHIFT FORK | ||||
| 33241-36021 |
JY30 |
1 | ||
| 33241-25021 |
LY20,3# |
1 | ||
| 33241-25010 |
RY20,3# |
1 | ||
| 33243 - SHAFT, 1ST & 2ND SHIFT FORK | ||||
| 33242-25020 |
RY20,3#..LHD |
1 | ||
| 33242-36040 |
JY30 |
1 | ||
| 33245 - SHAFT, 3RD & 4TH SHIFT FORK | ||||
| 33243-36020 |
JY30 |
1 | ||
| 33243-25010 |
LY20,3#,RY20,3# |
1 | ||
| 33251 - LEVER, SHIFT & SELECT | ||||
| 33251-25020 |
RY20,3#..LHD |
1 | ||
| 33251-25030 |
JY30..LHD |
1 | ||
| 33251F - PIN OR BOLT (FOR SHIFT & SELECT LEVER) | ||||
| 33218-35010 |
JY30,LY20,3#,RY20,3# |
1 | ||
| 33257 - LEVER, SELECT OUTER | ||||
| 33257-25020 |
LY20,3#,RY20,3# |
1 | ||
| 33257-36050 |
JY30 |
1 | ||
| 33257P - PIN, SELECT OUTER LEVER LOCK | ||||
| 33282-35010 |
JY30,LY20,3#,RY20,3# |
1 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 90361-10009 |
LY20,3#,RY20,3# L=38.9,OD=9.5 |
1 | ||
| 90360-10003 |
LY20,3# OD=9.52,STEEL,OD=9.5 |
2 | ||
| 90361-10008 |
JY30,LY20,3#,RY20,3# L=15,OD=9.5 |
4 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 90361-10009 |
LY20,3#,RY20,3# L=38.9,OD=9.5 |
1 | ||
| 90360-10003 |
LY20,3# OD=9.52,STEEL,OD=9.5 |
2 | ||
| 90361-10008 |
JY30,LY20,3#,RY20,3# L=15,OD=9.5 |
4 | ||
| 33265 - PIN, SHIFT INTER LOCK, NO.2 | ||||
| 90250-05034 |
JY30,LY20,30,RY20,3# |
2 | ||
| 90361-05001 |
JY30 L=13 |
2 | ||
| 33272 - GASKET, SHIFT LEVER SHAFT HOUSING | ||||
| 33272-36020 |
JY30 |
1 | ||
| 33272-25010 |
LY20,3#,RY20,3# |
1 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 90341-12055 |
LY20,3#,RY20,3# |
1 | ||
| 90250-10215 |
JY30 L=9,OD=9 |
1 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14237 |
JY30 L=16.1 |
4 | ||
| 90501-14029 |
LY20,3#,RY20,3# |
2 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14237 |
JY30 L=16.1 |
4 | ||
| 90501-14029 |
LY20,3#,RY20,3# |
2 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
JY30,LY20,3#,RY20,3# |
2 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
JY30,LY20,3#,RY20,3# |
2 | ||
| 33276C - SEAT, SELECT SPRING | ||||
| 33276-25011 |
LY20,3#,RY20,3# |
1 | ||
| 33276D - SPRING, COMPRESSION (FOR SELECT LEVER SHAFT) | ||||
| 90501-26012 |
LY20,3#,RY20,3# |
1 | ||
| 33293B - SPRING, COMPRESSION (FOR REVERSE RESTRICT BALL) | ||||
| 90501-14029 |
LY20,3#,RY20,3# |
1 | ||
| 33293C - BALL (FOR REVERSE RESTRICT) | ||||
| 90360-10003 |
LY20,3#,RY20,3# |
1 | ||
| 33293F - PLUG (FOR REVERSE RESTRICT BALL HOLDER) | ||||
| 90341-18005 |
LY20,3#,RY20,3# |
1 | ||
| Common parts | ||||
| 90119-08219 | ||||
| 91611-60825 | ||||
| 94110-40600 | ||||
| 94110-41000 | ||||
| 94512-00600 | ||||
| 94512-01000 | ||||
| Linked diagrams | ||||
| 8401 | ||||

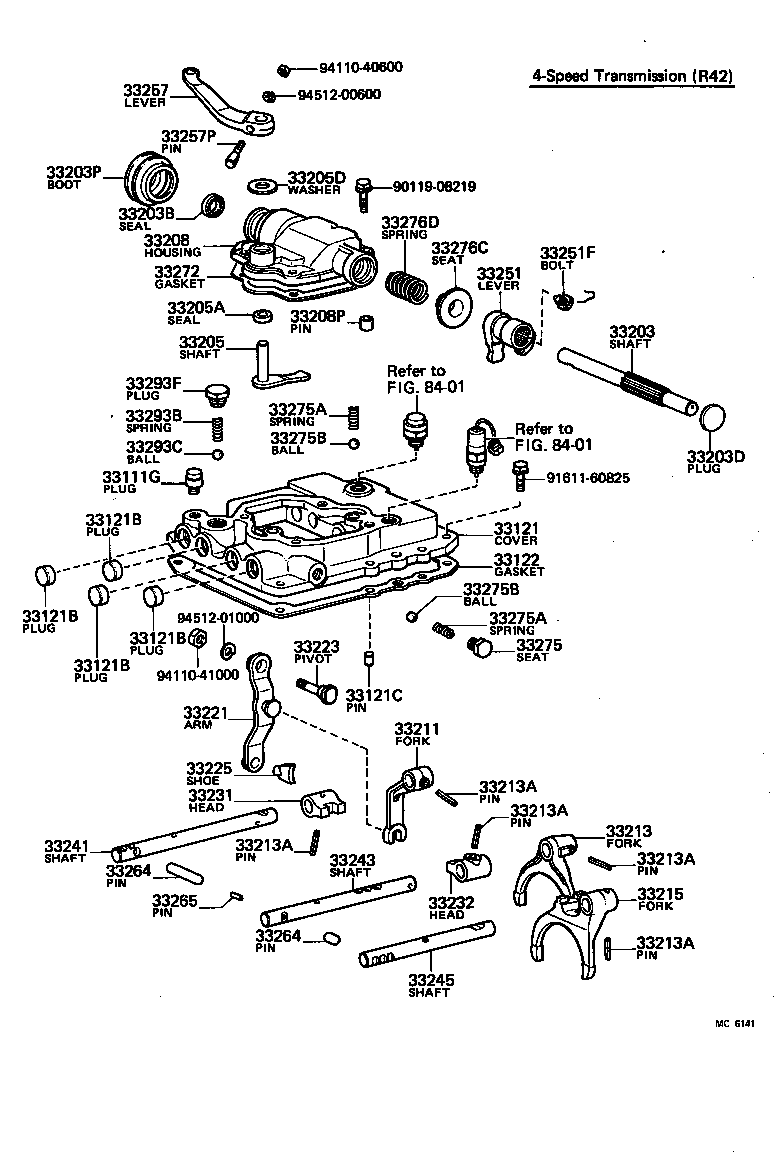

(7903- )LY20,3#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33111G - PLUG, BREATHER(FOR MANUAL TRANSMISSION) | ||||
| 90930-03065 |
JY30 |
1 | ||
| 90930-03075 |
JY30,LY20,30,RY20,3# |
1 | ||
| 90930-03072 |
LY20,30,RY20,3# |
1 | ||
| 33121 - COVER, MANUAL TRANSMISSION CASE | ||||
| 33121-25030 |
LY20,3#,RY20,3# |
1 | ||
| 33121-36080 |
JY30 |
1 | ||
| 33121B - PLUG, EXPANSION OR TIGHT(FOR TRANSMISSION CASE COVER) | ||||
| 90331-16050 |
JY30 |
6 | ||
| 90331-19003 |
LY20,3#,RY20,3# |
4 | ||
| 33121B - PLUG, EXPANSION OR TIGHT(FOR TRANSMISSION CASE COVER) | ||||
| 90331-16050 |
JY30 |
6 | ||
| 90331-19003 |
LY20,3#,RY20,3# |
4 | ||
| 33121B - PLUG, EXPANSION OR TIGHT(FOR TRANSMISSION CASE COVER) | ||||
| 90331-16050 |
JY30 |
6 | ||
| 90331-19003 |
LY20,3#,RY20,3# |
4 | ||
| 33121B - PLUG, EXPANSION OR TIGHT(FOR TRANSMISSION CASE COVER) | ||||
| 90331-16050 |
JY30 |
6 | ||
| 90331-19003 |
LY20,3#,RY20,3# |
4 | ||
| 33121C - PIN(FOR TRANSMISSION CASE COVER) | ||||
| 90250-10214 |
JY30,LY20,3#,RY20,3# L=14,OD=10 |
2 | ||
| 33122 - GASKET, MANUAL TRANSMISSION CASE COVER | ||||
| 33122-36020 |
JY30 |
1 | ||
| 33122-25010 |
LY20,3#,RY20,3# |
1 | ||
| 33203 - SHAFT SUB-ASSY, SHIFT LEVER, NO.1 | ||||
| 33261-36040 |
JY30 |
1 | ||
| 33261-25022 |
RY20,3#..LHD |
1 | ||
| 33203B - SEAL, OIL(FOR SHIFT LEVER SHAFT) | ||||
| 90312-17001 |
JY30,LY20,3#;RY20,3#..RHD |
1 | ||
| 90312-20016 |
RY20,3#..LHD |
1 | ||
| 33203D - PLUG, TIGHT(FOR SHIFT LEVER SHAFT) | ||||
| 90331-20001 |
JY30 |
1 | ||
| 96412-12000 |
RY20,3#..LHD |
1 | ||
| 90331-20044 |
JY30 |
1 | ||
| 33203P - BOOT, DUST(FOR SHIFT LEVER SHAFT) | ||||
| 33531-25010 |
LY20,3#,RY20,3# |
1 | ||
| 33531-36020 |
JY30 |
1 | ||
| 33205 - SHAFT SUB-ASSY, SELECT LEVER | ||||
| 33205-36050 |
JY30 |
1 | ||
| 33262-25020 |
RY20,3#..LHD |
1 | ||
| 33205A - SEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT) | ||||
| 90313-13001 |
JY30,LY20,3#,RY20,3# |
1 | ||
| 33205D - WASHER(FOR OUTER LEVER OIL SETTING) | ||||
| 90201-13228 |
LY20,3#,RY20,3# |
1 | ||
| 90201-13151 |
JY30 |
1 | ||
| 94612-11300 |
JY30 |
1 | ||
| 33208 - HOUSING SUB-ASSY, SHIFT LEVER SHAFT | ||||
| 33271-36070 |
JY30 |
1 | ||
| 33271-25020 |
RY20,3#..LHD |
1 | ||
| 33208P - PIN, RING(FOR SHIFT LEVER SHAFT HOUSING) | ||||
| 90253-11001 |
LY20,3#,RY20,3# |
2 | ||
| 33211 - FORK, REVERSE SHIFT | ||||
| 33211-36020 |
JY30 |
1 | ||
| 33211-25010 |
LY20,3#,RY20,3# |
1 | ||
| 33213 - FORK, 1ST & 2ND SHIFT | ||||
| 33212-36011 |
JY30 |
1 | ||
| 33213-35011 |
LY20,3#,RY20,3# |
1 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05016 |
JY30,LY20,3#,RY20,3# L=25.5 |
5 | ||
| 90254-05001 |
LY20,3# L=22 |
1 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05016 |
JY30,LY20,3#,RY20,3# L=25.5 |
5 | ||
| 90254-05001 |
LY20,3# L=22 |
1 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05016 |
JY30,LY20,3#,RY20,3# L=25.5 |
5 | ||
| 90254-05001 |
LY20,3# L=22 |
1 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05016 |
JY30,LY20,3#,RY20,3# L=25.5 |
5 | ||
| 90254-05001 |
LY20,3# L=22 |
1 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05016 |
JY30,LY20,3#,RY20,3# L=25.5 |
5 | ||
| 90254-05001 |
LY20,3# L=22 |
1 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05016 |
JY30,LY20,3#,RY20,3# L=25.5 |
5 | ||
| 90254-05001 |
LY20,3# L=22 |
1 | ||
| 33214F - FORK, 5TH SHIFT | ||||
| 33214-25010 |
LY20,3# |
1 | ||
| 33214-36030 |
JY30 |
1 | ||
| 33215 - FORK, 3RD & 4TH SHIFT | ||||
| 33213-25010 |
LY20,3#,RY20,3# |
1 | ||
| 33213-36020 |
JY30 |
1 | ||
| 33221 - ARM, REVERSE SHIFT | ||||
| 33201-36040 |
JY30 |
1 | ||
| 33201-25010 |
LY20,3#,RY20,3# |
1 | ||
| 33222A - ARM, 5TH SHIFT | ||||
| 33222-25011 |
LY20,3# |
1 | ||
| 33222-36020 |
JY30 |
1 | ||
| 33223 - PIVOT, SHIFT ARM | ||||
| 33223-36010 |
JY30 |
1 | ||
| 33223-35011 |
LY20,3#,RY20,3# |
1 | ||
| 33223-36020 |
JY30 |
1 | ||
| 33225 - SHOE, SHIFT ARM | ||||
| 33225-36010 |
LY20,3#,RY20,3# |
1 | ||
| 33225-36030 |
JY30 |
1 | ||
| 33231 - HEAD, REVERSE SHIFT | ||||
| 33202-36030 |
JY30 |
1 | ||
| 33231-25010 |
RY20,3# |
1 | ||
| 33232-25011 |
LY20,3# |
1 | ||
| 33231C - RING(FOR REVERSE SHIFT HEAD) | ||||
| 96160-01200 |
LY20,3# |
1 | ||
| 90523-15025 |
JY30 |
2 | ||
| 33232 - HEAD, 1ST & 2ND SHIFT | ||||
| 33232-36011 |
JY30..LHD |
1 | ||
| 33231-25010 |
LY20,3#,RY20,3# |
1 | ||
| 33241 - SHAFT, REVERSE SHIFT FORK | ||||
| 33241-36021 |
JY30 |
1 | ||
| 33241-25021 |
LY20,3# |
1 | ||
| 33241-25010 |
RY20,3# |
1 | ||
| 33243 - SHAFT, 1ST & 2ND SHIFT FORK | ||||
| 33242-25020 |
RY20,3#..LHD |
1 | ||
| 33242-36040 |
JY30 |
1 | ||
| 33244A - SHAFT, 5TH SHIFT FORK | ||||
| 33244-25011 |
LY20,3# |
1 | ||
| 33244-36010 |
JY30 |
1 | ||
| 33245 - SHAFT, 3RD & 4TH SHIFT FORK | ||||
| 33243-36020 |
JY30 |
1 | ||
| 33243-25010 |
LY20,3#,RY20,3# |
1 | ||
| 33245A - SHAFT, 5TH SHIFT ARM | ||||
| 33245-36021 |
JY30 |
1 | ||
| 33245-25021 |
LY20,3# |
1 | ||
| 33251 - LEVER, SHIFT & SELECT | ||||
| 33251-25020 |
RY20,3#..LHD |
1 | ||
| 33251-25030 |
JY30..LHD |
1 | ||
| 33251F - PIN OR BOLT (FOR SHIFT & SELECT LEVER) | ||||
| 33218-35010 |
JY30,LY20,3#,RY20,3# |
1 | ||
| 33257 - LEVER, SELECT OUTER | ||||
| 33257-25020 |
LY20,3#,RY20,3# |
1 | ||
| 33257-36050 |
JY30 |
1 | ||
| 33257P - PIN, SELECT OUTER LEVER LOCK | ||||
| 33282-35010 |
JY30,LY20,3#,RY20,3# |
1 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 90361-10009 |
LY20,3#,RY20,3# L=38.9,OD=9.5 |
1 | ||
| 90360-10003 |
LY20,3# OD=9.52,STEEL,OD=9.5 |
2 | ||
| 90361-10008 |
JY30,LY20,3#,RY20,3# L=15,OD=9.5 |
4 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 90361-10009 |
LY20,3#,RY20,3# L=38.9,OD=9.5 |
1 | ||
| 90360-10003 |
LY20,3# OD=9.52,STEEL,OD=9.5 |
2 | ||
| 90361-10008 |
JY30,LY20,3#,RY20,3# L=15,OD=9.5 |
4 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 90361-10009 |
LY20,3#,RY20,3# L=38.9,OD=9.5 |
1 | ||
| 90360-10003 |
LY20,3# OD=9.52,STEEL,OD=9.5 |
2 | ||
| 90361-10008 |
JY30,LY20,3#,RY20,3# L=15,OD=9.5 |
4 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 90361-10009 |
LY20,3#,RY20,3# L=38.9,OD=9.5 |
1 | ||
| 90360-10003 |
LY20,3# OD=9.52,STEEL,OD=9.5 |
2 | ||
| 90361-10008 |
JY30,LY20,3#,RY20,3# L=15,OD=9.5 |
4 | ||
| 33265 - PIN, SHIFT INTER LOCK, NO.2 | ||||
| 90250-05034 |
JY30,LY20,30,RY20,3# |
2 | ||
| 90361-05001 |
JY30 L=13 |
2 | ||
| 33265 - PIN, SHIFT INTER LOCK, NO.2 | ||||
| 90250-05034 |
JY30,LY20,30,RY20,3# |
2 | ||
| 90361-05001 |
JY30 L=13 |
2 | ||
| 33272 - GASKET, SHIFT LEVER SHAFT HOUSING | ||||
| 33272-36020 |
JY30 |
1 | ||
| 33272-25010 |
LY20,3#,RY20,3# |
1 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 90341-12055 |
LY20,3#,RY20,3# |
1 | ||
| 90250-10215 |
JY30 L=9,OD=9 |
1 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14237 |
JY30 L=16.1 |
4 | ||
| 90501-14029 |
LY20,3#,RY20,3# |
2 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14237 |
JY30 L=16.1 |
4 | ||
| 90501-14029 |
LY20,3#,RY20,3# |
2 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
JY30,LY20,3#,RY20,3# |
2 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
JY30,LY20,3#,RY20,3# |
2 | ||
| 33276 - SEAT, SHIFT DETENT BALL SPRING, NO.2 | ||||
| 90341-12055 |
LY20,3# |
1 | ||
| 33276A - SPRING, COMPRESSION, NO.2 (FOR SHIFT DETENT BALL) | ||||
| 90501-14029 |
LY20,3# |
1 | ||
| 33276B - BALL, SHIFT DETENT, NO.2 | ||||
| 90360-10003 |
LY20,3# |
1 | ||
| 33276C - SEAT, SELECT SPRING | ||||
| 33276-25011 |
LY20,3#,RY20,3# |
1 | ||
| 33276D - SPRING, COMPRESSION (FOR SELECT LEVER SHAFT) | ||||
| 90501-26012 |
LY20,3#,RY20,3# |
1 | ||
| 33293B - SPRING, COMPRESSION (FOR REVERSE RESTRICT BALL) | ||||
| 90501-14029 |
LY20,3#,RY20,3# |
1 | ||
| 33293C - BALL (FOR REVERSE RESTRICT) | ||||
| 90360-10003 |
LY20,3#,RY20,3# |
1 | ||
| 33293F - PLUG (FOR REVERSE RESTRICT BALL HOLDER) | ||||
| 90341-18005 |
LY20,3#,RY20,3# |
1 | ||
| Common parts | ||||
| 90119-08219 | ||||
| 91611-60825 | ||||
| 94110-40600 | ||||
| 94110-41000 | ||||
| 94512-00600 | ||||
| 94512-01000 | ||||
| Linked diagrams | ||||
| 8401 | ||||
(7903-8308)JY30
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33111G - PLUG, BREATHER(FOR MANUAL TRANSMISSION) | ||||
| 90930-03065 |
JY30 |
1 | ||
| 90930-03075 |
JY30,LY20,30,RY20,3# |
1 | ||
| 90930-03072 |
LY20,30,RY20,3# |
1 | ||
| 33121 - COVER, MANUAL TRANSMISSION CASE | ||||
| 33121-25030 |
LY20,3#,RY20,3# |
1 | ||
| 33121-36080 |
JY30 |
1 | ||
| 33121B - PLUG, EXPANSION OR TIGHT(FOR TRANSMISSION CASE COVER) | ||||
| 90331-16050 |
JY30 |
6 | ||
| 90331-19003 |
LY20,3#,RY20,3# |
4 | ||
| 33121C - PIN(FOR TRANSMISSION CASE COVER) | ||||
| 90250-10214 |
JY30,LY20,3#,RY20,3# L=14,OD=10 |
2 | ||
| 33122 - GASKET, MANUAL TRANSMISSION CASE COVER | ||||
| 33122-36020 |
JY30 |
1 | ||
| 33122-25010 |
LY20,3#,RY20,3# |
1 | ||
| 33203 - SHAFT SUB-ASSY, SHIFT LEVER, NO.1 | ||||
| 33261-36040 |
JY30 |
1 | ||
| 33261-25022 |
RY20,3#..LHD |
1 | ||
| 33203B - SEAL, OIL(FOR SHIFT LEVER SHAFT) | ||||
| 90312-17001 |
JY30,LY20,3#;RY20,3#..RHD |
1 | ||
| 90312-20016 |
RY20,3#..LHD |
1 | ||
| 33203D - PLUG, TIGHT(FOR SHIFT LEVER SHAFT) | ||||
| 90331-20001 |
JY30 |
1 | ||
| 96412-12000 |
RY20,3#..LHD |
1 | ||
| 90331-20044 |
JY30 |
1 | ||
| 33203P - BOOT, DUST(FOR SHIFT LEVER SHAFT) | ||||
| 33531-25010 |
LY20,3#,RY20,3# |
1 | ||
| 33531-36020 |
JY30 |
1 | ||
| 33205 - SHAFT SUB-ASSY, SELECT LEVER | ||||
| 33205-36050 |
JY30 |
1 | ||
| 33262-25020 |
RY20,3#..LHD |
1 | ||
| 33205A - SEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT) | ||||
| 90313-13001 |
JY30,LY20,3#,RY20,3# |
1 | ||
| 33205D - WASHER(FOR OUTER LEVER OIL SETTING) | ||||
| 90201-13228 |
LY20,3#,RY20,3# |
1 | ||
| 90201-13151 |
JY30 |
1 | ||
| 94612-11300 |
JY30 |
1 | ||
| 33208 - HOUSING SUB-ASSY, SHIFT LEVER SHAFT | ||||
| 33271-36070 |
JY30 |
1 | ||
| 33271-25020 |
RY20,3#..LHD |
1 | ||
| 33211 - FORK, REVERSE SHIFT | ||||
| 33211-36020 |
JY30 |
1 | ||
| 33211-25010 |
LY20,3#,RY20,3# |
1 | ||
| 33213 - FORK, 1ST & 2ND SHIFT | ||||
| 33212-36011 |
JY30 |
1 | ||
| 33213-35011 |
LY20,3#,RY20,3# |
1 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05016 |
JY30,LY20,3#,RY20,3# L=25.5 |
5 | ||
| 90254-05001 |
LY20,3# L=22 |
1 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05016 |
JY30,LY20,3#,RY20,3# L=25.5 |
5 | ||
| 90254-05001 |
LY20,3# L=22 |
1 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05016 |
JY30,LY20,3#,RY20,3# L=25.5 |
5 | ||
| 90254-05001 |
LY20,3# L=22 |
1 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05016 |
JY30,LY20,3#,RY20,3# L=25.5 |
5 | ||
| 90254-05001 |
LY20,3# L=22 |
1 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05016 |
JY30,LY20,3#,RY20,3# L=25.5 |
5 | ||
| 90254-05001 |
LY20,3# L=22 |
1 | ||
| 33214F - FORK, 5TH SHIFT | ||||
| 33214-25010 |
LY20,3# |
1 | ||
| 33214-36030 |
JY30 |
1 | ||
| 33215 - FORK, 3RD & 4TH SHIFT | ||||
| 33213-25010 |
LY20,3#,RY20,3# |
1 | ||
| 33213-36020 |
JY30 |
1 | ||
| 33221 - ARM, REVERSE SHIFT | ||||
| 33201-36040 |
JY30 |
1 | ||
| 33201-25010 |
LY20,3#,RY20,3# |
1 | ||
| 33222A - ARM, 5TH SHIFT | ||||
| 33222-25011 |
LY20,3# |
1 | ||
| 33222-36020 |
JY30 |
1 | ||
| 33223 - PIVOT, SHIFT ARM | ||||
| 33223-36010 |
JY30 |
1 | ||
| 33223-35011 |
LY20,3#,RY20,3# |
1 | ||
| 33223-36020 |
JY30 |
1 | ||
| 33223A - WASHER(FOR SHIFT ARM PIVOT) | ||||
| 90201-10045 |
JY30 |
1 | ||
| 33223B - RING, O(FOR SHIFT ARM PIVOT) | ||||
| 96711-19010 |
JY30 |
1 | ||
| 33225 - SHOE, SHIFT ARM | ||||
| 33225-36010 |
LY20,3#,RY20,3# |
1 | ||
| 33225-36030 |
JY30 |
1 | ||
| 33225A - RING, SHAFT SNAP(FOR SHIFT ARM SHOE) | ||||
| 90520-08098 |
JY30 |
1 | ||
| 33226 - PLUNGER, REVERSE SHIFT RETURN | ||||
| 33226-36020 |
JY30 |
1 | ||
| 33226A - SPRING, COMPRESSION(FOR REVERSE SHIFT RETURN PLUNGER) | ||||
| 90501-16029 |
JY30 |
1 | ||
| 33226B - WASHER, TYPE C(FOR REVERSE SHIFT RETURN PLUNGER) | ||||
| 90213-06001 |
JY30 |
1 | ||
| 33229 - PIVOT, 5TH SHIFT ARM | ||||
| 33229-36020 |
JY30 |
1 | ||
| 33231 - HEAD, REVERSE SHIFT | ||||
| 33202-36030 |
JY30 |
1 | ||
| 33231-25010 |
RY20,3# |
1 | ||
| 33232-25011 |
LY20,3# |
1 | ||
| 33231A - SPRING, REVERSE SHIFT RESTRICT | ||||
| 90501-12019 |
JY30 |
1 | ||
| 33231B - BALL, REVERSE SHIFT RESTRICT | ||||
| 90360-06004 |
JY30 |
1 | ||
| 33231C - RING(FOR REVERSE SHIFT HEAD) | ||||
| 96160-01200 |
LY20,3# |
1 | ||
| 90523-15025 |
JY30 |
2 | ||
| 33231C - RING(FOR REVERSE SHIFT HEAD) | ||||
| 96160-01200 |
LY20,3# |
1 | ||
| 90523-15025 |
JY30 |
2 | ||
| 33232 - HEAD, 1ST & 2ND SHIFT | ||||
| 33232-36011 |
JY30..LHD |
1 | ||
| 33231-25010 |
LY20,3#,RY20,3# |
1 | ||
| 33241 - SHAFT, REVERSE SHIFT FORK | ||||
| 33241-36021 |
JY30 |
1 | ||
| 33241-25021 |
LY20,3# |
1 | ||
| 33241-25010 |
RY20,3# |
1 | ||
| 33243 - SHAFT, 1ST & 2ND SHIFT FORK | ||||
| 33242-25020 |
RY20,3#..LHD |
1 | ||
| 33242-36040 |
JY30 |
1 | ||
| 33244A - SHAFT, 5TH SHIFT FORK | ||||
| 33244-25011 |
LY20,3# |
1 | ||
| 33244-36010 |
JY30 |
1 | ||
| 33245 - SHAFT, 3RD & 4TH SHIFT FORK | ||||
| 33243-36020 |
JY30 |
1 | ||
| 33243-25010 |
LY20,3#,RY20,3# |
1 | ||
| 33245A - SHAFT, 5TH SHIFT ARM | ||||
| 33245-36021 |
JY30 |
1 | ||
| 33245-25021 |
LY20,3# |
1 | ||
| 33251 - LEVER, SHIFT & SELECT | ||||
| 33251-25020 |
RY20,3#..LHD |
1 | ||
| 33251-25030 |
JY30..LHD |
1 | ||
| 33251F - PIN OR BOLT (FOR SHIFT & SELECT LEVER) | ||||
| 33218-35010 |
JY30,LY20,3#,RY20,3# |
1 | ||
| 33253 - LEVER, SHIFT OUTER, NO.1 | ||||
| 33253-25030 |
JY30..LHD |
1 | ||
| 33253A - PIN, LEVER LOCK (FOR SHIFT OUTER LEVER) | ||||
| 33282-57010 |
JY30 |
1 | ||
| 33257 - LEVER, SELECT OUTER | ||||
| 33257-25020 |
LY20,3#,RY20,3# |
1 | ||
| 33257-36050 |
JY30 |
1 | ||
| 33257P - PIN, SELECT OUTER LEVER LOCK | ||||
| 33282-35010 |
JY30,LY20,3#,RY20,3# |
1 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 90361-10009 |
LY20,3#,RY20,3# L=38.9,OD=9.5 |
1 | ||
| 90360-10003 |
LY20,3# OD=9.52,STEEL,OD=9.5 |
2 | ||
| 90361-10008 |
JY30,LY20,3#,RY20,3# L=15,OD=9.5 |
4 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 90361-10009 |
LY20,3#,RY20,3# L=38.9,OD=9.5 |
1 | ||
| 90360-10003 |
LY20,3# OD=9.52,STEEL,OD=9.5 |
2 | ||
| 90361-10008 |
JY30,LY20,3#,RY20,3# L=15,OD=9.5 |
4 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 90361-10009 |
LY20,3#,RY20,3# L=38.9,OD=9.5 |
1 | ||
| 90360-10003 |
LY20,3# OD=9.52,STEEL,OD=9.5 |
2 | ||
| 90361-10008 |
JY30,LY20,3#,RY20,3# L=15,OD=9.5 |
4 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 90361-10009 |
LY20,3#,RY20,3# L=38.9,OD=9.5 |
1 | ||
| 90360-10003 |
LY20,3# OD=9.52,STEEL,OD=9.5 |
2 | ||
| 90361-10008 |
JY30,LY20,3#,RY20,3# L=15,OD=9.5 |
4 | ||
| 33265 - PIN, SHIFT INTER LOCK, NO.2 | ||||
| 90250-05034 |
JY30,LY20,30,RY20,3# |
2 | ||
| 90361-05001 |
JY30 L=13 |
2 | ||
| 33265 - PIN, SHIFT INTER LOCK, NO.2 | ||||
| 90250-05034 |
JY30,LY20,30,RY20,3# |
2 | ||
| 90361-05001 |
JY30 L=13 |
2 | ||
| 33272 - GASKET, SHIFT LEVER SHAFT HOUSING | ||||
| 33272-36020 |
JY30 |
1 | ||
| 33272-25010 |
LY20,3#,RY20,3# |
1 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 90341-12055 |
LY20,3#,RY20,3# |
1 | ||
| 90250-10215 |
JY30 L=9,OD=9 |
1 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14237 |
JY30 L=16.1 |
4 | ||
| 90501-14029 |
LY20,3#,RY20,3# |
2 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
JY30,LY20,3#,RY20,3# |
2 | ||
| Common parts | ||||
| 90119-10070 | ||||
| 91611-60820 | ||||
| 94110-01000 | ||||
| 94110-40600 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94120-41000 | ||||
| 94511-01000 | ||||
| 94512-00600 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
| 95381-03020 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
