JY30L-QDBH3 (1979)
Toyota Toyoace

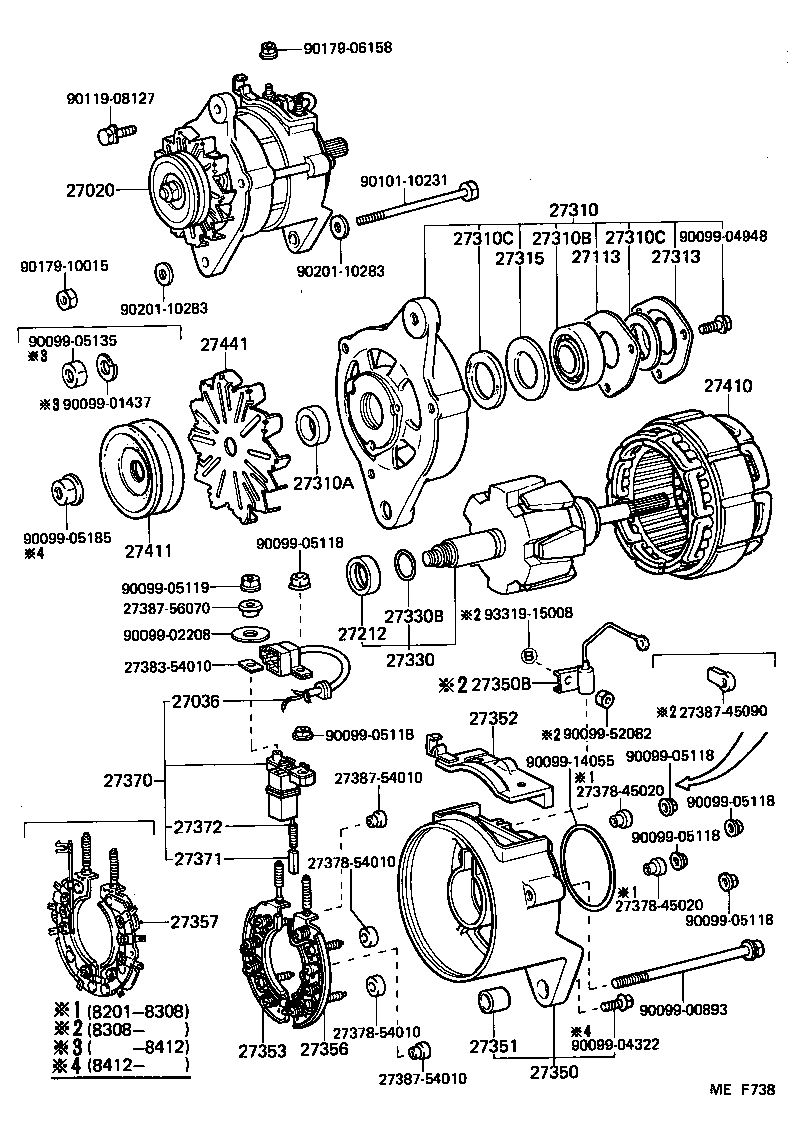

(7903-8201)L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-46033 |
2J..JY30 12V 35A |
1 | ||
| 27020-54021 |
L..LY20,30 12V 40A,12V 40A |
1 | ||
| 27020-54020 |
L..LY20,30 12V 40A |
1 | ||
| 27036 - TERMINAL SUB-ASSY, LEAD WIRE, ALTERNATOR | ||||
| 27036-54010 |
L..LY20,30 12V 40A |
1 | ||
| 27036-56011 |
2J..JY30 12V 35A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-54010 |
L..LY20,30 12V 40A |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27312-56070 |
L..LY20,30 12V 40A |
1 | ||
| 27312-56011 |
2J..JY30 12V 35A |
1 | ||
| 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 27212-56010 |
2J..JY30 12V 35A |
1 | ||
| 27412-54040 |
L..LY20,30 12V 40A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-46032 |
2J..JY30 12V 35A |
1 | ||
| 27310-54011 |
L..LY20,30 12V 40A |
1 | ||
| 27310-54012 |
L..LY20,30 12V 40A |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-54010 |
L..LY20,30 12V 40A |
1 | ||
| 90099-19251 |
L..LY20,30 12V 40A |
1 | ||
| 27314-56010 |
2J..JY30 12V 35A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10082 |
2J..JY30 12V 35A |
1 | ||
| 90099-10120 |
L..LY20,30 12V 40A |
1 | ||
| 27310C - FELT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-02207 |
L..LY20,30 12V 40A |
1 | ||
| 27315 - COVER, ALTERNATOR FELT, INNER NO.1 | ||||
| 27315-56070 |
L..LY20,30 12V 40A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-46031 |
2J..JY30 12V 35A |
1 | ||
| 27330-54020 |
L..LY20,30 12V 40A |
1 | ||
| 27330B - RING, SNAP(FOR ALTERNATOR ROTOR) | ||||
| 90099-07103 |
2J..JY30 12V 35A |
1 | ||
| 90099-07108 |
L..LY20,30 12V 40A |
1 | ||
| 27350 - FRAME ASSY, RECTIFIER END | ||||
| 27350-54010 |
L..LY20,30 12V 40A |
1 | ||
| 27350-46033 |
2J..JY30 12V 35A |
1 | ||
| 27350C - FELT (FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 90099-02181 |
L..LY20,30 12V 40A |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-56013 |
L,2J,2L..JY30,LY20,3# 12V 35A,40A |
1 | ||
| 27352 - COVER, FRAME BRUSH | ||||
| 27388-56090 |
L..LY20,30 12V 40A |
1 | ||
| 27388-54010 |
L..LY20,30 12V 40A |
1 | ||
| 27353 - HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR | ||||
| 27353-56011 |
2J..JY30 12V 35A |
1 | ||
| 27353-54020 |
L,2L..LY20,3# 12V 40A |
1 | ||
| 27356 - HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR | ||||
| 27356-54020 |
L,2L..LY20,3# 12V 40A |
1 | ||
| 27356-56010 |
2J..JY30 12V 35A |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-54010 |
L,2L..LY20,3# 12V 40A |
1 | ||
| 27370-60080 |
2J..JY30 12V 35A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-56070 |
L,2L..LY20,3# 12V 40A |
2 | ||
| 27371-31011 |
12R,2J,5R..JY30,RY20,3# 12V 30A,35A,40A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-31011 |
12R,2J,5R..JY30,RY20,3# 12V 30A,35A,40A |
2 | ||
| 27372-56070 |
L,2L..LY20,3# 12V 40A |
2 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-46031 |
2J..JY30 12V 35A |
1 | ||
| 27410-54020 |
L..LY20,30 12V 40A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-54010 |
L..LY20,30 12V 40A |
1 | ||
| 27411-54020 |
L..LY20,30 12V 40A |
1 | ||
| 27411-56010 |
2J..JY30 12V 35A |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-54040 |
L..LY20,30 12V 40A |
1 | ||
| 27441-46031 |
2J..JY30 12V 35A |
1 | ||
| 27441-54010 |
L..LY20,30 12V 40A |
1 | ||
| Common parts | ||||
| 27378-45020 | ||||
| 27378-54010 | ||||
| 27383-54010 | ||||
| 27387-54010 | ||||
| 27387-56070 | ||||
| 90099-01437 | ||||
| 90099-02208 | ||||
| 90099-04915 | ||||
| 90099-04916 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90099-05135 | ||||
| 90101-10231 | ||||
| 90119-08127 | ||||
| 90179-06158 | ||||
| 90179-10015 | ||||
| 90201-10283 | ||||

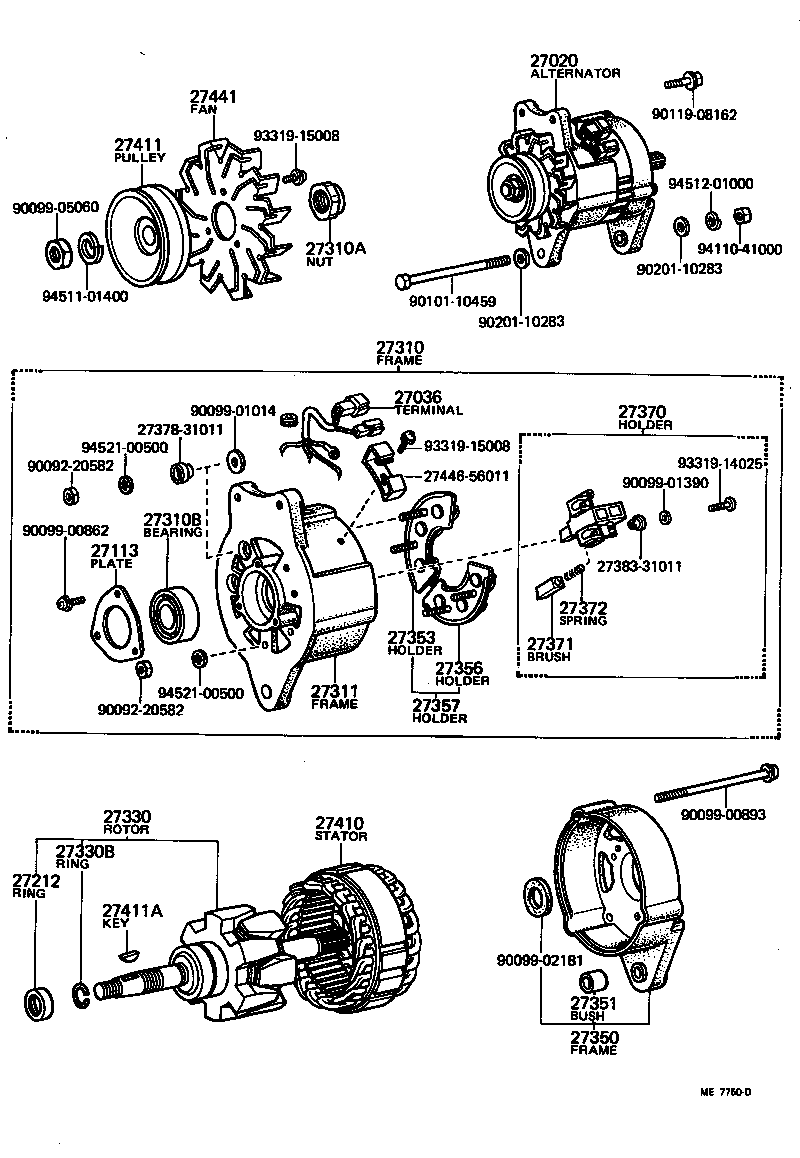

(7903-8308)2J
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-46033 |
2J..JY30 12V 35A |
1 | ||
| 27020-54021 |
L..LY20,30 12V 40A,12V 40A |
1 | ||
| 27020-54020 |
L..LY20,30 12V 40A |
1 | ||
| 27036 - TERMINAL SUB-ASSY, LEAD WIRE, ALTERNATOR | ||||
| 27036-54010 |
L..LY20,30 12V 40A |
1 | ||
| 27036-56011 |
2J..JY30 12V 35A |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27312-56070 |
L..LY20,30 12V 40A |
1 | ||
| 27312-56011 |
2J..JY30 12V 35A |
1 | ||
| 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 27212-56010 |
2J..JY30 12V 35A |
1 | ||
| 27412-54040 |
L..LY20,30 12V 40A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-46032 |
2J..JY30 12V 35A |
1 | ||
| 27310-54011 |
L..LY20,30 12V 40A |
1 | ||
| 27310-54012 |
L..LY20,30 12V 40A |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-54010 |
L..LY20,30 12V 40A |
1 | ||
| 90099-19251 |
L..LY20,30 12V 40A |
1 | ||
| 27314-56010 |
2J..JY30 12V 35A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10082 |
2J..JY30 12V 35A |
1 | ||
| 90099-10120 |
L..LY20,30 12V 40A |
1 | ||
| 27311 - FRAME, ALTERNATOR DRIVE END | ||||
| 27311-56012 |
2J..JY30 12V 35A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-46031 |
2J..JY30 12V 35A |
1 | ||
| 27330-54020 |
L..LY20,30 12V 40A |
1 | ||
| 27330B - RING, SNAP(FOR ALTERNATOR ROTOR) | ||||
| 90099-07103 |
2J..JY30 12V 35A |
1 | ||
| 90099-07108 |
L..LY20,30 12V 40A |
1 | ||
| 27350 - FRAME ASSY, RECTIFIER END | ||||
| 27350-54010 |
L..LY20,30 12V 40A |
1 | ||
| 27350-46033 |
2J..JY30 12V 35A |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-56013 |
L,2J,2L..JY30,LY20,3# 12V 35A,40A |
1 | ||
| 27353 - HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR | ||||
| 27353-56011 |
2J..JY30 12V 35A |
1 | ||
| 27353-54020 |
L,2L..LY20,3# 12V 40A |
1 | ||
| 27356 - HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR | ||||
| 27356-54020 |
L,2L..LY20,3# 12V 40A |
1 | ||
| 27356-56010 |
2J..JY30 12V 35A |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-56011 |
2J..JY30 12V 35A |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-54010 |
L,2L..LY20,3# 12V 40A |
1 | ||
| 27370-60080 |
2J..JY30 12V 35A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-56070 |
L,2L..LY20,3# 12V 40A |
2 | ||
| 27371-31011 |
12R,2J,5R..JY30,RY20,3# 12V 30A,35A,40A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-31011 |
12R,2J,5R..JY30,RY20,3# 12V 30A,35A,40A |
2 | ||
| 27372-56070 |
L,2L..LY20,3# 12V 40A |
2 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-46031 |
2J..JY30 12V 35A |
1 | ||
| 27410-54020 |
L..LY20,30 12V 40A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-54010 |
L..LY20,30 12V 40A |
1 | ||
| 27411-54020 |
L..LY20,30 12V 40A |
1 | ||
| 27411-56010 |
2J..JY30 12V 35A |
1 | ||
| 27411A - KEY(FOR ALTERNATOR PULLEY) | ||||
| 90097-00465 |
2J..JY30 12V 35A |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-54040 |
L..LY20,30 12V 40A |
1 | ||
| 27441-46031 |
2J..JY30 12V 35A |
1 | ||
| 27441-54010 |
L..LY20,30 12V 40A |
1 | ||
| Common parts | ||||
| 27378-31011 | ||||
| 27383-31011 | ||||
| 27446-56011 | ||||
| 90092-20582 | ||||
| 90099-00862 | ||||
| 90099-00893 | ||||
| 90099-01014 | ||||
| 90099-01390 | ||||
| 90099-02181 | ||||
| 90099-05060 | ||||
| 90101-10459 | ||||
| 90119-08162 | ||||
| 90201-10283 | ||||
| 93319-14025 | ||||
| 93319-15008 | ||||
| 94110-41000 | ||||
| 94511-01400 | ||||
| 94512-01000 | ||||
| 94521-00500 | ||||

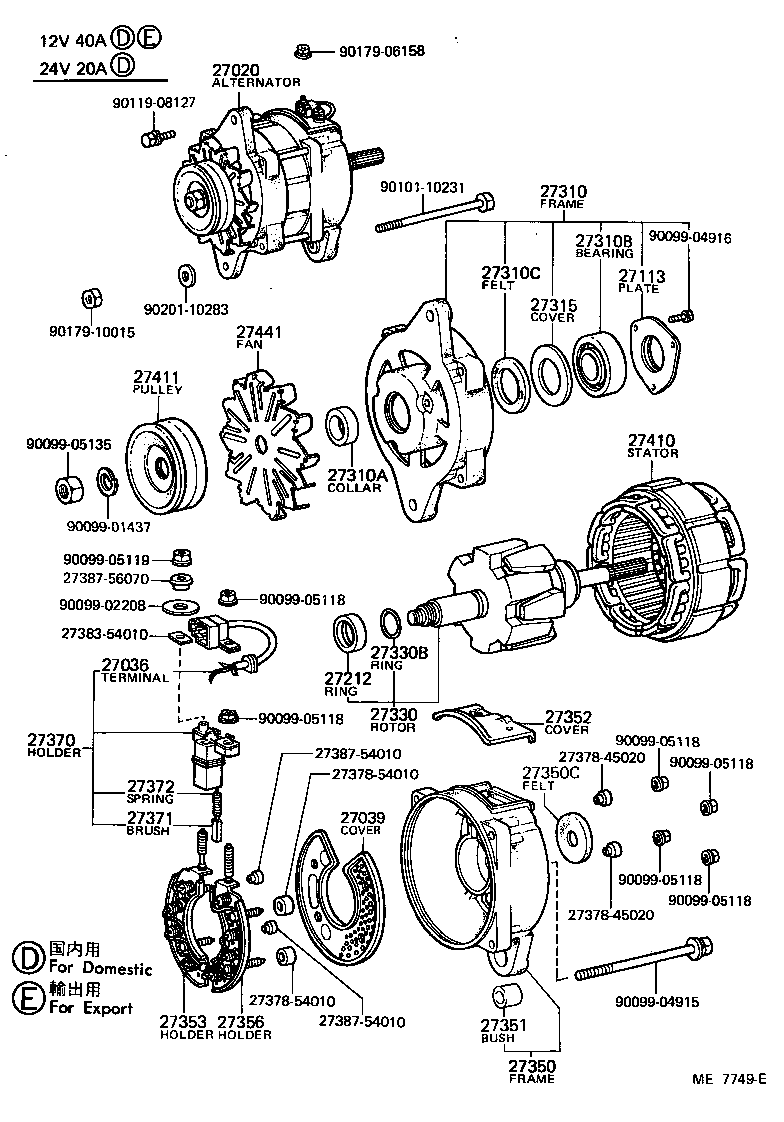

(8201- )L,2L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-46033 |
2J..JY30 12V 35A |
1 | ||
| 27020-54021 |
L..LY20,30 12V 40A,12V 40A |
1 | ||
| 27020-54020 |
L..LY20,30 12V 40A |
1 | ||
| 27036 - TERMINAL SUB-ASSY, LEAD WIRE, ALTERNATOR | ||||
| 27036-54010 |
L..LY20,30 12V 40A |
1 | ||
| 27036-56011 |
2J..JY30 12V 35A |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27312-56070 |
L..LY20,30 12V 40A |
1 | ||
| 27312-56011 |
2J..JY30 12V 35A |
1 | ||
| 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 27212-56010 |
2J..JY30 12V 35A |
1 | ||
| 27412-54040 |
L..LY20,30 12V 40A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-46032 |
2J..JY30 12V 35A |
1 | ||
| 27310-54011 |
L..LY20,30 12V 40A |
1 | ||
| 27310-54012 |
L..LY20,30 12V 40A |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-54010 |
L..LY20,30 12V 40A |
1 | ||
| 90099-19251 |
L..LY20,30 12V 40A |
1 | ||
| 27314-56010 |
2J..JY30 12V 35A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10082 |
2J..JY30 12V 35A |
1 | ||
| 90099-10120 |
L..LY20,30 12V 40A |
1 | ||
| 27310C - FELT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-02207 |
L..LY20,30 12V 40A |
1 | ||
| 27310C - FELT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-02207 |
L..LY20,30 12V 40A |
1 | ||
| 27315 - COVER, ALTERNATOR FELT, INNER NO.1 | ||||
| 27315-56070 |
L..LY20,30 12V 40A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-46031 |
2J..JY30 12V 35A |
1 | ||
| 27330-54020 |
L..LY20,30 12V 40A |
1 | ||
| 27330B - RING, SNAP(FOR ALTERNATOR ROTOR) | ||||
| 90099-07103 |
2J..JY30 12V 35A |
1 | ||
| 90099-07108 |
L..LY20,30 12V 40A |
1 | ||
| 27350 - FRAME ASSY, RECTIFIER END | ||||
| 27350-54010 |
L..LY20,30 12V 40A |
1 | ||
| 27350-46033 |
2J..JY30 12V 35A |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-56013 |
L,2J,2L..JY30,LY20,3# 12V 35A,40A |
1 | ||
| 27352 - COVER, FRAME BRUSH | ||||
| 27388-56090 |
L..LY20,30 12V 40A |
1 | ||
| 27388-54010 |
L..LY20,30 12V 40A |
1 | ||
| 27353 - HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR | ||||
| 27353-56011 |
2J..JY30 12V 35A |
1 | ||
| 27353-54020 |
L,2L..LY20,3# 12V 40A |
1 | ||
| 27356 - HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR | ||||
| 27356-54020 |
L,2L..LY20,3# 12V 40A |
1 | ||
| 27356-56010 |
2J..JY30 12V 35A |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-56011 |
2J..JY30 12V 35A |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-54010 |
L,2L..LY20,3# 12V 40A |
1 | ||
| 27370-60080 |
2J..JY30 12V 35A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-56070 |
L,2L..LY20,3# 12V 40A |
2 | ||
| 27371-31011 |
12R,2J,5R..JY30,RY20,3# 12V 30A,35A,40A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-31011 |
12R,2J,5R..JY30,RY20,3# 12V 30A,35A,40A |
2 | ||
| 27372-56070 |
L,2L..LY20,3# 12V 40A |
2 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-46031 |
2J..JY30 12V 35A |
1 | ||
| 27410-54020 |
L..LY20,30 12V 40A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-54010 |
L..LY20,30 12V 40A |
1 | ||
| 27411-54020 |
L..LY20,30 12V 40A |
1 | ||
| 27411-56010 |
2J..JY30 12V 35A |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-54040 |
L..LY20,30 12V 40A |
1 | ||
| 27441-46031 |
2J..JY30 12V 35A |
1 | ||
| 27441-54010 |
L..LY20,30 12V 40A |
1 | ||
| Common parts | ||||
| 27378-45020 | ||||
| 27378-54010 | ||||
| 27383-54010 | ||||
| 27387-45090 | ||||
| 27387-54010 | ||||
| 27387-56070 | ||||
| 90099-00893 | ||||
| 90099-01437 | ||||
| 90099-02208 | ||||
| 90099-04322 | ||||
| 90099-04948 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90099-05135 | ||||
| 90099-05185 | ||||
| 90099-14055 | ||||
| 90099-52082 | ||||
| 90101-10231 | ||||
| 90119-08127 | ||||
| 90179-06158 | ||||
| 90179-10015 | ||||
| 90201-10283 | ||||
| 93319-15008 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
