JY30L-QDBH3 (1979)
Toyota Toyoace
Production
Mar 1979
-
Aug 1983
Engine
2J
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

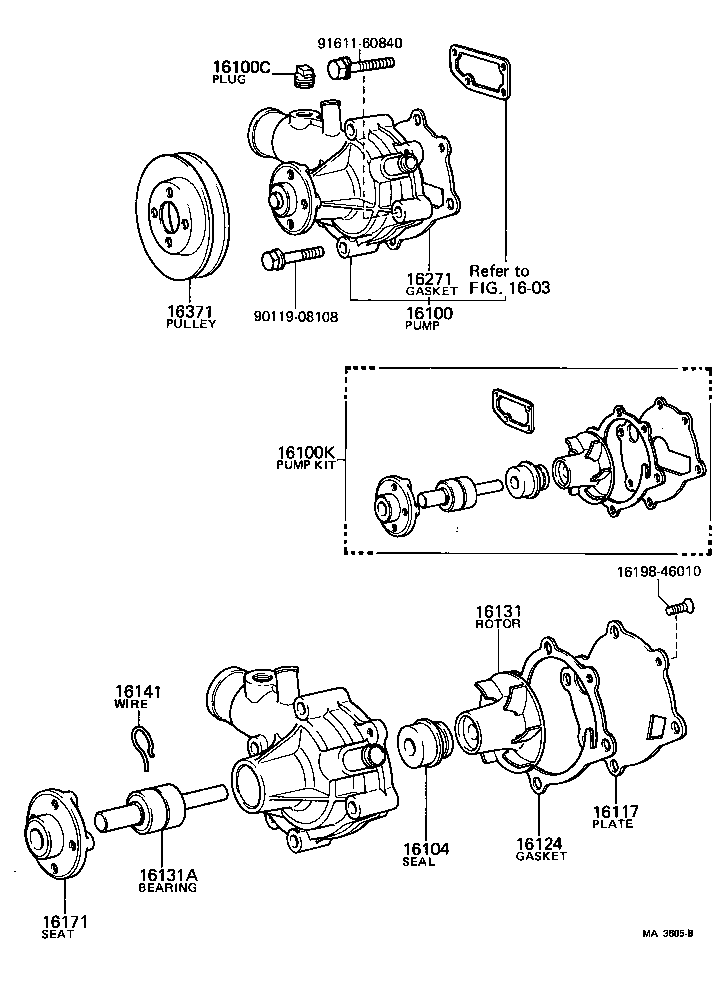

(7903-8308)2J
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16100 - PUMP ASSY, ENGINE WATER | ||||
| 16100-59049 |
L..LY20,30 |
1 | ||
| 16100-59125 |
L..LY20,30 |
1 | ||
| 16100-59126 |
L..LY20,30 |
1 | ||
| 16100-49217 |
2J..JY30 W/O THERMOSTAT |
1 | ||
| 16100-49218 |
2J..JY30 W/O THERMOSTAT |
1 | ||
| 16100-49207 |
2J..JY30 |
1 | ||
| 16100-49208 |
2J..JY30 |
1 | ||
| 16100-59047 |
L..LY20,30 |
1 | ||
| 16100C - PLUG, W/HEAD TAPER SCREW | ||||
| 90345-54002 |
2J..JY30 W/O HEATER |
1 | ||
| 90345-54005 |
2J..JY30 W/O HEATER |
1 | ||
| 16100K - PUMP KIT, WATER | ||||
| 04161-48011 |
2J..JY30 |
1 | ||
| 16104 - SEAL SET, WATER PUMP | ||||
| 16104-41110 |
2J..JY30 |
1 | ||
| 16104-41110 |
2J..JY30 |
1 | ||
| 16117 - PLATE, WATER PUMP | ||||
| 16117-48010 |
2J..JY30 |
1 | ||
| 16124 - GASKET, WATER PUMP COVER | ||||
| 16124-48010 |
2J..JY30 |
1 | ||
| 16131 - ROTOR, WATER PUMP | ||||
| 16131-48013 |
2J..JY30 |
1 | ||
| 16131A - BEARING, WATER PUMP | ||||
| 90369-30028 |
2J..JY30 |
1 | ||
| 16141 - WIRE, WATER PUMP BEARING RETAINING | ||||
| 16141-60010 |
2J..JY30 |
1 | ||
| 16171 - SEAT, WATER PUMP PULLEY | ||||
| 16171-54010 |
L..LY20,30 |
1 | ||
| 16171-47010 |
2J..JY30 |
1 | ||
| 16271 - GASKET, WATER PUMP | ||||
| 16271-54010 |
L..LY20,30 |
1 | ||
| 16271-48010 |
2J..JY30 |
1 | ||
| 16271-54011 |
L..LY20,30 |
1 | ||
| 16371 - PULLEY, FAN | ||||
| 16371-46011 |
2J..JY30 |
1 | ||
| 16371-54010 |
L..LY20,30 |
1 | ||
| Common parts | ||||
| 16198-46010 | ||||
| 90119-08108 | ||||
| 91611-60840 | ||||
| Linked diagrams | ||||
| 1603 | ||||
(7903- )L,2L
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16100 - PUMP ASSY, ENGINE WATER | ||||
| 16100-59049 |
L..LY20,30 |
1 | ||
| 16100-59125 |
L..LY20,30 |
1 | ||
| 16100-59126 |
L..LY20,30 |
1 | ||
| 16100-49217 |
2J..JY30 W/O THERMOSTAT |
1 | ||
| 16100-49218 |
2J..JY30 W/O THERMOSTAT |
1 | ||
| 16100-49207 |
2J..JY30 |
1 | ||
| 16100-49208 |
2J..JY30 |
1 | ||
| 16100-59047 |
L..LY20,30 |
1 | ||
| 16171 - SEAT, WATER PUMP PULLEY | ||||
| 16171-54010 |
L..LY20,30 |
1 | ||
| 16171-47010 |
2J..JY30 |
1 | ||
| 16210 - COUPLING ASSY, FLUID | ||||
| 16210-54021 |
L..LY20,30 |
1 | ||
| 16210-54020 |
L..LY20,30 |
1 | ||
| 16241 - BOLT, STUD(FOR WATER PUMP COUPLING) | ||||
| 16193-54010 |
L..LY20,30 |
4 | ||
| 16271 - GASKET, WATER PUMP | ||||
| 16271-54010 |
L..LY20,30 |
1 | ||
| 16271-48010 |
2J..JY30 |
1 | ||
| 16271-54011 |
L..LY20,30 |
1 | ||
| 16371 - PULLEY, FAN | ||||
| 16371-46011 |
2J..JY30 |
1 | ||
| 16371-54010 |
L..LY20,30 |
1 | ||
| 16371 - PULLEY, FAN | ||||
| 16371-46011 |
2J..JY30 |
1 | ||
| 16371-54010 |
L..LY20,30 |
1 | ||
| Common parts | ||||
| 90119-08108 | ||||
| 90179-06070 | ||||
