JY16L-JRHBB (1975)

Toyota Toyoace

Production Dec 1975 - Feb 1979
Engine 2J
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7708-7902)2J

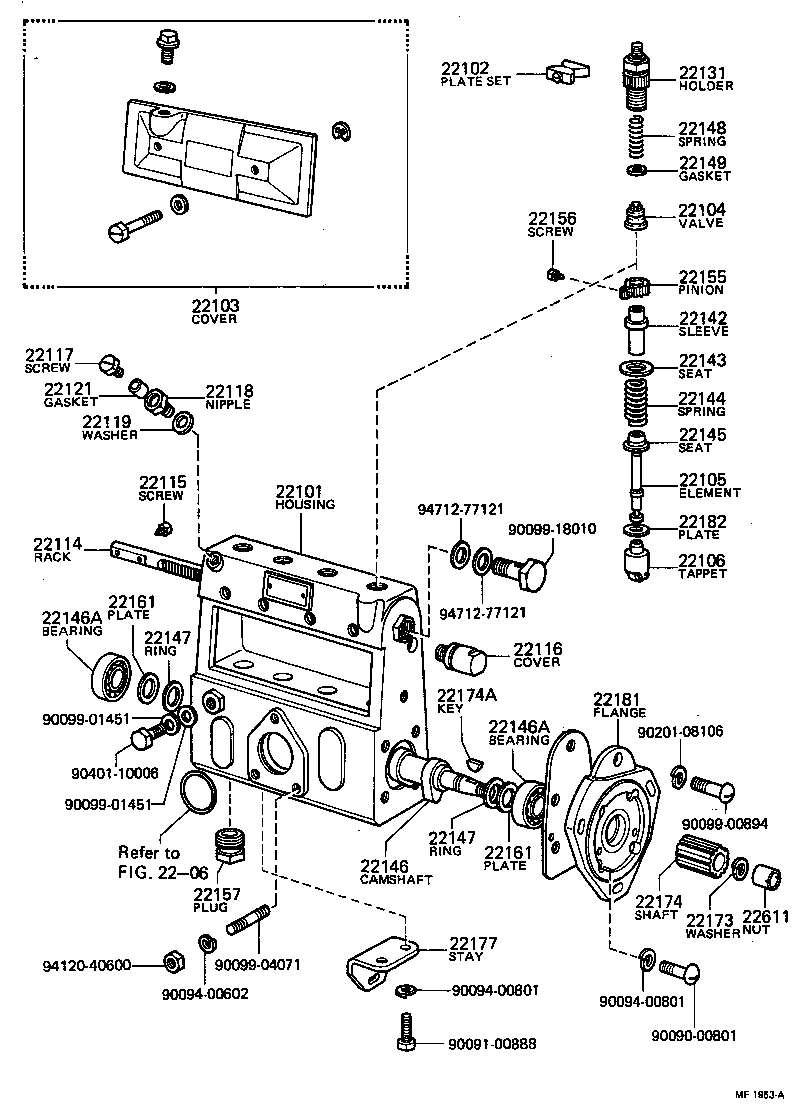

Click highlighted areas on diagram

diagram 2206 22101 22102 22103 22104 22105 22106 22114 22115 22116 22117 22118 22119 22121 22131 22142 22143 22144 22145 22146 22146A 22146A 22147 22147 22148 22149 22155 22156 22157 22161 22161 22173 22174 22174A 22177 22181 22182 22611 9009000801 9009100888 9009400602 9009400801 9009400801 9009900894 9009901451 9009901451 9009904071 9009918010 9020108106 9040110006 9412040600 9471277121 9471277121
Part # Description Qty Price
22101 - HOUSING SUB-ASSY, INJECTION PUMP
22190-48032

2J..JY16

 1
22102 - PLATE SET, VALVE HOLDER LOCK
22102-77021

2J..JY16

 2
22103 - COVER SUB-ASSY, INJECTION PUMP
22103-48030

2J..JY16

 1
22114 - RACK, CONTROL
22114-48030

2J..JY16

 1
22146A - BEARING(FOR INJECTION CAMSHAFT)
90099-10087

2J..JY16

 2
22146A - BEARING(FOR INJECTION CAMSHAFT)
90099-10087

2J..JY16

 2
22157 - PLUG, INJECTION PUMP FELT PLATE
22157-48023

2J..JY16

 4
22177 - STAY, INJECTION PUMP BODY
22177-48030

2J..JY16

 1
22181 - FLANGE, INJECTION PUMP
22181-48031

2J..JY16

 1
Common parts
90090-00801
90091-00888
90094-00602
90094-00801
90099-00894
90099-01451
90099-04071
90099-18010
90201-08106
90401-10006
94120-40600
94712-77121
Linked diagrams
2206
