JY16L-JRHB (1975)

Toyota Toyoace

Production Dec 1975 - Feb 1979
Engine 2J
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7109-7902)

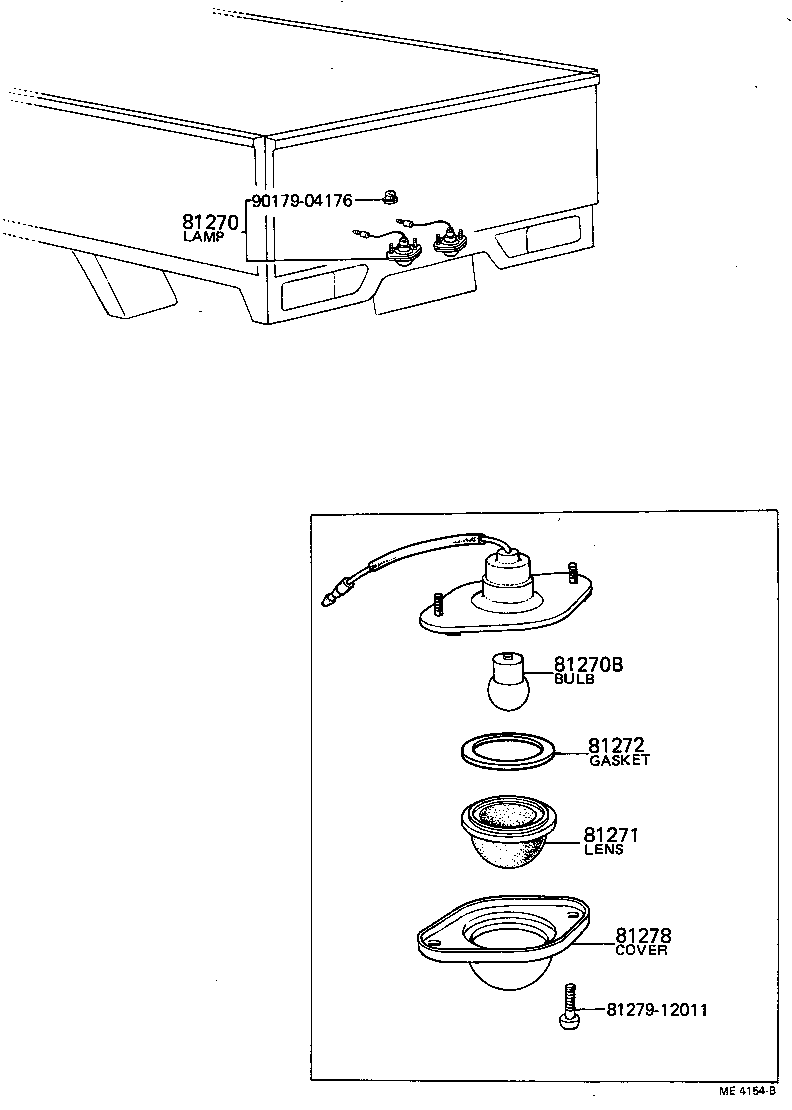

Click highlighted areas on diagram

diagram 81270 81270B 81271 81272 81278 8127912011 9017904176
Part # Description Qty Price
81270 - LAMP ASSY, LICENSE PLATE
81270-19015

JY16,RY1#

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-11100

JY16,RY1#

12V 10W,12V 10W

 2
81271 - LENS, LICENSE PLATE LAMP
81271-10010

JY16,RY1#

 2
81272 - GASKET, LICENSE PLATE LAMP LENS
81272-10010

JY16,RY1#

 2
81278 - COVER, LICENSE PLATE LAMP
81278-10011

JY16,RY1#

 2
Common parts
81279-12011
90179-04176

(7109-7902)

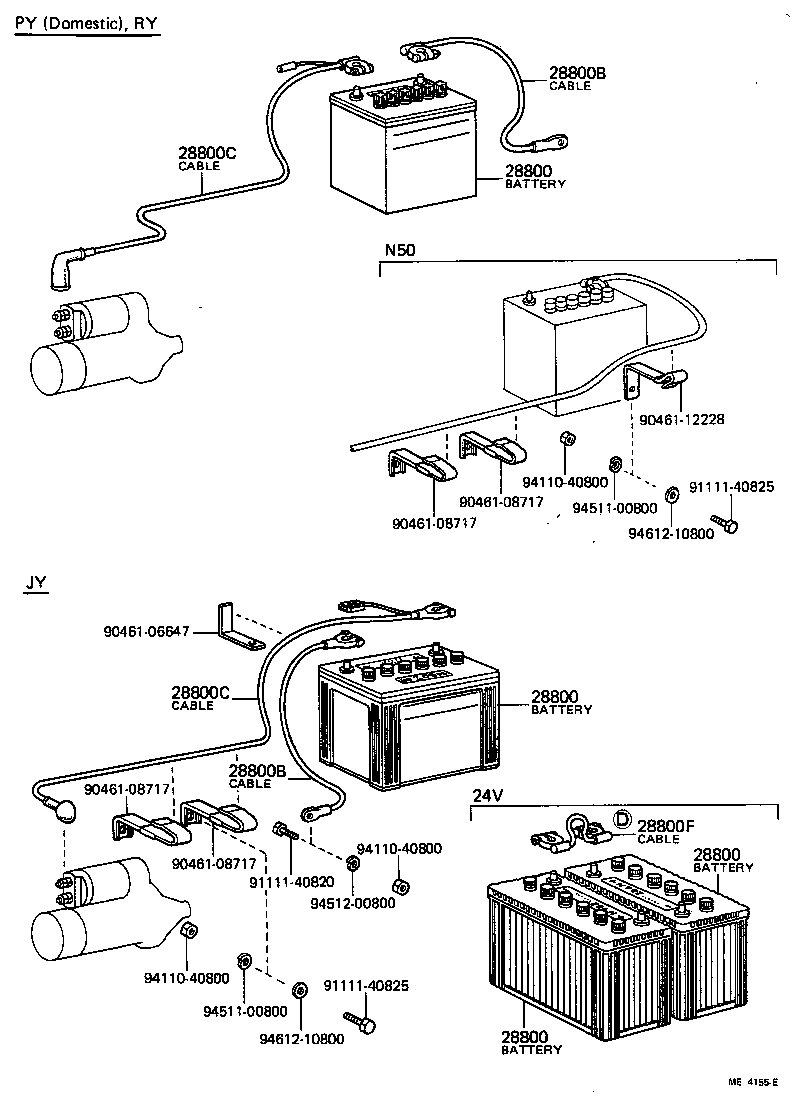

Click highlighted areas on diagram

diagram 28800 28800 28800 28800 28800B 28800B 28800C 28800C 28800F 9046106647 9046108717 9046108717 9046108717 9046108717 9046112228 9111140820 9111140825 9111140825 9411040800 9411040800 9411040800 9451100800 9451100800 9451200800 9461210800 9461210800
Part # Description Qty Price
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
90982-01249

2J..JY16

 1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
90982-01249

2J..JY16

 1
Common parts
90461-06647
90461-08717
90461-12228
91111-40820
91111-40825
94110-40800
94511-00800
94512-00800
94612-10800
