JY16L-JRHB (1975)
Toyota Toyoace

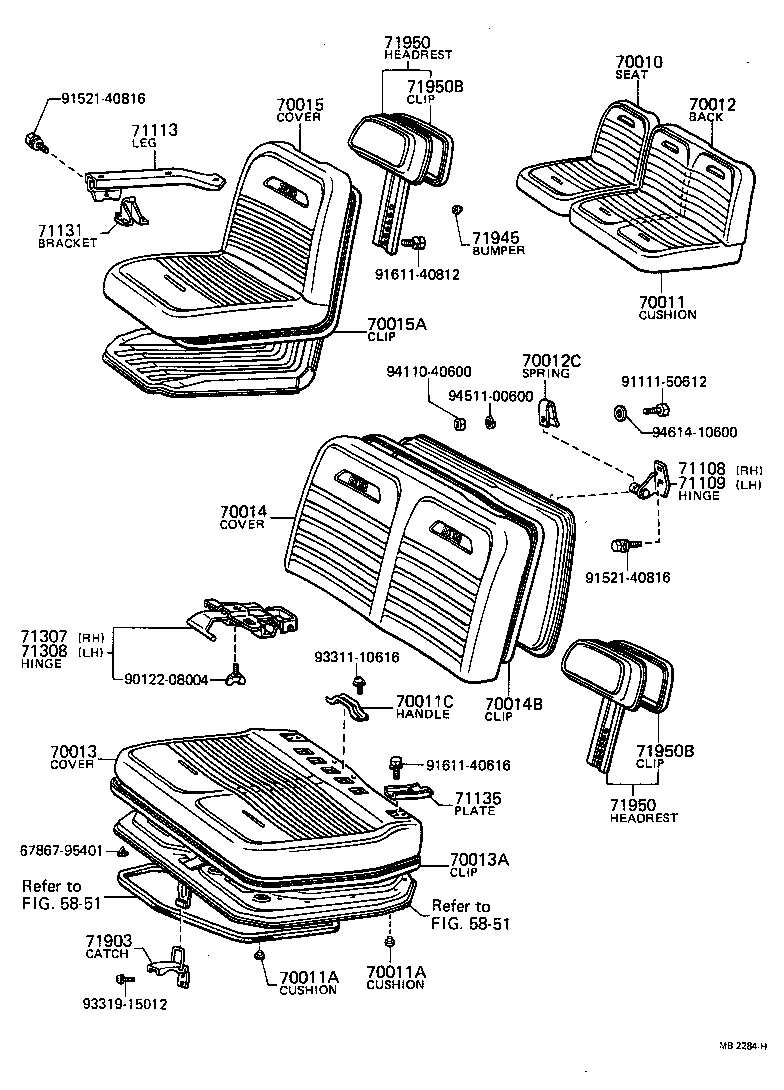

(7109-7605)LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 70010 - SEAT ASSY, NO.1 | ||||
| 71100-9503501 |
JY16,RY1#..LHD RH. BLACK,BLACK |
1 | ||
| 70011 - CUSHION ASSY, NO.1 SEAT | ||||
| 71410-95024 |
JY16,RY1#..LHD LH. |
1 | ||
| 71420-95027 |
JY16,RY1#..LHD RH. |
1 | ||
| 71450-95010 |
JY16,RY1#..LHD CENTER |
1 | ||
| 70011A - CUSHION, RUBBER (FOR SEAT CUSHION ASSY) | ||||
| 90541-12097 |
JY16,RY1# OD=25,L=22 |
2 | ||
| 90541-12098 |
JY16,RY1# OD=30,L=33 |
1 | ||
| 70011A - CUSHION, RUBBER (FOR SEAT CUSHION ASSY) | ||||
| 90541-12097 |
JY16,RY1# OD=25,L=22 |
2 | ||
| 90541-12098 |
JY16,RY1# OD=30,L=33 |
1 | ||
| 70011C - HANDLE, SEAT CUSHION | ||||
| 71144-95011 |
JY16,RY1#..LHD |
1 | ||
| 70012 - BACK ASSY, NO.1 SEAT | ||||
| 71590-95010 |
JY16,RY1#..LHD CENTER |
1 | ||
| 71440-95016 |
JY16,RY1#..LHD LH. |
1 | ||
| 71440-9501401 |
JY16,RY1#..LHD BLACK,LH.,BLACK |
1 | ||
| 71440-95015 |
JY16,RY1#..LHD RH. |
1 | ||
| 70013 - COVER ASSY, NO.1 SEAT CUSHION | ||||
| 71072-9502401 |
JY16,RY1#..LHD LH. BLACK,BLACK |
1 | ||
| 71072-95606 |
JY16,RY1#..LHD RH.&LH. |
2 | ||
| 71075-95606 |
JY16,RY1#..LHD CENTER |
1 | ||
| 70013A - CLIP, LEATHER (FOR SEAT CUSHION COVER) | ||||
| 71414-9501001 |
JY16,RY1# LH. BLACK,BLACK |
1 | ||
| 70014 - COVER ASSY, NO.1 SEAT BACK | ||||
| 71076-95010 |
JY16,RY1#..LHD CENTER |
1 | ||
| 71074-9501201 |
JY16,RY1# LH. BLACK,BLACK |
1 | ||
| 71073-9560401 |
JY16,RY1#..LHD RH.&LH.,BLACK |
2 | ||
| 70014B - CLIP, LEATHER(FOR SEAT BACK COVER) | ||||
| 90468-06045 |
JY16,RY1#..LHD |
1 | ||
| 71415-9501001 |
JY16,RY1# LH. BLACK,BLACK |
1 | ||
| 70015 - COVER ASSY, NO.1 SEAT | ||||
| 71071-9502401 |
JY16,RY1# RH. BLACK,BLACK |
1 | ||
| 70015A - CLIP, LEATHER (FOR SEAT COVER) | ||||
| 71413-9501001 |
JY16,RY1# RH. BLACK,BLACK |
1 | ||
| 71108 - HINGE SUB-ASSY, FRONT SEAT BACK, UPPER RH | ||||
| 71108-95013 |
JY16,RY1#..LHD |
1 | ||
| 71109-95016 |
JY16,RY1#..LHD FOR CENTER SEAT |
1 | ||
| 71109 - HINGE SUB-ASSY, FRONT SEAT BACK, UPPER LH | ||||
| 71109-95013 |
JY16,RY1#..LHD |
1 | ||
| 71108-95016 |
JY16,RY1#..LHD FOR CENTER SEAT |
1 | ||
| 71113 - LEG, FRONT SEAT CUSHION, RH | ||||
| 71107-95010 |
JY16,RY1#..LHD |
1 | ||
| 71131 - BRACKET, FRONT SEAT SET, OUTER RH | ||||
| 72407-95010 |
JY16,RY1# |
1 | ||
| 71135 - PLATE, SEAT CUSHION SET | ||||
| 71135-95010 |
JY16,RY1#..LHD |
2 | ||
| 71307 - HINGE SUB-ASSY, DRIVER SEAT, RH | ||||
| 71301-95013 |
JY16,RY1#..LHD |
1 | ||
| 71051-95010 |
JY16,RY1#..LHD |
1 | ||
| 71308 - HINGE SUB-ASSY, DRIVER SEAT, LH | ||||
| 71302-95011 |
JY16,RY1#..LHD |
1 | ||
| 71052-95010 |
JY16,RY1#..LHD |
1 | ||
| 71903 - CATCH SUB-ASSY, SEAT CUSHION, FRONT | ||||
| 71901-95010 |
JY16,RY1# |
1 | ||
| 71901-95016 |
JY16,RY1#..LHD |
2 | ||
| 71945 - BUMPER, SEAT BACK | ||||
| 90541-12097 |
JY16,RY1# OD=25,L=22 |
1 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71950-9501101 |
JY16,RY1# BLACK,BLACK |
2 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71950-9501101 |
JY16,RY1# BLACK,BLACK |
2 | ||
| 71950B - CLIP (FOR HEADREST) | ||||
| 71952-9501101 |
JY16,RY1# BLACK,BLACK |
2 | ||
| 71950B - CLIP (FOR HEADREST) | ||||
| 71952-9501101 |
JY16,RY1# BLACK,BLACK |
2 | ||
| Common parts | ||||
| 67867-95401 | ||||
| 90122-08004 | ||||
| 91111-50612 | ||||
| 91521-40816 | ||||
| 91611-40616 | ||||
| 91611-40812 | ||||
| 93311-10616 | ||||
| 93319-15012 | ||||
| 94110-40600 | ||||
| 94511-00600 | ||||
| 94614-10600 | ||||
| Linked diagrams | ||||
| 5851 | ||||

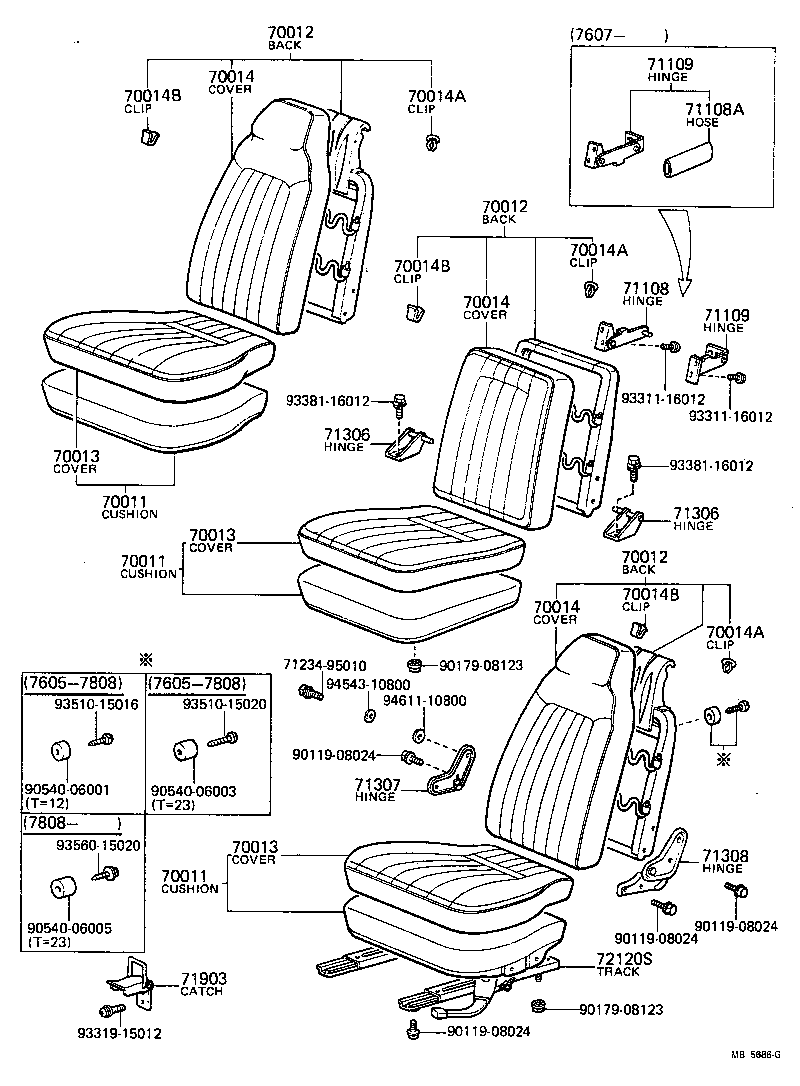

(7605-7902)LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 70011 - CUSHION ASSY, NO.1 SEAT | ||||
| 71410-95024 |
JY16,RY1#..LHD LH. |
1 | ||
| 71420-95027 |
JY16,RY1#..LHD RH. |
1 | ||
| 71450-95010 |
JY16,RY1#..LHD CENTER |
1 | ||
| 70011 - CUSHION ASSY, NO.1 SEAT | ||||
| 71410-95024 |
JY16,RY1#..LHD LH. |
1 | ||
| 71420-95027 |
JY16,RY1#..LHD RH. |
1 | ||
| 71450-95010 |
JY16,RY1#..LHD CENTER |
1 | ||
| 70011 - CUSHION ASSY, NO.1 SEAT | ||||
| 71410-95024 |
JY16,RY1#..LHD LH. |
1 | ||
| 71420-95027 |
JY16,RY1#..LHD RH. |
1 | ||
| 71450-95010 |
JY16,RY1#..LHD CENTER |
1 | ||
| 70012 - BACK ASSY, NO.1 SEAT | ||||
| 71590-95010 |
JY16,RY1#..LHD CENTER |
1 | ||
| 71440-95016 |
JY16,RY1#..LHD LH. |
1 | ||
| 71440-9501401 |
JY16,RY1#..LHD BLACK,LH.,BLACK |
1 | ||
| 71440-95015 |
JY16,RY1#..LHD RH. |
1 | ||
| 70012 - BACK ASSY, NO.1 SEAT | ||||
| 71590-95010 |
JY16,RY1#..LHD CENTER |
1 | ||
| 71440-95016 |
JY16,RY1#..LHD LH. |
1 | ||
| 71440-9501401 |
JY16,RY1#..LHD BLACK,LH.,BLACK |
1 | ||
| 71440-95015 |
JY16,RY1#..LHD RH. |
1 | ||
| 70012 - BACK ASSY, NO.1 SEAT | ||||
| 71590-95010 |
JY16,RY1#..LHD CENTER |
1 | ||
| 71440-95016 |
JY16,RY1#..LHD LH. |
1 | ||
| 71440-9501401 |
JY16,RY1#..LHD BLACK,LH.,BLACK |
1 | ||
| 71440-95015 |
JY16,RY1#..LHD RH. |
1 | ||
| 70013 - COVER ASSY, NO.1 SEAT CUSHION | ||||
| 71072-9502401 |
JY16,RY1#..LHD LH. BLACK,BLACK |
1 | ||
| 71072-95606 |
JY16,RY1#..LHD RH.&LH. |
2 | ||
| 71075-95606 |
JY16,RY1#..LHD CENTER |
1 | ||
| 70013 - COVER ASSY, NO.1 SEAT CUSHION | ||||
| 71072-9502401 |
JY16,RY1#..LHD LH. BLACK,BLACK |
1 | ||
| 71072-95606 |
JY16,RY1#..LHD RH.&LH. |
2 | ||
| 71075-95606 |
JY16,RY1#..LHD CENTER |
1 | ||
| 70013 - COVER ASSY, NO.1 SEAT CUSHION | ||||
| 71072-9502401 |
JY16,RY1#..LHD LH. BLACK,BLACK |
1 | ||
| 71072-95606 |
JY16,RY1#..LHD RH.&LH. |
2 | ||
| 71075-95606 |
JY16,RY1#..LHD CENTER |
1 | ||
| 70014 - COVER ASSY, NO.1 SEAT BACK | ||||
| 71076-95010 |
JY16,RY1#..LHD CENTER |
1 | ||
| 71074-9501201 |
JY16,RY1# LH. BLACK,BLACK |
1 | ||
| 71073-9560401 |
JY16,RY1#..LHD RH.&LH.,BLACK |
2 | ||
| 70014 - COVER ASSY, NO.1 SEAT BACK | ||||
| 71076-95010 |
JY16,RY1#..LHD CENTER |
1 | ||
| 71074-9501201 |
JY16,RY1# LH. BLACK,BLACK |
1 | ||
| 71073-9560401 |
JY16,RY1#..LHD RH.&LH.,BLACK |
2 | ||
| 70014 - COVER ASSY, NO.1 SEAT BACK | ||||
| 71076-95010 |
JY16,RY1#..LHD CENTER |
1 | ||
| 71074-9501201 |
JY16,RY1# LH. BLACK,BLACK |
1 | ||
| 71073-9560401 |
JY16,RY1#..LHD RH.&LH.,BLACK |
2 | ||
| 70014A - CLIP, SPRING, NO.1 | ||||
| 90467-08067 |
JY16,RY1#..LHD |
15 | ||
| 70014A - CLIP, SPRING, NO.1 | ||||
| 90467-08067 |
JY16,RY1#..LHD |
15 | ||
| 70014A - CLIP, SPRING, NO.1 | ||||
| 90467-08067 |
JY16,RY1#..LHD |
15 | ||
| 70014B - CLIP, LEATHER(FOR SEAT BACK COVER) | ||||
| 90468-06045 |
JY16,RY1#..LHD |
1 | ||
| 71415-9501001 |
JY16,RY1# LH. BLACK,BLACK |
1 | ||
| 70014B - CLIP, LEATHER(FOR SEAT BACK COVER) | ||||
| 90468-06045 |
JY16,RY1#..LHD |
1 | ||
| 71415-9501001 |
JY16,RY1# LH. BLACK,BLACK |
1 | ||
| 70014B - CLIP, LEATHER(FOR SEAT BACK COVER) | ||||
| 90468-06045 |
JY16,RY1#..LHD |
1 | ||
| 71415-9501001 |
JY16,RY1# LH. BLACK,BLACK |
1 | ||
| 71108 - HINGE SUB-ASSY, FRONT SEAT BACK, UPPER RH | ||||
| 71108-95013 |
JY16,RY1#..LHD |
1 | ||
| 71109-95016 |
JY16,RY1#..LHD FOR CENTER SEAT |
1 | ||
| 71108A - HOSE, CENTER SEAT BACK UPPER HINGE | ||||
| 90445-33008 |
JY16,RY1#..LHD |
1 | ||
| 71109 - HINGE SUB-ASSY, FRONT SEAT BACK, UPPER LH | ||||
| 71109-95013 |
JY16,RY1#..LHD |
1 | ||
| 71108-95016 |
JY16,RY1#..LHD FOR CENTER SEAT |
1 | ||
| 71109 - HINGE SUB-ASSY, FRONT SEAT BACK, UPPER LH | ||||
| 71109-95013 |
JY16,RY1#..LHD |
1 | ||
| 71108-95016 |
JY16,RY1#..LHD FOR CENTER SEAT |
1 | ||
| 71306 - HINGE SUB-ASSY, CENTER SEAT BACK LOWER | ||||
| 71309-95010 |
JY16,RY1#..LHD LH. |
1 | ||
| 71308-95010 |
JY16,RY1#..LHD RH. |
1 | ||
| 71306 - HINGE SUB-ASSY, CENTER SEAT BACK LOWER | ||||
| 71309-95010 |
JY16,RY1#..LHD LH. |
1 | ||
| 71308-95010 |
JY16,RY1#..LHD RH. |
1 | ||
| 71307 - HINGE SUB-ASSY, DRIVER SEAT, RH | ||||
| 71301-95013 |
JY16,RY1#..LHD |
1 | ||
| 71051-95010 |
JY16,RY1#..LHD |
1 | ||
| 71308 - HINGE SUB-ASSY, DRIVER SEAT, LH | ||||
| 71302-95011 |
JY16,RY1#..LHD |
1 | ||
| 71052-95010 |
JY16,RY1#..LHD |
1 | ||
| 71903 - CATCH SUB-ASSY, SEAT CUSHION, FRONT | ||||
| 71901-95010 |
JY16,RY1# |
1 | ||
| 71901-95016 |
JY16,RY1#..LHD |
2 | ||
| 72120S - TRACK ASSY, LH SEAT, OUTER (FOR SEPARATE SEAT) | ||||
| 72120-95010 |
JY16,RY1#..LHD |
1 | ||
| Common parts | ||||
| 71234-95010 | ||||
| 90119-08024 | ||||
| 90179-08123 | ||||
| 90540-06001 | ||||
| 90540-06003 | ||||
| 90540-06005 | ||||
| 93311-16012 | ||||
| 93319-15012 | ||||
| 93381-16012 | ||||
| 93510-15016 | ||||
| 93510-15020 | ||||
| 93560-15020 | ||||
| 94543-10800 | ||||
| 94611-10800 | ||||
