JY16L-JRHB (1975)

Toyota Toyoace

Production Dec 1975 - Feb 1979
Engine 2J
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7109-7902)T3..TS

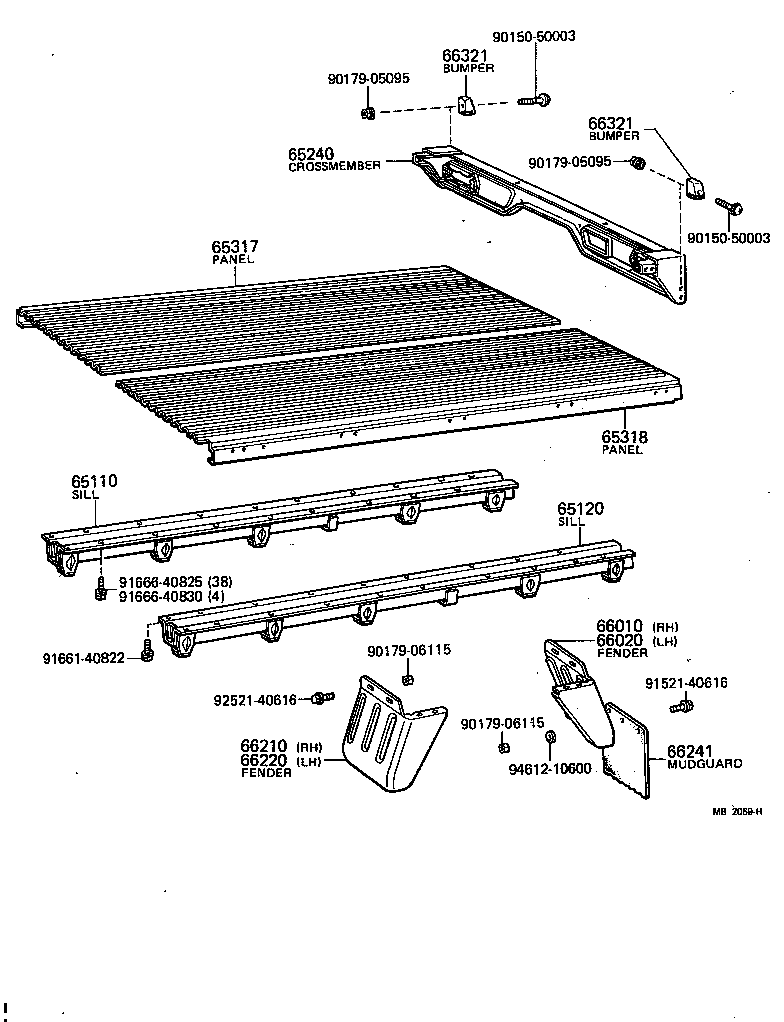

Click highlighted areas on diagram

diagram 65110 65120 65240 65317 65318 66010 66020 66210 66220 66241 66321 66321 9015050003 9015050003 9017905095 9017905095 9017906115 9017906115 9152140616 9166140822 9166640825 9166640830 9252140616 9461210600
Part # Description Qty Price
65240 - CROSSMEMBER, REAR BODY FLOOR, TAIL
65204-95013

JY16,RY1#..T3..TS

 1
65241-95024

JY16,RY1#..T3

 1
66010 - FENDER ASSY, REAR BODY, REAR RH
66233-95011

JY16,RY1#..T3..TS

 1
66020 - FENDER ASSY, REAR BODY, REAR LH
66234-95011

JY16,RY1#..T3..TS

 1
66210 - FENDER ASSY, REAR BODY, FRONT RH
66231-95011

JY16,RY1#..T3..TS

 1
66220 - FENDER ASSY, REAR BODY, FRONT LH
66232-95011

JY16,RY1#..T3..TS

 1
66241 - MUDGUARD, REAR
66241-95600

JY16,RY1#..T3..TS

 2
66321 - BUMPER, GATE RUBBER
66321-95012

JY16,RY1#..T3..TS

FOR SIDE GATE

 4
66321-95012

JY16,RY1#..T3..TS

FOR SIDE GATE FRONT

 2
66321-95014

JY16,RY1#..T3..TS

FOR SIDE GATE REAR & TAIL GATE

 4
66321 - BUMPER, GATE RUBBER
66321-95012

JY16,RY1#..T3..TS

FOR SIDE GATE

 4
66321-95012

JY16,RY1#..T3..TS

FOR SIDE GATE FRONT

 2
66321-95014

JY16,RY1#..T3..TS

FOR SIDE GATE REAR & TAIL GATE

 4
Common parts
90150-50003
90179-05095
90179-06115
91521-40616
91661-40822
91666-40825
91666-40830
92521-40616
94612-10600
