JY16L-JRHB (1975)

Toyota Toyoace

Production Dec 1975 - Feb 1979
Engine 2J
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7109-7902)

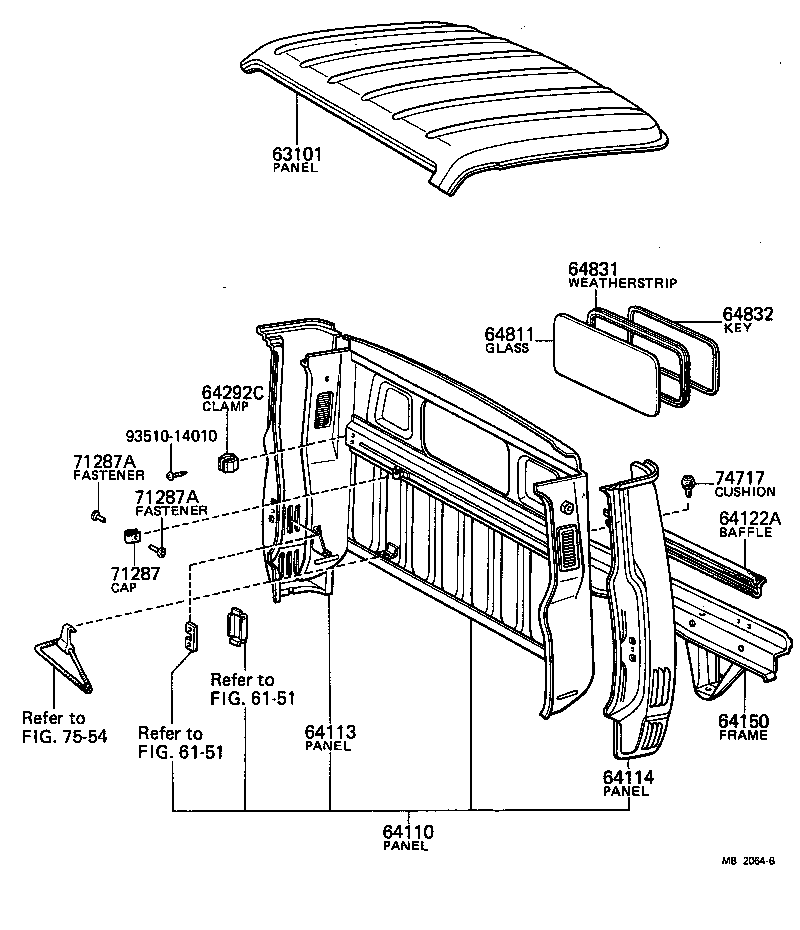

Click highlighted areas on diagram

diagram 6151 6151 63101 64110 64113 64114 64122A 64150 64292C 64811 64831 64832 71287 71287A 71287A 74717 7554 9351014010
Part # Description Qty Price
63101 - PANEL SUB-ASSY, ROOF
63111-95012

JY16,RY1#

 1
64110 - PANEL ASSY, FRONT BODY BACK
64100-95021

JY16,RY1#..LHD

 1
64100-95026

JY16..LHD

 1
64113 - PANEL, BACK CORNER, OUTER RH
64113-95011

JY16,RY1#

 1
64114 - PANEL, BACK CORNER, OUTER LH
64114-95011

JY16,RY1#

 1
64122A - BAFFLE, DUST REAR BODY
64122-95011

JY16,RY1#

 1
64150 - FRAME ASSY, BACK
64150-95023

JY16,RY1#..LHD

 1
64150-95016

JY16,RY1#

 1
64292C - CLAMP, JACK HANDLE
74716-95010

JY16,RY1#

 1
64811 - GLASS, BACK WINDOW
64811-95015

JY16,RY1#

*TEM,T=4.0,TP.T=4.0

 1
64811-95010

JY16,RY1#

TP.T=3.2

 1
64831 - WEATHERSTRIP, BACK WINDOW GLASS
64831-95010

JY16,RY1#

 1
64831-95015

JY16,RY1#

FOR T=4.0 GLASS

 1
64832 - KEY, BACK WINDOW WEATHERSTRIP
64832-95010

JY16,RY1#

 1
71287 - CAP, PASSENGER SEAT BACK FRAME STOP
71287-95111

JY16,RY1#..LHD

 1
71287A - FASTENER, LEATHER(FOR PASSENER SEAT BACK FRAME STOP CAP
90530-03008

JY16,RY1#..LHD

L=4.5

 1
90530-03007

JY16,RY1#..LHD

L=10

 1
71287A - FASTENER, LEATHER(FOR PASSENER SEAT BACK FRAME STOP CAP
90530-03008

JY16,RY1#..LHD

L=4.5

 1
90530-03007

JY16,RY1#..LHD

L=10

 1
74717 - CUSHION (FOR JACK HANDLE)
90541-10052

JY16,RY1#

 1
Common parts
93510-14010
Linked diagrams
6151
7554
