JY16L-JRHB (1975)

Toyota Toyoace

Production Dec 1975 - Feb 1979
Engine 2J
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7708-7902)2J

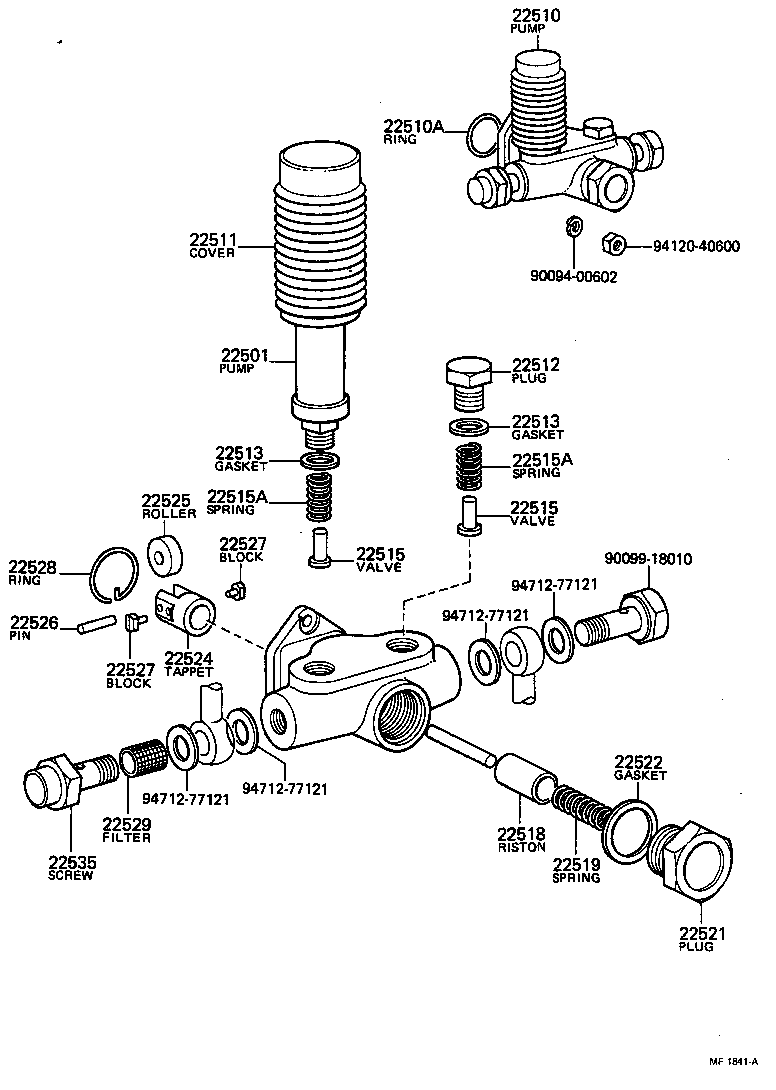

Click highlighted areas on diagram

diagram 22501 22510 22510A 22511 22512 22513 22513 22515 22515 22515A 22515A 22518 22519 22521 22522 22524 22525 22526 22527 22527 22528 22529 22535 9009400602 9009918010 9412040600 9471277121 9471277121 9471277121 9471277121
Part # Description Qty Price
22510 - PUMP ASSY, FUEL FEED
22510-77130

2J..JY16

 1
22519 - SPRING, FEED PUMP PISTON
22519-48010

2J..JY16

 1
22524 - TAPPET, FEED PUMP
22524-77010

2J..JY16

 1
22527 - BLOCK, FEED PUMP TAPPET SLIDING
22527-56010

2J..JY16

 2
22527 - BLOCK, FEED PUMP TAPPET SLIDING
22527-56010

2J..JY16

 2
22529 - FILTER, FUEL PUMP
22529-67010

2J..JY16

 1
Common parts
90094-00602
90099-18010
94120-40600
94712-77121
