JY16L-JRH (1975)
Toyota Toyoace
Production
Dec 1975
-
Feb 1979
Engine
2J
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7109-7902)T1

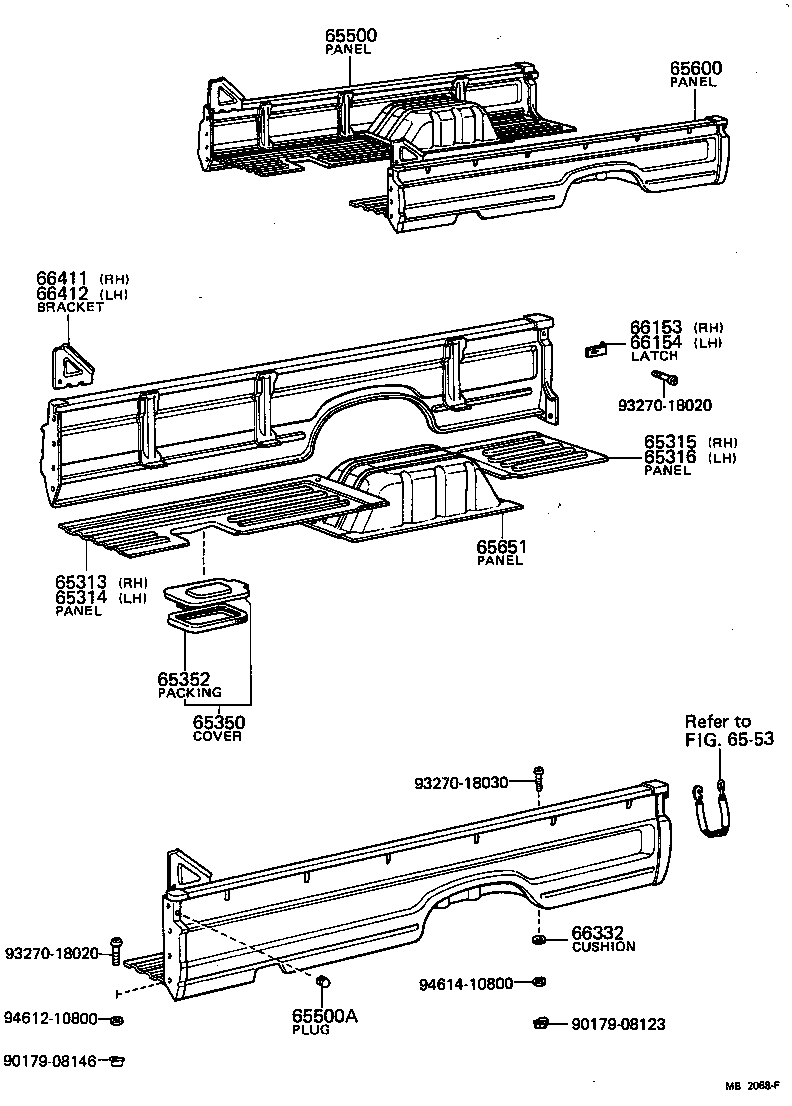

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65500A - PLUG, HOLE(FOR REAR BODY SIDE PANEL) | ||||
| 90467-0708705 |
JY16,RY1#..T1 GRAY,BEIGE |
2 | ||
| 66153 - LATCH, TAIL GATE FEMALE, RH | ||||
| 66153-95012 |
JY16,RY1#..T1 |
1 | ||
| 66154 - LATCH, TAIL GATE FEMALE, LH | ||||
| 66153-95012 |
JY16,RY1#..T1 |
1 | ||
| 66411 - BRACKET, GUARD FRAME, RH | ||||
| 66411-95018 |
JY16,RY1#..T1 |
1 | ||
| 66412 - BRACKET, GUARD FRAME, LH | ||||
| 66412-95017 |
JY16,RY1#..T1 |
1 | ||
| Common parts | ||||
| 90179-08123 | ||||
| 90179-08146 | ||||
| 93270-18020 | ||||
| 93270-18030 | ||||
| 94612-10800 | ||||
| 94614-10800 | ||||
| Linked diagrams | ||||
| 6553 | ||||
(7512-7611)

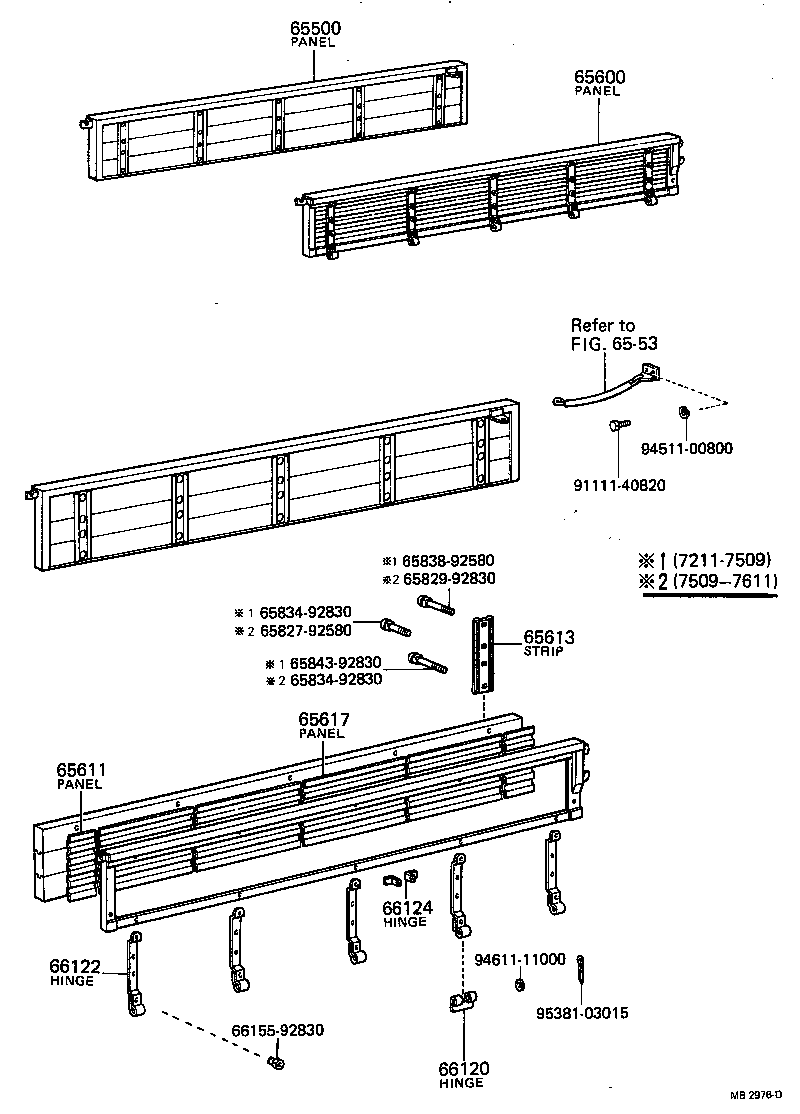

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 65827-92580 | ||||
| 65829-92830 | ||||
| 65834-92830 | ||||
| 65838-92580 | ||||
| 65843-92830 | ||||
| 66155-92830 | ||||
| 91111-40820 | ||||
| 94511-00800 | ||||
| 94611-11000 | ||||
| 95381-03015 | ||||
| Linked diagrams | ||||
| 6553 | ||||
