JY16L-JRB (1972)
Toyota Toyoace
Production
Jul 1972
-
Feb 1979
Engine
2J
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7207-7902)JY16

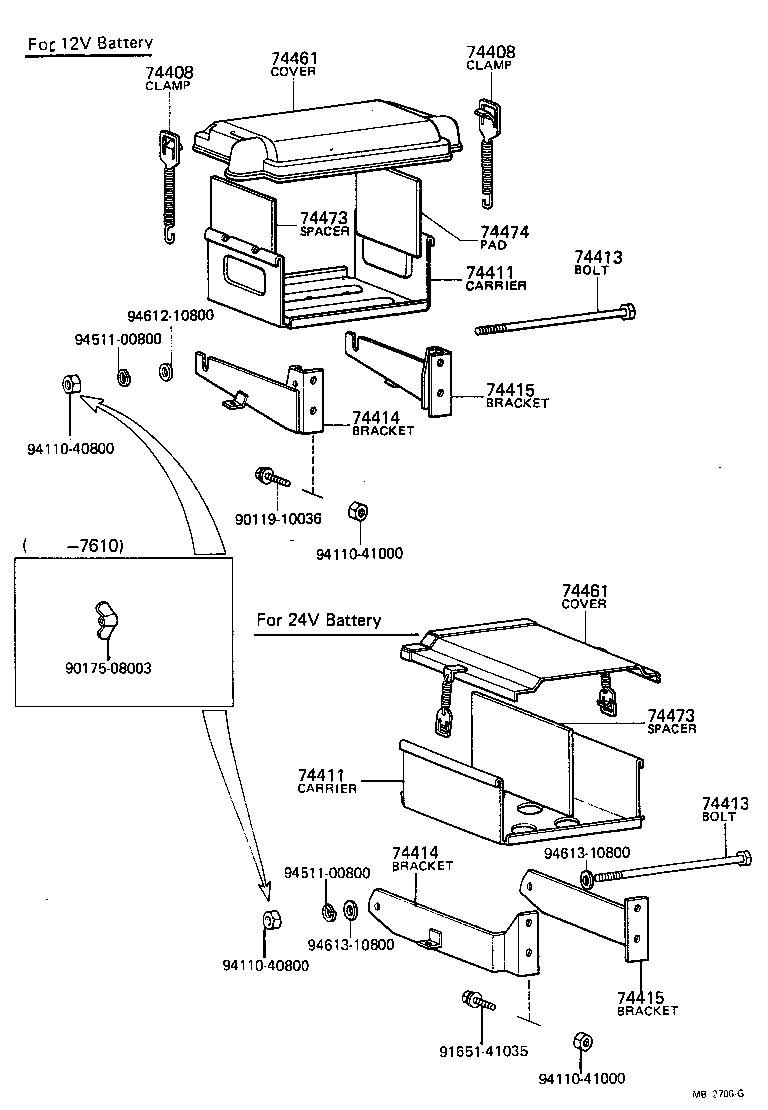

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74408 - CLAMP SUB-ASSY, BATTERY COVER | ||||
| 74408-55020 |
JY16 |
2 | ||
| 74408 - CLAMP SUB-ASSY, BATTERY COVER | ||||
| 74408-55020 |
JY16 |
2 | ||
| 74411 - CARRIER, BATTERY | ||||
| 74421-36031 |
JY16 N70Z |
1 | ||
| 74421-36040 |
JY16 N100Z |
1 | ||
| 74411 - CARRIER, BATTERY | ||||
| 74421-36031 |
JY16 N70Z |
1 | ||
| 74421-36040 |
JY16 N100Z |
1 | ||
| 74413 - BOLT, BATTERY CLAMP | ||||
| 90101-08133 |
JY16 |
1 | ||
| 90101-08223 |
JY16 N70Z |
1 | ||
| 74413 - BOLT, BATTERY CLAMP | ||||
| 90101-08133 |
JY16 |
1 | ||
| 90101-08223 |
JY16 N70Z |
1 | ||
| 74414 - BRACKET, BATTERY, FR | ||||
| 74401-36040 |
JY16 24V.N70Z |
1 | ||
| 74401-36011 |
JY16 12V.N50, 50Z,70,100Z |
1 | ||
| 74414 - BRACKET, BATTERY, FR | ||||
| 74401-36040 |
JY16 24V.N70Z |
1 | ||
| 74401-36011 |
JY16 12V.N50, 50Z,70,100Z |
1 | ||
| 74415 - BRACKET, BATTERY, REAR | ||||
| 74402-36030 |
JY16 24V.N70Z |
1 | ||
| 74402-36011 |
JY16 12V.N50,50Z,100Z |
1 | ||
| 74415 - BRACKET, BATTERY, REAR | ||||
| 74402-36030 |
JY16 24V.N70Z |
1 | ||
| 74402-36011 |
JY16 12V.N50,50Z,100Z |
1 | ||
| 74461 - COVER, BATTERY | ||||
| 74405-36011 |
JY16 24V.N70Z |
1 | ||
| 74461-36020 |
JY16 12V.N100Z |
1 | ||
| 74461 - COVER, BATTERY | ||||
| 74405-36011 |
JY16 24V.N70Z |
1 | ||
| 74461-36020 |
JY16 12V.N100Z |
1 | ||
| 74473 - SPACER, BATTERY | ||||
| 74473-36020 |
JY16 T=5.0 KOBE |
1 | ||
| 74473-36010 |
JY16 T=3.0 |
1 | ||
| 74473 - SPACER, BATTERY | ||||
| 74473-36020 |
JY16 T=5.0 KOBE |
1 | ||
| 74473-36010 |
JY16 T=3.0 |
1 | ||
| 74474 - PAD, BATTERY | ||||
| 74474-36010 |
JY16 T=9.0 YUASA |
1 | ||
| Common parts | ||||
| 90119-10036 | ||||
| 90175-08003 | ||||
| 91651-41035 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94511-00800 | ||||
| 94612-10800 | ||||
| 94613-10800 | ||||
