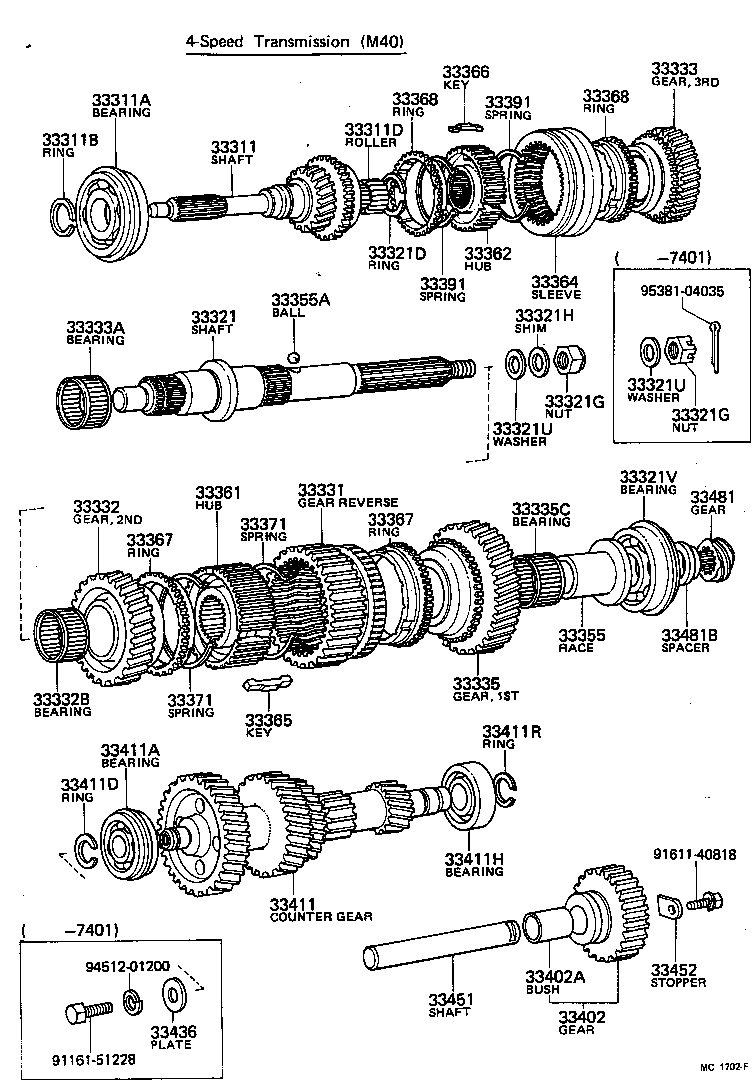

JY16L-JRB (1972)
Toyota Toyoace
(7207-7902)JY16
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33311 - SHAFT, INPUT | ||||
| 33311-36050 |
JY16 N=20 |
1 | ||
| 33311A - BEARING (FOR INPUT SHAFT FRONT) | ||||
| 90363-35064 |
JY16 B35 68 C3 |
1 | ||
| 90363-35002 |
JY16 B35 68 C3 |
1 | ||
| 33311B - RING, SHAFT SNAP (FOR FRONT BEARING) | ||||
| 90520-33107 |
JY16 T=2.30-2.35,MARK 11,T=2.30-2.35 |
1 | ||
| 90520-33108 |
JY16 T=2.40,MARK 13,T=2.40-2.45 |
1 | ||
| 90520-33109 |
JY16 T=2.50,MARK 15,T=2.50-2.55 |
1 | ||
| 90520-33134 |
JY16 T=2.55,MARK 16,T=2.55-2.60 |
1 | ||
| 90520-33132 |
JY16 T=2.35-2.40,MARK 12,T=2.35-2.40 |
1 | ||
| 90520-33133 |
JY16 T=2.45,MARK 14,T=2.45-2.50 |
1 | ||
| 33311D - BEARING, INPUT SHAFT | ||||
| 90361-06049 |
JY16 |
16 | ||
| 33321 - SHAFT, OUTPUT | ||||
| 33321-36022 |
JY16 |
1 | ||
| 33321-36020 |
JY16 |
1 | ||
| 33321-36021 |
JY16 |
1 | ||
| 33321D - RING, SHAFT SNAP (FOR CLUTCH HUB SET) | ||||
| 90520-36252 |
JY16 T=2.50-2.55,T=2.50 |
1 | ||
| 90520-36250 |
JY16 T=2.40-2.45,T=2.40 |
1 | ||
| 90520-36251 |
JY16 T=2.45-2.50,T=2.45 |
1 | ||
| 90520-36254 |
JY16 T=2.60-2.65,T=2.60 |
1 | ||
| 90520-36255 |
JY16 T=2.65-2.70,T=2.65 |
1 | ||
| 90520-36253 |
JY16 T=2.55-2.60,T=2.55 |
1 | ||
| 33321G - NUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET) | ||||
| 90179-20061 |
JY16,RY1# |
1 | ||
| 94146-42000 |
JY16 |
1 | ||
| 33321G - NUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET) | ||||
| 90179-20061 |
JY16,RY1# |
1 | ||
| 94146-42000 |
JY16 |
1 | ||
| 33321H - SHIM (FOR OUTPUT SHAFT REAR BEARING) | ||||
| 90564-21143 |
JY16 |
1 | ||
| 33321U - WASHER (FOR MANUAL TRANSMISSION OUTPUT SHAFT SET) | ||||
| 90201-20479 |
JY16 |
1 | ||
| 33321U - WASHER (FOR MANUAL TRANSMISSION OUTPUT SHAFT SET) | ||||
| 90201-20479 |
JY16 |
1 | ||
| 33321V - BEARING (FOR OUTPUT SHAFT CENTER) | ||||
| 97153-06307 |
JY16 |
1 | ||
| 33331 - GEAR, REVERSE | ||||
| 33331-36020 |
JY16 N=38 |
1 | ||
| 33331-36023 |
JY16 N=38 |
1 | ||
| 33331-36024 |
JY16 N=38 |
1 | ||
| 33331-36022 |
JY16 N=38 |
1 | ||
| 33331-36021 |
JY16 N=38 |
1 | ||
| 33332 - GEAR, 2ND | ||||
| 33332-36020 |
JY16 N=33 |
1 | ||
| 33332B - BEARING, NEEDLE ROLLER (FOR 2ND GEAR) | ||||
| 90364-46053 |
JY16 |
1 | ||
| 33333 - GEAR, 3RD | ||||
| 33333-36020 |
JY16 N=28 |
1 | ||
| 33333-36021 |
JY16 N=28 |
1 | ||
| 33333A - BEARING, NEEDLE ROLLER (FOR 3RD GEAR) | ||||
| 90364-43042 |
JY16 |
1 | ||
| 33335 - GEAR, 1ST | ||||
| 33335-36050 |
JY16 N=40 |
1 | ||
| 33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR) | ||||
| 90364-46053 |
JY16 |
1 | ||
| 33355 - RACE, 1ST GEAR BEARING INNER | ||||
| 33355-36010 |
JY16 |
1 | ||
| 33355A - KEY OR BALL, 1ST GEAR BEARING INNER RACE LOCK | ||||
| 90360-06004 |
JY16 |
1 | ||
| 33361 - HUB, TRANSMISSION CLUTCH, NO.1 | ||||
| 33361-36010 |
JY16 |
1 | ||
| 33362 - HUB, TRANSMISSION CLUTCH, NO.2 | ||||
| 33362-36021 |
JY16 |
1 | ||
| 33362-36020 |
JY16 |
1 | ||
| 33364 - SLEEVE, TRANSMISSION HUB, NO.2 | ||||
| 33364-36050 |
JY16 |
1 | ||
| 33364-36051 |
JY16 |
1 | ||
| 33365 - KEY, SYNCHROMESH SHIFTING, NO.1 | ||||
| 33365-36010 |
JY16 |
3 | ||
| 33366 - KEY, SYNCHROMESH SHIFTING, NO.2 | ||||
| 33366-36020 |
JY16 |
3 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33367-40012 |
JY16 FOR 1ST GEAR |
1 | ||
| 33367-36030 |
JY16 FOR 2ND GEAR |
1 | ||
| 33367-40011 |
JY16 |
2 | ||
| 33367-40010 |
JY16 |
2 | ||
| 33367-40012 |
JY16 |
2 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33367-40012 |
JY16 FOR 1ST GEAR |
1 | ||
| 33367-36030 |
JY16 FOR 2ND GEAR |
1 | ||
| 33367-40011 |
JY16 |
2 | ||
| 33367-40010 |
JY16 |
2 | ||
| 33367-40012 |
JY16 |
2 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33368-20012 |
JY16 |
2 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33368-20012 |
JY16 |
2 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-36020 |
JY16 |
2 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-36020 |
JY16 |
2 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33371-20010 |
JY16 |
2 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33371-20010 |
JY16 |
2 | ||
| 33402 - GEAR SUB-ASSY, REVERSE IDLER | ||||
| 33402-36030 |
JY16 N=27 |
1 | ||
| 33402A - BUSH OR BEARING (FOR REVERSE IDLER GEAR) | ||||
| 90999-73063 |
JY16 |
1 | ||
| 33411 - COUNTERSHAFT | ||||
| 33411-36031 |
JY16 N=38,30,21,13,14 |
1 | ||
| 33411-36032 |
JY16 N=38,30,21,13,14 |
1 | ||
| 33411-36033 |
JY16 N=38,30,21,13,14 |
1 | ||
| 33411-36030 |
JY16 N=38,30,21,13,14 |
1 | ||
| 33411A - BEARING OR ROLLER(FOR COUNTER GEAR FRONT) | ||||
| 90363-30001 |
JY16 |
1 | ||
| 97153-06306 |
JY16 |
1 | ||
| 97153-06305 |
JY16,RY1# |
1 | ||
| 33411D - RING, COUNTER GEAR FRONT BEARING SNAP, NO.1 | ||||
| 90520-28246 |
JY16 T=1.90-1.95,MARK E,T=1.90-1.95 |
1 | ||
| 90520-28248 |
JY16 T=2.00-2.05,MARK F,T=2.00-2.05 |
1 | ||
| 90520-28243 |
JY16 T=1.60-1.65,MARK B,T=1.60-1.65 |
1 | ||
| 90520-28242 |
JY16 T=1.50-1.55,MARK A,T=1.50-1.55 |
1 | ||
| 90520-28244 |
JY16 T=1.70-1.75,MARK C,T=1.70-1.75 |
1 | ||
| 90520-28249 |
JY16 T=2.10-2.15,MARK G,T=2.10-2.15 |
1 | ||
| 33411H - BEARING OR ROLLER(FOR COUNTER GEAR REAR) | ||||
| 90365-30014 |
JY16 |
1 | ||
| 33411R - RING, SNAP, COUNTER GEAR REAR BEARING | ||||
| 90520-29099 |
JY16 T=2.1 |
1 | ||
| 33436 - PLATE, COUNTER GEAR FRONT BEARING LOCK BOLT | ||||
| 90201-12455 |
JY16 |
1 | ||
| 33451 - SHAFT, REVERSE IDLER GEAR | ||||
| 33451-36030 |
JY16 |
1 | ||
| 33452 - STOPPER, REVERSE IDLER GEAR SHAFT | ||||
| 33452-36020 |
JY16 |
1 | ||
| 33481 - GEAR, SPEEDOMETER DRIVE (MTM) | ||||
| 33481-36060 |
JY16 N=5 |
1 | ||
| 33481-30010 |
RY12,16 N=4 |
1 | ||
| 33481B - RING OR SPACER (FOR MTM SPEEDOMETER DRIVE GEAR) | ||||
| 33487-36030 |
JY16 |
1 | ||
| Common parts | ||||
| 91161-51228 | ||||
| 91611-40818 | ||||
| 94512-01200 | ||||
| 95381-04035 | ||||
