JY16L-JR (1972)

Toyota Toyoace

Production Jul 1972 - Feb 1979
Engine 2J
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7109-7611) ; (7611-7902)LHD

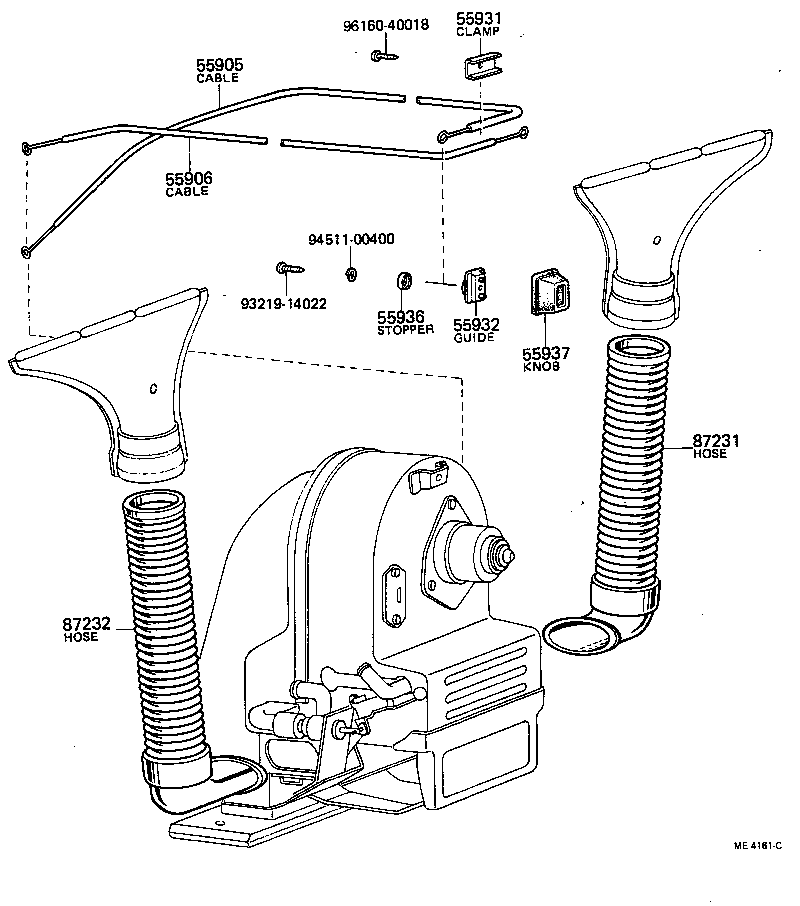

Click highlighted areas on diagram

diagram 55905 55906 55931 55932 55936 55937 87231 87232 9321914022 9451100400 9616040018
Part # Description Qty Price
55905 - CABLE SUB-ASSY, DEFROST CONTROL
55905-95012

JY16,RY1#..LHD

 1
55906 - CABLE SUB-ASSY, HEATER CONTROL
55906-95010

JY16,RY1#

 1
55906-95010

JY16,RY1#..LHD

 1
55931 - CLAMP, HEATER CONTROL WIRE
55931-95010

JY16,RY1#

 1
55931-95010

JY16,RY1#..LHD

 1
55932 - GUIDE, LEVER, NO.1
55932-95010

JY16,RY1#

 2
55932-95010

JY16,RY1#..LHD

 2
55936 - STOPPER, HEATER CONTROL WIRE CLAMP
55939-20010

JY16,RY1#..LHD

 2
55939-20010

JY16,RY1#

 2
55937 - KNOB, HEATER CONTROL LEVER
55937-95010

JY16,RY1#

 2
55937-95010

JY16,RY1#..LHD

 2
87231 - HOSE, HEATER DEFROSTER, RH
87231-25080

JY16,RY1#..LHD

 1
87231-25070

JY16,RY1#

 1
87231-25080

JY16,RY1#

 1
87232 - HOSE, HEATER DEFROSTER, LH
87232-25080

JY16,RY1#..LHD

 1
87232-25080

JY16..LHD

 1
Common parts
93219-14022
94511-00400
96160-40018
