JY16L-JR (1972)

Toyota Toyoace

Production Jul 1972 - Feb 1979
Engine 2J
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7109-7902)

Click highlighted areas on diagram

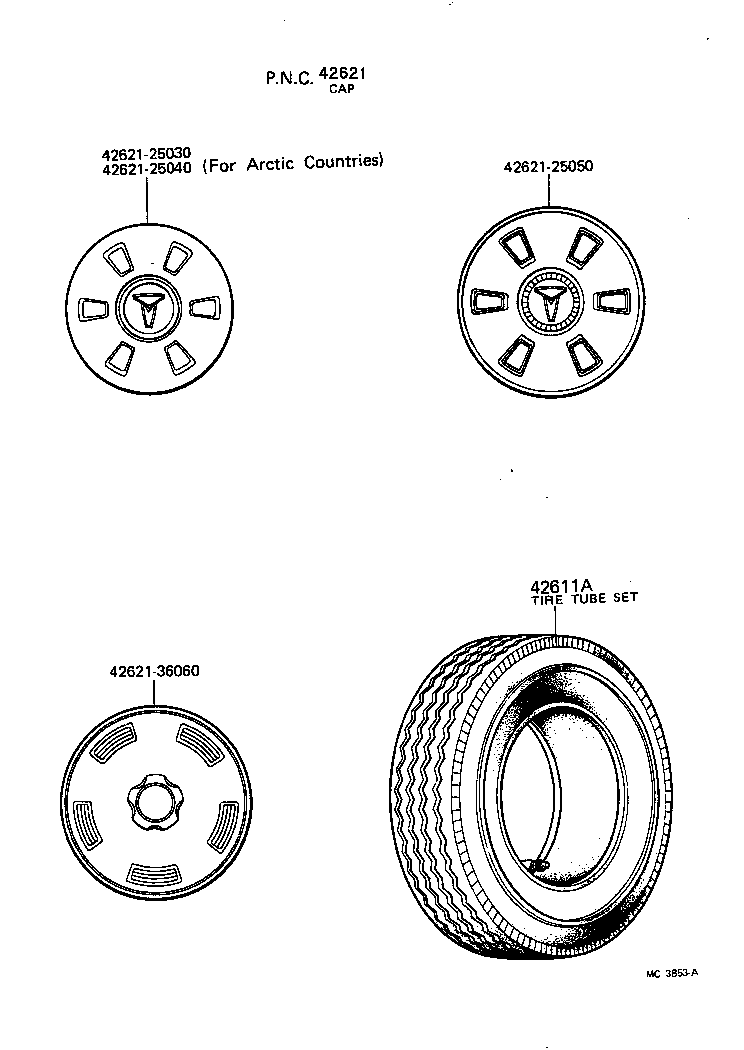

diagram 42611A 42621 4262125030 4262125040 4262125050 4262136060
Part # Description Qty Price
42611A - TIRE TUBE SET OR TUBELESS TIRE
98061-75165

JY16,RY16..20T

7.50-16-10,REAR

 2
98061-65163

JY16,RY16..20T

6.50-16-6,FRONT

 2
98061-75156

JY16,RY16..20T

7.50-15-12,REAR

 2
98061-65153

JY16,RY16..20T

6.50-15-6,FRONT

 2
42621 - CAP, WHEEL
42621-25050

JY16,RY12,16

 4
42621-36060

JY16,RY16..20T

 4
Common parts
42621-25030
42621-25040
42621-25050
42621-36060

(7109-7902)

Click highlighted areas on diagram

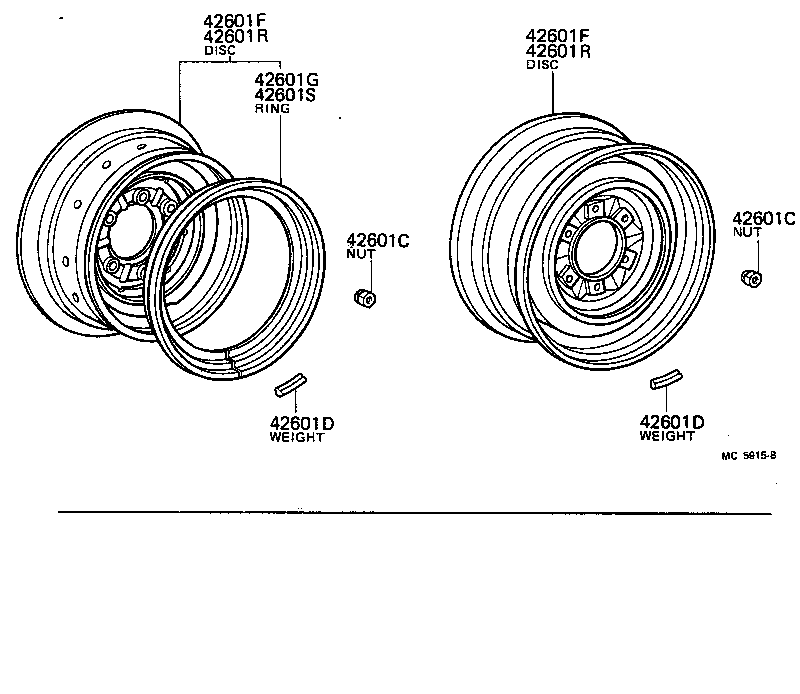

diagram 42601C 42601C 42601D 42601D 42601F 42601F 42601G 42601R 42601R 42601S
Part # Description Qty Price
42601C - NUT, HUB (FOR AXLE)
90942-01013

JY16,RY16..20T

FOR LH.

 12
90942-01012

JY16,RY16..20T

FOR RH.

 12
42601C - NUT, HUB (FOR AXLE)
90942-01013

JY16,RY16..20T

FOR LH.

 12
90942-01012

JY16,RY16..20T

FOR RH.

 12
42601D - WEIGHT, BALANCE (FOR DISC WHEEL)
90942-03047

JY16,RY12,16

40G,40G.

 1
90942-03049

JY16,RY12,16

60G,60G.

 1
90942-03052

JY16,RY12,16

50G,50G.

 1
90942-03053

JY16,RY12,16

100G,100G.

 1
90942-03064

JY16,RY12,16

70G,70G.

 1
90942-03051

JY16,RY12,16

80G,80G.

 1
90942-03050

JY16,RY12,16

30G,30G.

 1
90942-03045

JY16,RY12,16

20G,20G.

 1
42601D - WEIGHT, BALANCE (FOR DISC WHEEL)
90942-03047

JY16,RY12,16

40G,40G.

 1
90942-03049

JY16,RY12,16

60G,60G.

 1
90942-03052

JY16,RY12,16

50G,50G.

 1
90942-03053

JY16,RY12,16

100G,100G.

 1
90942-03064

JY16,RY12,16

70G,70G.

 1
90942-03051

JY16,RY12,16

80G,80G.

 1
90942-03050

JY16,RY12,16

30G,30G.

 1
90942-03045

JY16,RY12,16

20G,20G.

 1
42601F - WHEEL, DISC (FOR FRONT)
42610-36110

JY16,RY16..20T

5.50F-16

 2
42610-36140

JY16,RY16..20T

5.50FX15,5.50F-15,TOPY

 2
42610-36150

JY16,RY16..20T

5.50F-15,CHUOSEIKI

 2
42601F - WHEEL, DISC (FOR FRONT)
42610-36110

JY16,RY16..20T

5.50F-16

 2
42610-36140

JY16,RY16..20T

5.50FX15,5.50F-15,TOPY

 2
42610-36150

JY16,RY16..20T

5.50F-15,CHUOSEIKI

 2
42601G - RING, DISC WHEEL SIDE (FOR FRONT)
42613-35010

JY16,RY16..20T

TOPY

 2
42613-36020

JY16,RY16..20T

 2
42613-36060

JY16,RY16..20T

CHUOSEIKI

 2
42601R - WHEEL, DISC (FOR REAR)
42610-36160

JY16,RY16..20T

6.00GSX15,6.00GS-15,TOPY

 2
42610-36110

JY16,RY16..20T

5.50F-16

 2
42610-36170

JY16,RY16..20T

6.00GS-15,CHUOSEIKI

 2
42601R - WHEEL, DISC (FOR REAR)
42610-36160

JY16,RY16..20T

6.00GSX15,6.00GS-15,TOPY

 2
42610-36110

JY16,RY16..20T

5.50F-16

 2
42610-36170

JY16,RY16..20T

6.00GS-15,CHUOSEIKI

 2
42601S - RING, DISC WHEEL SIDE (FOR REAR)
42613-36070

JY16,RY16..20T

CHUOSEIKI

 2
42613-36020

JY16,RY16..20T

 2
42613-35020

JY16,RY16..20T

TOPY

 2
