JY16L-JR (1972)
Toyota Toyoace
Production
Jul 1972
-
Feb 1979
Engine
2J
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

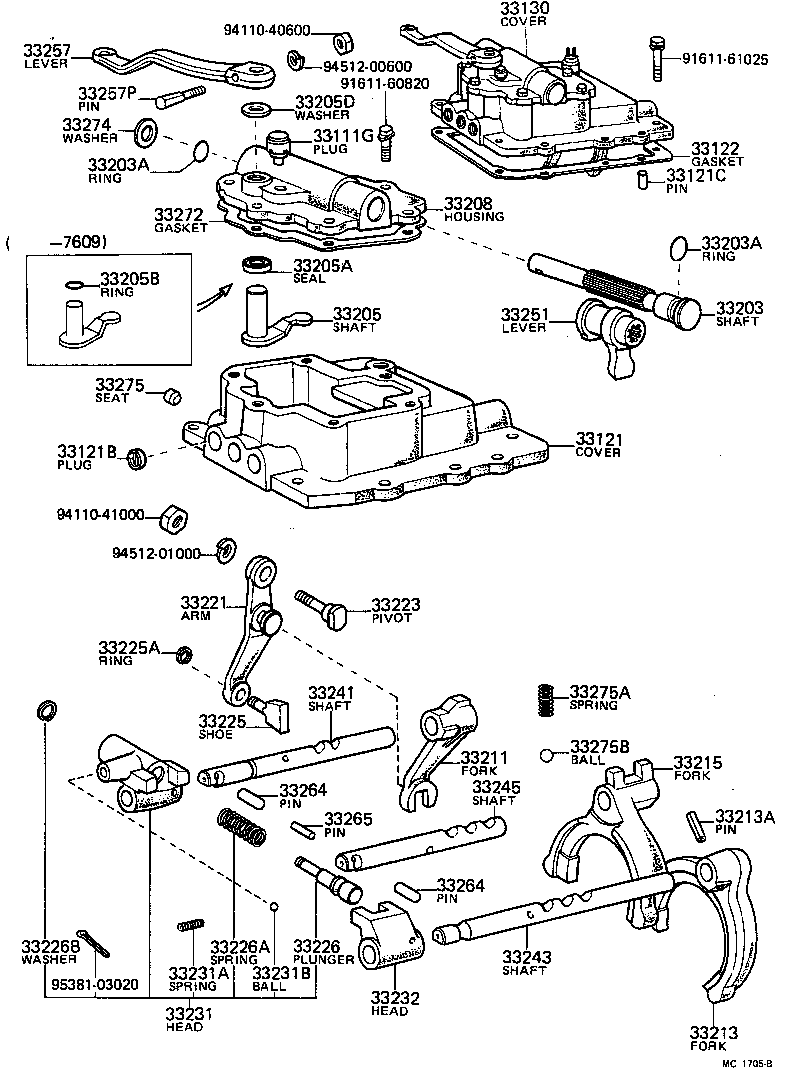

(7207-7802)JY16
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33111G - PLUG, BREATHER(FOR MANUAL TRANSMISSION) | ||||
| 90930-03055 |
JY16 |
1 | ||
| 90930-03065 |
JY16 |
1 | ||
| 33121 - COVER, MANUAL TRANSMISSION CASE | ||||
| 33121-36030 |
JY16 |
1 | ||
| 33121B - PLUG, EXPANSION OR TIGHT(FOR TRANSMISSION CASE COVER) | ||||
| 90331-16050 |
JY16 |
4 | ||
| 33121C - PIN(FOR TRANSMISSION CASE COVER) | ||||
| 90250-10214 |
JY16 L=14,OD=10 |
2 | ||
| 33122 - GASKET, MANUAL TRANSMISSION CASE COVER | ||||
| 33122-36030 |
JY16 |
1 | ||
| 33130 - COVER ASSY, TRANSMISSION CASE | ||||
| 33130-36041 |
JY16..LHD |
1 | ||
| 33203 - SHAFT SUB-ASSY, SHIFT LEVER, NO.1 | ||||
| 33261-36050 |
JY16 |
1 | ||
| 33261-36020 |
JY16 |
1 | ||
| 33203A - RING, O(FOR SHIFT INTER-LOCK SUPPORT SHAFT) | ||||
| 90301-15021 |
JY16,RY1# ID=15.6,WD=2.3 |
1 | ||
| 90301-12019 |
JY16,RY1# ID=12.6,WD=2.3 |
1 | ||
| 33203A - RING, O(FOR SHIFT INTER-LOCK SUPPORT SHAFT) | ||||
| 90301-15021 |
JY16,RY1# ID=15.6,WD=2.3 |
1 | ||
| 90301-12019 |
JY16,RY1# ID=12.6,WD=2.3 |
1 | ||
| 33205 - SHAFT SUB-ASSY, SELECT LEVER | ||||
| 33205-36020 |
JY16 |
1 | ||
| 33205-36050 |
JY16 |
1 | ||
| 33205A - SEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT) | ||||
| 90313-13001 |
JY16 |
1 | ||
| 33205B - RING, O(FOR SHIFT LEVER NO.2 SHAFT) | ||||
| 90301-12019 |
JY16,RY1# ID=12.6,WD=2.3 |
1 | ||
| 33205D - WASHER(FOR OUTER LEVER OIL SETTING) | ||||
| 90201-13153 |
JY16 |
1 | ||
| 90201-13151 |
JY16 |
1 | ||
| 33208 - HOUSING SUB-ASSY, SHIFT LEVER SHAFT | ||||
| 33271-36020 |
JY16 |
1 | ||
| 33271-36021 |
JY16 |
1 | ||
| 33271-36080 |
JY16 |
1 | ||
| 33211 - FORK, REVERSE SHIFT | ||||
| 33211-36020 |
JY16 |
1 | ||
| 33213 - FORK, 1ST & 2ND SHIFT | ||||
| 33212-36011 |
JY16 |
1 | ||
| 33212-36010 |
JY16 |
1 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05016 |
JY16,RY1# |
5 | ||
| 90254-05016 |
JY16 |
5 | ||
| 33215 - FORK, 3RD & 4TH SHIFT | ||||
| 33213-36020 |
JY16 |
1 | ||
| 33221 - ARM, REVERSE SHIFT | ||||
| 33201-36010 |
JY16 |
1 | ||
| 33223 - PIVOT, SHIFT ARM | ||||
| 33223-36010 |
JY16 |
1 | ||
| 33225 - SHOE, SHIFT ARM | ||||
| 33225-36030 |
JY16 |
1 | ||
| 33225A - RING, SHAFT SNAP(FOR SHIFT ARM SHOE) | ||||
| 90520-08098 |
JY16 |
1 | ||
| 33226 - PLUNGER, REVERSE SHIFT RETURN | ||||
| 33226-36020 |
JY16 |
1 | ||
| 33226A - SPRING, COMPRESSION(FOR REVERSE SHIFT RETURN PLUNGER) | ||||
| 90501-20656 |
JY16 |
1 | ||
| 90501-16029 |
JY16 |
1 | ||
| 33226B - WASHER, TYPE C(FOR REVERSE SHIFT RETURN PLUNGER) | ||||
| 90213-06001 |
JY16 |
1 | ||
| 33231 - HEAD, REVERSE SHIFT | ||||
| 33202-36020 |
JY16 |
1 | ||
| 33231A - SPRING, REVERSE SHIFT RESTRICT | ||||
| 90501-14396 |
JY16 |
1 | ||
| 90501-12019 |
JY16 |
1 | ||
| 33231B - BALL, REVERSE SHIFT RESTRICT | ||||
| 90360-06004 |
JY16 |
1 | ||
| 33232 - HEAD, 1ST & 2ND SHIFT | ||||
| 33232-36011 |
JY16 |
1 | ||
| 33232-36011 |
JY16..LHD |
1 | ||
| 33232-36010 |
JY16 |
1 | ||
| 33241 - SHAFT, REVERSE SHIFT FORK | ||||
| 33241-36040 |
JY16 |
1 | ||
| 33241-36021 |
JY16 |
1 | ||
| 33243 - SHAFT, 1ST & 2ND SHIFT FORK | ||||
| 33242-36021 |
JY16 |
1 | ||
| 33242-36040 |
JY16 |
1 | ||
| 33242-36020 |
JY16 |
1 | ||
| 33245 - SHAFT, 3RD & 4TH SHIFT FORK | ||||
| 33243-36020 |
JY16 |
1 | ||
| 33251 - LEVER, SHIFT & SELECT | ||||
| 33251-36020 |
JY16 |
1 | ||
| 33251-36060 |
JY16..LHD |
1 | ||
| 33257 - LEVER, SELECT OUTER | ||||
| 33257-36020 |
JY16 |
1 | ||
| 33257P - PIN, SELECT OUTER LEVER LOCK | ||||
| 33282-36020 |
JY16 YELLOW PAINT |
1 | ||
| 33282-36010 |
JY16 RED PAINT |
1 | ||
| 33282-35010 |
JY16,RY1# |
1 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 90361-10008 |
JY16,RY1# L=15,OD=9.5 |
2 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 90361-10008 |
JY16,RY1# L=15,OD=9.5 |
2 | ||
| 33265 - PIN, SHIFT INTER LOCK, NO.2 | ||||
| 90250-05034 |
JY16,RY1# L=13,OD=4.8 |
1 | ||
| 33272 - GASKET, SHIFT LEVER SHAFT HOUSING | ||||
| 33272-36020 |
JY16 |
1 | ||
| 33274 - WASHER, SHIFT LEVER SHAFT HOUSING, NO.2 | ||||
| 90201-13153 |
JY16 |
1 | ||
| 94612-11600 |
JY16 |
1 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 90250-10215 |
JY16 L=9,OD=9 |
1 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14638 |
JY16 L=15.2 |
3 | ||
| 90501-14237 |
JY16 L=16.1 |
3 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
JY16,RY1# |
3 | ||
| Common parts | ||||
| 91611-60820 | ||||
| 91611-61025 | ||||
| 94110-40600 | ||||
| 94110-41000 | ||||
| 94512-00600 | ||||
| 94512-01000 | ||||
| 95381-03020 | ||||

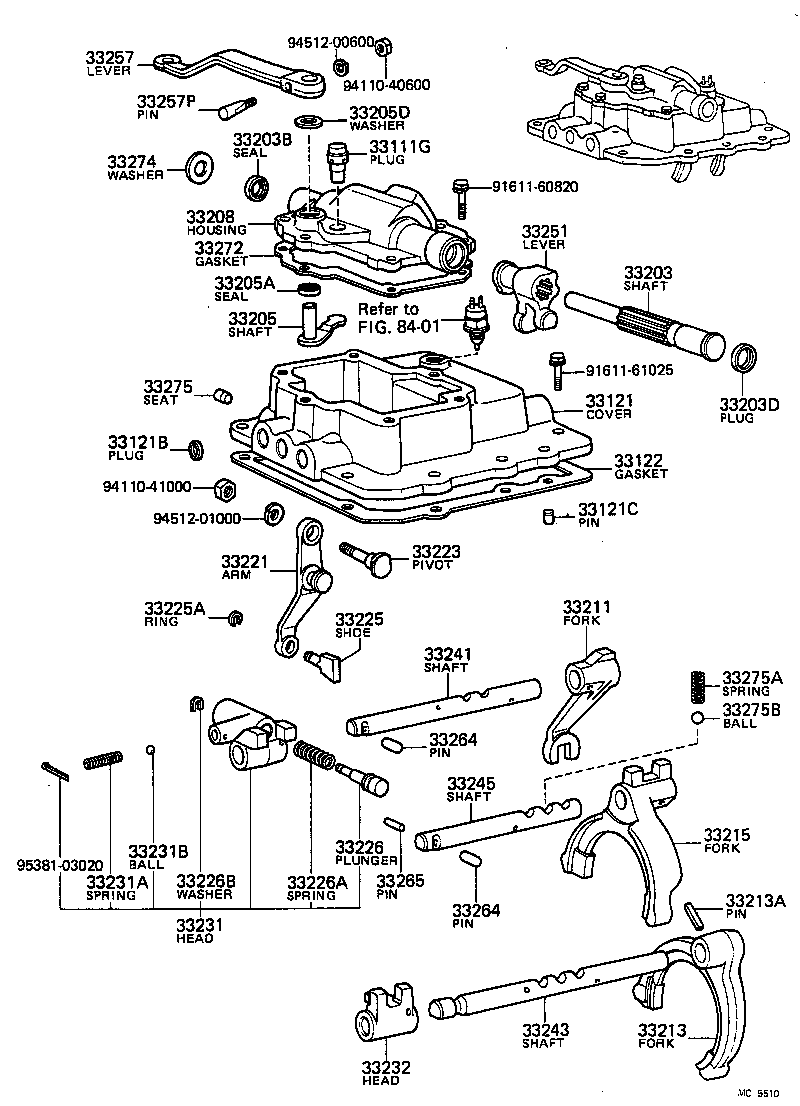

(7802-7902)JY16
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33111G - PLUG, BREATHER(FOR MANUAL TRANSMISSION) | ||||
| 90930-03055 |
JY16 |
1 | ||
| 90930-03065 |
JY16 |
1 | ||
| 33121 - COVER, MANUAL TRANSMISSION CASE | ||||
| 33121-36030 |
JY16 |
1 | ||
| 33121B - PLUG, EXPANSION OR TIGHT(FOR TRANSMISSION CASE COVER) | ||||
| 90331-16050 |
JY16 |
4 | ||
| 33121C - PIN(FOR TRANSMISSION CASE COVER) | ||||
| 90250-10214 |
JY16 L=14,OD=10 |
2 | ||
| 33122 - GASKET, MANUAL TRANSMISSION CASE COVER | ||||
| 33122-36030 |
JY16 |
1 | ||
| 33203 - SHAFT SUB-ASSY, SHIFT LEVER, NO.1 | ||||
| 33261-36050 |
JY16 |
1 | ||
| 33261-36020 |
JY16 |
1 | ||
| 33203B - SEAL, OIL(FOR SHIFT LEVER SHAFT) | ||||
| 90312-17001 |
JY16 |
1 | ||
| 33203D - PLUG, TIGHT(FOR SHIFT LEVER SHAFT) | ||||
| 90331-25003 |
JY16 |
1 | ||
| 33205 - SHAFT SUB-ASSY, SELECT LEVER | ||||
| 33205-36020 |
JY16 |
1 | ||
| 33205-36050 |
JY16 |
1 | ||
| 33205A - SEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT) | ||||
| 90313-13001 |
JY16 |
1 | ||
| 33205D - WASHER(FOR OUTER LEVER OIL SETTING) | ||||
| 90201-13153 |
JY16 |
1 | ||
| 90201-13151 |
JY16 |
1 | ||
| 33208 - HOUSING SUB-ASSY, SHIFT LEVER SHAFT | ||||
| 33271-36020 |
JY16 |
1 | ||
| 33271-36021 |
JY16 |
1 | ||
| 33271-36080 |
JY16 |
1 | ||
| 33211 - FORK, REVERSE SHIFT | ||||
| 33211-36020 |
JY16 |
1 | ||
| 33213 - FORK, 1ST & 2ND SHIFT | ||||
| 33212-36011 |
JY16 |
1 | ||
| 33212-36010 |
JY16 |
1 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05016 |
JY16,RY1# |
5 | ||
| 90254-05016 |
JY16 |
5 | ||
| 33215 - FORK, 3RD & 4TH SHIFT | ||||
| 33213-36020 |
JY16 |
1 | ||
| 33221 - ARM, REVERSE SHIFT | ||||
| 33201-36010 |
JY16 |
1 | ||
| 33223 - PIVOT, SHIFT ARM | ||||
| 33223-36010 |
JY16 |
1 | ||
| 33225 - SHOE, SHIFT ARM | ||||
| 33225-36030 |
JY16 |
1 | ||
| 33225A - RING, SHAFT SNAP(FOR SHIFT ARM SHOE) | ||||
| 90520-08098 |
JY16 |
1 | ||
| 33226 - PLUNGER, REVERSE SHIFT RETURN | ||||
| 33226-36020 |
JY16 |
1 | ||
| 33226A - SPRING, COMPRESSION(FOR REVERSE SHIFT RETURN PLUNGER) | ||||
| 90501-20656 |
JY16 |
1 | ||
| 90501-16029 |
JY16 |
1 | ||
| 33226B - WASHER, TYPE C(FOR REVERSE SHIFT RETURN PLUNGER) | ||||
| 90213-06001 |
JY16 |
1 | ||
| 33231 - HEAD, REVERSE SHIFT | ||||
| 33202-36020 |
JY16 |
1 | ||
| 33231A - SPRING, REVERSE SHIFT RESTRICT | ||||
| 90501-14396 |
JY16 |
1 | ||
| 90501-12019 |
JY16 |
1 | ||
| 33231B - BALL, REVERSE SHIFT RESTRICT | ||||
| 90360-06004 |
JY16 |
1 | ||
| 33232 - HEAD, 1ST & 2ND SHIFT | ||||
| 33232-36011 |
JY16 |
1 | ||
| 33232-36011 |
JY16..LHD |
1 | ||
| 33232-36010 |
JY16 |
1 | ||
| 33241 - SHAFT, REVERSE SHIFT FORK | ||||
| 33241-36040 |
JY16 |
1 | ||
| 33241-36021 |
JY16 |
1 | ||
| 33243 - SHAFT, 1ST & 2ND SHIFT FORK | ||||
| 33242-36021 |
JY16 |
1 | ||
| 33242-36040 |
JY16 |
1 | ||
| 33242-36020 |
JY16 |
1 | ||
| 33245 - SHAFT, 3RD & 4TH SHIFT FORK | ||||
| 33243-36020 |
JY16 |
1 | ||
| 33251 - LEVER, SHIFT & SELECT | ||||
| 33251-36020 |
JY16 |
1 | ||
| 33251-36060 |
JY16..LHD |
1 | ||
| 33257 - LEVER, SELECT OUTER | ||||
| 33257-36020 |
JY16 |
1 | ||
| 33257P - PIN, SELECT OUTER LEVER LOCK | ||||
| 33282-36020 |
JY16 YELLOW PAINT |
1 | ||
| 33282-36010 |
JY16 RED PAINT |
1 | ||
| 33282-35010 |
JY16,RY1# |
1 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 90361-10008 |
JY16,RY1# L=15,OD=9.5 |
2 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 90361-10008 |
JY16,RY1# L=15,OD=9.5 |
2 | ||
| 33265 - PIN, SHIFT INTER LOCK, NO.2 | ||||
| 90250-05034 |
JY16,RY1# L=13,OD=4.8 |
1 | ||
| 33272 - GASKET, SHIFT LEVER SHAFT HOUSING | ||||
| 33272-36020 |
JY16 |
1 | ||
| 33274 - WASHER, SHIFT LEVER SHAFT HOUSING, NO.2 | ||||
| 90201-13153 |
JY16 |
1 | ||
| 94612-11600 |
JY16 |
1 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 90250-10215 |
JY16 L=9,OD=9 |
1 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14638 |
JY16 L=15.2 |
3 | ||
| 90501-14237 |
JY16 L=16.1 |
3 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
JY16,RY1# |
3 | ||
| Common parts | ||||
| 91611-60820 | ||||
| 91611-61025 | ||||
| 94110-40600 | ||||
| 94110-41000 | ||||
| 94512-00600 | ||||
| 94512-01000 | ||||
| 95381-03020 | ||||
| Linked diagrams | ||||
| 8401 | ||||
