JY16-JRB (1972)
Toyota Toyoace
Production
Jul 1972
-
Feb 1979
Engine
2J
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

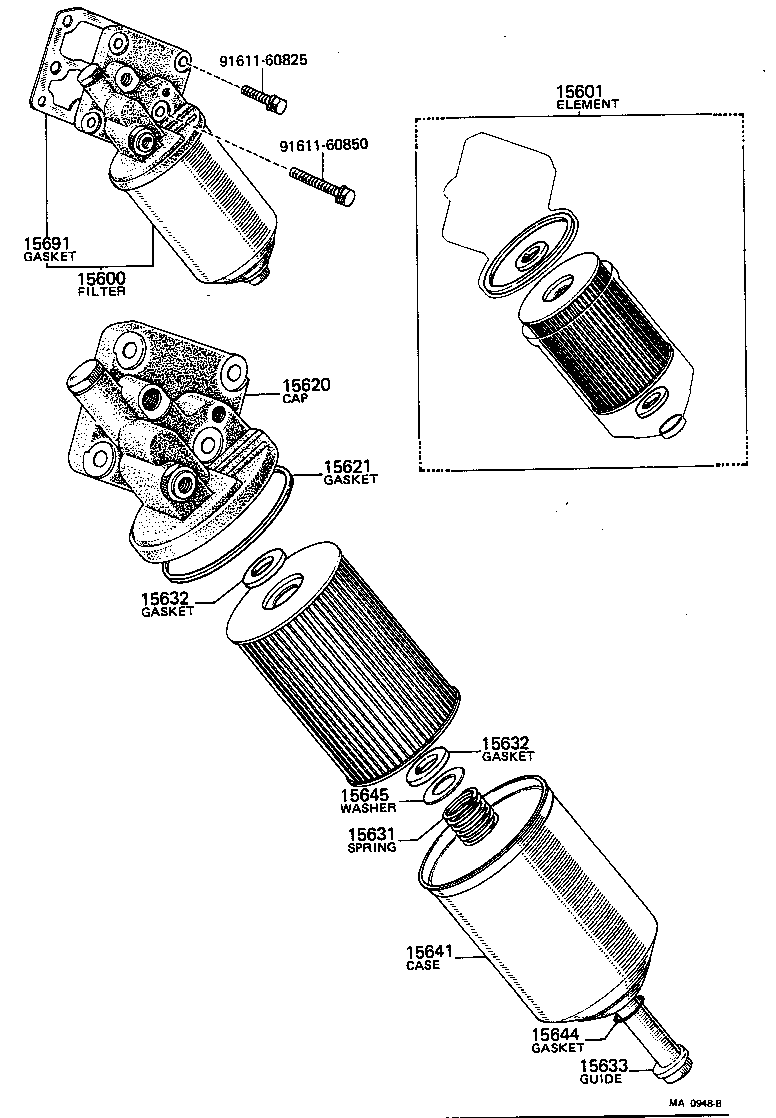

(7207-7308)2J
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15600 - FILTER ASSY, OIL | ||||
| 15600-49057 |
2J..JY16 |
1 | ||
| 15601 - FILTER SUB-ASSY, OIL | ||||
| 15600-41010 |
2J..JY16 |
1 | ||
| 04152-46010 |
2J..JY16 |
1 | ||
| 15620 - CAP ASSY, OIL FILTER | ||||
| 15620-48022 |
2J..JY16 |
1 | ||
| 15621 - GASKET, OIL FILTER BODY | ||||
| 15621-60030 |
2J..JY16 |
1 | ||
| 15621-41010 |
2J..JY16 |
1 | ||
| 15631 - SPRING, OIL FILTER ELEMENT SUPPORT | ||||
| 15631-21010 |
2J..JY16 |
1 | ||
| 15632 - GASKET, OIL FILTER ELEMENT | ||||
| 15632-40020 |
2J..JY16 |
2 | ||
| 15632 - GASKET, OIL FILTER ELEMENT | ||||
| 15632-40020 |
2J..JY16 |
2 | ||
| 15633 - GUIDE, OIL FILTER CARTRIDGE | ||||
| 15633-48010 |
2J..JY16 |
1 | ||
| 15641 - CASE, OIL FILTER | ||||
| 15641-48010 |
2J..JY16 |
1 | ||
| 15644 - GASKET, OIL FILTER CARTRIDGE GUIDE | ||||
| 15644-60010 |
2J..JY16 |
1 | ||
| 15645 - WASHER, OIL FILTER CARTRIDGE GUIDE | ||||
| 90099-01093 |
2J..JY16 |
1 | ||
| 15691 - GASKET, OIL FILTER | ||||
| 15691-48021 |
2J..JY16 |
1 | ||
| 15691-48020 |
2J..JY16 |
1 | ||
| Common parts | ||||
| 91611-60825 | ||||
| 91611-60850 | ||||
(7207-7902)2J
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15710 - COOLER ASSY, OIL | ||||
| 15710-48020 |
2J..JY16 TROPICAL |
1 | ||
| 15710-48020 |
2J..JY16 |
1 | ||
| 15710-48011 |
2J..JY16 |
1 | ||
| 15710A - BOLT, UNION(FOR OIL COOLER) | ||||
| 90401-18083 |
2J..JY16 |
1 | ||
| 15710B - RING, O(FOR OIL COOLER) | ||||
| 90301-21176 |
2J..JY16 |
1 | ||
| 15710C - GASKET(FOR OIL COOLER) | ||||
| 90430-18012 |
2J..JY16 |
1 | ||
| 15771E - BOLT, UNION(FOR OIL PIPE) | ||||
| 90401-18083 |
2J..JY16 |
1 | ||
| 15771F - RING, O | ||||
| 90301-21176 |
2J..JY16 |
1 | ||
| 15771G - GASKET | ||||
| 90430-18012 |
2J..JY16 |
1 | ||
| 15777 - HOSE, OIL COOLER | ||||
| 15777-48010 |
2J..JY16 |
1 | ||
| 15777A - HOSE, OIL COOLER | ||||
| 90910-05067 |
2J..JY16 |
1 | ||
| 15777B - PIPE, OIL COOLER | ||||
| 16268-48012 |
2J..JY16 |
1 | ||
| 15777C - HOSE, OIL COOLER | ||||
| 90445-24847 |
2J..JY16 |
1 | ||
| 15777D - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE) | ||||
| 96112-10240 |
2J..JY16 |
6 | ||
| 15777D - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE) | ||||
| 96112-10240 |
2J..JY16 |
6 | ||
| 15777D - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE) | ||||
| 96112-10240 |
2J..JY16 |
6 | ||
| 15777D - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE) | ||||
| 96112-10240 |
2J..JY16 |
6 | ||
| 15777D - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE) | ||||
| 96112-10240 |
2J..JY16 |
6 | ||
| 15777D - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE) | ||||
| 96112-10240 |
2J..JY16 |
6 | ||
| 15777E - UNION | ||||
| 90404-54116 |
2J..JY16 |
1 | ||
| Common parts | ||||
| 91611-40814 | ||||

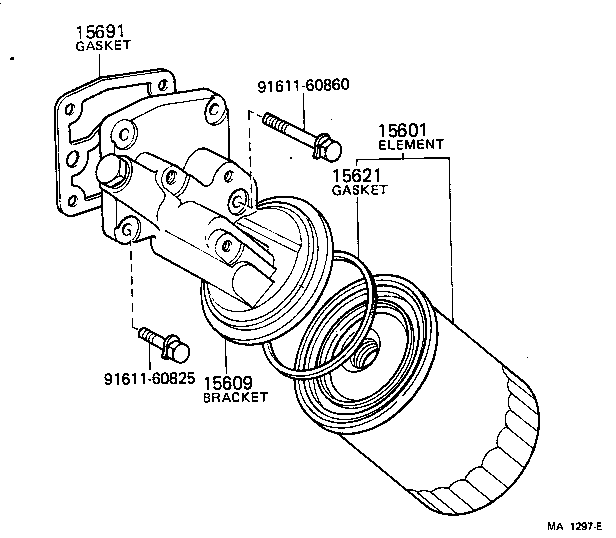

(7308-7902)2J
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15601 - FILTER SUB-ASSY, OIL | ||||
| 15600-41010 |
2J..JY16 |
1 | ||
| 04152-46010 |
2J..JY16 |
1 | ||
| 15609 - BRACKET SUB-ASSY, OIL FILTER | ||||
| 15609-48023 |
2J..JY16 |
1 | ||
| 15621 - GASKET, OIL FILTER BODY | ||||
| 15621-60030 |
2J..JY16 |
1 | ||
| 15621-41010 |
2J..JY16 |
1 | ||
| 15691 - GASKET, OIL FILTER | ||||
| 15691-48021 |
2J..JY16 |
1 | ||
| 15691-48020 |
2J..JY16 |
1 | ||
| Common parts | ||||
| 91611-60825 | ||||
| 91611-60860 | ||||
