JY16-JR (1972)

Toyota Toyoace

Production Jul 1972 - Feb 1979
Engine 2J
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7207-7902)2J

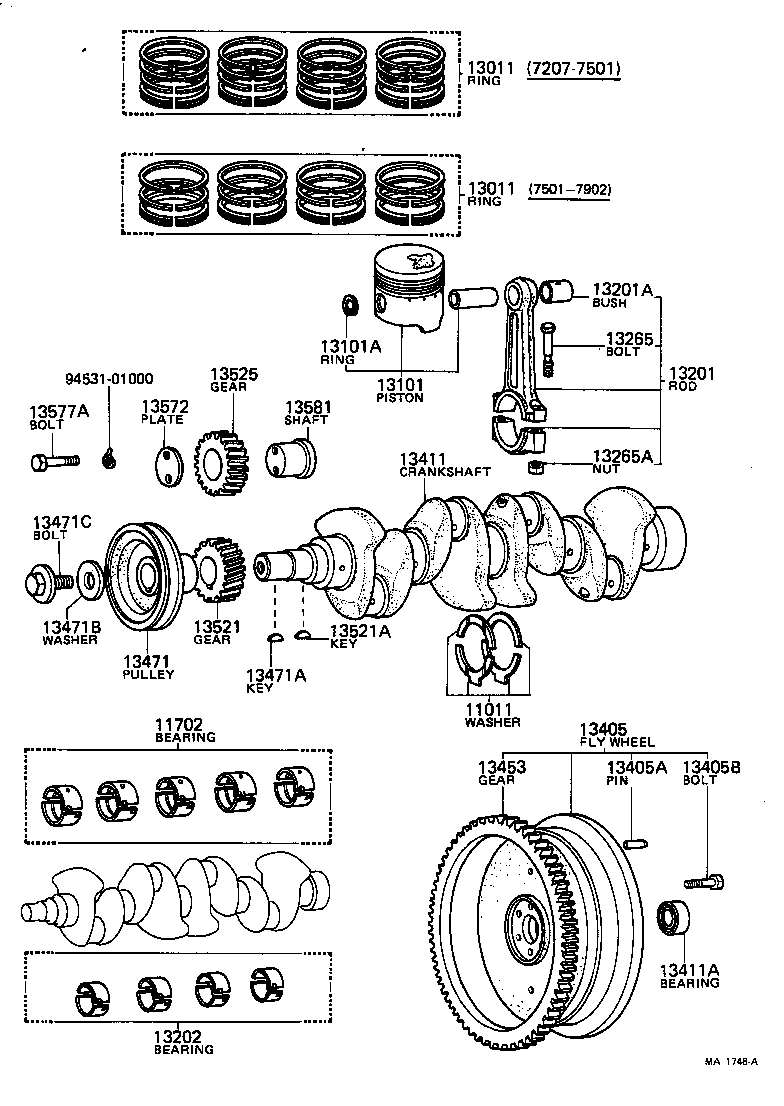

Click highlighted areas on diagram

diagram 11011 11702 13011 13011 13101 13101A 13201 13201A 13202 13265 13265A 13405 13405A 13405B 13411 13411A 13453 13471 13471A 13471B 13471C 13521 13521A 13525 13572 13577A 13581 9453101000
Part # Description Qty Price
11011 - WASHER SET, CRANKSHAFT THRUST
11012-46020

2J..JY16

O/S 0.125

 1
11011-46020

2J..JY16

STD

 1
11013-46020

2J..JY16

O/S 0.25

 1
11702 - BEARING SET, CRANKSHAFT
11703-48010

2J..JY16

U/S 0.05

 1
11704-48010

2J..JY16

U/S 0.25

 1
11705-48010

2J..JY16

U/S 0.50

 1
11707-48010

2J..JY16

U/S 1.00

 1
11702-48010

2J..JY16

STD

 1
11704-48011

2J..JY16

U/S 0.25

 1
11702-48011

2J..JY16

STD

 1
11703-48011

2J..JY16

U/S 0.05

 1
11706-48011

2J..JY16

U/S 0.75

 1
11706-48010

2J..JY16

U/S 0.75

 1
11707-48012

2J..JY16

U/S 1.00

 1
11702-48012

2J..JY16

STD

 1
11705-48012

2J..JY16

U/S 0.50

 1
11706-48012

2J..JY16

U/S 0.75

 1
11705-48011

2J..JY16

U/S 0.50

 1
11707-48011

2J..JY16

U/S 1.00

 1
11703-48012

2J..JY16

U/S 0.05

 1
11704-48012

2J..JY16

U/S 0.25

 1
13011 - RING SET, PISTON
13011-48021

2J..JY16

STD

 1
13011-48022

2J..JY16

STD

 1
13015-48021

2J..JY16

O/S 1.00

 1
13015-48022

2J..JY16

O/S 1.00

 1
13011-48023

2J..JY16

STD

 1
13015-48023

2J..JY16

O/S 1.00

 1
13011 - RING SET, PISTON
13011-48021

2J..JY16

STD

 1
13011-48022

2J..JY16

STD

 1
13015-48021

2J..JY16

O/S 1.00

 1
13015-48022

2J..JY16

O/S 1.00

 1
13011-48023

2J..JY16

STD

 1
13015-48023

2J..JY16

O/S 1.00

 1
13101 - PISTON SUB-ASSY, W/PIN
13085-48013

2J..JY16

O/S 1.00

 1
13081-48013

2J..JY16

STD

 1
13085-48014

2J..JY16

O/S 1.00

 1
13081-48014

2J..JY16

STD

 1
13081-48015

2J..JY16

STD

 1
13085-48015

2J..JY16

O/S 1.00

 1
13101A - RING, HOLE SNAP(FOR PISTON PIN)
90521-31068

2J..JY16

 8
13201 - ROD SUB-ASSY, CONNECTING
13201-48010

2J..JY16

 4
13201A - BUSH(FOR CONNECTING ROD SMALL END)
90999-73069

2J..JY16

 4
90999-73083

2J..JY16

 4
90999-70048

2J..JY16

 4
13202 - BEARING SET, CONNECTING ROD
13202-48010

2J..JY16

STD

 1
13205-48010

2J..JY16

U/S 0.50

 1
13207-48010

2J..JY16

U/S 1.00

 1
13204-48010

2J..JY16

U/S 0.25

 1
13206-48010

2J..JY16

U/S 0.75

 1
13203-48010

2J..JY16

U/S 0.05

 1
13265 - BOLT, CONNECTING ROD
13265-48010

2J..JY16

 8
13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT)
90170-11112

2J..JY16

 8
13405 - FLYWHEEL SUB-ASSY
13405-49048

2J..JY16

N=117

 1
13405-49145

2J..JY16

N=105

 1
13405A - PIN, STRAIGHT(FOR FLYWHEEL)
90250-08054

2J..JY16

L=23,OD=8,L=23,OD=8

 3
13405B - BOLT, FLYWHEEL SETTING
90105-12039

2J..JY16

 6
13411 - CRANKSHAFT
13411-48012

2J..JY16

 1
13411A - BEARING(FOR INPUT SHAFT FRONT)
97143-06201

2J..JY16

6201 VV C3

 1
13453 - GEAR, FLYWHEEL RING
13453-48010

2J..JY16

N=105

 1
13453-46010

2J..JY16

N=117

 1
13471 - PULLEY, CRANKSHAFT
13471-46011

2J..JY16

 1
13471-48020

2J..JY16

 1
13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
90280-05010

2J..JY16

 1
90280-05010

2J..JY16

 1
13471B - WASHER, PLATE(FOR CRANKSHAFT PULLEY SET)
90209-32037

2J..JY16

 1
13471C - BOLT(FOR CRANKSHAFT PULLEY SET)
90105-16020

2J..JY16

 1
13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING
13521-46010

2J..JY16

N=25

 1
13521A - KEY(FOR CRANKSHAFT TIMING GEAR)
90280-05010

2J..JY16

 1
90280-05010

2J..JY16

 1
13525 - GEAR, IDLE, NO.1
13525-46010

2J..JY16

N=24

 1
13572 - PLATE, IDLE GEAR THRUST
13572-48011

2J..JY16

 1
13577A - BOLT, HEXAGON(FOR IDLE GEAR BOLT LOCK)
91111-51045

2J..JY16

 2
91611-61045

2J..JY16

 2
13581 - SHAFT, IDLE GEAR, NO.1
13581-48011

2J..JY16

 1
Common parts
94531-01000
