SR40R-GRSRKQ (1997)

Toyota Townace/Liteace

Production Oct 1997 - Nov 2001
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 3 OF 3(9611-9812) ; (9812- )KR42

Click highlighted areas on diagram

diagram 88304 88320 88321 88321 88321A 88321A 88335 88336 88343B 88343B 88344C 88344C 88360A 88360C 88371A 88398 88688N 9009100584 9009904370 9009904924 9009904958 9009908058 9009908058
Part # Description Qty Price
88304 - CYLINDER SUB-ASSY, COOLER COMPRESSOR
88304-33010

SR40

 1
88320 - COMPRESSOR ASSY, COOLER
88320-28320

SR40

 1
88320-28280

SR40

 1
88321 - HEAD, COOLER COMPRESSOR CYLINDER
88321-48010

SR40

 1
88322-32040

CR41,KR4#,SR40

REAR

 1
88321-32010

KR4#,SR40

FRONT

 1
88321 - HEAD, COOLER COMPRESSOR CYLINDER
88321-48010

SR40

 1
88322-32040

CR41,KR4#,SR40

REAR

 1
88321-32010

KR4#,SR40

FRONT

 1
88321A - PLATE SUB-ASSY, VALVE
88342-22010

CR41,KR4#,SR40

REAR

 1
88341-22010

CR41,KR4#,SR40

FRONT

 1
88321A - PLATE SUB-ASSY, VALVE
88342-22010

CR41,KR4#,SR40

REAR

 1
88341-22010

CR41,KR4#,SR40

FRONT

 1
88335 - GASKET KIT, OVERHAUL
88335-48070

SR40

 1
88335-2B030

CR41,KR4#,SR40

 1
88336 - SENSOR, COMPRESSOR
88336-28030

SR40

 1
88336-28020

SR40

 1
88343B - REED, SUCTION VALVE
88343-14020

CR41,KR4#,SR40

 2
88343B - REED, SUCTION VALVE
88343-14020

CR41,KR4#,SR40

 2
88344C - REED, DISCHARGE VALVE
88344-22010

CR41,KR4#,SR40

 2
88344C - REED, DISCHARGE VALVE
88344-22010

CR41,KR4#,SR40

 2
88360A - RING, COMPRESSOR SEAL PLATE SNAP
90096-90022

CR41,KR4#,SR40

 1
88360C - SEAL ASSY, SHAFT
88360-32010

SR40

 1
88360-2B020

CR41,KR4#,SR40

 1
88371A - VALVE, SUCTION
88371-28330

CR41,SR40

 1
88398 - PACKING, COMPRESSOR
88398-32010

SR40

 5
88688N - BRACKET, COOLER
88688-22180

SR40

 1
Common parts
90091-00584
90099-04370
90099-04924
90099-04958
90099-08058

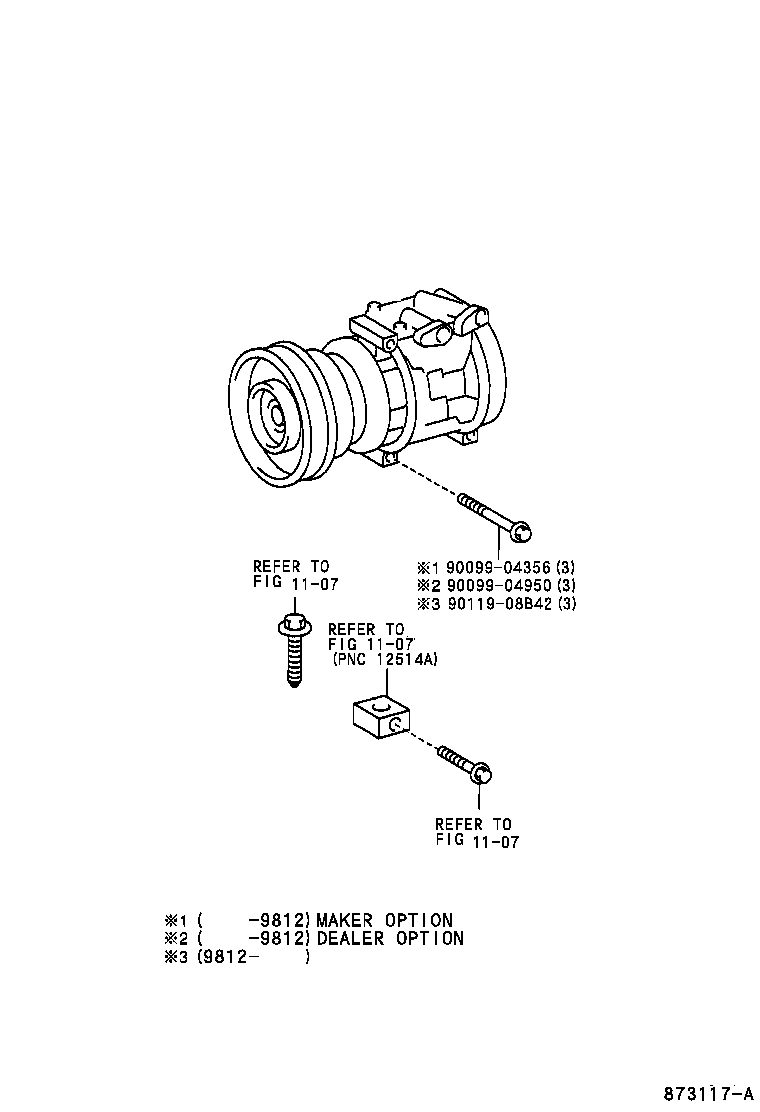

ILLUST NO. 2 OF 3(9611- )SR40

Click highlighted areas on diagram

diagram 1107 1107 1107 9009904356 9009904950 9011908B42
Part # Description Qty Price
Common parts
90099-04356
90099-04950
90119-08B42
Linked diagrams
1107

ILLUST NO. 1 OF 3(9611- )

Click highlighted areas on diagram

diagram 88301 88302 88320 88330A 88403 88410 88688K 9009904349 9009907065 9009907114 9009907125 9331915008
Part # Description Qty Price
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-28060

SR40

 1
88412-33040

SR40

 1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-22310

CR41,KR4#,SR40

 1
88320 - COMPRESSOR ASSY, COOLER
88320-28320

SR40

 1
88320-28280

SR40

 1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-14020

CR41,KR4#,SR40

 1
88335-14020

SR40

 1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-2A010

SR40

 1
88403-2A010

SR40..ARL

 1
88410 - CLUTCH ASSY, MAGNET
88410-28170

SR40

 1
88410-28180

SR40

 1
88688K - BRACKET, COOLER COMPRESSOR
88688-2J350

CR41,SR40

 1
Common parts
90099-04349
90099-07065
90099-07114
90099-07125
93319-15008

ILLUST NO. 3 OF 3(9812- )CR4#,SR40

Click highlighted areas on diagram

diagram 88321 88322C 88329E 88335 88336 88341 88342 88343B 88343B 88344C 88344C 88360C 88379B 88398 8868832740 9009100584 9009908058 9009908058 9009914143 9009914144
Part # Description Qty Price
88321 - HEAD, COOLER COMPRESSOR CYLINDER
88321-48010

SR40

 1
88322-32040

CR41,KR4#,SR40

REAR

 1
88321-32010

KR4#,SR40

FRONT

 1
88329E - BOLT, COMPRESSOR, NO.1
88329-48010

SR40

 5
88335 - GASKET KIT, OVERHAUL
88335-48070

SR40

 1
88335-2B030

CR41,KR4#,SR40

 1
88336 - SENSOR, COMPRESSOR
88336-28030

SR40

 1
88336-28020

SR40

 1
88343B - REED, SUCTION VALVE
88343-14020

CR41,KR4#,SR40

 2
88343B - REED, SUCTION VALVE
88343-14020

CR41,KR4#,SR40

 2
88344C - REED, DISCHARGE VALVE
88344-22010

CR41,KR4#,SR40

 2
88344C - REED, DISCHARGE VALVE
88344-22010

CR41,KR4#,SR40

 2
88360C - SEAL ASSY, SHAFT
88360-32010

SR40

 1
88360-2B020

CR41,KR4#,SR40

 1
88398 - PACKING, COMPRESSOR
88398-32010

SR40

 5
Common parts
88688-32740
90091-00584
90099-08058
90099-14143
90099-14144
