SR40R-GRSRKQ (1997)
Toyota Townace/Liteace
Production
Oct 1997
-
Nov 2001
Engine
3SFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9611- )SR40

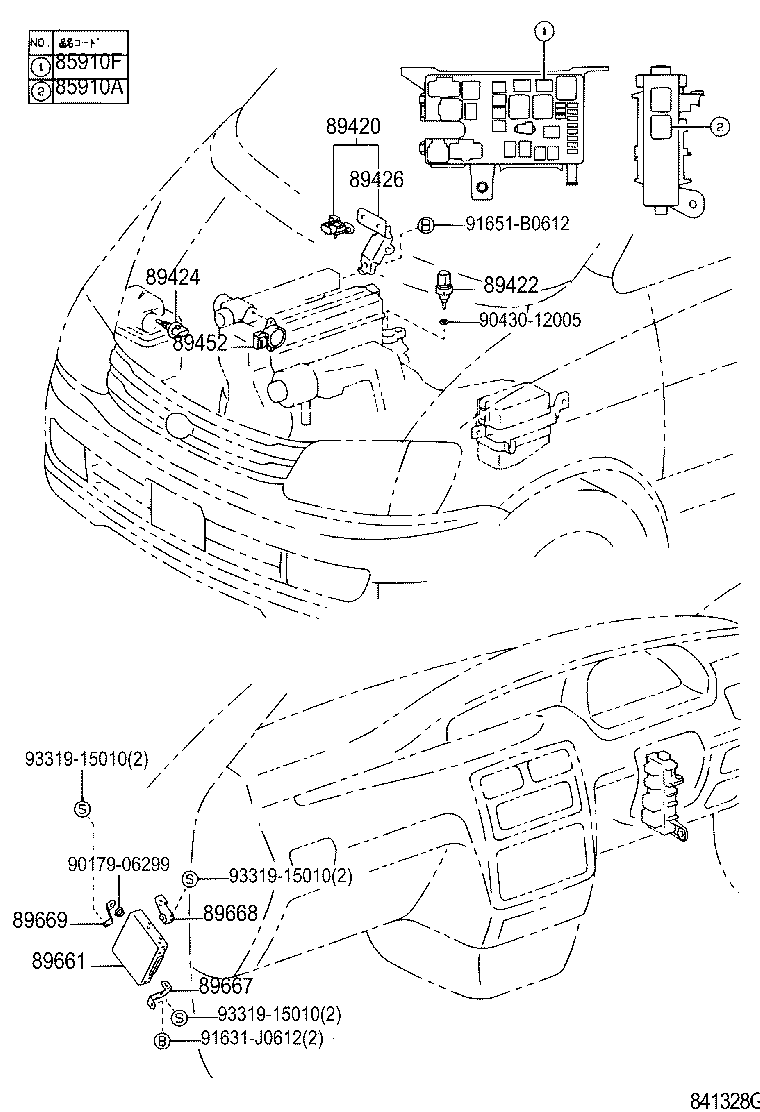

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI) | ||||
| 90987-02012 |
SR40 |
1 | ||
| 90987-02012 |
SR40 |
1 | ||
| 85910F - RELAY, COMPUTER (FOR EFI) | ||||
| 90987-02012 |
SR40 |
1 | ||
| 90987-02012 |
SR40 |
1 | ||
| 89420 - SENSOR ASSY, VACUUM | ||||
| 89420-28060 |
SR40 |
1 | ||
| 89420-28090 |
SR40 |
1 | ||
| 89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.) | ||||
| 89422-16010 |
SR40 |
1 | ||
| 89422-16010 |
SR40 MARK 89422-16010*369 |
1 | ||
| 89422-22030 |
SR40 MARK 89422-22030*369 |
1 | ||
| 89424 - SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.) | ||||
| 89424-12010 |
SR40 |
1 | ||
| 89426 - BRACKET, VACUUM SENSOR | ||||
| 89426-28060 |
SR40 |
1 | ||
| 89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.) | ||||
| 89452-33030 |
SR40 |
1 | ||
| 89452-33030 |
SR40 |
1 | ||
| 89661 - COMPUTER, ENGINE CONTROL | ||||
| 89661-28810 |
SR40..ARL |
1 | ||
| 89661-28811 |
SR40..ARL |
1 | ||
| 89667 - BRACKET, ENGINE CONTROL COMPUTER | ||||
| 89667-28040 |
SR40 |
1 | ||
| 89667-28040 |
SR40 |
1 | ||
| 89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2 | ||||
| 89668-28050 |
SR40 |
1 | ||
| 89668-28050 |
SR40 |
1 | ||
| 89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3 | ||||
| 89669-28050 |
SR40 |
1 | ||
| 89669-28050 |
SR40 |
1 | ||
| Common parts | ||||
| 90179-06299 | ||||
| 90430-12005 | ||||
| 91631-J0612 | ||||
| 91651-B0612 | ||||
| 93319-15010 | ||||
