SR40R-GRSRKQ (1997)
Toyota Townace/Liteace

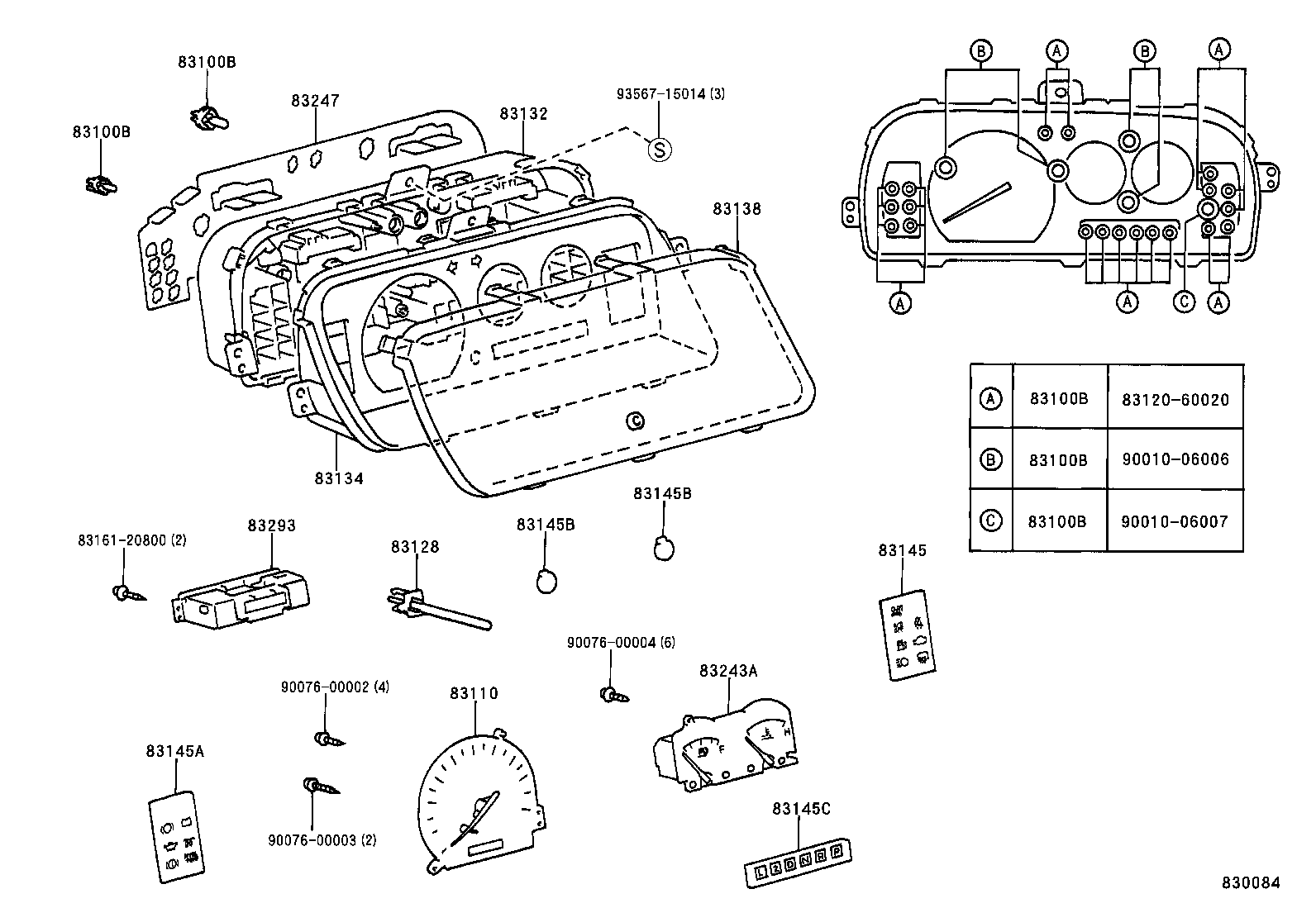

ILLUST NO. 1 OF 2(9611-9812)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-06006 |
CR41,KR4#,SR40 12V3.4W,W(GREEN CAP),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90010-06007 |
CR41,KR4#,SR40 12V 3.4W,W(SOCKET),TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83120-60020 |
CR41,KR4#,SR40 12V 1.4W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-06006 |
CR41,KR4#,SR40 12V3.4W,W(GREEN CAP),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90010-06007 |
CR41,KR4#,SR40 12V 3.4W,W(SOCKET),TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83120-60020 |
CR41,KR4#,SR40 12V 1.4W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83220-28070 |
SR40 |
1 | ||
| 83221-28600 |
SR40 |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83224-28410 |
SR40 |
1 | ||
| 83224-28080 |
SR40 |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83841-28080 |
SR40 |
1 | ||
| 83841-28600 |
SR40..ATM..ARL |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83851-28080 |
SR40..ATM |
1 | ||
| 83821-28410 |
SR40 |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83852-28080 |
SR40 |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83831-28060 |
SR40 |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83831-28200 |
SR40..ARL |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83833-26010 |
CR41,KR4#,SR40 |
2 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83833-26010 |
CR41,KR4#,SR40 |
2 | ||
| 83145C - LENS, METER, NO.4 | ||||
| 83833-28080 |
SR40..ATM |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83882-28410 |
SR40 |
1 | ||
| 83882-28200 |
SR40 |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83861-28201 |
SR40..ATM..ARL |
1 | ||
| 83293 - COMPUTER, TOTAL COUNTER MODULE | ||||
| 83293-28100 |
SR40 |
1 | ||
| 83293-28031 |
SR40 |
1 | ||
| 83293-28031 |
SR40..ARL |
1 | ||
| Common parts | ||||
| 83161-20800 | ||||
| 90076-00002 | ||||
| 90076-00003 | ||||
| 90076-00004 | ||||
| 93567-15014 | ||||

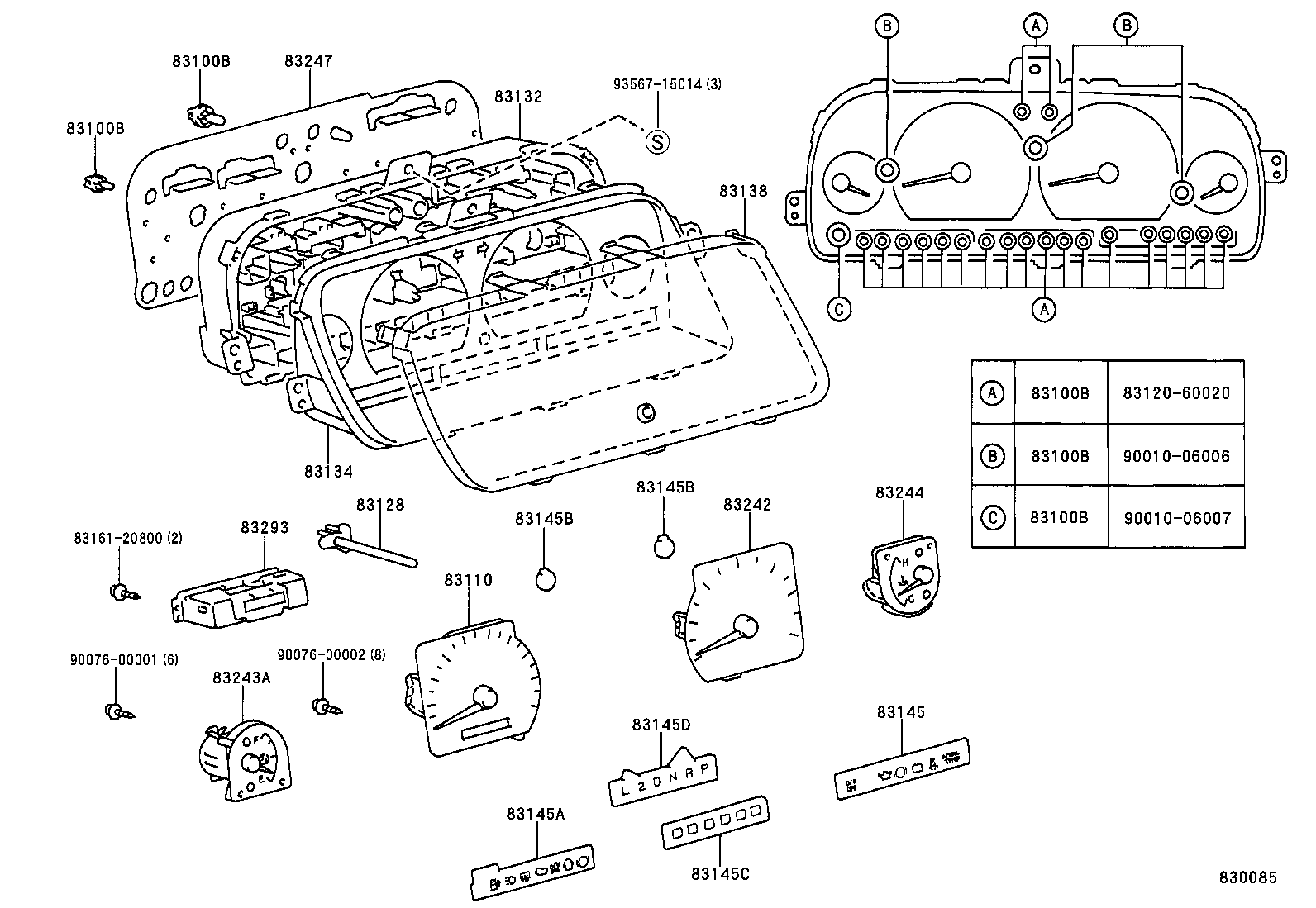

ILLUST NO. 1 OF 2(9611-9812)
W(TACHOMETER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-06006 |
CR41,KR4#,SR40 12V3.4W,W(GREEN CAP),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90010-06007 |
CR41,KR4#,SR40 12V 3.4W,W(SOCKET),TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83120-60020 |
CR41,KR4#,SR40 12V 1.4W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-06006 |
CR41,KR4#,SR40 12V3.4W,W(GREEN CAP),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90010-06007 |
CR41,KR4#,SR40 12V 3.4W,W(SOCKET),TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83120-60020 |
CR41,KR4#,SR40 12V 1.4W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83220-28070 |
SR40 |
1 | ||
| 83221-28600 |
SR40 |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83224-28410 |
SR40 |
1 | ||
| 83224-28080 |
SR40 |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83841-28080 |
SR40 |
1 | ||
| 83841-28600 |
SR40..ATM..ARL |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83851-28080 |
SR40..ATM |
1 | ||
| 83821-28410 |
SR40 |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83852-28080 |
SR40 |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83831-28060 |
SR40 |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83831-28200 |
SR40..ARL |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83833-26010 |
CR41,KR4#,SR40 |
2 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83833-26010 |
CR41,KR4#,SR40 |
2 | ||
| 83145C - LENS, METER, NO.4 | ||||
| 83833-28080 |
SR40..ATM |
1 | ||
| 83145D - LENS, METER, NO.5 | ||||
| 83887-28080 |
SR40..ATM |
1 | ||
| 83242 - TACHOMETER ASSY, ENGINE | ||||
| 83881-28060 |
SR40 |
1 | ||
| 83881-28410 |
SR40 |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83882-28410 |
SR40 |
1 | ||
| 83882-28200 |
SR40 |
1 | ||
| 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83883-28080 |
SR40 |
1 | ||
| 83883-28410 |
SR40 |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83861-28201 |
SR40..ATM..ARL |
1 | ||
| 83293 - COMPUTER, TOTAL COUNTER MODULE | ||||
| 83293-28100 |
SR40 |
1 | ||
| 83293-28031 |
SR40 |
1 | ||
| 83293-28031 |
SR40..ARL |
1 | ||
| Common parts | ||||
| 83161-20800 | ||||
| 90076-00001 | ||||
| 90076-00002 | ||||
| 93567-15014 | ||||
ILLUST NO. 2 OF 2(9611- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83181A - SENSOR, SPEEDOMETER | ||||
| 83181-24050 |
KR42,SR40..ATM |
1 | ||
| 83181-24050 |
SR40..ATM |
1 | ||
| 83181A - SENSOR, SPEEDOMETER | ||||
| 83181-24050 |
KR42,SR40..ATM |
1 | ||
| 83181-24050 |
SR40..ATM |
1 | ||
| 83181B - RING, O (FOR SPEEDOMETER SENSOR) | ||||
| 90301-18004 |
SR40..ATM |
1 | ||
| 90301-18004 |
KR42,SR40..ATM |
1 | ||
| 83181B - RING, O (FOR SPEEDOMETER SENSOR) | ||||
| 90301-18004 |
SR40..ATM |
1 | ||
| 90301-18004 |
KR42,SR40..ATM |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-44020 |
CR41,KR4#,SR40 |
1 | ||
| 83910-28120 |
SR40..ARL |
1 | ||
| Common parts | ||||
| 91651-40825 | ||||
ILLUST NO. 1 OF 2(9812- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-06006 |
CR41,KR4#,SR40 12V3.4W,W(GREEN CAP),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90010-06007 |
CR41,KR4#,SR40 12V 3.4W,W(SOCKET),TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83120-60020 |
CR41,KR4#,SR40 12V 1.4W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-06006 |
CR41,KR4#,SR40 12V3.4W,W(GREEN CAP),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90010-06007 |
CR41,KR4#,SR40 12V 3.4W,W(SOCKET),TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83120-60020 |
CR41,KR4#,SR40 12V 1.4W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-06006 |
CR41,KR4#,SR40 12V3.4W,W(GREEN CAP),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90010-06007 |
CR41,KR4#,SR40 12V 3.4W,W(SOCKET),TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83120-60020 |
CR41,KR4#,SR40 12V 1.4W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83220-28070 |
SR40 |
1 | ||
| 83221-28600 |
SR40 |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83224-28410 |
SR40 |
1 | ||
| 83224-28080 |
SR40 |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83841-28080 |
SR40 |
1 | ||
| 83841-28600 |
SR40..ATM..ARL |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83851-28080 |
SR40..ATM |
1 | ||
| 83821-28410 |
SR40 |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83852-28080 |
SR40 |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83882-28410 |
SR40 |
1 | ||
| 83882-28200 |
SR40 |
1 | ||
| 83293 - COMPUTER, TOTAL COUNTER MODULE | ||||
| 83293-28100 |
SR40 |
1 | ||
| 83293-28031 |
SR40 |
1 | ||
| 83293-28031 |
SR40..ARL |
1 | ||
| Common parts | ||||
| 90076-00024 | ||||
| 93568-55016 | ||||
ILLUST NO. 1 OF 2(9812- )
W(TACHOMETER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-06006 |
CR41,KR4#,SR40 12V3.4W,W(GREEN CAP),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90010-06007 |
CR41,KR4#,SR40 12V 3.4W,W(SOCKET),TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83120-60020 |
CR41,KR4#,SR40 12V 1.4W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-06006 |
CR41,KR4#,SR40 12V3.4W,W(GREEN CAP),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90010-06007 |
CR41,KR4#,SR40 12V 3.4W,W(SOCKET),TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83120-60020 |
CR41,KR4#,SR40 12V 1.4W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-06006 |
CR41,KR4#,SR40 12V3.4W,W(GREEN CAP),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90010-06007 |
CR41,KR4#,SR40 12V 3.4W,W(SOCKET),TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83120-60020 |
CR41,KR4#,SR40 12V 1.4W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83220-28070 |
SR40 |
1 | ||
| 83221-28600 |
SR40 |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83224-28410 |
SR40 |
1 | ||
| 83224-28080 |
SR40 |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83841-28080 |
SR40 |
1 | ||
| 83841-28600 |
SR40..ATM..ARL |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83811-28600 |
SR40..ATM..ARL |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83851-28080 |
SR40..ATM |
1 | ||
| 83821-28410 |
SR40 |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83852-28080 |
SR40 |
1 | ||
| 83242 - TACHOMETER ASSY, ENGINE | ||||
| 83881-28060 |
SR40 |
1 | ||
| 83881-28410 |
SR40 |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83882-28410 |
SR40 |
1 | ||
| 83882-28200 |
SR40 |
1 | ||
| 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83883-28080 |
SR40 |
1 | ||
| 83883-28410 |
SR40 |
1 | ||
| 83293 - COMPUTER, TOTAL COUNTER MODULE | ||||
| 83293-28100 |
SR40 |
1 | ||
| 83293-28031 |
SR40 |
1 | ||
| 83293-28031 |
SR40..ARL |
1 | ||
| 83887 - PLATE, COMBINATION METER PRISM, NO.1 | ||||
| 83887-28410 |
SR40 |
1 | ||
| 83895 - PLATE, COMBINATION METER PRISM, NO.2 | ||||
| 83895-28410 |
SR40 |
1 | ||
| 83896 - PLATE, COMBINATION METER PRISM, NO.3 | ||||
| 83896-28410 |
SR40 |
1 | ||
| 83897 - PLATE, COMBINATION METER PRISM, NO.4 | ||||
| 83897-28410 |
SR40 |
1 | ||
| Common parts | ||||
| 90076-00023 | ||||
| 90076-00024 | ||||
| 93568-55016 | ||||
