SR40R-GRSRKQ (1997)
Toyota Townace/Liteace
Production
Oct 1997
-
Nov 2001
Engine
3SFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)

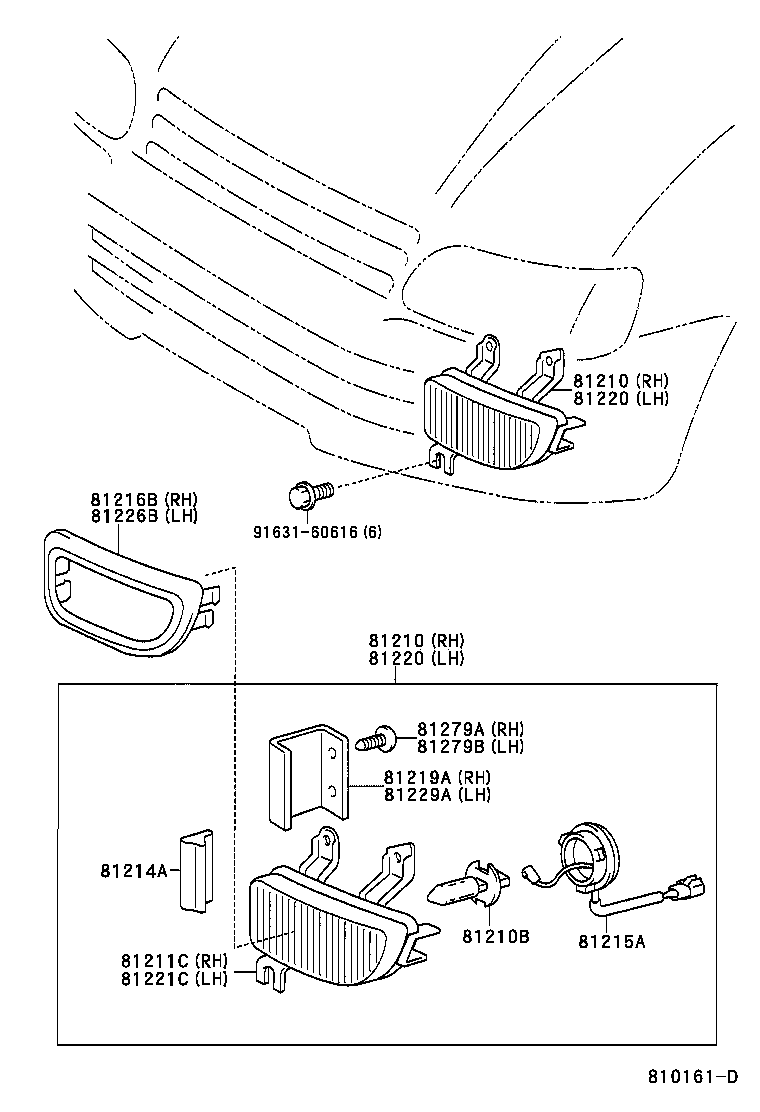

(9611-9812)SR40
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81210 - LAMP ASSY, FOG | ||||
| 81210-28110 |
SR40..ARL |
1 | ||
| 81210-28200 |
SR40..ARL |
1 | ||
| 81210 - LAMP ASSY, FOG | ||||
| 81210-28110 |
SR40..ARL |
1 | ||
| 81210-28200 |
SR40..ARL |
1 | ||
| 81210B - BULB, FOG LAMP | ||||
| 90981-13018 |
SR40..ARL 12V 55W,HALOGEN |
2 | ||
| 90981-13046 |
SR40..ARL 12V65W(SAE),60W(ECE) |
2 | ||
| 81211C - LAMP UNIT, FOG LAMP, RH | ||||
| 81211-28110 |
SR40..ARL |
1 | ||
| 81211-28200 |
SR40..ARL |
1 | ||
| 81214A - PACKING, FOG LAMP BODY | ||||
| 81214-28080 |
SR40 |
2 | ||
| 81215A - SOCKET & WIRE, FOG LAMP | ||||
| 81215-28080 |
SR40 |
2 | ||
| 81216B - RIM, FOG LAMP, RH NO.1 | ||||
| 81216-28080 |
SR40 |
1 | ||
| 81216-28080B0 |
SR40 SILVER,058 ,1A0 ,2CM ,4N9 ,6Q7 |
1 | ||
| 81219A - BRACKET, FOG LAMP, RH | ||||
| 81219-28080 |
SR40 |
1 | ||
| 81220 - LAMP ASSY, FOG, LH | ||||
| 81220-28060 |
SR40..ARL |
1 | ||
| 81220-28150 |
SR40..ARL |
1 | ||
| 81220 - LAMP ASSY, FOG, LH | ||||
| 81220-28060 |
SR40..ARL |
1 | ||
| 81220-28150 |
SR40..ARL |
1 | ||
| 81221C - LAMP UNIT, FOG LAMP, LH | ||||
| 81221-28060 |
SR40..ARL |
1 | ||
| 81221-28150 |
SR40..ARL |
1 | ||
| 81226B - RIM, FOG LAMP, LH | ||||
| 81226-28030B0 |
SR40 SILVER,058 ,1A0 ,2CM ,4N9 ,6Q7 |
1 | ||
| 81226-28030 |
SR40 |
1 | ||
| 81229A - BRACKET, FOG LAMP, LH | ||||
| 81229-28030 |
SR40 |
1 | ||
| 81279A - BRACKET,FOGLAMP,RH NO.2 | ||||
| 81279-91D01 |
SR40 |
2 | ||
| 81279B - BRACKET,FOGLAMP,LH NO.2 | ||||
| 81279-91D01 |
SR40 |
2 | ||
| Common parts | ||||
| 91631-60616 | ||||
(9812- )SR40..ARL
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35720E - GEAR ASSY, FOG LAMP, RH | ||||
| 35720-28010 |
SR40..ARL |
1 | ||
| 35720F - GEAR ASSY, FOG LAMP, LH | ||||
| 35720-28020 |
SR40..ARL |
1 | ||
| 81127C - BEARING FOG LAMP | ||||
| 81481-10020 |
SR40..ARL |
2 | ||
| 81210 - LAMP ASSY, FOG | ||||
| 81210-28110 |
SR40..ARL |
1 | ||
| 81210-28200 |
SR40..ARL |
1 | ||
| 81210 - LAMP ASSY, FOG | ||||
| 81210-28110 |
SR40..ARL |
1 | ||
| 81210-28200 |
SR40..ARL |
1 | ||
| 81210B - BULB, FOG LAMP | ||||
| 90981-13018 |
SR40..ARL 12V 55W,HALOGEN |
2 | ||
| 90981-13046 |
SR40..ARL 12V65W(SAE),60W(ECE) |
2 | ||
| 81211C - LAMP UNIT, FOG LAMP, RH | ||||
| 81211-28110 |
SR40..ARL |
1 | ||
| 81211-28200 |
SR40..ARL |
1 | ||
| 81220 - LAMP ASSY, FOG, LH | ||||
| 81220-28060 |
SR40..ARL |
1 | ||
| 81220-28150 |
SR40..ARL |
1 | ||
| 81220 - LAMP ASSY, FOG, LH | ||||
| 81220-28060 |
SR40..ARL |
1 | ||
| 81220-28150 |
SR40..ARL |
1 | ||
| 81221C - LAMP UNIT, FOG LAMP, LH | ||||
| 81221-28060 |
SR40..ARL |
1 | ||
| 81221-28150 |
SR40..ARL |
1 | ||
| 81229 - BRACKET, FOG LAMP | ||||
| 81481-28040 |
SR40 |
2 | ||
| Common parts | ||||
| 93567-A5012 | ||||
