SR40R-GRSRKQ (1997)
Toyota Townace/Liteace

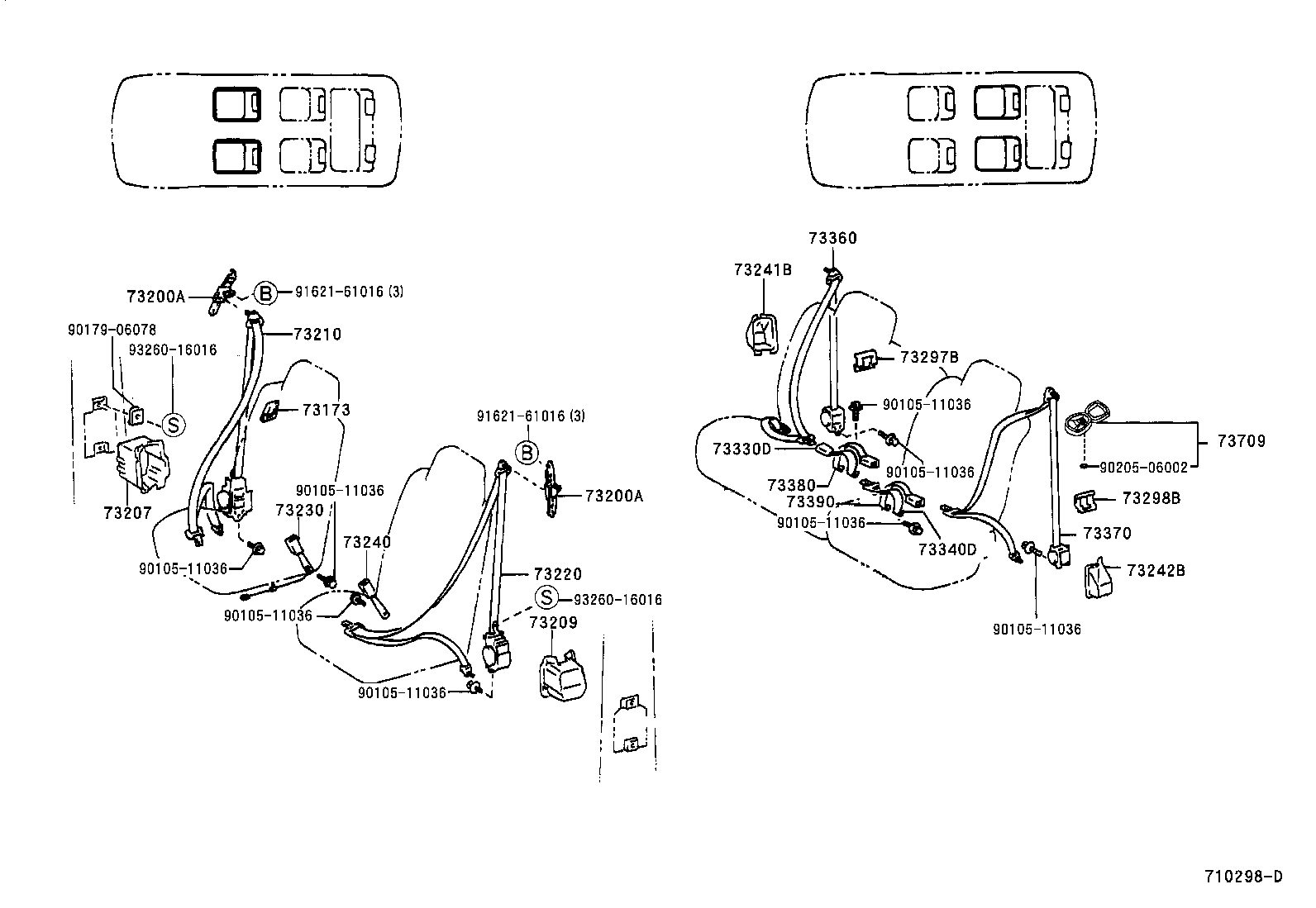

(9611- )SR40
REAR SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73173 - COVER, FRONT SEAT BELT HOLE, RH | ||||
| 73173-28010B0 |
SR40 MOON MIST,TRIM1# |
1 | ||
| 73173-28010B0 |
SR40 MOON MIST,TRIM1# |
1 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73290-28010B0 |
SR40 MOON MIST,TRIM1#,LH |
1 | ||
| 73200-28020B0 |
SR40 MOON MIST,TRIM1#,RH |
1 | ||
| 73290-28010B0 |
SR40 MOON MIST,TRIM1#,LH |
1 | ||
| 73200-28020B0 |
SR40 MOON MIST,TRIM1# |
1 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73290-28010B0 |
SR40 MOON MIST,TRIM1#,LH |
1 | ||
| 73200-28020B0 |
SR40 MOON MIST,TRIM1#,RH |
1 | ||
| 73290-28010B0 |
SR40 MOON MIST,TRIM1#,LH |
1 | ||
| 73200-28020B0 |
SR40 MOON MIST,TRIM1# |
1 | ||
| 73207 - COVER SUB-ASSY, SEAT BELT RETRACTOR, RH | ||||
| 73207-28020 |
CR41,KR4#,SR40 |
1 | ||
| 73207-28030 |
CR4#,KR42,SR40 |
1 | ||
| 73207-28030 |
CR41,KR4#,SR40 |
1 | ||
| 73209 - COVER SUB-ASSY, SEAT BELT RETRACTOR, LH | ||||
| 73209-28040 |
CR41,KR4#,SR40 |
1 | ||
| 73209-28030 |
CR41,KR4#,SR40 |
1 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-28410B0 |
SR40..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 73210-28500B0 |
SR40..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-28390B0 |
SR40..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 73220-28470B0 |
SR40..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-28200B0 |
SR40..ARL MD.MOON MIST,TRIM1# |
1 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73240-28140B0 |
SR40 MD.MOON MIST,TRIM1# |
1 | ||
| 73240-28170B0 |
SR40 MD.MOON MIST,TRIM1# |
1 | ||
| 73240-28140B0 |
SR40..ARL MD.MOON MIST,TRIM1# |
1 | ||
| 73241B - CASE, SEAT BELT RETRACTOR, RH(FOR NO.2 SEAT) | ||||
| 73241-28080 |
SR40 |
1 | ||
| 73241-28080 |
SR40 |
1 | ||
| 73242B - CASE, SEAT BELT RETRACTOR, LH(FOR NO.2 SEAT) | ||||
| 73242-28071 |
SR40 |
1 | ||
| 73242-28071 |
SR40 |
1 | ||
| 73242-28070 |
SR40 |
1 | ||
| 73297B - COVER, QUARTER TRIM BELT HOLE, RH | ||||
| 73297-28040B1 |
SR40 MOON MIST,TRIM1# |
1 | ||
| 73297-28040B1 |
SR40 MOON MIST,TRIM1# |
1 | ||
| 73298B - COVER, QUARTER TRIM BELT HOLE, LH | ||||
| 73297-28050B0 |
SR40 MOON MIST,TRIM1# |
1 | ||
| 73297-28050B0 |
SR40 MOON MIST,TRIM1# |
1 | ||
| 73330D - BELT ASSY, REAR NO.1 SEAT LAP TYPE, CENTER RH | ||||
| 73330-28161B0 |
SR40 BLUISH GRAY,TRIM1# |
1 | ||
| 73330-28160B0 |
SR40..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 73340D - BELT ASSY, REAR NO.1 SEAT LAP TYPE, CENTER LH | ||||
| 73340-28120B0 |
SR40 BLUISH GRAY,TRIM1# |
1 | ||
| 73340-28121B0 |
SR40 BLUISH GRAY,TRIM1# |
1 | ||
| 73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH | ||||
| 73360-28570B0 |
SR40..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 73360-28540B0 |
SR40..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH | ||||
| 73370-28460B0 |
SR40..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 73370-28490B0 |
SR40..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH | ||||
| 73380-28241B0 |
SR40 BLUISH GRAY,TRIM1# |
1 | ||
| 73380-28240B0 |
SR40..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 73390 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH | ||||
| 73390-28190B0 |
SR40..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 73390-28191B0 |
SR40 BLUISH GRAY,TRIM1# |
1 | ||
| 73390-28190B0 |
SR40 BLUISH GRAY,TRIM1# |
1 | ||
| 73709 - BRACKET SUB-ASSY, TETHER ANCHOR | ||||
| 73708-33010 |
SR40..ARL |
1 | ||
| 73708-33010 |
SR40..ARL |
1 | ||
| Common parts | ||||
| 90105-11036 | ||||
| 90179-06078 | ||||
| 90205-06002 | ||||
| 91621-61016 | ||||
| 93260-16016 | ||||

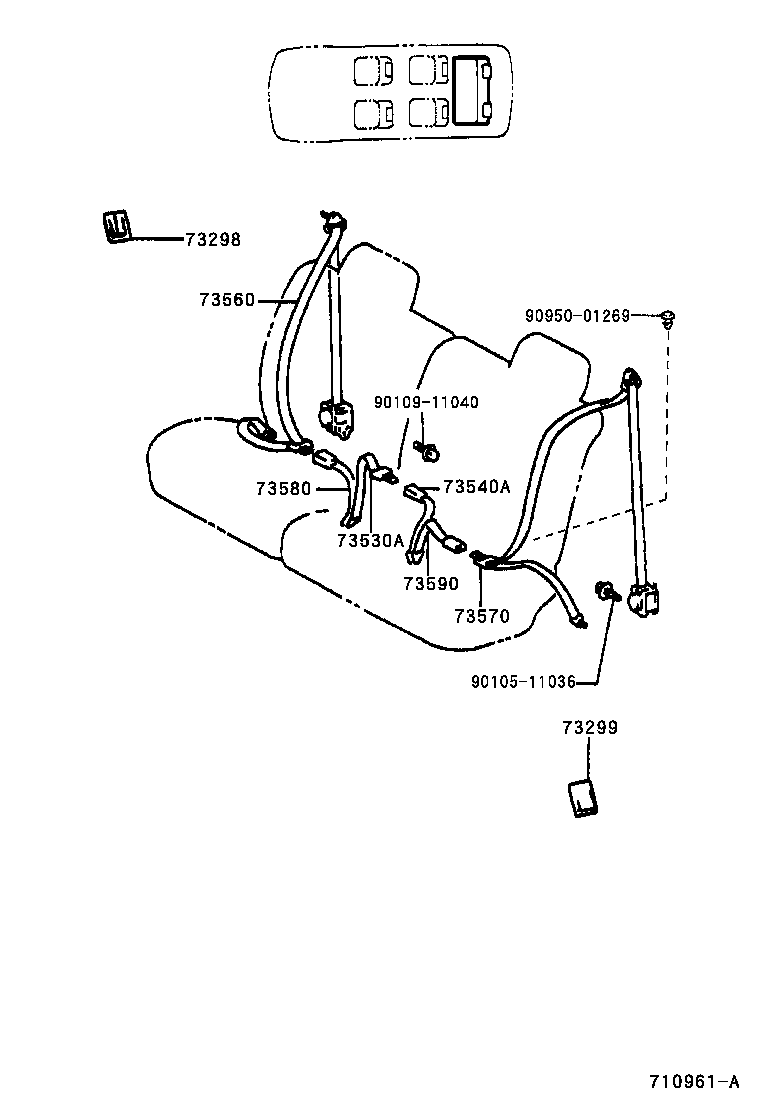

(9611- )SR40
REAR SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73298 - COVER, QUARTER TRIM BELT HOLE, NO.2 RH | ||||
| 73299-28010B0 |
SR40 MOON MIST,TRIM1# |
1 | ||
| 73299-28010B0 |
SR40 MOON MIST,TRIM1# |
1 | ||
| 73299 - COVER, QUARTER TRIM BELT HOLE, NO.2 LH | ||||
| 73299-28020B0 |
SR40 MOON MIST,TRIM1# |
1 | ||
| 73299-28020B0 |
SR40 MOON MIST,TRIM1# |
1 | ||
| 73530A - BELT ASSY, REAR NO.2 SEAT LAP TYPE, RH | ||||
| 73530-28080B0 |
SR40..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 73530-28080B0 |
SR40..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 73540A - BELT ASSY, REAR NO.2 SEAT LAP TYPE, LH | ||||
| 73540-28060B0 |
SR40..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 73540-28060B0 |
SR40..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 73560 - BELT ASSY, REAR NO.2 SEAT, OUTER RH | ||||
| 73560-28260B0 |
SR40..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 73560-28290B0 |
SR40..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 73570 - BELT ASSY, REAR NO.2 SEAT, OUTER LH | ||||
| 73570-28260B0 |
SR40..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 73570-28290B0 |
SR40..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 73580 - BELT ASSY, REAR NO.2 SEAT, INNER RH | ||||
| 73580-28150B0 |
SR40..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 73580-28150B0 |
SR40..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 73590 - BELT ASSY, REAR NO.2 SEAT, INNER LH | ||||
| 73580-28150B0 |
SR40..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 73580-28150B0 |
SR40..ARL BLUISH GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90105-11036 | ||||
| 90109-11040 | ||||
| 90950-01269 | ||||
