SR40R-GRSRKQ (1997)
Toyota Townace/Liteace
ILLUST NO. 1 OF 6(9611- )
FRONT SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-28130 |
CR41,KR4#,SR40 |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71011-10220 |
CR41,KR4#,SR40 |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-2J210B2 |
SR40 MOONMIST,TRIM1# |
1 | ||
| 71071-2J210B2 |
SR40..ARL MOONMIST,TRIM1# |
1 | ||
| 71071-2J620B0 |
SR40..ARL MOON MIST,TRIM1# |
1 | ||
| 71071-2J340B0 |
SR40..ARL MOON MIST,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-2J310B0 |
SR40..ARL MOON MIST,TRIM1# |
1 | ||
| 71072-2J200B2 |
SR40 MOONMIST,TRIM1# |
1 | ||
| 71072-2J200B2 |
SR40..ARL MOONMIST,TRIM1# |
1 | ||
| 71072-2J300B0 |
SR40..ARL MOON MIST,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-2J240B1 |
SR40..ARL MOONMIST,TRIM1# |
1 | ||
| 71073-2J390B0 |
SR40..ARL MOON MIST,TRIM1# |
1 | ||
| 71073-2J400B0 |
SR40..ARL MOON MIST,TRIM1# |
1 | ||
| 71073-2J240B1 |
SR40 MOONMIST,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-2J240B1 |
SR40 MOONMIST,TRIM1# |
1 | ||
| 71073-2J240B1 |
SR40..ARL MOONMIST,TRIM1# |
1 | ||
| 71073-2J390B0 |
SR40..ARL MOON MIST,TRIM1# |
1 | ||
| 71073-2J400B0 |
SR40..ARL MOON MIST,TRIM1# |
1 | ||
| 71147 - SILENCER, SEAT SPRING | ||||
| 71147-28030 |
SR40..ARL NO.2 |
2 | ||
| 71147-28020 |
SR40..ARL NO.1 |
2 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-2J150B2 |
SR40..ARL MOON MIST,TRIM1# |
1 | ||
| 71410-2J470B0 |
SR40..ARL MD.MOON MIST,TRIM1# |
1 | ||
| 71410-2J280B0 |
SR40..ARL MD. MOON MIST,TRIM1# |
1 | ||
| 71410-2J150B3 |
SR40 MOON MIST,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-2J100B3 |
SR40 MOON MIST,TRIM1# |
1 | ||
| 71420-2J230B0 |
SR40..ARL MD. MOON MIST,TRIM1# |
1 | ||
| 71420-2J100B2 |
SR40..ARL MOON MIST,TRIM1# |
1 | ||
| 71420-2J240B0 |
SR40..ARL MD. MOON MIST,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71040-28050B1 |
SR40..ARL ***,MOON MIST,TRIM1# |
1 | ||
| 71040-28050B2 |
SR40 ***,MOON MIST,TRIM1# |
1 | ||
| 71040-28290B0 |
SR40..ARL ***,MD. MOON MIST,TRIM1# |
1 | ||
| 71040-28300B0 |
SR40..ARL ***,MD. MOON MIST,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71040-28050B2 |
SR40 MOON MIST,TRIM1# |
1 | ||
| 71040-28290B0 |
SR40..ARL MD. MOON MIST,TRIM1# |
1 | ||
| 71040-28300B0 |
SR40..ARL MD. MOON MIST,TRIM1# |
1 | ||
| 71040-28050B1 |
SR40..ARL MOON MIST,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-28190 |
CR41,KR4#,SR40 |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-28150 |
CR41,KR4#,SR40 |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-28220 |
CR41,KR4#,SR40 |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-28220 |
CR41,KR4#,SR40 |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-28280 |
CR41,KR4#,SR40 |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71630-28280 |
CR41,KR4#,SR40 |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-28540B2 |
SR40..ARL MOONMIST,TRIM1# |
2 | ||
| 71910-28540B2 |
SR40 MOONMIST,TRIM1# |
2 | ||
| 71910-28830B0 |
SR40..ARL MOON MIST,TRIM1# |
2 | ||
| 71910-28840B0 |
SR40..ARL MOON MIST,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-28040B0 |
CR41,KR4#,SR40 W(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-52010B0 |
SR40 W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-52010B1 |
SR40 W(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-28050B0 |
CR41,KR4#,SR40 W/O(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-52010B1 |
SR40 W/O(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71930-52010B0 |
SR40 W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-28040B0 |
CR41,KR4#,SR40 W(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-52010B0 |
SR40 W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-52010B1 |
SR40 W(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-28050B0 |
CR41,KR4#,SR40 W/O(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-52010B1 |
SR40 W/O(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71930-52010B0 |
SR40 W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| Common parts | ||||
| 90468-18071 | ||||
ILLUST NO. 3 OF 6(9611- )4D..06S,08S
REAR NO.1 SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-28040B0 |
SR40..ARL W(LOCK),BLUE GRAY,TRIM1# |
3 | ||
| 71931-28050B0 |
SR40..ARL W/O(LOCK),BLUE GRAY,TRIM1# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-28040B0 |
SR40..ARL W(LOCK),BLUE GRAY,TRIM1# |
3 | ||
| 71931-28050B0 |
SR40..ARL W/O(LOCK),BLUE GRAY,TRIM1# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-28040B0 |
SR40..ARL W(LOCK),BLUE GRAY,TRIM1# |
3 | ||
| 71931-28050B0 |
SR40..ARL W/O(LOCK),BLUE GRAY,TRIM1# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-28040B0 |
SR40..ARL W(LOCK),BLUE GRAY,TRIM1# |
3 | ||
| 71931-28050B0 |
SR40..ARL W/O(LOCK),BLUE GRAY,TRIM1# |
3 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71910-28540B2 |
SR40..ARL MOONMIST,TRIM1# |
2 | ||
| 71910-28830B0 |
SR40..ARL MOON MIST,TRIM1# |
2 | ||
| 71910-28540B2 |
SR40 MOONMIST,TRIM1# |
2 | ||
| 71910-28840B0 |
SR40..ARL MOON MIST,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71910-28540B2 |
SR40..ARL MOONMIST,TRIM1# |
2 | ||
| 71910-28830B0 |
SR40..ARL MOON MIST,TRIM1# |
2 | ||
| 71910-28540B2 |
SR40 MOONMIST,TRIM1# |
2 | ||
| 71910-28840B0 |
SR40..ARL MOON MIST,TRIM1# |
2 | ||
| 79011 - COVER SUB-ASSY, NO.1 SEAT CUSHION, RH | ||||
| 71075-28550B1 |
SR40..ARL MOON MIST,TRIM1# |
1 | ||
| 71075-28640B0 |
SR40..ARL MD. MOON MIST,TRIM1# |
1 | ||
| 71075-28750B0 |
SR40..ARL MD.MOON MIST,TRIM1# |
1 | ||
| 71075-28550B2 |
SR40 MOON MIST,TRIM1# |
1 | ||
| 79012 - COVER SUB-ASSY, NO.1 SEAT CUSHION, LH | ||||
| 71066-28470B0 |
SR40..ARL MD. MOON MIST,TRIM1# |
1 | ||
| 71066-28360B1 |
SR40..ARL MOON MIST,TRIM1# |
1 | ||
| 71066-28360B2 |
SR40 MOON MIST,TRIM1# |
1 | ||
| 71066-28550B0 |
SR40..ARL MD.MOON MIST,TRIM1# |
1 | ||
| 79013 - COVER SUB-ASSY, NO.1 SEAT BACK, RH | ||||
| 71077-28590B1 |
SR40..ARL MOON MIST,TRIM1# |
1 | ||
| 71077-28590B2 |
SR40 MOON MIST,TRIM1# |
1 | ||
| 71077-28800B0 |
SR40..ARL MD.MOON MIST,TRIM1# |
1 | ||
| 71077-28690B0 |
SR40..ARL MD. MOON MIST,TRIM1# |
1 | ||
| 79014 - COVER SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 71078-28330B2 |
SR40 MOON MIST,TRIM1# |
1 | ||
| 71078-28390B0 |
SR40..ARL MD. MOON MIST,TRIM1# |
1 | ||
| 71078-28330B1 |
SR40..ARL MOON MIST,TRIM1# |
1 | ||
| 71078-28490B0 |
SR40..ARL MD.MOON MIST,TRIM1# |
1 | ||
| 79120 - CUSHION ASSY, NO.1 SEAT, RH | ||||
| 79120-28680B1 |
SR40..ARL MOON MIST,TRIM1# |
1 | ||
| 79120-28680B2 |
SR40..ARL MOON MIST,TRIM1# |
1 | ||
| 79120-2J390B0 |
SR40..ARL MD.MOON MIST,TRIM1# |
1 | ||
| 79120-2J160B0 |
SR40..ARL MD. MOON MIST,TRIM1# |
1 | ||
| 79130 - CUSHION ASSY, NO.1 SEAT, LH | ||||
| 79130-28760B0 |
SR40..ARL MD. MOON MIST,TRIM1# |
1 | ||
| 79130-28610B2 |
SR40 MOON MIST,TRIM1# |
1 | ||
| 79130-28610B1 |
SR40..ARL MOON MIST,TRIM1# |
1 | ||
| 79130-28860B0 |
SR40..ARL MD.MOON MIST,TRIM1# |
1 | ||
| 79135A - PAD, NO.1 SEAT CUSHION, RH | ||||
| 71611-28040 |
CR41,KR41,SR40..4D..(06S,08S) |
1 | ||
| 79136B - PAD, NO.1 SEAT CUSHION, LH | ||||
| 71612-28070 |
SR40..ARL;CR41,KR41..4D..06S |
1 | ||
| 71612-28070 |
CR41,KR41,SR40..4D..(06S,08S) |
1 | ||
| 79140 - BACK ASSY, NO.1 SEAT, RH | ||||
| 79140-28850B1 |
SR40..ARL MOON MIST,TRIM1# |
1 | ||
| 79140-2J370B0 |
SR40..ARL MD. MOON MIST,TRIM1# |
1 | ||
| 79140-2J620B0 |
SR40..ARL MD.MOON MIST,TRIM1# |
1 | ||
| 79140-28850B2 |
SR40..ARL MOON MIST,TRIM1# |
1 | ||
| 79150 - BACK ASSY, NO.1 SEAT, LH | ||||
| 79150-2J140B0 |
SR40..ARL MD. MOON MIST,TRIM1# |
1 | ||
| 79150-2J040B1 |
SR40..ARL MOON MIST,TRIM1# |
1 | ||
| 79150-2J380B0 |
SR40..ARL MD.MOON MIST,TRIM1# |
1 | ||
| 79150-2J040B2 |
SR40 MOON MIST,TRIM1# |
1 | ||
| 79160A - SPRING ASSY, NO.1 SEAT CUSHION, RH | ||||
| 79160-28200 |
SR40..ARL |
1 | ||
| 79160-28200 |
SR40..ARL |
1 | ||
| 79170A - SPRING ASSY, NO.1 SEAT CUSUION, LH | ||||
| 79170-28050 |
CR41,KR41,SR40..4D..(06S,08S) |
1 | ||
| 79175E - PAD, NO.1 SEAT BACK, RH | ||||
| 71651-28140 |
CR41,KR41,SR40..4D..(06S,08S) |
1 | ||
| 79180A - SPRING ASSY, NO.1 SEAT BACK, RH | ||||
| 79180-28290 |
SR40..ARL |
1 | ||
| 79180-28290 |
SR40..ARL |
1 | ||
| 79185 - PAD, NO.1 SEAT BACK, LH | ||||
| 71652-28050 |
SR40..ARL |
2 | ||
| 79190A - SPRING ASSY, NO.1 SEAT BACK, LH | ||||
| 79190-28070 |
SR40..ARL |
2 | ||
| Common parts | ||||
| 90468-18071 | ||||

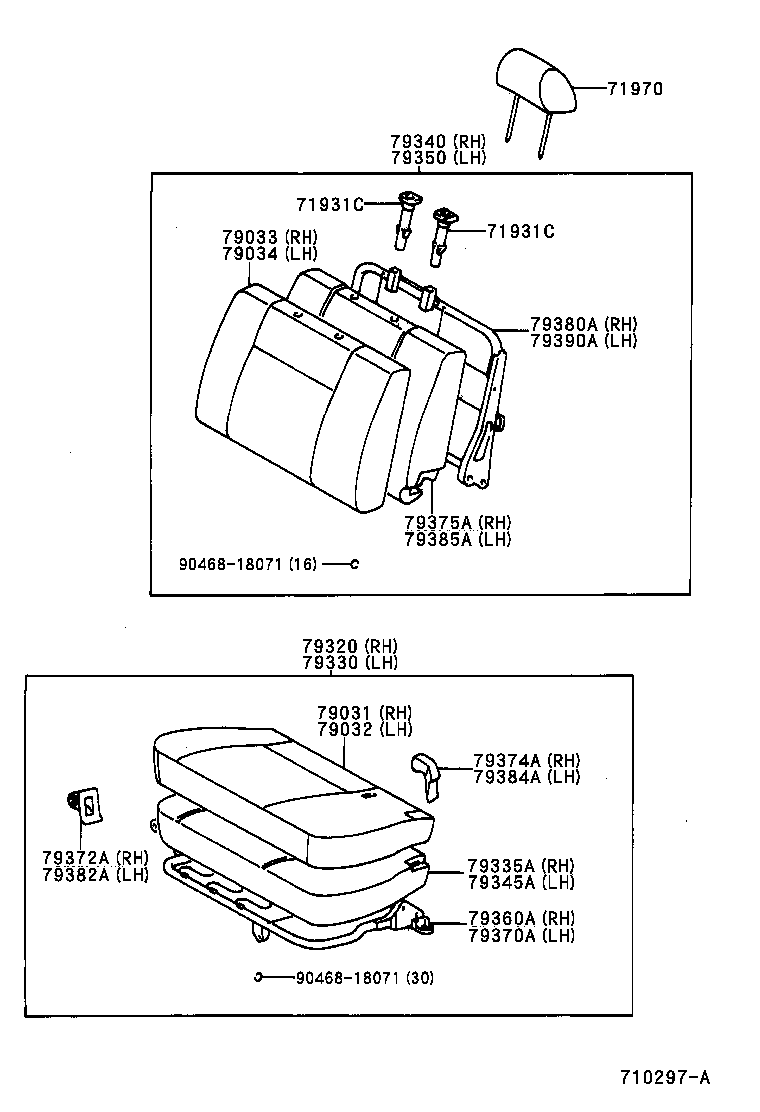

ILLUST NO. 5 OF 6(9611- )SR40
REAR NO.2 SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST | ||||
| 71930-28040B0 |
SR40 W(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-52010B1 |
SR40 W/O(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71930-52010B1 |
SR40 W(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-28050B0 |
SR40 W/O(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST | ||||
| 71930-28040B0 |
SR40 W(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-52010B1 |
SR40 W/O(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71930-52010B1 |
SR40 W(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-28050B0 |
SR40 W/O(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71970 - HEADREST ASSY, REAR SEAT | ||||
| 71910-28620B0 |
SR40 MEDIUM MOON MIST,TRIM1# |
2 | ||
| 71910-28830B0 |
SR40..ARL MOON MIST,TRIM1# |
2 | ||
| 71910-28840B0 |
SR40..ARL MOON MIST,TRIM1# |
2 | ||
| 71910-28540B2 |
SR40..ARL MOONMIST,TRIM1# |
2 | ||
| 71910-28540B2 |
SR40 MOONMIST,TRIM1# |
2 | ||
| 79031 - COVER SUB-ASSY, NO.3 SEAT CUSHION, RH | ||||
| 79031-28390B0 |
SR40..ARL MD. MOON MIST,TRIM1# |
1 | ||
| 79031-28400B0 |
SR40..ARL MD. MOON MIST,TRIM1# |
1 | ||
| 79031-28340B2 |
SR40 MOON MIST,TRIM1# |
1 | ||
| 79031-28340B1 |
SR40..ARL MOON MIST,TRIM1# |
1 | ||
| 79032 - COVER SUB-ASSY, NO.3 SEAT CUSHION, LH | ||||
| 79032-28310B2 |
SR40 MOON MIST,TRIM1# |
1 | ||
| 79032-28360B0 |
SR40..ARL MD. MOON MIST,TRIM1# |
1 | ||
| 79032-28370B0 |
SR40..ARL MD. MOON MIST,TRIM1# |
1 | ||
| 79032-28310B1 |
SR40..ARL MOON MIST,TRIM1# |
1 | ||
| 79033 - COVER SUB-ASSY, NO.3 SEAT BACK, RH | ||||
| 79033-28340B2 |
SR40 MOON MIST,TRIM1# |
1 | ||
| 79033-28400B0 |
SR40..ARL MD. MOON MIST,TRIM1# |
1 | ||
| 79033-28340B1 |
SR40..ARL MOON MIST,TRIM1# |
1 | ||
| 79033-28390B0 |
SR40..ARL MD. MOON MIST,TRIM1# |
1 | ||
| 79034 - COVER SUB-ASSY, NO.3 SEAT BACK, LH | ||||
| 79034-28390B0 |
SR40..ARL MD. MOON MIST,TRIM1# |
1 | ||
| 79034-28380B0 |
SR40..ARL MD. MOON MIST,TRIM1# |
1 | ||
| 79034-28330B1 |
SR40..ARL MOON MIST,TRIM1# |
1 | ||
| 79034-28330B2 |
SR40 MOON MIST,TRIM1# |
1 | ||
| 79320 - CUSHION ASSY, NO.3 SEAT, RH | ||||
| 79320-28340B1 |
SR40..ARL MOON MIST,TRIM1# |
1 | ||
| 79320-28390B0 |
SR40..ARL MD. MOON MIST,TRIM1# |
1 | ||
| 79320-28400B0 |
SR40..ARL MD. MOON MIST,TRIM1# |
1 | ||
| 79320-28340B2 |
SR40 MOON MIST,TRIM1# |
1 | ||
| 79330 - CUSHION ASSY, NO.3 SEAT, LH | ||||
| 79330-28320B1 |
SR40..ARL MOON MIST,TRIM1# |
1 | ||
| 79330-28370B0 |
SR40..ARL MD. MOON MIST,TRIM1# |
1 | ||
| 79330-28320B2 |
SR40 MOON MIST,TRIM1# |
1 | ||
| 79330-28380B0 |
SR40..ARL MD. MOON MIST,TRIM1# |
1 | ||
| 79335A - PAD, NO.3 SEAT CUSHION, RH | ||||
| 79335-28041 |
SR40 |
1 | ||
| 79335-28040 |
SR40 |
1 | ||
| 79340 - BACK ASSY, NO.3 SEAT, RH | ||||
| 79340-28390B1 |
SR40..ARL MOON MIST,TRIM1# |
1 | ||
| 79340-28480B0 |
SR40..ARL MD. MOON MIST,TRIM1# |
1 | ||
| 79340-28720B0 |
SR40..ARL MD.MOON MIST,TRIM1# |
1 | ||
| 79340-28390B2 |
SR40..ARL MOON MIST,TRIM1# |
1 | ||
| 79345A - PAD, NO.3 SEAT CUSHION, LH | ||||
| 79345-28040 |
SR40 |
1 | ||
| 79345-28041 |
SR40 |
1 | ||
| 79350 - BACK ASSY, NO.3 SEAT, LH | ||||
| 79350-28370B1 |
SR40..ARL MOON MIST,TRIM1# |
1 | ||
| 79350-28530B0 |
SR40..ARL MD.MOON MIST,TRIM1# |
1 | ||
| 79350-28370B2 |
SR40..ARL MOON MIST,TRIM1# |
1 | ||
| 79350-28460B0 |
SR40..ARL MD. MOON MIST,TRIM1# |
1 | ||
| 79360A - SPRING ASSY, NO.3 SEAT CUSHION, RH | ||||
| 79360-28030 |
SR40 |
1 | ||
| 79360-28030 |
SR40 |
1 | ||
| 79370A - SPRING ASSY, NO.3 SEAT CUSHION, LH | ||||
| 79370-28020 |
SR40 |
1 | ||
| 79370-28020 |
SR40 |
1 | ||
| 79372A - COVER, NO.3 SEAT FRONT BRACKET, RH | ||||
| 79372-28040B0 |
SR40 MD.MOON MIST,TRIM1# |
1 | ||
| 79372-28040B0 |
SR40 MD.MOON MIST,TRIM1# |
1 | ||
| 79374A - COVER, NO.3 SEAT LEG, REAR RH | ||||
| 79374-28040B0 |
SR40 MD.MOON MIST,TRIM1# |
1 | ||
| 79374-28040B0 |
SR40 MD.MOON MIST,TRIM1# |
1 | ||
| 79375A - PAD, NO.3 SEAT BACK, RH | ||||
| 79375-28060 |
SR40..ARL |
1 | ||
| 79375-28060 |
SR40..ARL |
1 | ||
| 79380A - SPRING ASSY, NO.3 SEAT BACK, RH | ||||
| 79203-28180 |
SR40..ARL |
1 | ||
| 79203-28180 |
SR40..ARL |
1 | ||
| 79382A - COVER, NO.3 SEAT FRONT BRACKET, LH | ||||
| 79382-28040B0 |
SR40 MD.MOON MIST,TRIM1# |
1 | ||
| 79382-28040B0 |
SR40 MD.MOON MIST,TRIM1# |
1 | ||
| 79384A - COVER, NO.3 SEAT LEG, REAR LH | ||||
| 79384-28040B0 |
SR40 MD.MOON MIST,TRIM1# |
1 | ||
| 79384-28040B0 |
SR40 MD.MOON MIST,TRIM1# |
1 | ||
| 79385A - PAD, NO.3 SEAT BACK, LH | ||||
| 79385-28060 |
SR40..ARL |
1 | ||
| 79385-28060 |
SR40..ARL |
1 | ||
| 79390A - SPRING ASSY, NO.3 SEAT BACK, LH | ||||
| 79204-28140 |
SR40..ARL |
1 | ||
| 79204-28140 |
SR40..ARL |
1 | ||
| Common parts | ||||
| 90468-18071 | ||||

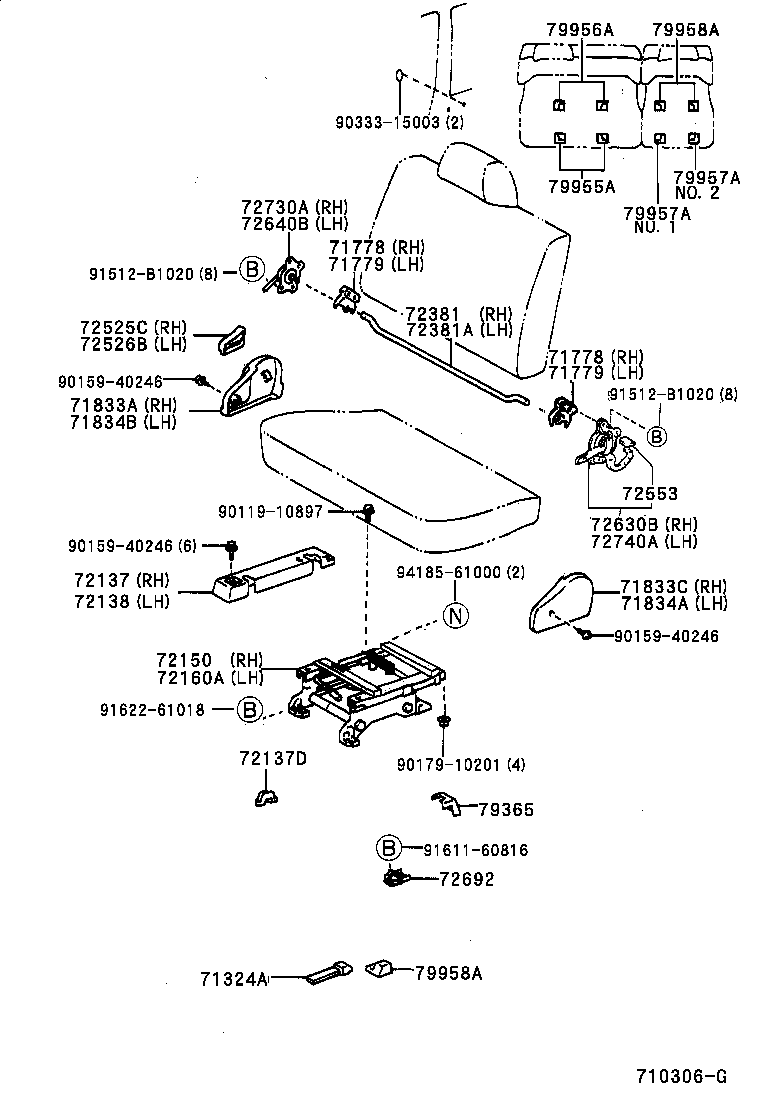

ILLUST NO. 4 OF 6(9611- )4D..06S,08S
REAR NO.1 SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71324A - CUSHION, REAR SEAT | ||||
| 71324-28060 |
SR40 |
2 | ||
| 71324-28060 |
SR40 |
2 | ||
| 71778 - COVER, REAR SEAT SIDE HINGE MALE, RH | ||||
| 71778-28010B0 |
CR41,KR41,SR40..4D..(06S,08S) MD.MOON MIST,TRIM1# |
2 | ||
| 71778 - COVER, REAR SEAT SIDE HINGE MALE, RH | ||||
| 71778-28010B0 |
CR41,KR41,SR40..4D..(06S,08S) MD.MOON MIST,TRIM1# |
2 | ||
| 71779 - COVER, REAR SEAT SIDE HINGE MALE, LH | ||||
| 71779-28010B0 |
CR41,KR41,SR40..4D..(06S,08S) MD.MOON MIST,TRIM1# |
2 | ||
| 71779 - COVER, REAR SEAT SIDE HINGE MALE, LH | ||||
| 71779-28010B0 |
CR41,KR41,SR40..4D..(06S,08S) MD.MOON MIST,TRIM1# |
2 | ||
| 71833A - COVER, REAR SEAT RECLINING, NO.1 RH | ||||
| 71833-28060B0 |
CR41,KR41,SR40..4D..(06S,08S) MD.MOON MIST,TRIM1# |
1 | ||
| 71833C - COVER, REAR SEAT RECLINING, NO.2 RH | ||||
| 71834-28050B0 |
CR41,KR41,SR40..4D..(06S,08S) MD.MOON MIST,TRIM1# |
1 | ||
| 71834A - COVER, REAR SEAT RECLINING, NO.1 LH | ||||
| 71833-28040B0 |
CR41,KR41,SR40..4D..(06S,08S) MD.MOON MIST,TRIM1# |
1 | ||
| 71834B - COVER, REAR SEAT RECLINING, NO.2 LH | ||||
| 71834-28040B0 |
CR41,KR41,SR40..4D..(06S,08S) MD.MOON MIST,TRIM1# |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-28080B0 |
SR40 MD.MOON MIST,TRIM1# |
1 | ||
| 72137-28080B0 |
SR40 MD.MOON MIST,TRIM1# |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-28010B0 |
SR40 MD.MOON MIST,TRIM1# |
1 | ||
| 72138-28010B0 |
SR40 MD.MOON MIST,TRIM1# |
1 | ||
| 72150 - TRACK ASSY, REAR SEAT, RH | ||||
| 72160-28120 |
CR41,KR41,SR40..4D..(06S,08S) |
1 | ||
| 72160A - TRACK ASSY, REAR SEAT, LH | ||||
| 72170-28110 |
CR41,KR41,SR40..4D..(06S,08S) |
1 | ||
| 72170-28151 |
CR41,KR41,SR40..4D..(06S,08S) |
1 | ||
| 72381 - ROD, RECLINING ADJUSTER EQUALIZING, NO.1 | ||||
| 72381-28040 |
CR41,KR41,SR40..4D..(06S,08S) |
1 | ||
| 72381A - ROD, REAR SEAT RECLINING ADJUSTER EQUALIZING, LH | ||||
| 72381-28050 |
CR41,KR41,SR40..4D..(06S,08S) |
1 | ||
| 72525C - HANDLE, RECLINING ADJUSTER RELEASE, NO.1 RH | ||||
| 72525-16010B7 |
CR41,KR41,SR40..4D..(06S,08S) MD.MOON MIST,TRIM1# |
1 | ||
| 72526B - HANDLE, RECLINING ADJUSTER RELEASE, NO.1 LH | ||||
| 72526-16010B7 |
CR41,KR41,SR40..4D..(06S,08S) MD.MOON MIST,TRIM1# |
1 | ||
| 72630B - ADJUSTER ASSY, REAR NO.1 SEAT, INNER RH | ||||
| 72740-28410 |
CR41,KR41,SR40..4D..(06S,08S) |
1 | ||
| 72640B - ADJUSTER ASSY, REAR NO.1 SEAT, INNER LH | ||||
| 72730-28390 |
CR41,KR41,SR40..4D..(06S,08S) |
1 | ||
| 72692 - STRIKER, REAR SEAT CUSHION LOCK, NO.2 | ||||
| 72692-28030 |
SR40 |
2 | ||
| 72692-28030 |
SR40 |
2 | ||
| 72730A - ADJUSTER ASSY, REAR SEAT RECLINING, RH | ||||
| 72730-28400 |
CR41,KR41,SR40..4D..(06S,08S) |
1 | ||
| 72740A - ADJUSTER ASSY, REAR SEAT RECLINING, LH | ||||
| 72740-28400 |
CR41,KR41,SR40..4D..(06S,08S) |
1 | ||
| 79365 - COVER, NO.3 SEAT LEG BRACKET | ||||
| 79365-28010B0 |
SR40 MD.MOON MIST,TRIM1# |
2 | ||
| 79365-28010B0 |
SR40 MD.MOON MIST,TRIM1# |
2 | ||
| 79955A - COVER, REAR SEAT FRONT BRACKET, RH | ||||
| 79956-28110B0 |
SR40 MD.MOON MIST,TRIM1# |
2 | ||
| 79956-28110B0 |
SR40 MD.MOON MIST,TRIM1# |
2 | ||
| 79956A - CLIP (FOR REAR SEAT LEG BRACKET COVER) | ||||
| 79966-28030B0 |
SR40 MD.MOON MIST,TRIM1# |
2 | ||
| 79966-28030B0 |
SR40 MD.MOON MIST,TRIM1# |
2 | ||
| 79957A - COVER, REAR SEAT REAR BRACKET, RH | ||||
| 79966-28030B0 |
SR40 MD.MOON MIST,TRIM1# |
2 | ||
| 79967-28010B0 |
SR40 MD.MOON MIST,TRIM1# |
1 | ||
| 79966-28030B0 |
SR40 MD.MOON MIST,TRIM1# |
2 | ||
| 79966-28030B0 |
SR40 MD.MOON MIST,TRIM1#,NO.2 |
1 | ||
| 79957A - COVER, REAR SEAT REAR BRACKET, RH | ||||
| 79966-28030B0 |
SR40 MD.MOON MIST,TRIM1# |
2 | ||
| 79967-28010B0 |
SR40 MD.MOON MIST,TRIM1# |
1 | ||
| 79966-28030B0 |
SR40 MD.MOON MIST,TRIM1# |
2 | ||
| 79966-28030B0 |
SR40 MD.MOON MIST,TRIM1#,NO.2 |
1 | ||
| 79958A - COVER, REAR SEAT REAR BRACKET, LH | ||||
| 79956-28110B0 |
SR40 MD.MOON MIST,TRIM1# |
2 | ||
| 79956-28110B0 |
SR40 MD.MOON MIST,TRIM1# |
2 | ||
| 79958A - COVER, REAR SEAT REAR BRACKET, LH | ||||
| 79956-28110B0 |
SR40 MD.MOON MIST,TRIM1# |
2 | ||
| 79956-28110B0 |
SR40 MD.MOON MIST,TRIM1# |
2 | ||
| Common parts | ||||
| 90119-10897 | ||||
| 90159-40246 | ||||
| 90179-10201 | ||||
| 90333-15003 | ||||
| 91512-B1020 | ||||
| 91611-60816 | ||||
| 91622-61018 | ||||
| 94185-61000 | ||||
ILLUST NO. 2 OF 6(9611- )
FRONT SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55560D - LOCK ASSY, SEAT UNDER TRAY | ||||
| 55560-95J00B1 |
SR40..ARL MEDIUM MOON MIST,TRIM1# |
1 | ||
| 71108B - LEG SUB-ASSY, FRONT SEAT, RH | ||||
| 71108-28050B0 |
CR41,KR4#,SR40 MD.MOON MIST,TRIM1# |
1 | ||
| 71108-28050B0 |
SR40 MD.MOON MIST,TRIM1# |
1 | ||
| 71109B - LEG SUB-ASSY, FRONT SEAT, LH | ||||
| 71109-28100B0 |
KR42,SR40..02S,08S MD.MOON MIST,TRIM1# |
1 | ||
| 71109-28090B0 |
SR40 MD.MOON MIST,TRIM1# |
1 | ||
| 71139C - COVER, FRONT SEAT LEG, RH | ||||
| 71139-28010B0 |
CR41,KR4#,SR40 MD.MOON MIST,TRIM1# |
1 | ||
| 71139-28010B0 |
SR40 MD.MOON MIST,TRIM1# |
1 | ||
| 71147 - SILENCER, SEAT SPRING | ||||
| 71147-28030 |
SR40..ARL NO.2 |
2 | ||
| 71147-28020 |
SR40..ARL NO.1 |
2 | ||
| 71149A - COVER, FRONT SEAT LEG, LH | ||||
| 71149-28010B0 |
CR41,KR4#,SR40 MD.MOON MIST,TRIM1# |
1 | ||
| 71149-28010B0 |
SR40 MD.MOON MIST,TRIM1# |
1 | ||
| 71750A - TRAY ASSY, FRONT SEAT UNDER | ||||
| 71750-26010B1 |
SR40..ARL MD.MOON MIST,TRIM1# |
1 | ||
| 71769 - COVER, FRONT SEAT UNDER TRAY BRACKET | ||||
| 71769-28010B0 |
SR40..ARL MD.MOON MIST,TRIM1# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-28130B0 |
CR41,KR4#,SR40 MD.MOON MIST,TRIM1# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-28140B0 |
CR41,KR4#,SR40 MD.MOON MIST,TRIM1# |
1 | ||
| 71822A - BRACKET, FRONT SEAT SHIELD SET, NO.1 LH | ||||
| 71822-28010 |
CR41,KR4#,SR40 |
1 | ||
| 71822-28010 |
SR40 |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-28010B0 |
CR41,KR4#,SR40 MD.MOON MIST,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-28010B0 |
CR41,KR4#,SR40 MD.MOON MIST,TRIM1# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72011-28060 |
CR41,KR4#,SR40 |
1 | ||
| 72011-28061 |
CR41,KR42,SR40 |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72012-28061 |
CR41,KR4#,SR40 |
1 | ||
| 72012-28080 |
CR41,KR4#,SR40 |
1 | ||
| 72012-28061 |
CR41,KR42,SR40 |
1 | ||
| 72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH | ||||
| 72021-28040 |
CR41,KR4#,SR40 |
1 | ||
| 72022 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH | ||||
| 72022-28030 |
CR41,KR4#,SR40 |
1 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-28040B0 |
CR41,KR4#,SR40 MD.MOON MIST,TRIM1# |
1 | ||
| 72123-28040B0 |
SR40 MD.MOON MIST,TRIM1# |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72124-28020B0 |
CR41,KR4#,SR40 MD.MOON MIST,TRIM1# |
1 | ||
| 72124-28020B0 |
SR40 MD.MOON MIST,TRIM1# |
1 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-60070 |
CR41,KR4#,SR40 |
4 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-28010B0 |
CR41,KR4#,SR40 MD.MOON MIST,TRIM1# |
1 | ||
| 72127-28010B0 |
SR40 MD.MOON MIST,TRIM1# |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72128-28010B0 |
CR41,KR4#,SR40 MD.MOON MIST,TRIM1# |
1 | ||
| 72128-28010B0 |
SR40 MD.MOON MIST,TRIM1# |
1 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-60030 |
CR41,KR4#,SR40 W/O(PASSENGER SEAT) |
4 | ||
| 72129-28010 |
CR41,KR4#,SR40 W(SUB SEAT) |
4 | ||
| 72129-60030 |
KR42,SR40..02S,08S W/O(PASSENGER SEAT) |
4 | ||
| 72129-60030 |
CR41,KR4#,SR40 |
8 | ||
| 72129-28010 |
SR40..ARL |
4 | ||
| 72137A - CLIP (FOR SEAT TRACK COVER) | ||||
| 90467-05063B3 |
SR40 BLUISH GRAY,TRIM1# |
2 | ||
| 90467-05063B3 |
CR41,KR4#,SR40 BLUISH GRAY,TRIM1# |
2 | ||
| 72137A - CLIP (FOR SEAT TRACK COVER) | ||||
| 90467-05063B3 |
SR40 BLUISH GRAY,TRIM1# |
2 | ||
| 90467-05063B3 |
CR41,KR4#,SR40 BLUISH GRAY,TRIM1# |
2 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72157-28010B0 |
CR41,KR4#,SR40 MD.MOON MIST,TRIM1# |
2 | ||
| 72157-28010B0 |
SR40 MD.MOON MIST,TRIM1# |
2 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-28070 |
CR41,KR4#,SR40 LH |
1 | ||
| 72211-28030 |
SR40..ARL |
1 | ||
| 72211-28030 |
CR41,KR4#,SR40 RH |
1 | ||
| 72501D - PIPE SUB-ASSY, RECLINING CONNECTING, RH | ||||
| 72345-28050 |
SR40 REAR NO.2 SEAT |
1 | ||
| 72345-28050 |
SR40 REAR NO.2 SEAT |
1 | ||
| 72501-28060 |
CR41,KR4#,SR40 FRONT SEAT |
1 | ||
| 72501E - PIPE SUB-ASSY, RECLINING CONNECTING, LH | ||||
| 72501-28060 |
CR41,KR4#,SR40 FRONT SEAT |
1 | ||
| 72345-28050 |
SR40 REAR NO.2 SEAT |
1 | ||
| 72345-28050 |
SR40 REAR NO.2 SEAT |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-16010B7 |
CR41,KR4#,SR40 MD.MOON MIST,TRIM1# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-16010B7 |
CR41,KR4#,SR40 MD.MOON MIST,TRIM1# |
1 | ||
| 73515 - RAIL, FRONT SEAT UNDER TRAY, NO.1 | ||||
| 73507-28010 |
SR40..ARL |
1 | ||
| Common parts | ||||
| 90119-10644 | ||||
| 90119-10897 | ||||
| 90167-40044 | ||||
| 90167-40055 | ||||
| 90168-40093 | ||||
| 91511-60816 | ||||
| 91512-B1020 | ||||
| 91611-60816 | ||||
| 91621-G0614 | ||||
| 93560-54010 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
