SR40R-GRSRKQ (1997)

Toyota Townace/Liteace

Production Oct 1997 - Nov 2001
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9611- )SR40

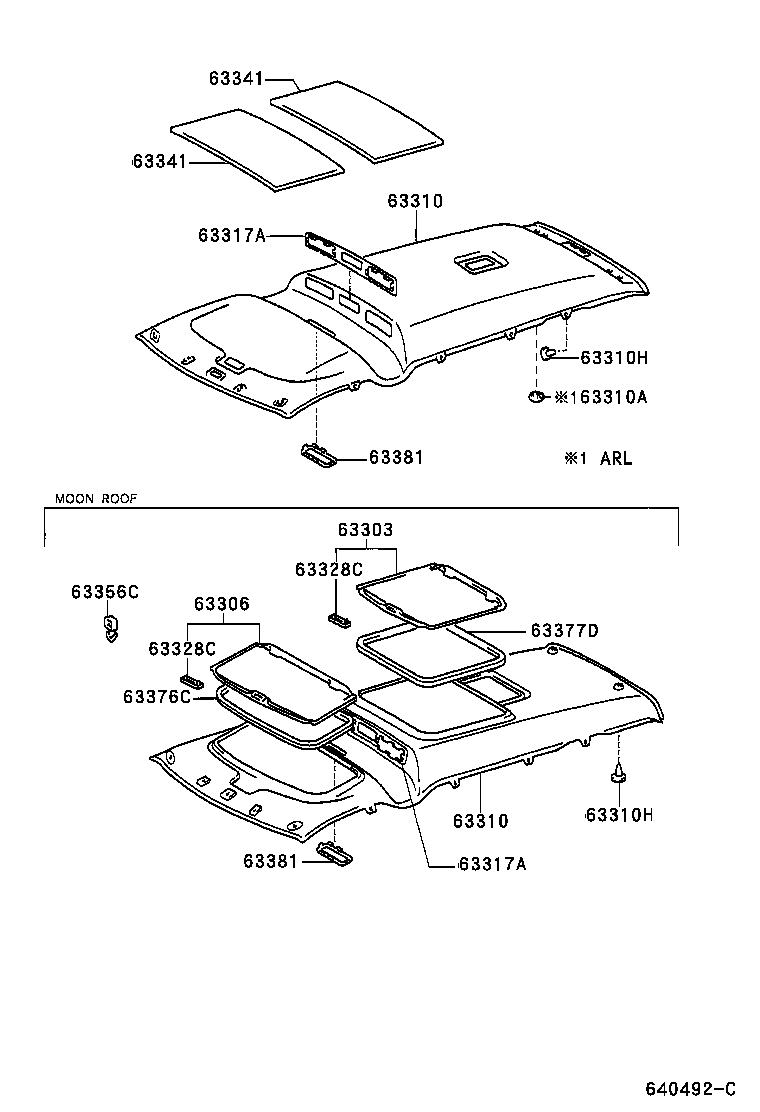

Click highlighted areas on diagram

diagram 63303 63306 63310 63310 63310A 63310H 63310H 63317A 63317A 63328C 63328C 63341 63341 63356C 63376C 63377D 63381 63381
Part # Description Qty Price
63310 - HEADLINING ASSY, ROOF
63310-28530B0

SR40

MOONMIST,TRIM1#

 1
63310-28531B0

SR40..ARL

MOONMIST,TRIM1#

 1
63310-28531B0

SR40

MOONMIST,TRIM1#

 1
63310-28850B0

SR40..ARL

MD.MOON MIST,TRIM1#

 1
63310 - HEADLINING ASSY, ROOF
63310-28530B0

SR40

MOONMIST,TRIM1#

 1
63310-28531B0

SR40..ARL

MOONMIST,TRIM1#

 1
63310-28531B0

SR40

MOONMIST,TRIM1#

 1
63310-28850B0

SR40..ARL

MD.MOON MIST,TRIM1#

 1
63310A - PLUG, HOLE(FOR ROOF HEADLINING ASSY)
90950-01436B7

SR40..ARL

LT.GRAY,TRIM1#

 1
63310H - CLIP(FOR ROOF HEADLINING)
63317-28030G0

SR40

SAGE,TRIM1#

 10
90467-08198B0

SR40

MOON MIST,TRIM1#

 10
63310H - CLIP(FOR ROOF HEADLINING)
63317-28030G0

SR40

SAGE,TRIM1#

 10
90467-08198B0

SR40

MOON MIST,TRIM1#

 10
63317A - RETAINER, ROOF HEADLINING
63317-28040

SR40..ARL

 1
63317-28040

SR40

 1
63317-28020

SR40

 1
63317A - RETAINER, ROOF HEADLINING
63317-28040

SR40..ARL

 1
63317-28040

SR40

 1
63317-28020

SR40

 1
63341 - PAD, ROOF SILENCER, NO.1
63341-28040

SR40

400 X 800

 2
63341-28050

SR40

250 X 300

 1
63341-28040

CR41,KR4#,SR40

400 X 800

 2
63341 - PAD, ROOF SILENCER, NO.1
63341-28040

SR40

400 X 800

 2
63341-28050

SR40

250 X 300

 1
63341-28040

CR41,KR4#,SR40

400 X 800

 2
63381 - RETAINER, HEADLINING, FRONT
63381-28070

SR40

 1
63381-28070

SR40

 1
63381 - RETAINER, HEADLINING, FRONT
63381-28070

SR40

 1
63381-28070

SR40

 1
