SR40R-GRSRKQ (1997)

Toyota Townace/Liteace

Production Oct 1997 - Nov 2001
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(9611- )

Click highlighted areas on diagram

diagram 63111 63111 63122A 63125 63132 63132 63134A 63134A 63135A 63135A 63141G 63142A 63143B 63144B 63144B 63228E 63228E 68715A 68715A 68715B 68715B 9151140812 9151140812 91511B0616
Part # Description Qty Price
63111 - PANEL, ROOF
63111-28070

SR40

 1
63111-28070

CR41,KR4#,SR40

 1
63111 - PANEL, ROOF
63111-28070

SR40

 1
63111-28070

CR41,KR4#,SR40

 1
63132 - PANEL, WINDSHIELD HEADER, INNER
63132-28040

CR41,KR4#,SR40

 1
63132-28040

SR40

 1
63132 - PANEL, WINDSHIELD HEADER, INNER
63132-28040

CR41,KR4#,SR40

 1
63132-28040

SR40

 1
63134A - FRAME, BACK DOOR OPENING, UPPER
63134-28040

SR40

 1
63134-28040

CR41,KR4#,SR40

 1
63134A - FRAME, BACK DOOR OPENING, UPPER
63134-28040

SR40

 1
63134-28040

CR41,KR4#,SR40

 1
63135A - FRAME, BACK DOOR OPENING, LOWER
63135-28040

CR41,KR4#,SR40

 1
63135-28040

SR40

 1
63135A - FRAME, BACK DOOR OPENING, LOWER
63135-28040

CR41,KR4#,SR40

 1
63135-28040

SR40

 1
63141G - REINFORCEMENT, ROOF PANEL, NO.1
63141-28050

SR40

 1
63141-28050

SR40

 1
63142A - REINFORCEMENT, ROOF PANEL, NO.2
63142-28040

SR40

 1
63142-28040

CR41,KR4#,SR40

 1
63143B - REINFORCEMENT, ROOF PANEL, NO.3
63143-28030

SR40

 1
63143-28030

CR41,KR4#,SR40

 1
63144B - REINFORCEMENT, ROOF PANEL, NO.4
63144-28040

SR40

FRONT

 1
63046-28010

SR40

REAR

 1
63144-28040

SR40

FRONT

 1
63046-28010

SR40

REAR

 1
63144B - REINFORCEMENT, ROOF PANEL, NO.4
63144-28040

SR40

FRONT

 1
63046-28010

SR40

REAR

 1
63144-28040

SR40

FRONT

 1
63046-28010

SR40

REAR

 1
63228E - BRACKET, ROOF HEADLINING, NO.1
63228-28030

CR41,KR4#,SR40

 1
63228-28030

SR40

 1
63228E - BRACKET, ROOF HEADLINING, NO.1
63228-28030

CR41,KR4#,SR40

 1
63228-28030

SR40

 1
68715A - PLATE, DOOR HINGE, UPPER
68715-28030

SR40

 1
68715-28030

CR41,KR4#,SR40

 1
68715A - PLATE, DOOR HINGE, UPPER
68715-28030

SR40

 1
68715-28030

CR41,KR4#,SR40

 1
68715B - PLATE, DOOR HINGE, UPPER
68715-28040

CR41,KR4#,SR40

 1
68715-28040

SR40

 1
68715B - PLATE, DOOR HINGE, UPPER
68715-28040

CR41,KR4#,SR40

 1
68715-28040

SR40

 1
Common parts
91511-40812
91511-B0616

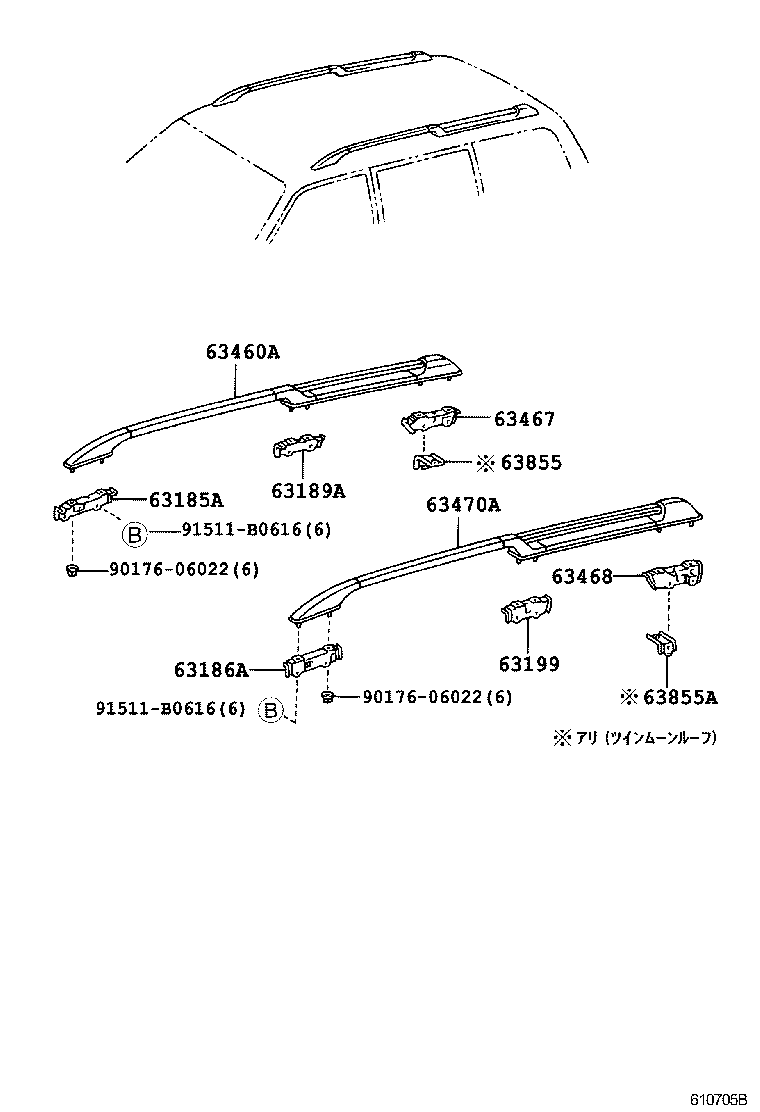

ILLUST NO. 3 OF 3(9801- )

Click highlighted areas on diagram

W(ROOF RACK)

diagram 63185A 63186A 63189A 63199 63460A 63467 63468 63470A 63855 63855A 9017606022 9017606022 91511B0616 91511B0616
Part # Description Qty Price
Common parts
90176-06022
91511-B0616

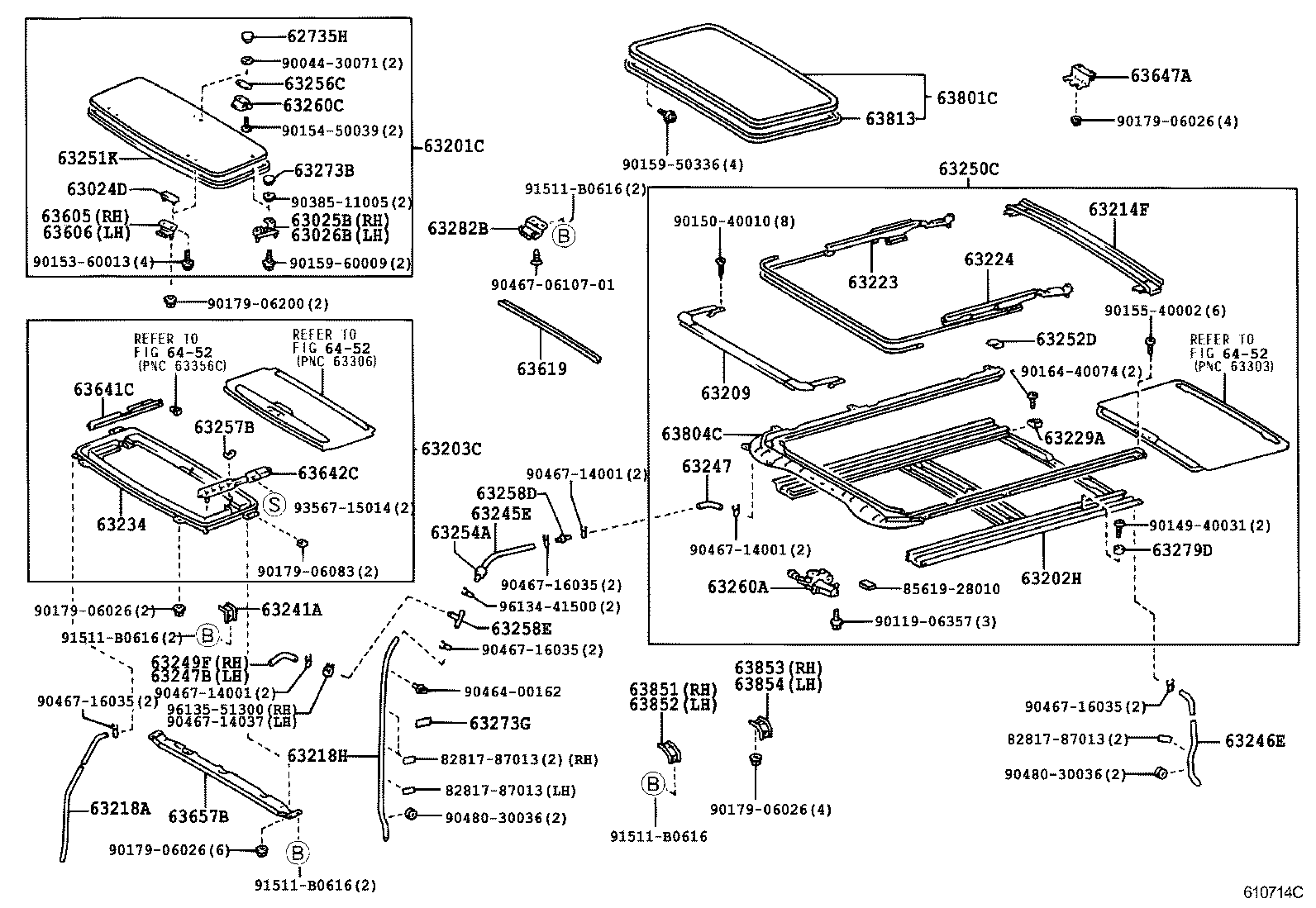

ILLUST NO. 2 OF 3(9801- )

Click highlighted areas on diagram

W(TWIN MOON ROOF)

diagram 62735H 63024D 63025B 63026B 63201C 63202H 63203C 63209 63214F 63218A 63218H 63223 63224 63229A 63234 63241A 63245E 63246E 63247 63247B 63249F 63250C 63251K 63252D 63254A 63256C 63257B 63258D 63258E 63260A 63260C 63273B 63273G 63279D 63282B 63605 63606 63619 63641C 63642C 63647A 63657B 63801C 63804C 63813 63851 63852 63853 63854 6452 6452 6452 8281787013 8281787013 8281787013 8561928010 9004430071 9011906357 9014940031 9015040010 9015360013 9015450039 9015540002 9015950336 9015960009 9016440074 9017906026 9017906026 9017906026 9017906026 9017906083 9017906200 9038511005 9046400162 904670610701 9046714001 9046714001 9046714001 9046714037 9046716035 9046716035 9046716035 9046716035 9048030036 9048030036 91511B0616 91511B0616 91511B0616 91511B0616 9356715014 9613441500 9613551300
Part # Description Qty Price
Common parts
82817-87013
85619-28010
90044-30071
90119-06357
90149-40031
90150-40010
90153-60013
90154-50039
90155-40002
90159-50336
90159-60009
90164-40074
90179-06026
90179-06083
90179-06200
90385-11005
90464-00162
90467-0610701
90467-14001
90467-14037
90467-16035
90480-30036
91511-B0616
93567-15014
96134-41500
96135-51300
Linked diagrams
6452
