SR40R-GRSRKQ (1997)

Toyota Townace/Liteace

Production Oct 1997 - Nov 2001
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9611- )

Click highlighted areas on diagram

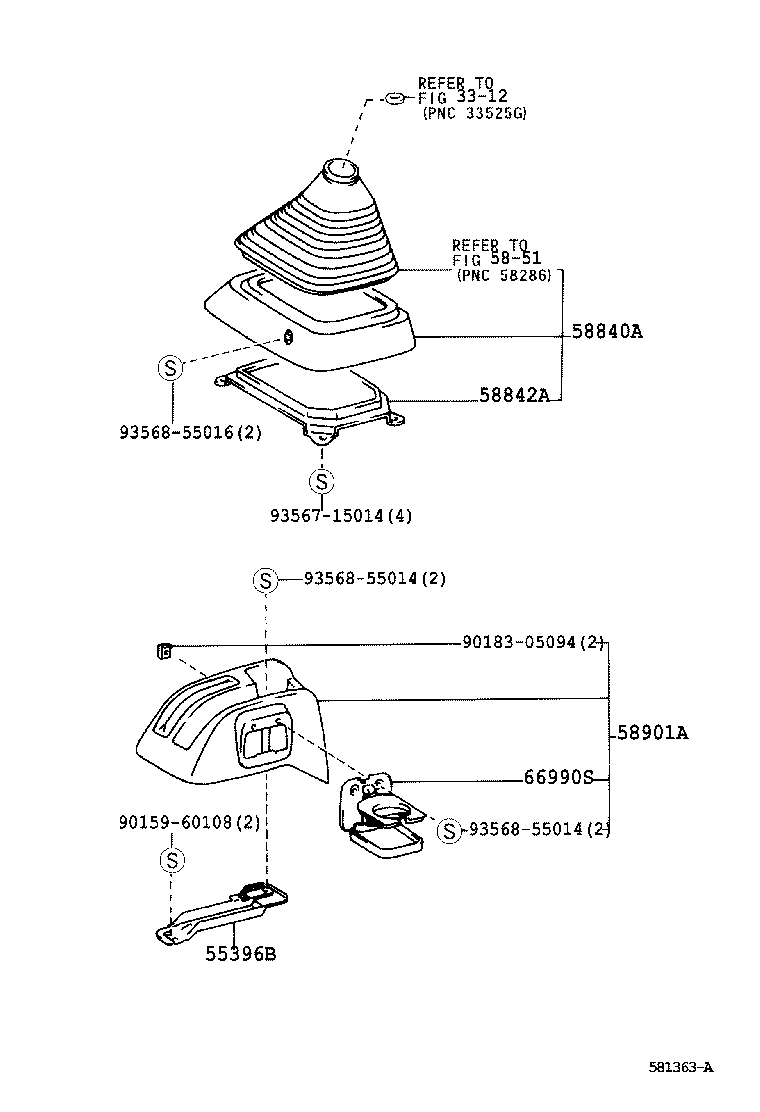

diagram 3312 55396B 5851 58840A 58842A 58901A 66990S 9015960108 9018305094 9356715014 9356855014 9356855014 9356855016
Part # Description Qty Price
55396B - BRACKET, CONSOLE MOUNTING, NO.4
55396-28020

SR40

 1
55396-28020

SR40

 1
58901A - BOX SUB-ASSY, CONSOLE, REAR
58901-28010B0

SR40..ATM

MD.MOON MIST,TRIM1#

 1
58901-28040B0

SR40..ATM

MD.MOON MIST,TRIM1#

 1
Common parts
90159-60108
90183-05094
93567-15014
93568-55014
93568-55016
Linked diagrams
3312
5851
