SR40R-GRSRKQ (1997)

Toyota Townace/Liteace

Production Oct 1997 - Nov 2001
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9611- )4D..06S,08S

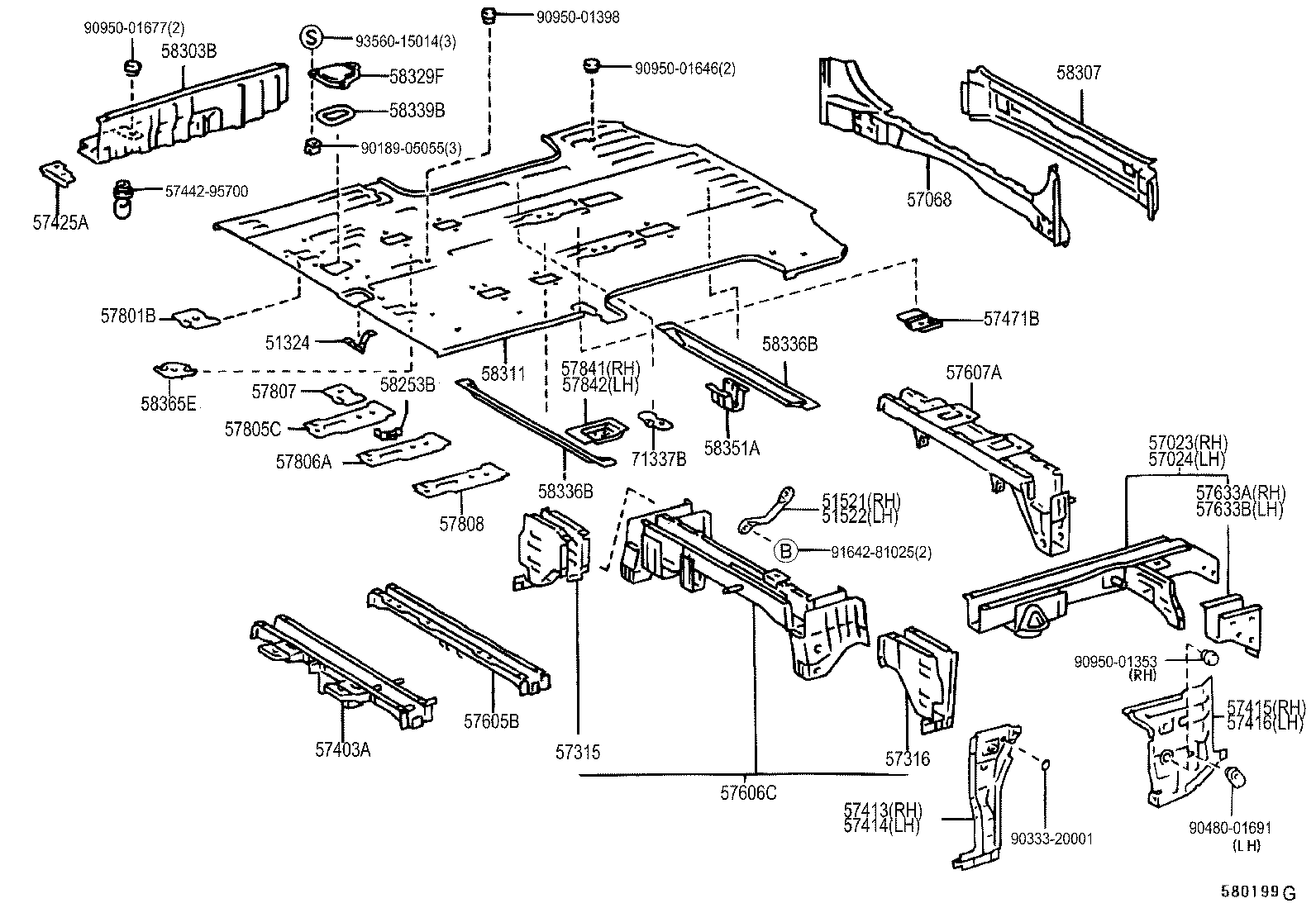

Click highlighted areas on diagram

diagram 51324 51521 51522 57023 57024 57068 57315 57316 57403A 57413 57414 57415 57416 57425A 5744295700 57471B 57605B 57606C 57607A 57633A 57633B 57801B 57805C 57806A 57807 57808 57841 57842 58253B 58303B 58307 58311 58329F 58336B 58336B 58339B 58351A 58365E 71337B 9018905055 9033320001 9095001353 9095001398 9095001646 9095001677 9164281025 9356015014
Part # Description Qty Price
51324 - BRACKET, PARKING CABLE SUPPORT, LH
51324-28010

SR40

 1
51324-28010

CR41,KR4#,SR40

 1
51521 - BRACE, LOWER ARM BRACKET, RH
51521-28010

SR40

 1
51522 - BRACE, LOWER ARM BRACKET, LH
51522-28010

SR40

 1
57023 - MEMBER SUB-ASSY, REAR SIDE, RH
57023-28160

SR40..ARL

 1
57023-28160

SR40..ARL

 1
57024 - MEMBER SUB-ASSY, REAR SIDE, LH
57024-28450

KR42,SR40..ARL

 1
57068 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER
57068-28170

SR40..ARL

 1
57315 - OUTRIGGER, NO.3 RH
57305-28060

SR40

 1
57305-28060

CR41,KR4#,SR40

 1
57316 - OUTRIGGER, NO.3 LH
57306-28040

CR41,KR4#,SR40

 1
57306-28040

SR40

 1
57403A - MEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.3
57403-28010

CR41,KR4#,SR40

 1
57413 - RAIL, FLOOR SIDE, CENTER RH
57405-28140

SR40

 1
57405-28140

SR40

 1
57414 - RAIL, FLOOR SIDE, CENTER LH
57406-28131

SR40

 1
57406-28130

SR40..ARL

W(REAR NO.1 SEATBELT ANCHOR)

 1
57415 - RAIL, FLOOR SIDE, REAR RH
57047-28100

CR41,KR4#,SR40

 1
57416 - RAIL, FLOOR SIDE, REAR LH
57048-28051

SR40

 1
57048-28050

SR40

 1
57425A - PLATE, REAR STEP, FRONT RH
57425-28010

CR41,KR4#,SR40

 1
57471B - REINFORCEMENT, SEAT BELT ANCHOR TO FLOOR MEMBER
57471-28020

SR40..ARL

 1
57471-28020

SR40..ARL

 1
57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57605-28270

SR40

 1
57605-28270

SR40

 1
57606C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
57606-28490

SR40

 1
57606-28490

SR40

 1
57607A - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3
57607-28150

SR40..ARL

 1
57607-28360

SR40

 1
57633A - EXTENSION, REAR FLOOR SIDE MEMBER, REAR RH
57633-28010

CR41,KR4#,SR40

 1
57633-28010

SR40

 1
57633B - EXTENSION, REAR FLOOR SIDE MEMBER, REAR LH
57633-28010

SR40

 1
57633-28010

CR41,KR4#,SR40

 1
57801B - REINFORCEMENT SUB-ASSY, REAR NO.1 SEAT LEG, FRONT NO.1
57801-28030

CR41,KR41,SR40..4D..(06S,08S)

MINI BUS

 1
57801-28030

SR40

MINI BUS

 1
57805C - REINFORCEMENT SUB-ASSY, NO.1 SEAT LEG, REAR NO.1
57805-28060

SR40

MINI BUS

 1
57805-28060

CR41,KR41,SR40..4D..(06S,08S)

MINI BUS

 1
57806A - REINFORCE SUB-ASSY, NO.1 SEAT LEG, REAR NO.2
57806-28080

CR41,KR41,SR40..4D..(06S,08S)

MINI BUS

 1
57805-28060

SR40

MINI BUS

 1
57807 - REINFORCEMENT SUB-ASSY, NO.1 SEAT LEG, REAR NO.3
57807-28020

CR41,KR41,SR40..4D..(06S,08S)

 1
57808 - REINFORCEMENT SUB-ASSY, NO.1 SEAT LEG, REAR NO.4
57808-28090

CR41,KR41,SR40..4D..(06S,08S)

 1
57841 - REINFORCEMENT, REAR NO.2 SEAT LEG, FRONT RH
57841-28030

SR40

 1
57841-28030

SR40

 1
57842 - REINFORCEMENT, REAR NO.2 SEAT LEG, FRONT LH
57842-28030

SR40

 1
57842-28030

SR40

 1
58253B - BRACKET, PARKING CABLE CLAMP
58253-28020

SR40

 1
58253-28020

SR40

MINI BUS

 1
58303B - STEP SUB-ASSY, REAR FLOOR, RH
58303-28040

SR40

 1
58303-28040

SR40

 1
58307 - PANEL SUB-ASSY, BODY LOWER BACK
58307-28050

CR41,KR4#,SR40

 1
58311 - PAN, REAR FLOOR
58311-28770

SR40..ARL

 1
58311-28770

SR40..ARL

 1
58329F - COVER, REAR FLOOR SERVICE HOLE, NO.2
58329-28010

CR41,KR4#,SR40

 1
58329-28010

SR40

 1
58336B - REINFORCEMENT, REAR FLOOR PAN
58336-28020

CR41,KR4#,SR40

 2
58336-28020

SR40

 2
58336B - REINFORCEMENT, REAR FLOOR PAN
58336-28020

CR41,KR4#,SR40

 2
58336-28020

SR40

 2
58339B - PACKING, REAR FLOOR SERVICE HOLE
58339-28020

SR40

 1
58339-28020

CR41,KR4#,SR40

 1
58351A - BRACKET, SPARE WHEEL CARRIER
51938-28080

SR40

 2
51938-28080

CR41,KR4#,SR40

 2
Common parts
57442-95700
90189-05055
90333-20001
90950-01353
90950-01398
90950-01646
90950-01677
91642-81025
93560-15014

(9611- )

Click highlighted areas on diagram

diagram 51324 57023 57024 57068 57315 57316 57403A 57413 57414 57415 57416 57425A 57427B 57428B 5744295700 57605B 57606C 57607A 57633A 57633B 57801B 57805C 57806A 57832 58253B 58253B 58303B 58307 58311 58329F 58336B 58339B 58351A 58365E 66311B 9011910521 9018904197 9018905055 9033320001 9095001047 9095001353 9095001398 9095001646 9095001677 9095001753 9356015014
Part # Description Qty Price
51324 - BRACKET, PARKING CABLE SUPPORT, LH
51324-28010

SR40

 1
51324-28010

CR41,KR4#,SR40

 1
57023 - MEMBER SUB-ASSY, REAR SIDE, RH
57023-28160

SR40..ARL

 1
57023-28160

SR40..ARL

 1
57024 - MEMBER SUB-ASSY, REAR SIDE, LH
57024-28450

KR42,SR40..ARL

 1
57068 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER
57068-28170

SR40..ARL

 1
57315 - OUTRIGGER, NO.3 RH
57305-28060

SR40

 1
57305-28060

CR41,KR4#,SR40

 1
57316 - OUTRIGGER, NO.3 LH
57306-28040

CR41,KR4#,SR40

 1
57306-28040

SR40

 1
57403A - MEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.3
57403-28010

CR41,KR4#,SR40

 1
57413 - RAIL, FLOOR SIDE, CENTER RH
57405-28140

SR40

 1
57405-28140

SR40

 1
57414 - RAIL, FLOOR SIDE, CENTER LH
57406-28131

SR40

 1
57406-28130

SR40..ARL

W(REAR NO.1 SEATBELT ANCHOR)

 1
57415 - RAIL, FLOOR SIDE, REAR RH
57047-28100

CR41,KR4#,SR40

 1
57416 - RAIL, FLOOR SIDE, REAR LH
57048-28051

SR40

 1
57048-28050

SR40

 1
57425A - PLATE, REAR STEP, FRONT RH
57425-28010

CR41,KR4#,SR40

 1
57427B - PLATE, REAR STEP, REAR RH
57427-28010

SR40;KR4#..5D

 1
57427-28010

SR40

 1
57428B - PLATE, REAR STEP, REAR LH
57428-28010

SR40

 1
57428-28010

CR41,KR4#,SR40

 1
57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57605-28270

SR40

 1
57605-28270

SR40

 1
57606C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
57606-28490

SR40

 1
57606-28490

SR40

 1
57607A - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3
57607-28150

SR40..ARL

 1
57607-28360

SR40

 1
57633A - EXTENSION, REAR FLOOR SIDE MEMBER, REAR RH
57633-28010

CR41,KR4#,SR40

 1
57633-28010

SR40

 1
57633B - EXTENSION, REAR FLOOR SIDE MEMBER, REAR LH
57633-28010

SR40

 1
57633-28010

CR41,KR4#,SR40

 1
57801B - REINFORCEMENT SUB-ASSY, REAR NO.1 SEAT LEG, FRONT NO.1
57801-28030

CR41,KR41,SR40..4D..(06S,08S)

MINI BUS

 1
57801-28030

SR40

MINI BUS

 1
57805C - REINFORCEMENT SUB-ASSY, NO.1 SEAT LEG, REAR NO.1
57805-28060

SR40

MINI BUS

 1
57805-28060

CR41,KR41,SR40..4D..(06S,08S)

MINI BUS

 1
57806A - REINFORCE SUB-ASSY, NO.1 SEAT LEG, REAR NO.2
57806-28080

CR41,KR41,SR40..4D..(06S,08S)

MINI BUS

 1
57805-28060

SR40

MINI BUS

 1
58253B - BRACKET, PARKING CABLE CLAMP
58253-28020

SR40

 1
58253-28020

SR40

MINI BUS

 1
58253B - BRACKET, PARKING CABLE CLAMP
58253-28020

SR40

 1
58253-28020

SR40

MINI BUS

 1
58303B - STEP SUB-ASSY, REAR FLOOR, RH
58303-28040

SR40

 1
58303-28040

SR40

 1
58307 - PANEL SUB-ASSY, BODY LOWER BACK
58307-28050

CR41,KR4#,SR40

 1
58311 - PAN, REAR FLOOR
58311-28770

SR40..ARL

 1
58311-28770

SR40..ARL

 1
58329F - COVER, REAR FLOOR SERVICE HOLE, NO.2
58329-28010

CR41,KR4#,SR40

 1
58329-28010

SR40

 1
58336B - REINFORCEMENT, REAR FLOOR PAN
58336-28020

CR41,KR4#,SR40

 2
58336-28020

SR40

 2
58339B - PACKING, REAR FLOOR SERVICE HOLE
58339-28020

SR40

 1
58339-28020

CR41,KR4#,SR40

 1
58351A - BRACKET, SPARE WHEEL CARRIER
51938-28080

SR40

 2
51938-28080

CR41,KR4#,SR40

 2
Common parts
57442-95700
90119-10521
90189-04197
90189-05055
90333-20001
90950-01047
90950-01353
90950-01398
90950-01646
90950-01677
90950-01753
93560-15014
