SR40R-GRSRKQ (1997)
Toyota Townace/Liteace
Production
Oct 1997
-
Nov 2001
Engine
3SFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9611- )

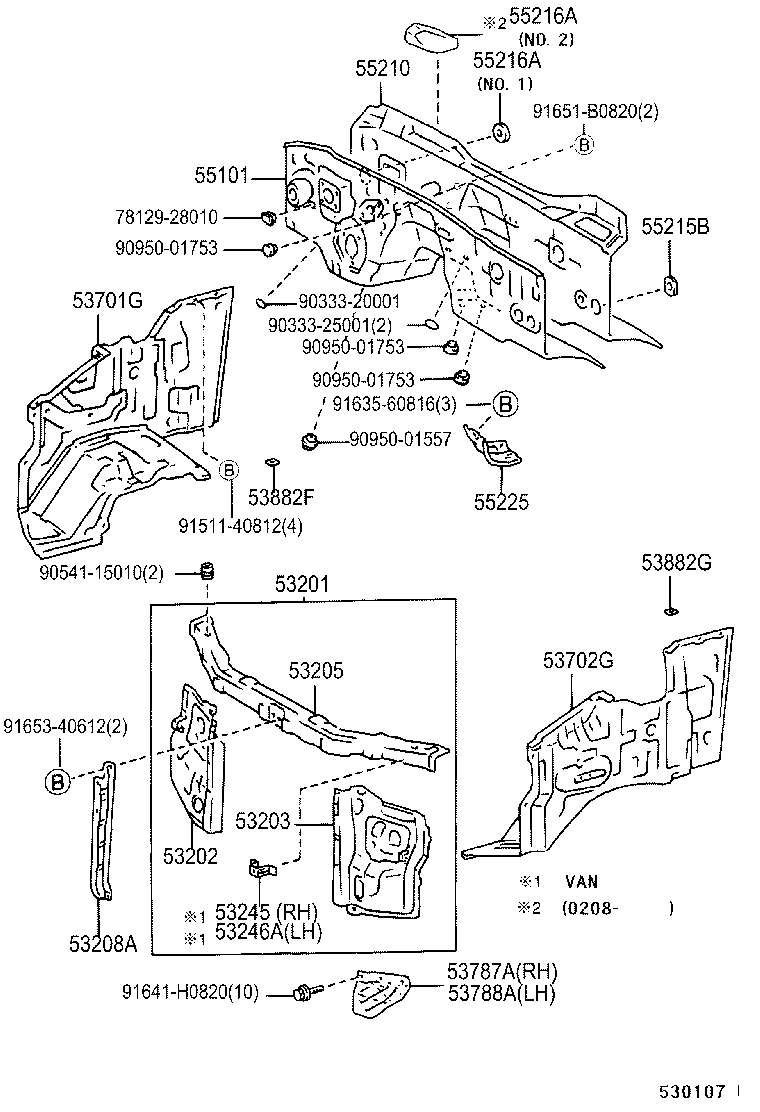

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53201 - SUPPORT SUB-ASSY, RADIATOR | ||||
| 53201-28090 |
SR40 |
1 | ||
| 53201-28090 |
SR40 |
1 | ||
| 53202 - SUPPORT SUB-ASSY, RADIATOR, RH | ||||
| 53202-28030 |
SR40 |
1 | ||
| 53202-28030 |
SR40 |
1 | ||
| 53203 - SUPPORT SUB-ASSY, RADIATOR, LH | ||||
| 53203-28030 |
SR40 |
1 | ||
| 53203-28030 |
SR40 |
1 | ||
| 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER | ||||
| 53205-28120 |
KR4#,SR40 |
1 | ||
| 53205-28130 |
SR40 |
1 | ||
| 53208A - SUPPORT SUB-ASSY, HOOD LOCK | ||||
| 53215-28030 |
SR40 |
1 | ||
| 53215-28030 |
CR41,KR4#,SR40 |
1 | ||
| 53701G - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-28590 |
CR41,KR4#,SR40 |
1 | ||
| 53701-28600 |
SR40 W(ABS) |
1 | ||
| 53701-28600 |
SR40..ARL W(ABS) |
1 | ||
| 53702G - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-28590 |
CR41,KR4#,SR40 |
1 | ||
| 53787A - GUSSET, FRONT FENDER APRON, LOWER RH | ||||
| 53707-28120 |
SR40..ARL |
1 | ||
| 53788A - GUSSET, FRONT FENDER APRON, LOWER LH | ||||
| 53708-28110 |
SR40..ARL |
1 | ||
| 53882F - SEAL, FRONT FENDER | ||||
| 53882-16030 |
CR41,KR4#,SR40 |
3 | ||
| 53882-16030 |
SR40 |
3 | ||
| 53882G - SEAL, FRONT FENDER | ||||
| 53882-16030 |
SR40 |
3 | ||
| 53882-16030 |
CR41,KR4#,SR40 |
3 | ||
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-2R360 |
SR40..ATM |
1 | ||
| 55101-2R370 |
SR40..ATM..ARL W(ABS) |
1 | ||
| 55101-2R371 |
SR40..ATM W(ABS) |
1 | ||
| 55101-2R362 |
SR40..ATM |
1 | ||
| 55101-2R361 |
SR40..ATM |
1 | ||
| 55101-2R840 |
SR40..ATM W(ABS) |
1 | ||
| 55101-2R372 |
SR40..ATM W(ABS) |
1 | ||
| 55101-2R830 |
SR40..ATM |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-28050 |
SR40 |
1 | ||
| 55210-28100 |
SR40 |
1 | ||
| 55215B - PAD, DASH PANEL INSULATOR, NO.3 | ||||
| 55215-28040 |
CR41,KR4#,SR40 |
1 | ||
| 55216A - PAD, DASH PANEL INSULATOR, NO.4 | ||||
| 55216-28030 |
CR41,KR4#,SR40 |
1 | ||
| 55216A - PAD, DASH PANEL INSULATOR, NO.4 | ||||
| 55216-28030 |
CR41,KR4#,SR40 |
1 | ||
| 55225 - INSULATOR, DASH PANEL HEAT | ||||
| 55225-28010 |
KR4#,SR40 |
1 | ||
| Common parts | ||||
| 78129-28010 | ||||
| 90333-20001 | ||||
| 90333-25001 | ||||
| 90541-15010 | ||||
| 90950-01557 | ||||
| 90950-01753 | ||||
| 91511-40812 | ||||
| 91635-60816 | ||||
| 91641-H0820 | ||||
| 91651-B0820 | ||||
| 91653-40612 | ||||
