SR40R-GRSRKQ (1997)
Toyota Townace/Liteace
Production
Oct 1997
-
Nov 2001
Engine
3SFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)

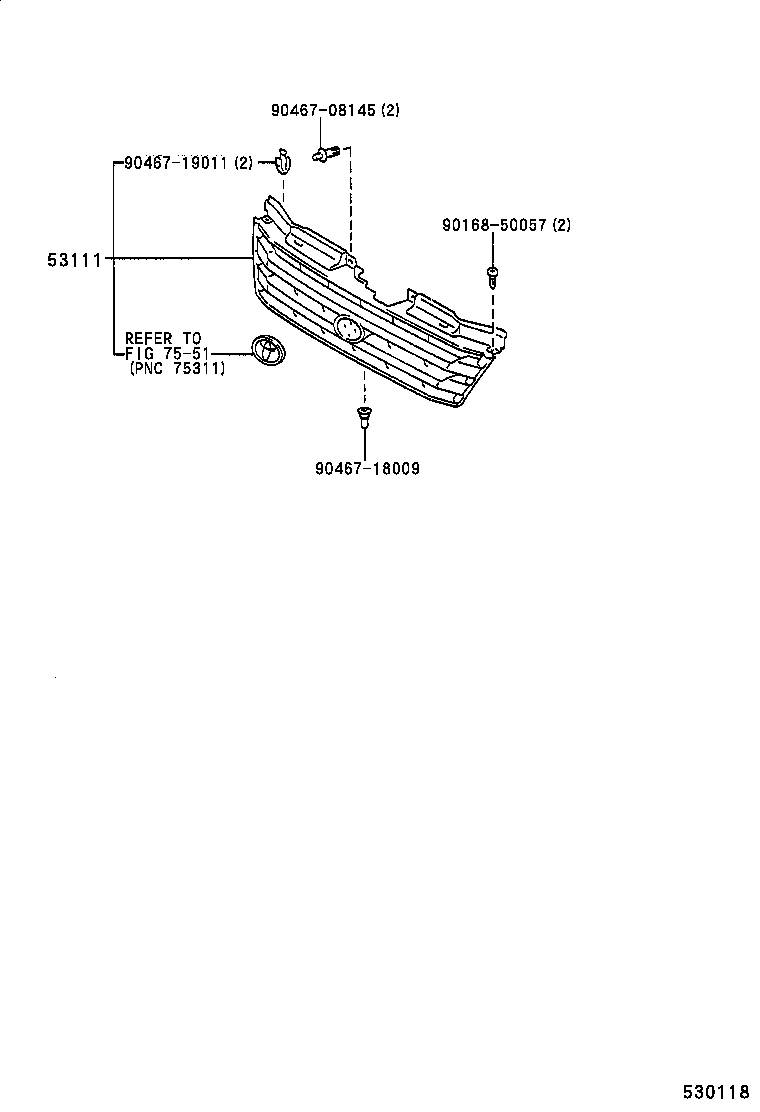

(9611-9812)SR40
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53111 - GRILLE, RADIATOR | ||||
| 53100-28150A0 |
SR40 WHITE,058 |
1 | ||
| 53100-28150E0 |
SR40 BEIGE M.M.OP.,4N9 |
1 | ||
| 53100-28150B0 |
SR40 BLUISH SILVER ME.,1A0 |
1 | ||
| 53100-28200D0 |
SR40..ARL RED MC,3K3 |
1 | ||
| 53100-28150J0 |
SR40 BLUE M.M.,2CM |
1 | ||
| 53100-28200E0 |
SR40..ARL BEIGE M.M.OP.,4N9 |
1 | ||
| 53100-28200J0 |
SR40..ARL DK.BLUE M.M.,2EU |
1 | ||
| 53100-28200B0 |
SR40..ARL SILVER ME.,1C0 |
1 | ||
| 53100-28200A1 |
SR40..ARL WHITE,058 |
1 | ||
| 53100-28150G2 |
SR40 DK. GREEN MC.,6Q7 |
1 | ||
| Common parts | ||||
| 90168-50057 | ||||
| 90467-08145 | ||||
| 90467-18009 | ||||
| 90467-19011 | ||||
| Linked diagrams | ||||
| 7551 | ||||

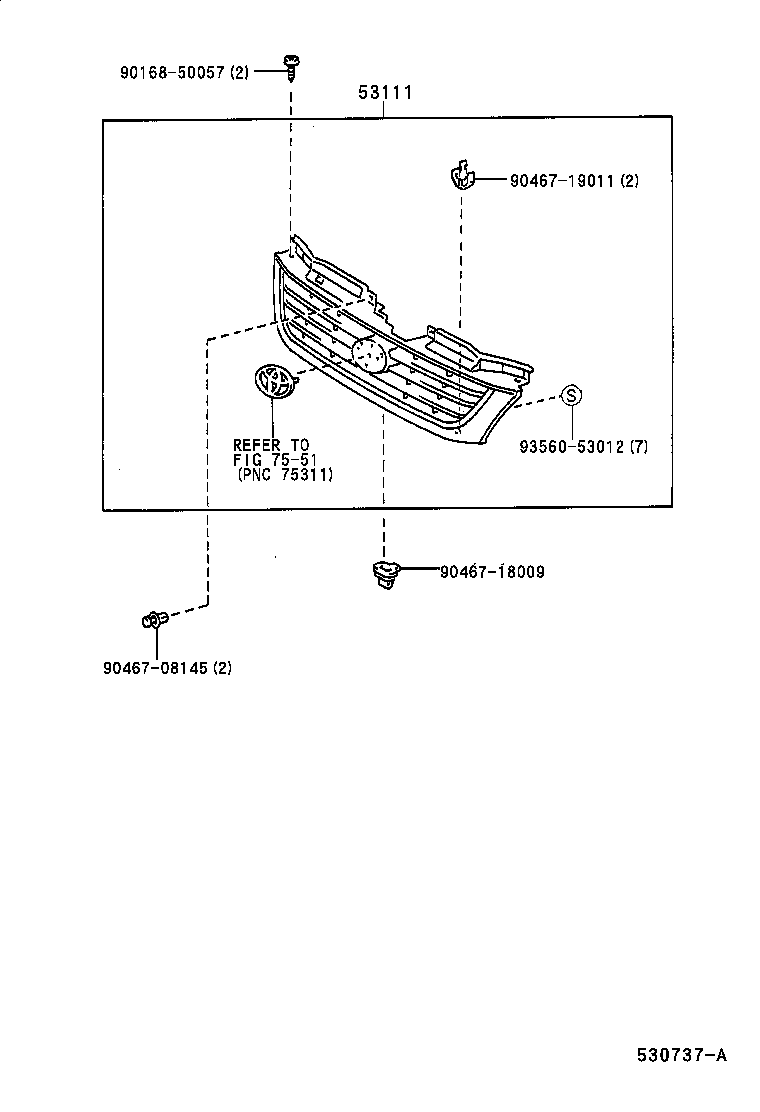

(9812- )SR40..ARL
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53111 - GRILLE, RADIATOR | ||||
| 53100-28150A0 |
SR40 WHITE,058 |
1 | ||
| 53100-28150E0 |
SR40 BEIGE M.M.OP.,4N9 |
1 | ||
| 53100-28150B0 |
SR40 BLUISH SILVER ME.,1A0 |
1 | ||
| 53100-28200D0 |
SR40..ARL RED MC,3K3 |
1 | ||
| 53100-28150J0 |
SR40 BLUE M.M.,2CM |
1 | ||
| 53100-28200E0 |
SR40..ARL BEIGE M.M.OP.,4N9 |
1 | ||
| 53100-28200J0 |
SR40..ARL DK.BLUE M.M.,2EU |
1 | ||
| 53100-28200B0 |
SR40..ARL SILVER ME.,1C0 |
1 | ||
| 53100-28200A1 |
SR40..ARL WHITE,058 |
1 | ||
| 53100-28150G2 |
SR40 DK. GREEN MC.,6Q7 |
1 | ||
| Common parts | ||||
| 90168-50057 | ||||
| 90467-08145 | ||||
| 90467-18009 | ||||
| 90467-19011 | ||||
| 93560-53012 | ||||
| Linked diagrams | ||||
| 7551 | ||||
