SR40R-GRSRKQ (1997)
Toyota Townace/Liteace
Production
Oct 1997
-
Nov 2001
Engine
3SFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9611-9812) ; (9812- )CR4#,KR42
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48231A - SPRING, COIL, REAR RH | ||||
| 48231-28860 |
SR40..ARL |
1 | ||
| 48231-28860 |
SR40..ARL |
1 | ||
| 48231B - SPRING, COIL, REAR LH | ||||
| 48231-28860 |
SR40..ARL |
1 | ||
| 48231-28860 |
SR40..ARL |
1 | ||
| 48257C - INSULATOR, REAR COIL SPRING, UPPER RH | ||||
| 48257-28050 |
CR41,KR4#,SR40 |
1 | ||
| 48257-28050 |
SR40 |
1 | ||
| 48258B - INSULATOR, REAR COIL SPRING, LOWER RH | ||||
| 48258-28020 |
CR41,KR4#,SR40 |
1 | ||
| 48258-28020 |
SR40 |
1 | ||
| 48258C - INSULATOR, REAR COIL SPRING, LOWER LH | ||||
| 48258-28020 |
CR41,KR4#,SR40 |
1 | ||
| 48258-28020 |
SR40 |
1 | ||
| 48259A - INSULATOR, REAR COIL SPRING, UPPER LH | ||||
| 48257-28050 |
SR40 |
1 | ||
| 48257-28050 |
CR41,KR4#,SR40 |
1 | ||
| 48341A - BUMPER, REAR SPRING, NO.1 RH | ||||
| 48341-28090 |
SR40 |
1 | ||
| 48341-28090 |
SR40 |
1 | ||
| 48341B - BUMPER, REAR SPRING, NO.1 LH | ||||
| 48341-28090 |
SR40 |
1 | ||
| 48341-28090 |
SR40 |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-80221 |
SR40..ARL |
1 | ||
| 48531-80221 |
SR40..ARL |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-80221 |
SR40..ARL |
1 | ||
| 48531-80221 |
SR40..ARL |
1 | ||
| 48702C - BUSH SUB-ASSY, LOWER CONTROL ARM | ||||
| 48704-28040 |
CR41,KR4#,SR40 |
4 | ||
| 48704-28040 |
SR40 |
4 | ||
| 48702C - BUSH SUB-ASSY, LOWER CONTROL ARM | ||||
| 48704-28040 |
CR41,KR4#,SR40 |
4 | ||
| 48704-28040 |
SR40 |
4 | ||
| 48706A - BUSH SUB-ASSY, REAR LATERAL CONTROL ROD | ||||
| 48706-28020 |
SR40 |
1 | ||
| 48706-28010 |
CR41,KR4#,SR40 |
1 | ||
| 48710A - ARM ASSY, REAR SUSPENSION, NO.1 RH | ||||
| 48710-28150 |
SR40 W(ABS) |
1 | ||
| 48710-28140 |
SR40 |
1 | ||
| 48710-28140 |
CR41,KR4#,SR40 |
1 | ||
| 48710-28150 |
SR40 W(ABS) |
1 | ||
| 48720 - ARM ASSY, LOWER CONTROL, RH | ||||
| 48720-28110 |
CR41,KR4#,SR40 |
1 | ||
| 48720-28110 |
SR40 |
1 | ||
| 48720A - ARM ASSY, REAR SUSPENSION, NO.1 LH | ||||
| 48710-28140 |
CR41,KR4#,SR40 |
1 | ||
| 48710-28140 |
SR40 |
1 | ||
| 48710-28150 |
SR40 W(ABS) |
1 | ||
| 48710-28150 |
SR40 W(ABS) |
1 | ||
| 48730 - ARM ASSY, LOWER CONTROL, LH | ||||
| 48730-28110 |
CR41,KR4#,SR40 |
1 | ||
| 48730-28110 |
SR40 |
1 | ||
| 48740 - ROD ASSY, REAR LATERAL CONTROL | ||||
| 48740-28101 |
CR41,KR4#,SR40 |
1 | ||
| 48740-28120 |
SR40 |
1 | ||
| Common parts | ||||
| 90105-14025 | ||||
| 90105-14086 | ||||
| 90105-16015 | ||||
| 90119-10355 | ||||
| 90119-12313 | ||||
| 90170-12193 | ||||
| 90170-16182 | ||||
| 90201-14005 | ||||
| 90201-15019 | ||||
| 90209-23006 | ||||
| 90385-16001 | ||||
| 90385-22004 | ||||
| 90386-22002 | ||||
| 90948-03004 | ||||
| 91641-K0816 | ||||
| 94130-01401 | ||||
| 94184-61401 | ||||
| 94622-11200 | ||||
| 94622-11600 | ||||

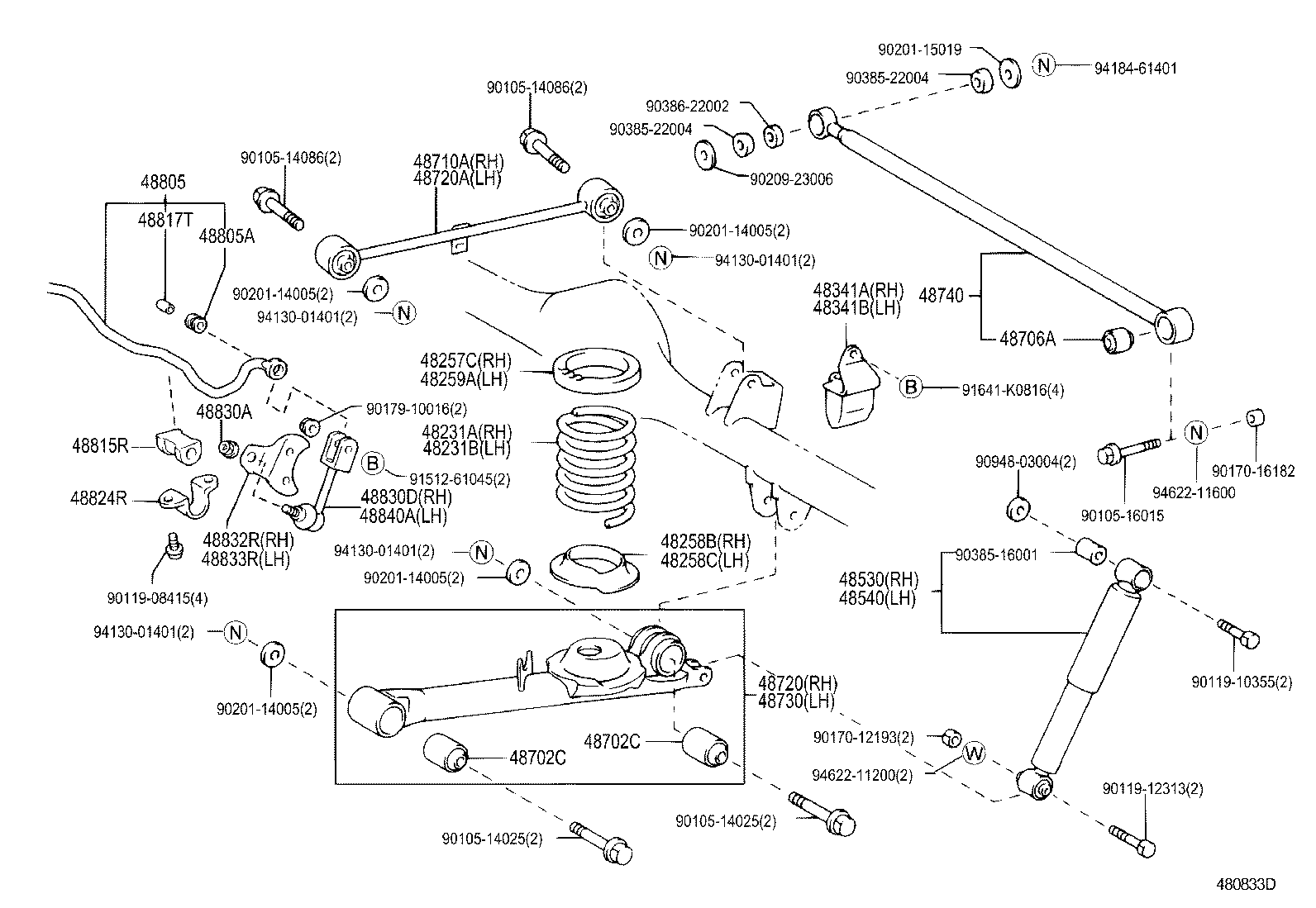

(9611- )SR40
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48231A - SPRING, COIL, REAR RH | ||||
| 48231-28860 |
SR40..ARL |
1 | ||
| 48231-28860 |
SR40..ARL |
1 | ||
| 48231B - SPRING, COIL, REAR LH | ||||
| 48231-28860 |
SR40..ARL |
1 | ||
| 48231-28860 |
SR40..ARL |
1 | ||
| 48257C - INSULATOR, REAR COIL SPRING, UPPER RH | ||||
| 48257-28050 |
CR41,KR4#,SR40 |
1 | ||
| 48257-28050 |
SR40 |
1 | ||
| 48258B - INSULATOR, REAR COIL SPRING, LOWER RH | ||||
| 48258-28020 |
CR41,KR4#,SR40 |
1 | ||
| 48258-28020 |
SR40 |
1 | ||
| 48258C - INSULATOR, REAR COIL SPRING, LOWER LH | ||||
| 48258-28020 |
CR41,KR4#,SR40 |
1 | ||
| 48258-28020 |
SR40 |
1 | ||
| 48259A - INSULATOR, REAR COIL SPRING, UPPER LH | ||||
| 48257-28050 |
SR40 |
1 | ||
| 48257-28050 |
CR41,KR4#,SR40 |
1 | ||
| 48341A - BUMPER, REAR SPRING, NO.1 RH | ||||
| 48341-28090 |
SR40 |
1 | ||
| 48341-28090 |
SR40 |
1 | ||
| 48341B - BUMPER, REAR SPRING, NO.1 LH | ||||
| 48341-28090 |
SR40 |
1 | ||
| 48341-28090 |
SR40 |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-80221 |
SR40..ARL |
1 | ||
| 48531-80221 |
SR40..ARL |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-80221 |
SR40..ARL |
1 | ||
| 48531-80221 |
SR40..ARL |
1 | ||
| 48702C - BUSH SUB-ASSY, LOWER CONTROL ARM | ||||
| 48704-28040 |
CR41,KR4#,SR40 |
4 | ||
| 48704-28040 |
SR40 |
4 | ||
| 48702C - BUSH SUB-ASSY, LOWER CONTROL ARM | ||||
| 48704-28040 |
CR41,KR4#,SR40 |
4 | ||
| 48704-28040 |
SR40 |
4 | ||
| 48706A - BUSH SUB-ASSY, REAR LATERAL CONTROL ROD | ||||
| 48706-28020 |
SR40 |
1 | ||
| 48706-28010 |
CR41,KR4#,SR40 |
1 | ||
| 48710A - ARM ASSY, REAR SUSPENSION, NO.1 RH | ||||
| 48710-28150 |
SR40 W(ABS) |
1 | ||
| 48710-28140 |
SR40 |
1 | ||
| 48710-28140 |
CR41,KR4#,SR40 |
1 | ||
| 48710-28150 |
SR40 W(ABS) |
1 | ||
| 48720 - ARM ASSY, LOWER CONTROL, RH | ||||
| 48720-28110 |
CR41,KR4#,SR40 |
1 | ||
| 48720-28110 |
SR40 |
1 | ||
| 48720A - ARM ASSY, REAR SUSPENSION, NO.1 LH | ||||
| 48710-28140 |
CR41,KR4#,SR40 |
1 | ||
| 48710-28140 |
SR40 |
1 | ||
| 48710-28150 |
SR40 W(ABS) |
1 | ||
| 48710-28150 |
SR40 W(ABS) |
1 | ||
| 48730 - ARM ASSY, LOWER CONTROL, LH | ||||
| 48730-28110 |
CR41,KR4#,SR40 |
1 | ||
| 48730-28110 |
SR40 |
1 | ||
| 48740 - ROD ASSY, REAR LATERAL CONTROL | ||||
| 48740-28101 |
CR41,KR4#,SR40 |
1 | ||
| 48740-28120 |
SR40 |
1 | ||
| 48805 - BAR SUB-ASSY, REAR STABILIZER | ||||
| 48805-28050 |
SR40 |
1 | ||
| 48805A - BUSH(FOR REAR STABILIZER BAR) | ||||
| 90385-12015 |
SR40 |
2 | ||
| 48815R - BUSH, STABILIZER(FOR REAR) | ||||
| 48815-28120 |
SR40 |
2 | ||
| 48817T - COLLAR(FOR STABILIZER REAR BAR) | ||||
| 90387-10162 |
SR40 |
2 | ||
| 48824R - BRACKET, STABILIZER(FOR REAR) | ||||
| 48824-28170 |
SR40 |
2 | ||
| 48830A - NUT(FOR REAR STABILIZER LINK) | ||||
| 90179-10183 |
SR40 |
2 | ||
| 48830D - LINK ASSY, REAR STABILIZER, RH | ||||
| 48830-28010 |
SR40 |
1 | ||
| 48832R - BRACKET, REAR STABILIZER BAR, NO.1 RH | ||||
| 48832-28040 |
SR40 |
1 | ||
| 48833R - BRACKET, REAR STABILIZER BAR, NO.1 LH | ||||
| 48833-28040 |
SR40 |
1 | ||
| 48840A - LINK ASSY, REAR STABILIZER, LH | ||||
| 48830-28010 |
SR40 |
1 | ||
| Common parts | ||||
| 90105-14025 | ||||
| 90105-14086 | ||||
| 90105-16015 | ||||
| 90119-08415 | ||||
| 90119-10355 | ||||
| 90119-12313 | ||||
| 90170-12193 | ||||
| 90170-16182 | ||||
| 90179-10016 | ||||
| 90201-14005 | ||||
| 90201-15019 | ||||
| 90209-23006 | ||||
| 90385-16001 | ||||
| 90385-22004 | ||||
| 90386-22002 | ||||
| 90948-03004 | ||||
| 91512-61045 | ||||
| 91641-K0816 | ||||
| 94130-01401 | ||||
| 94184-61401 | ||||
| 94622-11200 | ||||
| 94622-11600 | ||||
