SR40R-GRSRKQ (1997)

Toyota Townace/Liteace

Production Oct 1997 - Nov 2001
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9611-0310)ARL

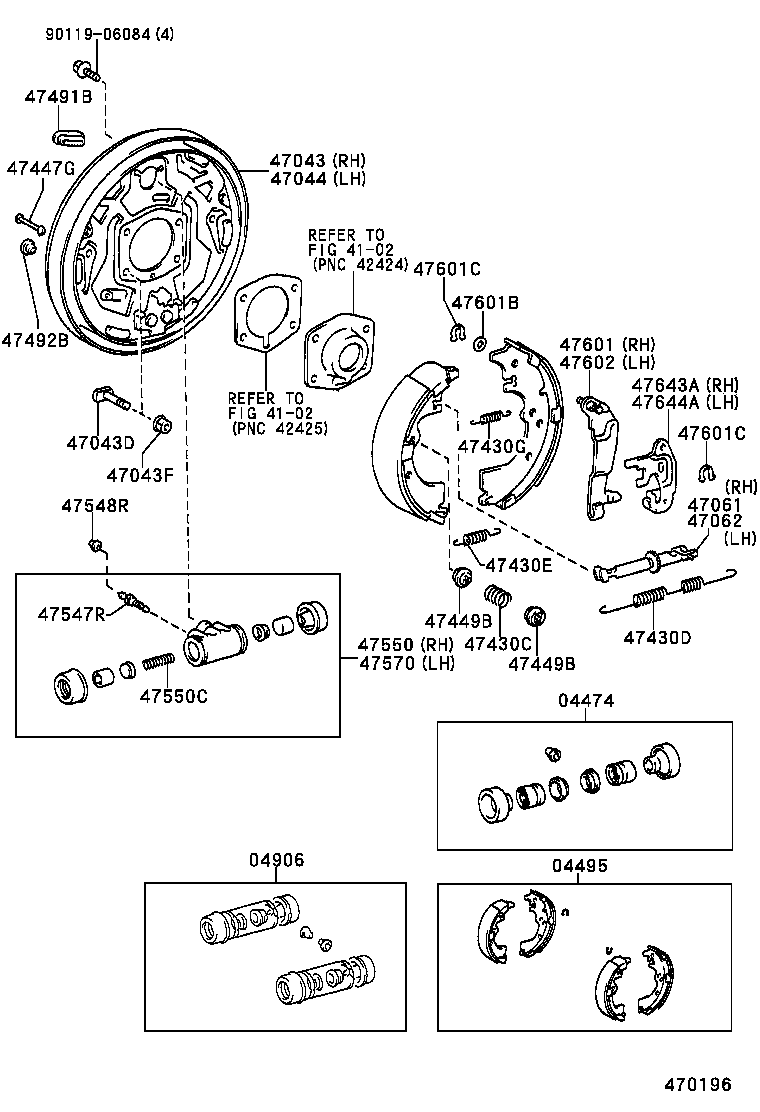

Click highlighted areas on diagram

diagram 04474 04495 04906 4102 4102 47043 47043D 47043F 47044 47061 47062 47430C 47430D 47430E 47430G 47447G 47449B 47449B 47491B 47492B 47547R 47548R 47550 47550C 47570 47601 47601B 47601C 47601C 47602 47643A 47644A 9011906084
Part # Description Qty Price
04474 - CYLINDER KIT, REAR WHEEL
04474-28030

KR42,SR40..ARL

 2
04906 - CUP KIT, REAR WHEEL CYLINDER
04906-28030

KR42,SR40..ARL

 1
47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH
47043-28100

SR40..ARL

 1
47043-28100

KR42,SR40..ARL

 1
47043D - BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)
42184-28010

CR41,KR4#,SR40

 8
42184-28030

SR40

 8
47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)
90179-10150

SR40

 8
90179-10150

CR41,KR4#,SR40

 8
47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH
47044-28100

SR40..ARL

 1
47044-28100

KR42,SR40..ARL

 1
47061 - STRUT SET, PARKING BRAKE SHOE, RH
47062-30030

KR42,SR40..ARL

 1
47062-30030

SR40..ARL

 1
47062 - STRUT SET, PARKING BRAKE SHOE, LH
47061-30030

KR42,SR40..ARL

 1
47061-30030

SR40..ARL

 1
47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN)
90501-20604

CR41,KR4#,SR40

 4
90501-20604

SR40

 4
90501-20756

KR42,SR40..ARL

 4
47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
90506-23003

KR42,SR40..ARL

 2
90506-23003

SR40..ARL

 2
47430E - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
90506-18076

CR41,KR4#,SR40

 2
90506-18076

SR40

 2
47430G - SPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)
90506-12480

SR40..ARL

 2
90506-12480

KR42,SR40..ARL

 2
47447G - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
47447-30020

KR42,SR40..ARL

 4
47447-30020

SR40..ARL

 4
47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
47449-30020

SR40

 8
47449-30020

CR41,KR4#,SR40

 8
47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
47449-30020

SR40

 8
47449-30020

CR41,KR4#,SR40

 8
47491B - PLUG, HOLE(FOR REAR BRAKE)
47491-20011

SR40

 2
47491-20011

CR41,KR4#,SR40

 2
47492B - PLUG, SHOE INSPECTION(FOR REAR BRAKE)
47492-28010

SR40

 2
47492-28010

CR41,KR4#,SR40

 2
47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR)
47547-20030

KR42,SR40..ARL

 2
47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)
31478-30010

CR41,KR4#,SR40

 2
47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)
47550-28070

KR42,SR40..ARL

 1
47550-28070

SR40..ARL

 1
47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)
90029-60011

KR42,SR40..ARL

 2
47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)
47550-28070

KR42,SR40..ARL

 1
47550-28070

SR40..ARL

 1
47601 - LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)
47601-28010

SR40..ARL

 1
47601-28010

KR42,SR40..ARL

 1
47601B - SHIM, REAR PARKING BRAKE SHOE LEVER
90564-09002

KR42,SR40..ARL

T=0.4

 1
90564-09186

KR42,SR40..ARL

T=0.9

 1
90564-09001

KR42,SR40..ARL

T=0.2

 1
90564-09185

KR42,SR40..ARL

T=0.6

 1
90564-09184

KR42,SR40..ARL

T=0.3

 1
90564-09003

KR42,SR40..ARL

T=0.5

 1
47601C - WASHER, C(FOR REAR BRAKE)
90213-06013

CR41,KR4#,SR40

T=1.2

 2
90213-06013

SR40

T=1.2

 2
90213-07010

SR40..ARL

T=1.6

 2
90213-07010

KR42,SR40..ARL

T=1.6

 2
47601C - WASHER, C(FOR REAR BRAKE)
90213-06013

CR41,KR4#,SR40

T=1.2

 2
90213-06013

SR40

T=1.2

 2
90213-07010

SR40..ARL

T=1.6

 2
90213-07010

KR42,SR40..ARL

T=1.6

 2
47602 - LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)
47602-28010

SR40..ARL

 1
47602-28010

KR42,SR40..ARL

 1
47643A - LEVER, REAR BRAKE AUTOMATIC ADJUST, RH
47644-30010

SR40..ARL

 1
47644-30010

KR42,SR40..ARL

 1
47644A - LEVER, REAR BRAKE AUTOMATIC ADJUST, LH
47643-30010

KR42,SR40..ARL

 1
47643-30010

SR40..ARL

 1
