SR40R-GRSRKQ (1997)
Toyota Townace/Liteace
Production
Oct 1997
-
Nov 2001
Engine
3SFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9611-9812)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47101 - PEDAL SUB-ASSY, BRAKE | ||||
| 47101-28170 |
SR40..ATM |
1 | ||
| 47101-28170 |
KR42,SR40..ATM |
1 | ||
| 47101A - SPRING(FOR BRAKE PEDAL RETURN) | ||||
| 90959-03122 |
CR41,KR4#,SR40 |
1 | ||
| 90959-03122 |
SR40 |
1 | ||
| 47101B - BUSH(FOR BRAKE PEDAL) | ||||
| 90386-13007 |
CR41,KR4#,SR40 |
2 | ||
| 90386-13007 |
SR40 |
2 | ||
| 47101B - BUSH(FOR BRAKE PEDAL) | ||||
| 90386-13007 |
CR41,KR4#,SR40 |
2 | ||
| 90386-13007 |
SR40 |
2 | ||
| 47101K - CUSHION(FOR PARKING LOCK CABLE) | ||||
| 90541-06049 |
KR42,SR40..ATM |
1 | ||
| 47121 - PAD, BRAKE PEDAL | ||||
| 31321-30040 |
KR42,SR40..ATM |
1 | ||
| 31321-30040 |
SR40..ATM |
1 | ||
| 47124 - SHAFT, BRAKE PEDAL | ||||
| 47124-28010 |
CR41,KR4#,SR40 |
1 | ||
| 47124-28010 |
SR40 |
1 | ||
| 47131 - CUSHION(FOR STOP LAMP SWITCH) | ||||
| 90541-06036 |
SR40 |
1 | ||
| 90541-06036 |
CR41,KR4#,SR40 |
1 | ||
| 47264A - PIN(FOR PUSH ROD) | ||||
| 90240-08070 |
CR41,KR4#,SR40 |
1 | ||
| 90240-08070 |
SR40 |
1 | ||
| 55106 - SUPPORT SUB-ASSY, BRAKE PEDAL | ||||
| 55106-28220 |
SR40 |
1 | ||
| 55106-28180 |
CR41,KR4#,SR40 |
1 | ||
| Common parts | ||||
| 91631-60820 | ||||
| 94130-60800 | ||||
| 94531-00800 | ||||
| 95381-02020 | ||||
(9812- )

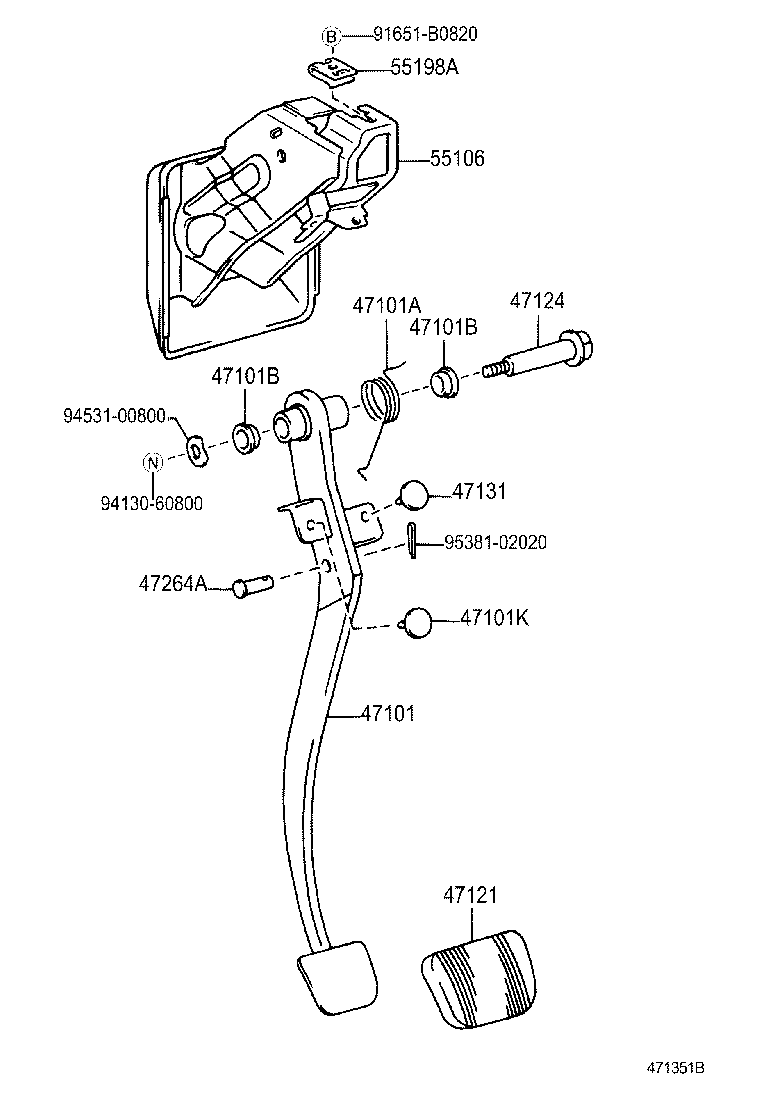

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47101 - PEDAL SUB-ASSY, BRAKE | ||||
| 47101-28170 |
SR40..ATM |
1 | ||
| 47101-28170 |
KR42,SR40..ATM |
1 | ||
| 47101A - SPRING(FOR BRAKE PEDAL RETURN) | ||||
| 90959-03122 |
CR41,KR4#,SR40 |
1 | ||
| 90959-03122 |
SR40 |
1 | ||
| 47101B - BUSH(FOR BRAKE PEDAL) | ||||
| 90386-13007 |
CR41,KR4#,SR40 |
2 | ||
| 90386-13007 |
SR40 |
2 | ||
| 47101B - BUSH(FOR BRAKE PEDAL) | ||||
| 90386-13007 |
CR41,KR4#,SR40 |
2 | ||
| 90386-13007 |
SR40 |
2 | ||
| 47101K - CUSHION(FOR PARKING LOCK CABLE) | ||||
| 90541-06049 |
KR42,SR40..ATM |
1 | ||
| 47121 - PAD, BRAKE PEDAL | ||||
| 31321-30040 |
KR42,SR40..ATM |
1 | ||
| 31321-30040 |
SR40..ATM |
1 | ||
| 47124 - SHAFT, BRAKE PEDAL | ||||
| 47124-28010 |
CR41,KR4#,SR40 |
1 | ||
| 47124-28010 |
SR40 |
1 | ||
| 47131 - CUSHION(FOR STOP LAMP SWITCH) | ||||
| 90541-06036 |
SR40 |
1 | ||
| 90541-06036 |
CR41,KR4#,SR40 |
1 | ||
| 47264A - PIN(FOR PUSH ROD) | ||||
| 90240-08070 |
CR41,KR4#,SR40 |
1 | ||
| 90240-08070 |
SR40 |
1 | ||
| 55106 - SUPPORT SUB-ASSY, BRAKE PEDAL | ||||
| 55106-28220 |
SR40 |
1 | ||
| 55106-28180 |
CR41,KR4#,SR40 |
1 | ||
| 55198A - HOLDER, BRAKE AWAY MOUNTING BOLT | ||||
| 55198-13010 |
SR40 |
1 | ||
| Common parts | ||||
| 91651-B0820 | ||||
| 94130-60800 | ||||
| 94531-00800 | ||||
| 95381-02020 | ||||
