SR40R-GRSRKQ (1997)

Toyota Townace/Liteace

Production Oct 1997 - Nov 2001
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9611-0112)

Click highlighted areas on diagram

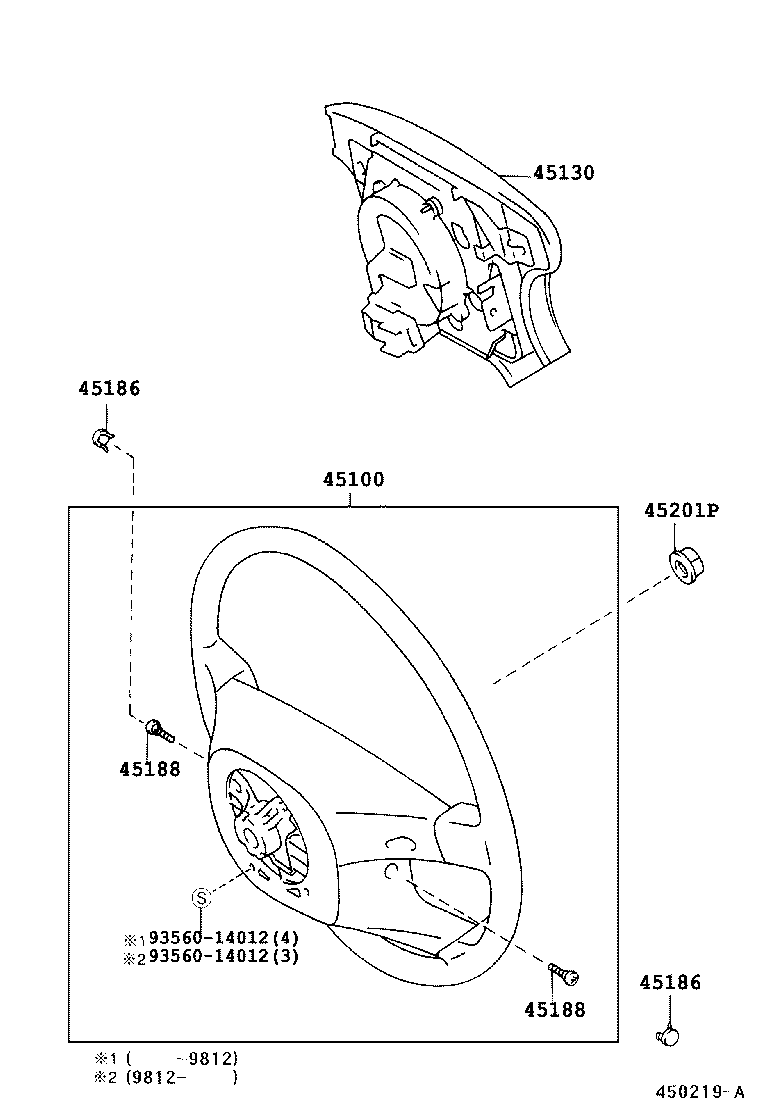

4-SPOKE

diagram 45100 45130 45186 45186 45188 45188 45201P 9356014012 9356014012
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-32310B1

SR40..ARL

4-SPOKE,URETHANE,MD.MOON MIST,TRIM1#

 1
45100-32310B1

KR42,SR40..ARL

4-SPOKE,URETHANE,MD.MOON MIST,TRIM1#

 1
45100-28160B0

SR40

4-SPOKE,URETHANE,MD.MOON MIST,TRIM1#

 1
45130 - BUTTON ASSY, HORN
45130-28360B0

KR42,SR40..02S,08S

MD.MOON MIST,TRIM1#

 1
45130-28360B0

SR40..ARL

MD.MOON MIST,TRIM1#

 1
45130-28390B0

SR40

W(*80),MD.MOON MIST,TRIM1#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-44010B1

SR40

MD.MOON MIST,TRIM1#

 2
45186-44010B1

KR42,SR40..02S,08S

MD.MOON MIST,TRIM1#

 2
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-44010B1

SR40

MD.MOON MIST,TRIM1#

 2
45186-44010B1

KR42,SR40..02S,08S

MD.MOON MIST,TRIM1#

 2
45188 - SCREW, STEERING WHEEL PAD ATTACHING
90148-60007

SR40

L=18

 2
90148-60007

SR40

 2
90148-60007

KR42,SR40..02S,08S

L=18

 2
45188 - SCREW, STEERING WHEEL PAD ATTACHING
90148-60007

SR40

L=18

 2
90148-60007

SR40

 2
90148-60007

KR42,SR40..02S,08S

L=18

 2
45201P - NUT, STEERING WHEEL SET
90179-12071

SR40

 1
90179-12071

CR41,KR4#,SR40

 1
Common parts
93560-14012

(9611- )

Click highlighted areas on diagram

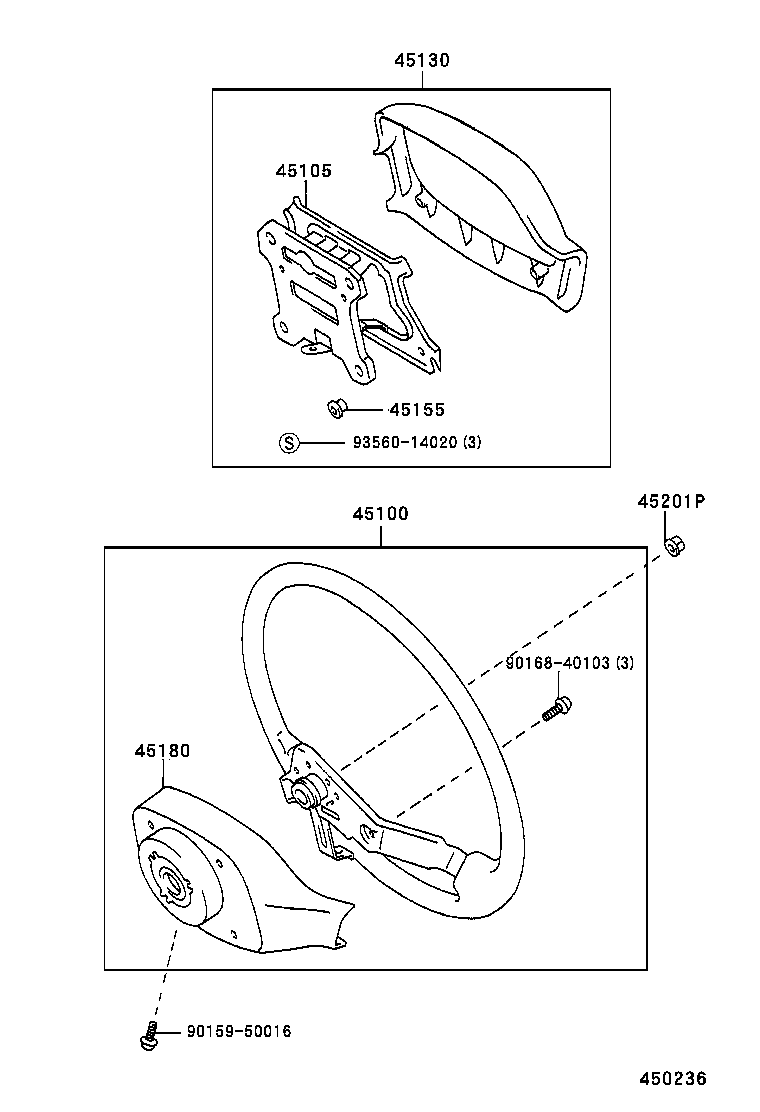

2-SPOKE, URETHANE

diagram 45100 45105 45130 45155 45180 45201P 9015950016 9016840103 9356014020
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-32310B1

SR40..ARL

4-SPOKE,URETHANE,MD.MOON MIST,TRIM1#

 1
45100-32310B1

KR42,SR40..ARL

4-SPOKE,URETHANE,MD.MOON MIST,TRIM1#

 1
45100-28160B0

SR40

4-SPOKE,URETHANE,MD.MOON MIST,TRIM1#

 1
45130 - BUTTON ASSY, HORN
45130-28360B0

KR42,SR40..02S,08S

MD.MOON MIST,TRIM1#

 1
45130-28360B0

SR40..ARL

MD.MOON MIST,TRIM1#

 1
45130-28390B0

SR40

W(*80),MD.MOON MIST,TRIM1#

 1
45201P - NUT, STEERING WHEEL SET
90179-12071

SR40

 1
90179-12071

CR41,KR4#,SR40

 1
Common parts
90159-50016
90168-40103
93560-14020
