SR40R-GRSRKQ (1997)

Toyota Townace/Liteace

Production Oct 1997 - Nov 2001
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

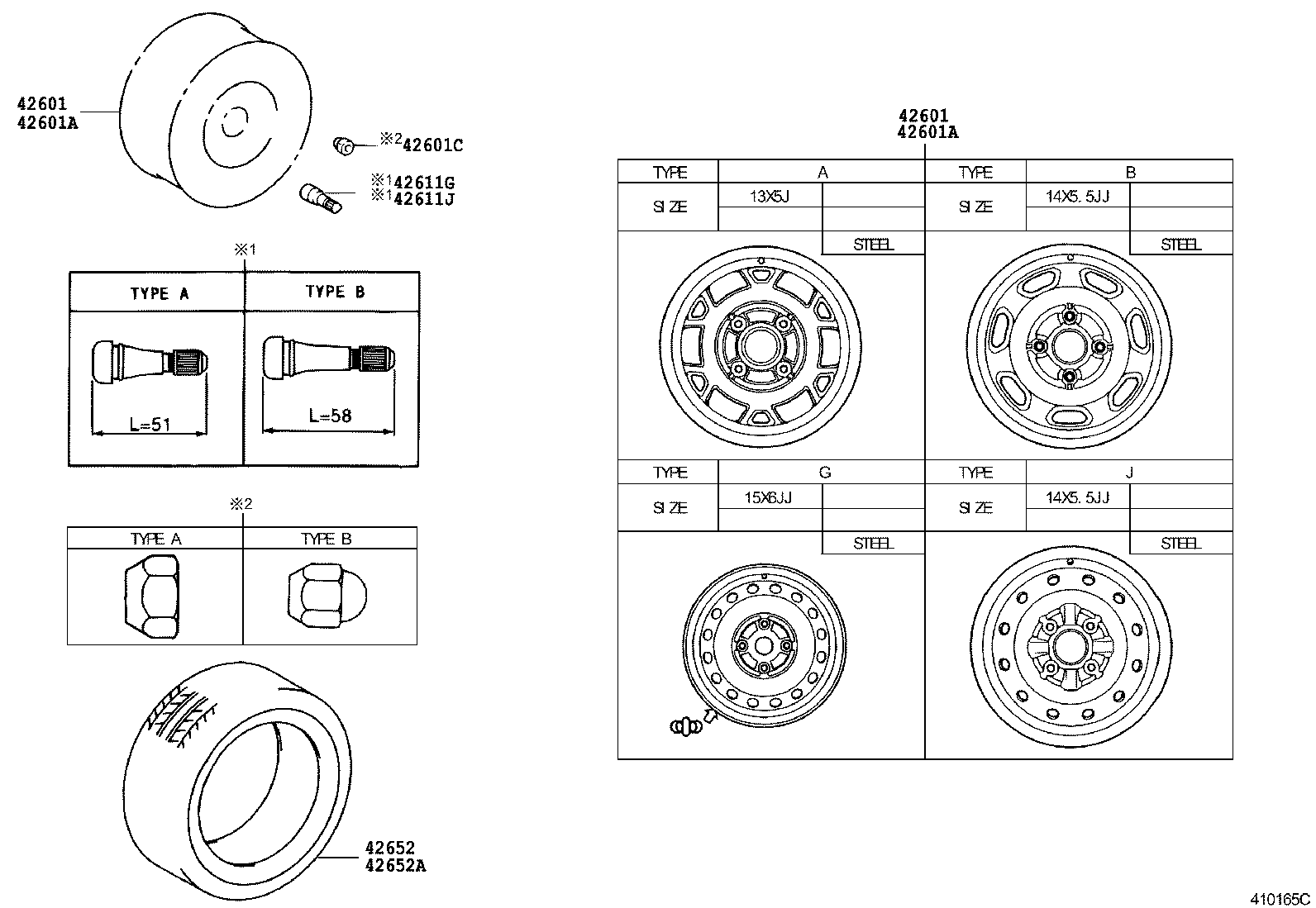

ILLUST NO. 1 OF 3(9611- )

Click highlighted areas on diagram

diagram 42601 42601 42601A 42601A 42601C 42611G 42611J 42652 42652A
Part # Description Qty Price
42601 - WHEEL, DISC
42611-28400

SR40

15X6JJ,OFFSET 27,TYPE G:REFER ILLUST.

 4
42611-2830001

SR40

14X5.5JJ,BLACK,TYPE B:REFER ILLUST.

 4
42601 - WHEEL, DISC
42611-28400

SR40

15X6JJ,OFFSET 27,TYPE G:REFER ILLUST.

 4
42611-2830001

SR40

14X5.5JJ,BLACK,TYPE B:REFER ILLUST.

 4
42601A - WHEEL, DISC (FOR SPARE)
42611-28400

SR40

15X6JJ,OFFSET 27,TYPE G:REFER ILLUST.

 1
42611-2830001

SR40

14X5.5JJ,BLACK,TYPE B:REFER ILLUST.

 1
42601A - WHEEL, DISC (FOR SPARE)
42611-28400

SR40

15X6JJ,OFFSET 27,TYPE G:REFER ILLUST.

 1
42611-2830001

SR40

14X5.5JJ,BLACK,TYPE B:REFER ILLUST.

 1
42601C - NUT, HUB (FOR AXLE)
90942-01007

SR40

TYPE A:REFER ILLUST.

 16
90942-01007

SR40

TYPE A:REFER ILLUST.

 16
42611G - VALVE (FOR TUBELESS TIRE)
90942-05009

CR41,KR4#,SR40

TYPE A:REFER ILLUST.

 4
90942-05009

SR40

TYPE A:REFER ILLUST.

 4
90942-05004

SR40

TYPE B:REFER ILLUST.

 4
42611J - VALVE (FOR TUBELESS TIRE SPARE)
90942-05009

CR41,KR4#,SR40

TYPE A:REFER ILLUST.

 1
90942-05004

SR40

TYPE B:REFER ILLUST.

 1
90942-05009

SR40

TYPE A:REFER ILLUST.

 1
42652 - TIRE
42652-30110

SR40

195/70HR14

 4
42652-28490

SR40

195/65R15

 4
42652A - TIRE (FOR SPARE)
42652-30110

SR40

195/70HR14

 1
42652-28490

SR40

195/65R15

 1

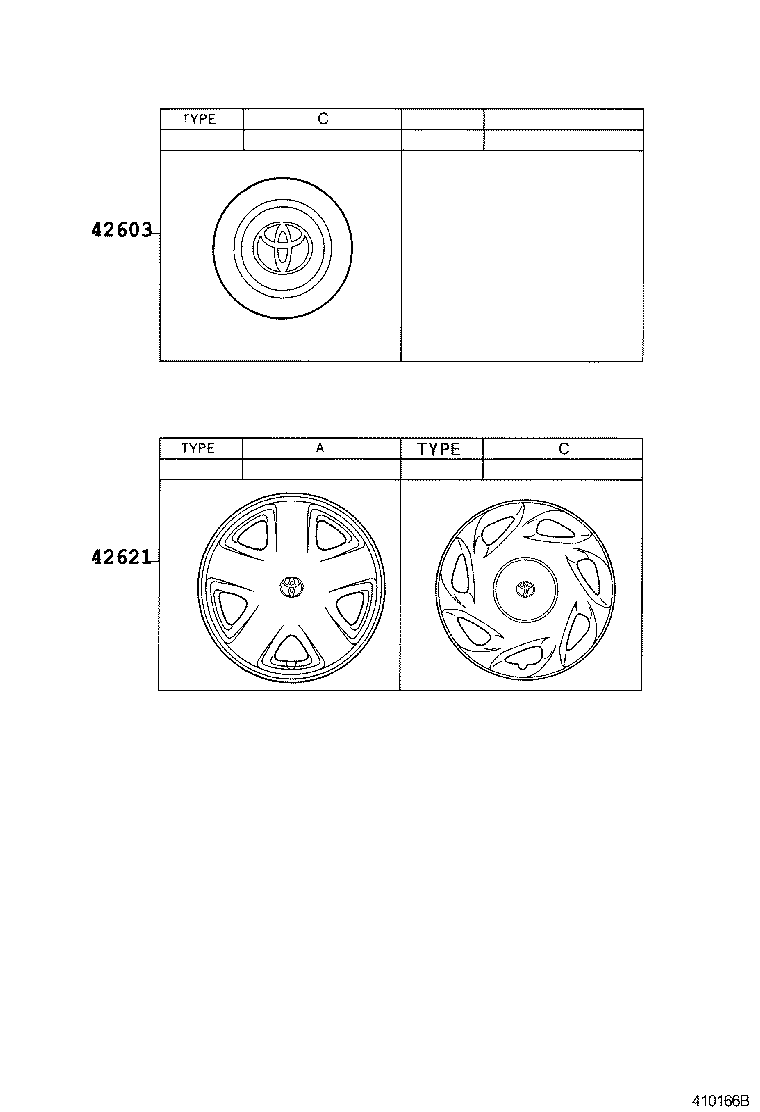

ILLUST NO. 2 OF 3(9611- )

Click highlighted areas on diagram

diagram 42603 42621
Part # Description Qty Price
42621 - CAP, WHEEL
42602-28280

SR40

TYPE C:REFER ILLUST.

 4
42602-28200

SR40

TYPE A:REFER ILLUST.

 4

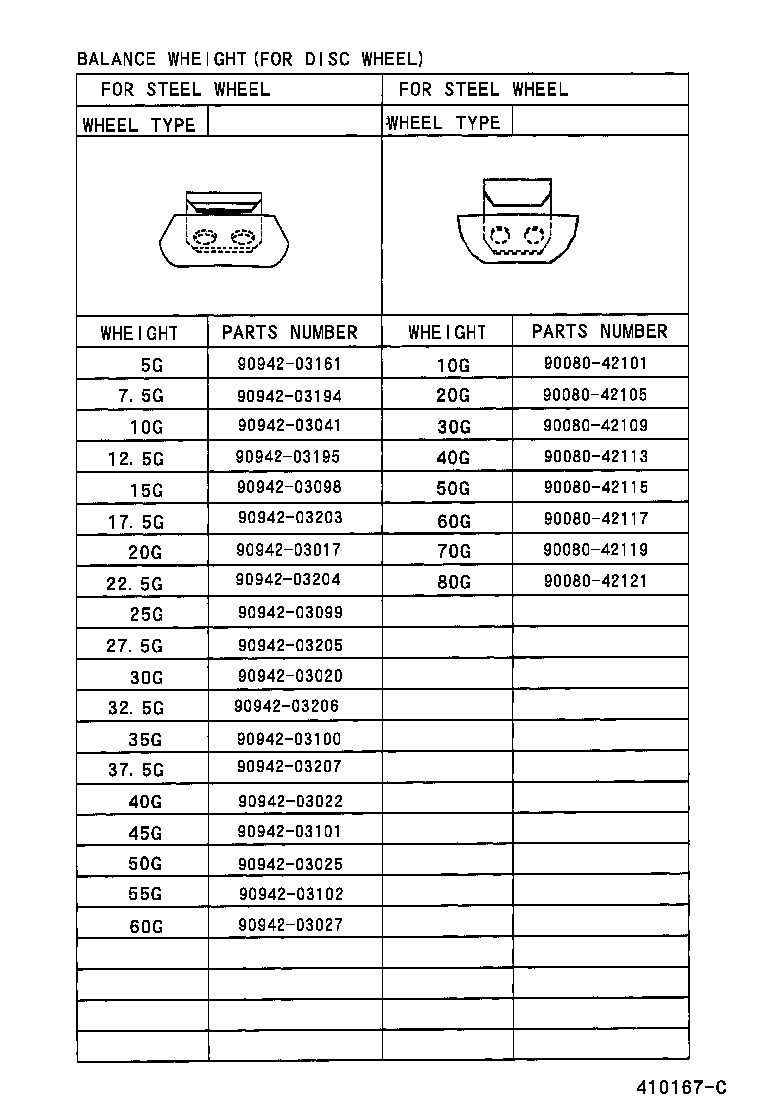

ILLUST NO. 3 OF 3(9611- )

Click highlighted areas on diagram

diagram 9008042101 9008042105 9008042109 9008042113 9008042115 9008042117 9008042119 9008042121 9094203017 9094203020 9094203022 9094203025 9094203027 9094203041 9094203098 9094203099 9094203100 9094203101 9094203102 9094203161 9094203194 9094203195 9094203203 9094203204 9094203205 9094203206 9094203207
Part # Description Qty Price
Common parts
90080-42101
90080-42105
90080-42109
90080-42113
90080-42115
90080-42117
90080-42119
90080-42121
90942-03017
90942-03020
90942-03022
90942-03025
90942-03027
90942-03041
90942-03098
90942-03099
90942-03100
90942-03101
90942-03102
90942-03161
90942-03194
90942-03195
90942-03203
90942-03204
90942-03205
90942-03206
90942-03207
