SR40R-GRSRKQ (1997)

Toyota Townace/Liteace

Production Oct 1997 - Nov 2001
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9611- )SR40..ATM

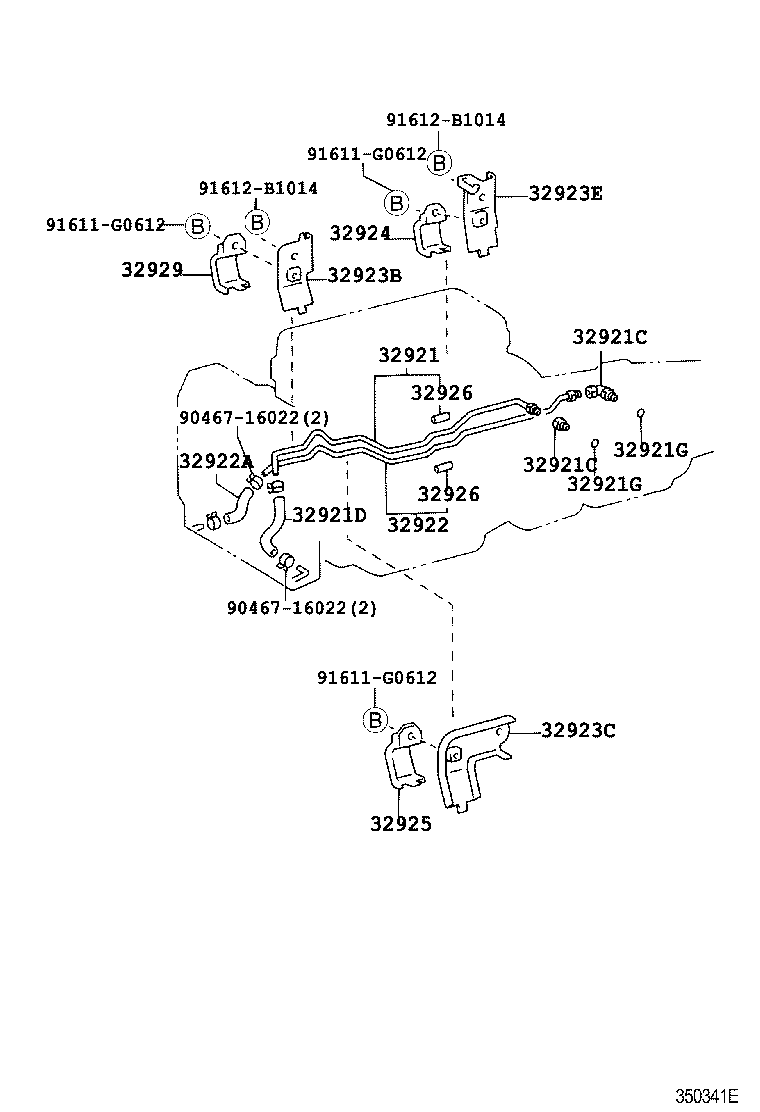

Click highlighted areas on diagram

A45DL

diagram 32921 32921C 32921C 32921D 32921G 32921G 32922 32922A 32923B 32923C 32923E 32924 32925 32926 32926 32929 9046716022 9046716022 91611G0612 91611G0612 91611G0612 91612B1014 91612B1014
Part # Description Qty Price
32921 - TUBE, OIL COOLER INLET, NO.1
32921-28190

SR40..ATM

 1
32921-28190

SR40..ATM

 1
32921D - HOSE(FOR OIL COOLER INLET)
90445-17150

SR40..ATM

 1
90445-17150

SR40..ATM

 1
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

KR42,SR40..ATM

 2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

KR42,SR40..ATM

 2
32922 - TUBE, OIL COOLER OUTLET, NO.1
32922-28160

SR40..ATM

 1
32922-28160

SR40..ATM

 1
32922A - HOSE(FOR OIL COOLER OUTLET)
90445-17095

SR40..ATM

 1
90445-17095

SR40..ATM

 1
32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1
32923-28110

SR40..ATM

 1
32923-28110

SR40..ATM

 1
32923C - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4
32924-28070

SR40..ATM

 1
32924-28080

SR40..ATM

 1
32923E - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.6
32925-28020

SR40..ATM

 1
32925-28020

SR40..ATM

 1
32925-28030

SR40..ATM

 1
32924 - CLAMP, OIL COOLER TUBE, NO.2
32929-28010

SR40..ATM

 1
32929-28010

SR40..ATM

 1
32925 - CLAMP, OIL COOLER TUBE, NO.3
32929-28010

KR42,SR40..ATM

 1
32929-28010

SR40..ATM

 1
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30020

SR40..ATM

L=35,ID=10

 6
32926-30020

SR40..ATM

L=35,ID=10

 6
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30020

SR40..ATM

L=35,ID=10

 6
32926-30020

SR40..ATM

L=35,ID=10

 6
32929 - CLAMP, FLEXIBLE HOSE, NO.2
32929-28010

SR40..ATM

 1
32929-28010

SR40..ATM

 1
Common parts
90467-16022
91611-G0612
91612-B1014
