SR40R-GRSRKQ (1997)
Toyota Townace/Liteace
Production
Oct 1997
-
Nov 2001
Engine
3SFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9611- )ATM

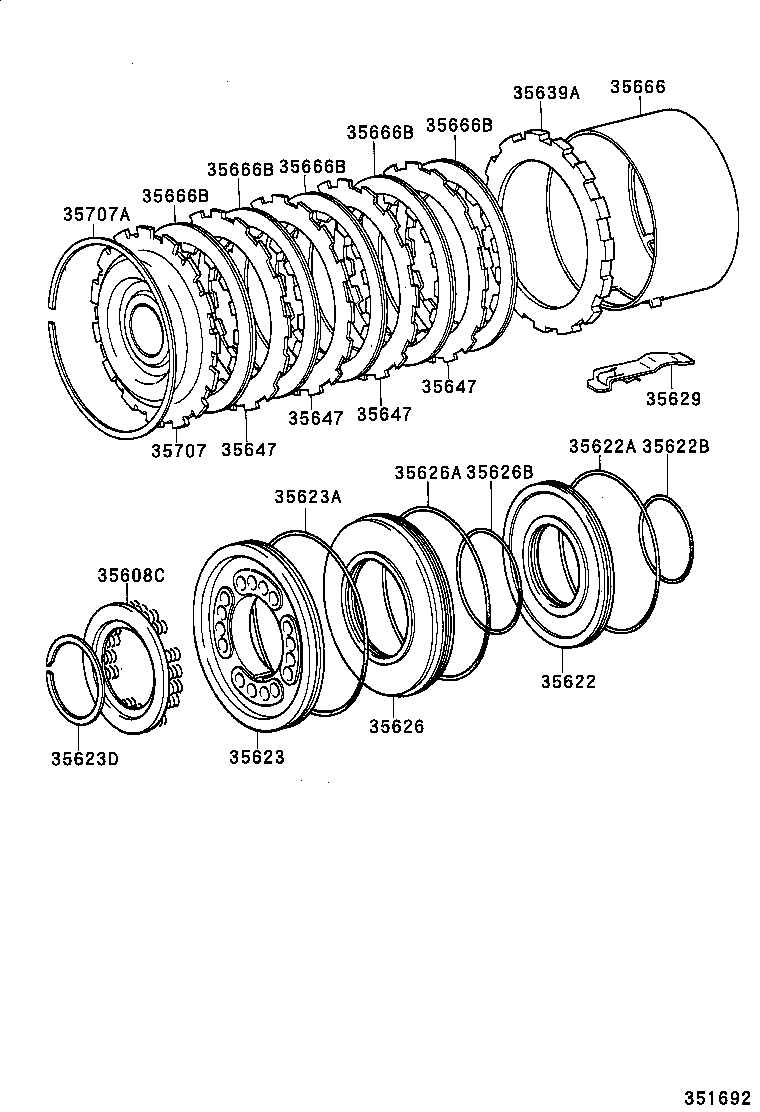

Click highlighted areas on diagram
A42D,A45DL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35608C - SPRING SUB-ASSY, NO.3 BRAKE PISTON RETURN | ||||
| 35608-20020 |
KR42,SR40..ATM |
1 | ||
| 35622 - PISTON, BRAKE, NO.2 | ||||
| 35622-22010 |
KR42,SR40..ATM |
1 | ||
| 35622A - RING (FOR BRAKE PISTON OUTER) | ||||
| 90301-99193 |
KR42,SR40..ATM |
1 | ||
| 90301-99084 |
KR42,SR40..ATM |
1 | ||
| 35622B - RING (FOR BRAKE PISTON INNER) | ||||
| 90301-56007 |
KR42,SR40..ATM |
1 | ||
| 90301-57188 |
KR42,SR40..ATM |
1 | ||
| 35623 - PISTON, BRAKE, NO.3 | ||||
| 35623-22010 |
KR42,SR40..ATM |
1 | ||
| 35623A - RING, O (FOR BRAKE PISTON NO.3 ) | ||||
| 90301-99192 |
KR42,SR40..ATM |
1 | ||
| 90301-99110 |
KR42,SR40..ATM |
1 | ||
| 35623D - RING, SHAFT SNAP (FOR BRAKE) | ||||
| 90520-52262 |
KR42,SR40..ATM |
1 | ||
| 35626 - SLEEVE, BRAKE REACTION | ||||
| 35626-22010 |
KR42,SR40..ATM |
1 | ||
| 35626A - RING (FOR BRAKE REACTION SLEEVE OUTER) | ||||
| 90301-99200 |
KR42,SR40..ATM |
1 | ||
| 90301-99109 |
KR42,SR40..ATM |
1 | ||
| 35626B - RING (FOR BRAKE REACTION SLEEVE INNER) | ||||
| 90301-68191 |
KR42,SR40..ATM |
1 | ||
| 90301-67005 |
KR42,SR40..ATM |
1 | ||
| 35629 - SPRING (1ST & REVS BRAKE PLATE STOPPER) | ||||
| 35629-22010 |
KR42,SR40..ATM |
1 | ||
| 35639A - PLATE, CLUTCH PRESSURE (FOR BRAKE) | ||||
| 35639-22010 |
KR42,SR40..ATM |
1 | ||
| 35647 - PLATE, CLUTCH, NO.2 | ||||
| 35647-22010 |
KR42,SR40..ATM |
4 | ||
| 35647 - PLATE, CLUTCH, NO.2 | ||||
| 35647-22010 |
KR42,SR40..ATM |
4 | ||
| 35647 - PLATE, CLUTCH, NO.2 | ||||
| 35647-22010 |
KR42,SR40..ATM |
4 | ||
| 35647 - PLATE, CLUTCH, NO.2 | ||||
| 35647-22010 |
KR42,SR40..ATM |
4 | ||
| 35666 - TUBE, BRAKE APPLY | ||||
| 35666-30010 |
SR40..ATM |
1 | ||
| 35666-30010 |
SR40..ATM |
1 | ||
| 35666B - DISC, CLUTCH (FOR BRAKE) | ||||
| 35633-30060 |
SR40..ATM |
5 | ||
| 35633-30060 |
SR40..ATM |
5 | ||
| 35666B - DISC, CLUTCH (FOR BRAKE) | ||||
| 35633-30060 |
SR40..ATM |
5 | ||
| 35633-30060 |
SR40..ATM |
5 | ||
| 35666B - DISC, CLUTCH (FOR BRAKE) | ||||
| 35633-30060 |
SR40..ATM |
5 | ||
| 35633-30060 |
SR40..ATM |
5 | ||
| 35666B - DISC, CLUTCH (FOR BRAKE) | ||||
| 35633-30060 |
SR40..ATM |
5 | ||
| 35633-30060 |
SR40..ATM |
5 | ||
| 35666B - DISC, CLUTCH (FOR BRAKE) | ||||
| 35633-30060 |
SR40..ATM |
5 | ||
| 35633-30060 |
SR40..ATM |
5 | ||
| 35707 - RACE SUB-ASSY, 1 WAY CLUTCH, INNER | ||||
| 35707-30040 |
SR40..ATM |
1 | ||
| 35707-30040 |
SR40..ATM |
1 | ||
| 35707A - RING, HOLE SNAP (FOR 1 WAY CLUTCH INNER RACE) | ||||
| 90521-99140 |
KR42,SR40..ATM |
1 | ||
