SR40R-GRSRKQ (1997)
Toyota Townace/Liteace
Production
Oct 1997
-
Nov 2001
Engine
3SFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9611- )SR40..ATM

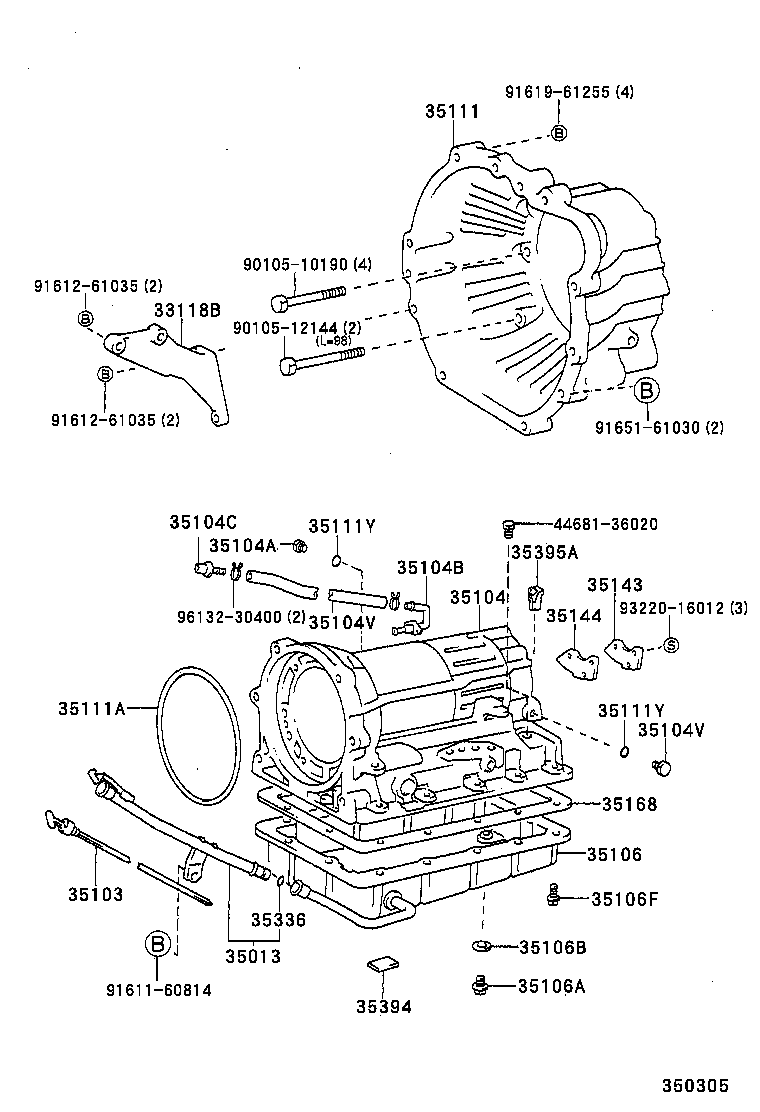

Click highlighted areas on diagram
A45DL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33118B - PLATE, STIFFENER, RH(ATM) | ||||
| 33118-14033 |
SR40..ATM |
1 | ||
| 33118-14033 |
SR40..ATM |
1 | ||
| 35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER | ||||
| 35013-28120 |
SR40..ATM |
1 | ||
| 35013-28120 |
SR40..ATM |
1 | ||
| 35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL | ||||
| 35103-28100 |
SR40..ATM |
1 | ||
| 35103-28100 |
SR40..ATM |
1 | ||
| 35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION | ||||
| 35104-28030 |
KR42,SR40..ATM |
1 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-08001 |
KR42,SR40..ATM |
2 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90930-03098 |
KR42,SR40..ATM |
1 | ||
| 35104C - PLUG, BREATHER, NO.2 (ATM) | ||||
| 90930-03099 |
KR42,SR40..ATM |
1 | ||
| 35104V - HOSE (FOR BREATHER PLUG) | ||||
| 90445-10020 |
KR42,SR40..ATM |
1 | ||
| 35104V - HOSE (FOR BREATHER PLUG) | ||||
| 90445-10020 |
KR42,SR40..ATM |
1 | ||
| 35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL | ||||
| 35106-22090 |
SR40..ATM |
1 | ||
| 35106-22090 |
KR42,SR40..ATM |
1 | ||
| 35106A - PLUG SUB-ASSY, DRAIN (ATM) | ||||
| 90341-10006 |
KR42,SR40..ATM |
1 | ||
| 35106B - GASKET, DRAIN PLUG (ATM) | ||||
| 35178-30010 |
KR42,SR40..ATM |
1 | ||
| 35106F - BOLT (FOR AUTOMATIC TRANSMISSION OIL PAN) | ||||
| 90119-06117 |
KR42,SR40..ATM |
14 | ||
| 35111 - HOUSING, AUTOMATIC TRANSMISSION | ||||
| 35111-28070 |
SR40..ATM |
1 | ||
| 35111-28070 |
SR40..ATM |
1 | ||
| 35111-28080 |
SR40..ATM |
1 | ||
| 35111A - RING, O (FOR AUTOMATIC TRANSMISSION HOUSING) | ||||
| 90301-99054 |
KR42,SR40..ATM |
1 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
KR42,SR40..ATM |
2 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
KR42,SR40..ATM |
2 | ||
| 35143 - COVER, TRANSMISSION CASE, REAR | ||||
| 35143-22010 |
KR42,SR40..ATM |
1 | ||
| 35144 - GASKET, TRANSMISSION CASE REAR COVER | ||||
| 35144-28010 |
KR42,SR40..ATM |
1 | ||
| 35168 - GASKET, AUTOMATIC TRANSMISSION OIL PAN | ||||
| 35168-22011 |
KR42,SR40..ATM |
1 | ||
| 35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE) | ||||
| 90301-09173 |
SR40..ATM |
1 | ||
| 90301-09173 |
KR42,SR40..ATM |
1 | ||
| 35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION) | ||||
| 35394-30011 |
SR40..ATM |
2 | ||
| 35394-30011 |
SR40..ATM |
2 | ||
| 35395A - STRAINER, GOVERNOR OIL | ||||
| 35395-40010 |
KR42,SR40..ATM |
1 | ||
| Common parts | ||||
| 44681-36020 | ||||
| 90105-10190 | ||||
| 90105-12144 | ||||
| 91611-60814 | ||||
| 91612-61035 | ||||
| 91619-61255 | ||||
| 91651-61030 | ||||
| 93220-16012 | ||||
| 96132-30400 | ||||
