SR40R-GRSRKQ (1997)

Toyota Townace/Liteace

Production Oct 1997 - Nov 2001
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9611- )3SFE

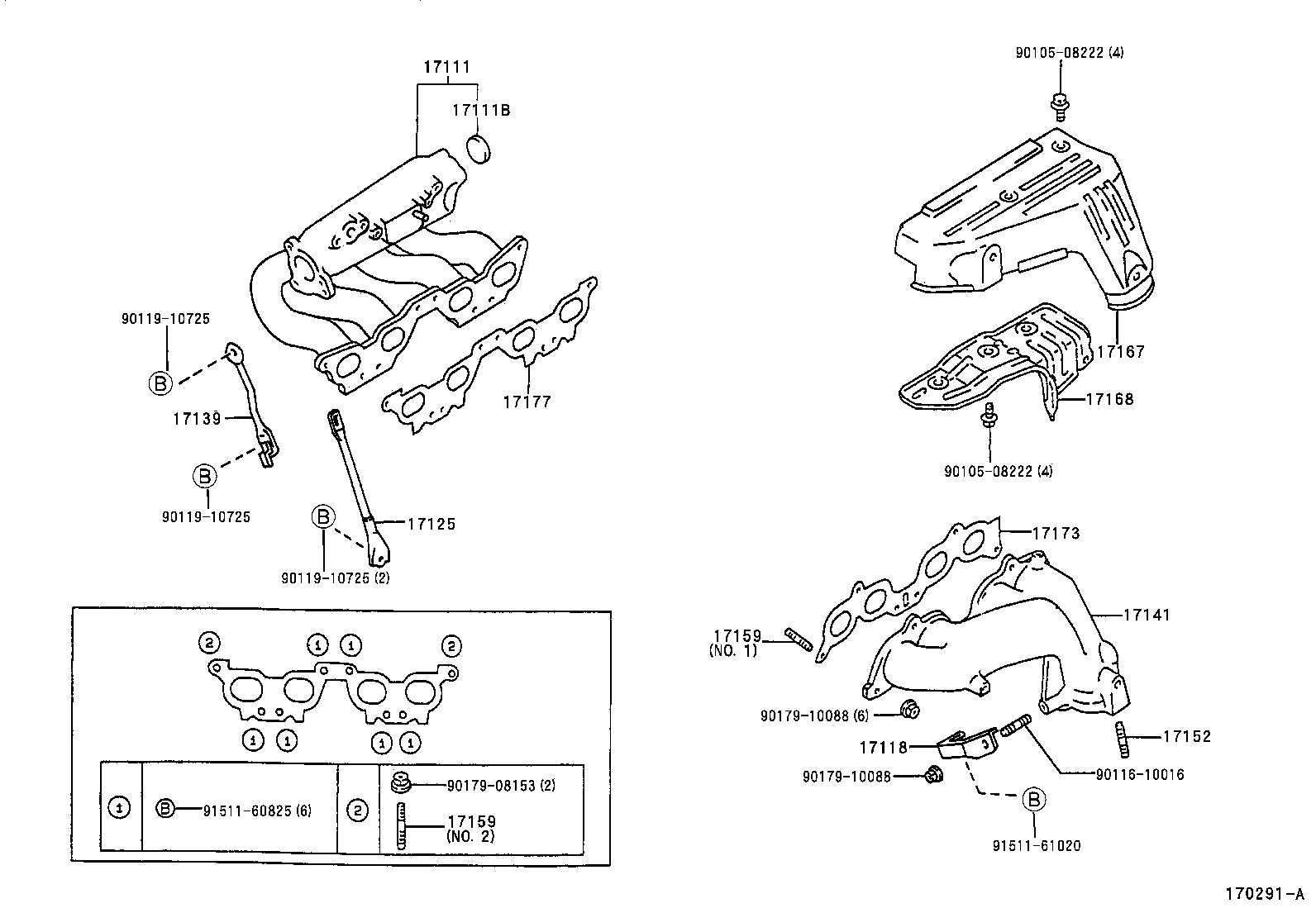

Click highlighted areas on diagram

diagram 17111 17111B 17118 17125 17139 17141 17152 17159 17159 17167 17168 17173 17177 9010508222 9010508222 9011610016 9011910725 9011910725 9011910725 9017908153 9017910088 9017910088 9151160825 9151161020
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17101-74340

3SFE..SR40

 1
17101-74341

3SFE..SR40

 1
17101-74341

3SFE..SR40

 1
17111B - PLUG, NO.2
96411-44000

3SFE..SR40

 1
96411-44000

3SFE..SR40

 1
17118 - STAY, MANIFOLD
17118-74320

3SFE..SR40

 1
17118-74320

3SFE..SR40

 1
17125 - STAY, SURGE TANK, NO.1
17125-74140

3SFE..SR40

 1
17125-74140

3SFE..SR40

 1
17139 - STAY, MANIFOLD, NO.2
17139-74200

3SFE..SR40

 1
17139-74200

3SFE..SR40

 1
17141 - MANIFOLD, EXHAUST
17141-74250

3SFE..SR40..ARL

 1
17141-74250

3SFE..SR40..ARL

 1
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10058

3SFE..SR40

 3
90116-10058

3SFE..SR40

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-08375

3SFE..SR40

NO.2

 2
90116-10063

3SFE..SR40

NO.1

 6
90116-10063

3SFE..SR40

NO.1

 6
90116-08375

3SFE..SR40

NO.2

 2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-08375

3SFE..SR40

NO.2

 2
90116-10063

3SFE..SR40

NO.1

 6
90116-10063

3SFE..SR40

NO.1

 6
90116-08375

3SFE..SR40

NO.2

 2
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-74260

3SFE..SR40

 1
17167-74260

3SFE..SR40

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-74050

3SFE..SR40

 1
17168-74050

3SFE..SR40

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-74040

3SFE..SR40

 1
17173-74040

3SFE..SR40

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-74070

3SFE..SR40

 1
17177-74070

3SFE..SR40

 1
Common parts
90105-08222
90116-10016
90119-10725
90179-08153
90179-10088
91511-60825
91511-61020
