KR42R-SRMRE (1998)

Toyota Townace/Liteace

Production Dec 1998 - Oct 2003
Engine 7KE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9611-0112)

Click highlighted areas on diagram

4-SPOKE

diagram 45100 45130 45186 45186 45188 45188 45201P 9356014012 9356014012
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-26220B1

CR41,KR4#;SR40..GEN

2-SPOKE,URETHANE,MD.MOON MIST,TRIM1#

 1
45100-26230B2

CR41,KR4#..GEN

2SPOKE,POLYPROPYLENE,MD.MOON MIST,TRIM1#

 1
45100-26220B1

KR42..GEN

2-SPOKE,URETHANE,MD.MOON MIST,TRIM1#

 1
45100-12720B3

KR42..GEN

2SPOKE,POLYPROPYLENE,MD.MOON MIST,TRIM1#

 1
45130 - BUTTON ASSY, HORN
45130-26260B2

CR41,KR4#..GEN

MD.MOON MIST,TRIM1#

 1
45130-26240B2

CR41,KR4#;SR40..GEN

W(URETHANE STEERING WHEEL),MD.MOON MIST,TRIM1#

 1
45130-12730B3

KR42..GEN

MD.MOON MIST,TRIM1#

 1
45130-26240B2

KR42..GEN

W(URETHANE STEERING WHEEL),MD.MOON MIST,TRIM1#

 1
45201P - NUT, STEERING WHEEL SET
90179-12071

CR41,KR4#,SR40

 1
90179-12071

KR42

 1
Common parts
93560-14012

(9812- )CR4#,KR42..GEN

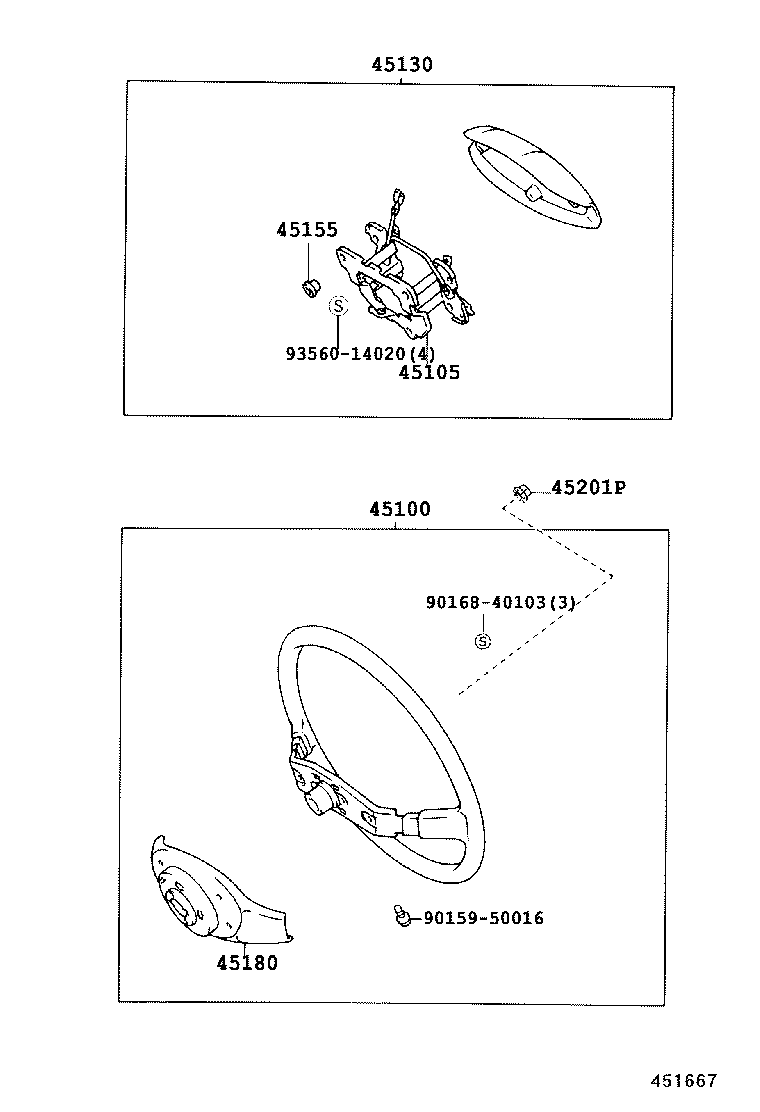

Click highlighted areas on diagram

2-SPOKE,PP(POLYPROPYLENE)

diagram 45100 45105 45130 45155 45180 45201P 9015950016 9016840103 9356014020
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-26220B1

CR41,KR4#;SR40..GEN

2-SPOKE,URETHANE,MD.MOON MIST,TRIM1#

 1
45100-26230B2

CR41,KR4#..GEN

2SPOKE,POLYPROPYLENE,MD.MOON MIST,TRIM1#

 1
45100-26220B1

KR42..GEN

2-SPOKE,URETHANE,MD.MOON MIST,TRIM1#

 1
45100-12720B3

KR42..GEN

2SPOKE,POLYPROPYLENE,MD.MOON MIST,TRIM1#

 1
45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105-26100

KR42..GEN

W(URETHANE STEERING WHEEL)

 1
45105-12200

CR41,KR4#..GEN

 1
45105-26100

CR41,KR4#;SR40..GEN

W(URETHANE STEERING WHEEL)

 1
45105-12200

KR42..GEN

 1
45130 - BUTTON ASSY, HORN
45130-26260B2

CR41,KR4#..GEN

MD.MOON MIST,TRIM1#

 1
45130-26240B2

CR41,KR4#;SR40..GEN

W(URETHANE STEERING WHEEL),MD.MOON MIST,TRIM1#

 1
45130-12730B3

KR42..GEN

MD.MOON MIST,TRIM1#

 1
45130-26240B2

KR42..GEN

W(URETHANE STEERING WHEEL),MD.MOON MIST,TRIM1#

 1
45155 - SPACER, HORN BUTTON CONTACT PLATE
45155-12050

CR41,KR4#..GEN

 4
45155-12050

CR41,KR4#;SR40..GEN

W(URETHANE STEERING WHEEL)

 3
45155-12050

KR42..GEN

W(URETHANE STEERING WHEEL)

 3
45155-12050

KR42..GEN

 4
45180 - COVER SUB-ASSY, STEERING WHEEL
45180-26030B1

CR41,KR4#;SR40..GEN

W(URETHANE STEERING WHEEL),MD.MOON MIST,TRIM1#

 1
45180-26040B2

CR41,KR4#..GEN

MD.MOON MIST,TRIM1#

 1
45180-26030B1

KR42..GEN

W(URETHANE STEERING WHEEL),MD.MOON MIST,TRIM1#

 1
45180-12160B3

KR42..GEN

MD.MOON MIST,TRIM1#

 1
45201P - NUT, STEERING WHEEL SET
90179-12071

CR41,KR4#,SR40

 1
90179-12071

KR42

 1
Common parts
90159-50016
90168-40103
93560-14020

(0112- )

Click highlighted areas on diagram

4-SPOKE

diagram 45100 45130 45184 45186 45186 45188 45188 45201P 8408 8408 9016840113 9356014012
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-26220B1

CR41,KR4#;SR40..GEN

2-SPOKE,URETHANE,MD.MOON MIST,TRIM1#

 1
45100-26230B2

CR41,KR4#..GEN

2SPOKE,POLYPROPYLENE,MD.MOON MIST,TRIM1#

 1
45100-26220B1

KR42..GEN

2-SPOKE,URETHANE,MD.MOON MIST,TRIM1#

 1
45100-12720B3

KR42..GEN

2SPOKE,POLYPROPYLENE,MD.MOON MIST,TRIM1#

 1
45130 - BUTTON ASSY, HORN
45130-26260B2

CR41,KR4#..GEN

MD.MOON MIST,TRIM1#

 1
45130-26240B2

CR41,KR4#;SR40..GEN

W(URETHANE STEERING WHEEL),MD.MOON MIST,TRIM1#

 1
45130-12730B3

KR42..GEN

MD.MOON MIST,TRIM1#

 1
45130-26240B2

KR42..GEN

W(URETHANE STEERING WHEEL),MD.MOON MIST,TRIM1#

 1
45201P - NUT, STEERING WHEEL SET
90179-12071

CR41,KR4#,SR40

 1
90179-12071

KR42

 1
Common parts
90168-40113
93560-14012
Linked diagrams
8408
