KR42R-SBMRS (1996)

Toyota Townace/Liteace

Production Nov 1996 - Dec 1998
Engine 7K
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9611-9812)5K,7K

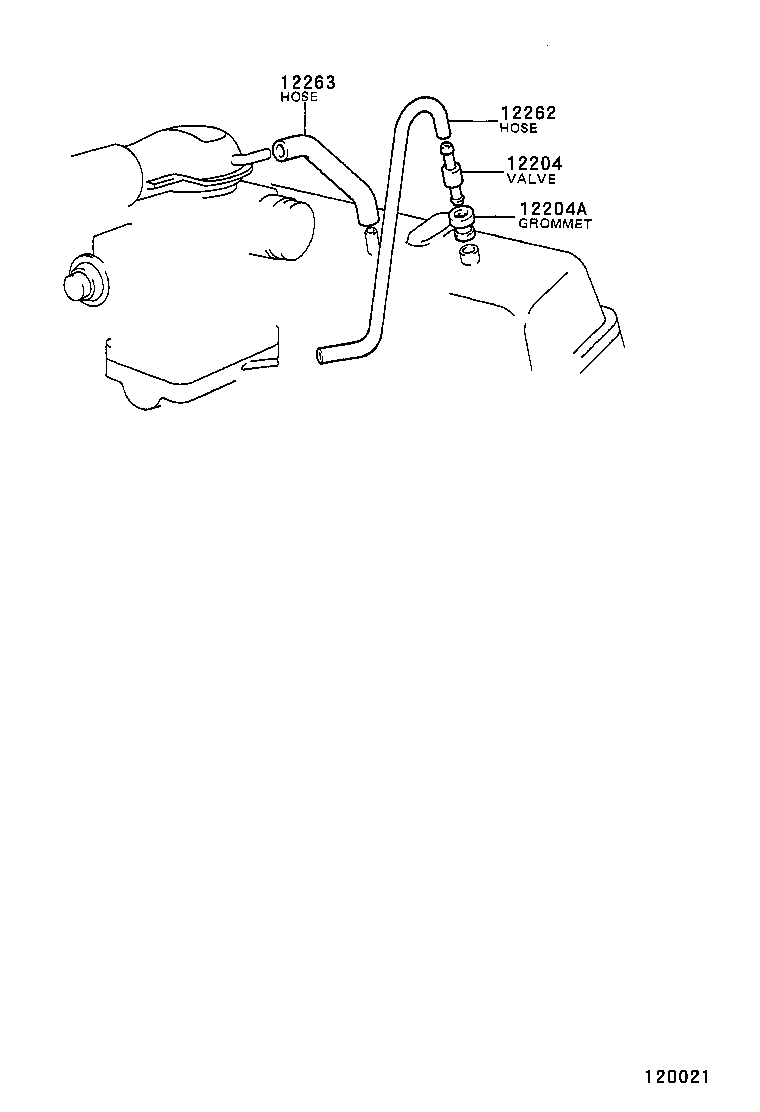

Click highlighted areas on diagram

diagram 12204 12204A 12262 12263
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-13030

5K,7K..KR4#

 1
12204A - GROMMET(FOR VENTILATION SYSTEM)
90480-16003

5K,7K..KR4#

 1
12262 - HOSE, VENTILATION, NO.2
12261-13030

5K,7K..KR4#

 1
12263 - HOSE, VENTILATION, NO.3
90910-05130

5K,7K..KR4#

 1
