KR42R-RCSRSQ (1996)
Toyota Townace/Liteace
ILLUST NO. 1 OF 2(9611-9812)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-28010 |
CR41,KR4#,SR40 |
1 | ||
| 77012A - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.1 | ||||
| 77012-28060 |
CR41,KR4#,SR40 |
1 | ||
| 77017B - TUBE SUB-ASSY, FUEL TANK VENT | ||||
| 77017-28190 |
KR42..ARL |
1 | ||
| 77018E - TUBE SUB-ASSY, FUEL TANK EVAPORATION VENT | ||||
| 77018-28090 |
CR41,KR4#,SR40 |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-10010 |
KR4# |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-28060 |
CR41,KR4#,SR40 |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-28011 |
CR41,KR4#,SR40 |
1 | ||
| 77037-28010 |
CR41,KR4#,SR40 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-28470 |
KR4# |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
CR41,KR4#,SR40 |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
CR41,KR4#,SR40 |
1 | ||
| 77156A - PLATE, BREATHER TUBE SUPPORT, NO.2 | ||||
| 77156-28030 |
CR41,KR4#,SR40 |
1 | ||
| 77166B - SUPPORT, FUEL TANK VENT TUBE, NO.1 | ||||
| 77166-28030 |
CR41,KR4#,SR40 |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-14020 |
CR41,KR4# |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-20030 |
CR41,KR4#,SR40 |
1 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-14030 |
CR41,KR4#,SR40 |
1 | ||
| 77179B - GASKET, FUEL TANK EVAPORATION VENT TUBE | ||||
| 77179-26010 |
CR41,KR4#,SR40 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-28190 |
KR42,SR40 |
1 | ||
| 77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE) | ||||
| 95313-13019 |
CR41,KR4#,SR40 L=190 |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77217-28070 |
CR41,KR4#,SR40 |
1 | ||
| 77219 - COVER, FUEL TANK FILLER PIPE | ||||
| 77219-32030 |
CR41,KR4#,SR40 |
2 | ||
| 77219 - COVER, FUEL TANK FILLER PIPE | ||||
| 77219-32030 |
CR41,KR4#,SR40 |
2 | ||
| 77293B - PACKING, FUEL INLET PIPE LOWER SHIELD PLATE | ||||
| 77293-28020 |
CR41,KR4#,SR40 |
1 | ||
| 77305A - LID SUB-ASSY, FUEL FILLER OPENING | ||||
| 77305-28020 |
CR41,KR4#,SR40..4D |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 77306-28030 |
CR41,KR4#,SR40 |
1 | ||
| 77306A - SPRING, FUEL LID OPEN LEVER | ||||
| 90506-09004 |
CR41,KR4#,SR40 |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-16011 |
KR4#,SR40 |
1 | ||
| 77310-48010 |
KR4#,SR40 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
CR41,KR4#,SR40 |
1 | ||
| 77358A - STOPPER, FUEL FILLER OPENING LID | ||||
| 77358-28050 |
CR41,KR4#,SR40 |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-26010 |
CR41,KR4#,SR40 |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-28070 |
CR41,KR4#,SR40 |
1 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77653-25010 |
CR41,KR4#,SR40 |
1 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-28070 |
CR41,KR4#,SR40 |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-28040 |
CR41,KR4#,SR40 |
1 | ||
| Common parts | ||||
| 90119-06355 | ||||
| 90119-08B18 | ||||
| 90119-10700 | ||||
| 90159-40155 | ||||
| 90159-50219 | ||||
| 90179-06156 | ||||
| 90460-22002 | ||||
| 90460-46003 | ||||
| 90541-06062 | ||||
| 91511-60612 | ||||
| 91651-B0822 | ||||
| 93319-A4010 | ||||

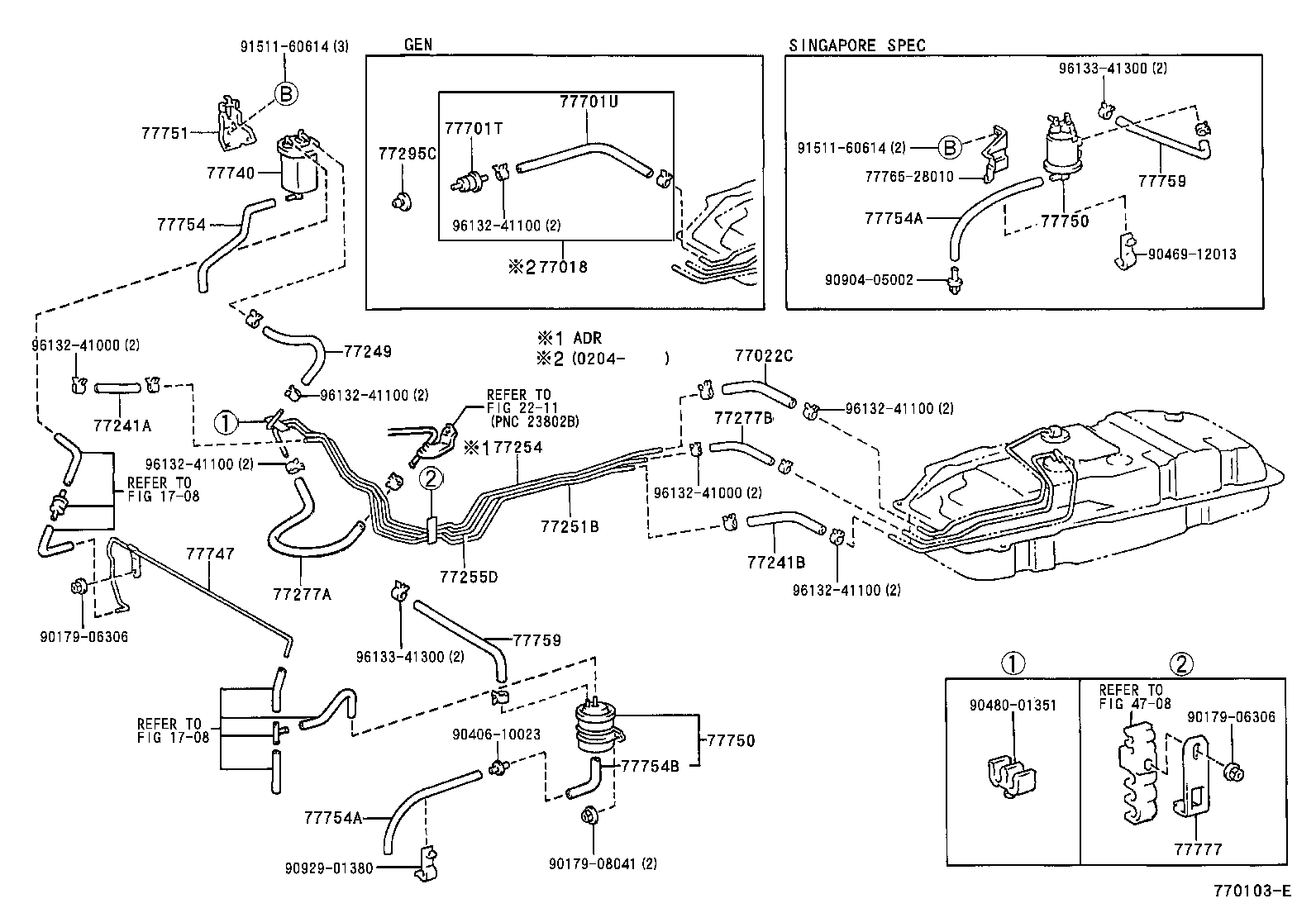

ILLUST NO. 2 OF 2(9611-9812)KR4# ; (9812- )KR42..GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77022C - HOSE OR TUBE(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-06020 |
KR42,SR40..02S,08S |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95333-06020 |
KR4# *H,L=110 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95333-06020 |
KR4# *H,L=140 |
1 | ||
| 77249 - HOSE, FUEL EMISSION | ||||
| 95333-06030 |
KR42,SR40..02S,08S |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-28150 |
KR4# |
1 | ||
| 77254 - TUBE, FUEL EMISSION, NO.1 | ||||
| 77263-28090 |
KR42..ARL;SR40..GEN |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-28130 |
KR42..ARL |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 95334-04038 |
KR42..ARL L=380 |
1 | ||
| 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) | ||||
| 95333-04020 |
KR42..ARL *H,L=140 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77704-28190 |
KR42..ARL |
1 | ||
| 77747 - PIPE, CHARCOAL CANISTER, NO.1 | ||||
| 77747-28010 |
KR42..ARL |
1 | ||
| 77750 - CANISTER ASSY, CHARCOAL | ||||
| 77740-28180 |
KR42..ARL |
1 | ||
| 77750 - CANISTER ASSY, CHARCOAL | ||||
| 77740-28180 |
KR42..ARL |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-28131 |
KR42..ARL |
1 | ||
| 77751-28130 |
KR42..ARL |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-28030 |
KR42,SR40..02S,08S |
1 | ||
| 77754A - HOSE, CHARCOAL CANISTER OUTLET, NO.2 | ||||
| 77795-28020 |
KR42..ARL |
1 | ||
| 77754A - HOSE, CHARCOAL CANISTER OUTLET, NO.2 | ||||
| 77795-28020 |
KR42..ARL |
1 | ||
| 77754B - HOSE, CHARCOAL CANISTER OUTLET | ||||
| 77754-28050 |
KR42..ARL |
1 | ||
| 77759 - HOSE, CHARCOAL CANISTER | ||||
| 77759-28020 |
KR42..ARL |
1 | ||
| 77759 - HOSE, CHARCOAL CANISTER | ||||
| 77759-28020 |
KR42..ARL |
1 | ||
| 77777 - BRACKET, FUEL TUBE CLAMP | ||||
| 77777-28010 |
CR41,KR4#,SR40 |
1 | ||
| Common parts | ||||
| 77765-28010 | ||||
| 90179-06306 | ||||
| 90179-08041 | ||||
| 90406-10023 | ||||
| 90469-12013 | ||||
| 90480-01351 | ||||
| 90904-05002 | ||||
| 90929-01380 | ||||
| 91511-60614 | ||||
| 96132-41000 | ||||
| 96132-41100 | ||||
| 96133-41300 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||
| 4708 | ||||
