KR42R-RCSREQ (1998)

Toyota Townace/Liteace

Production Dec 1998 - Oct 2003
Engine 7KE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 4 OF 4(9611- )

Click highlighted areas on diagram

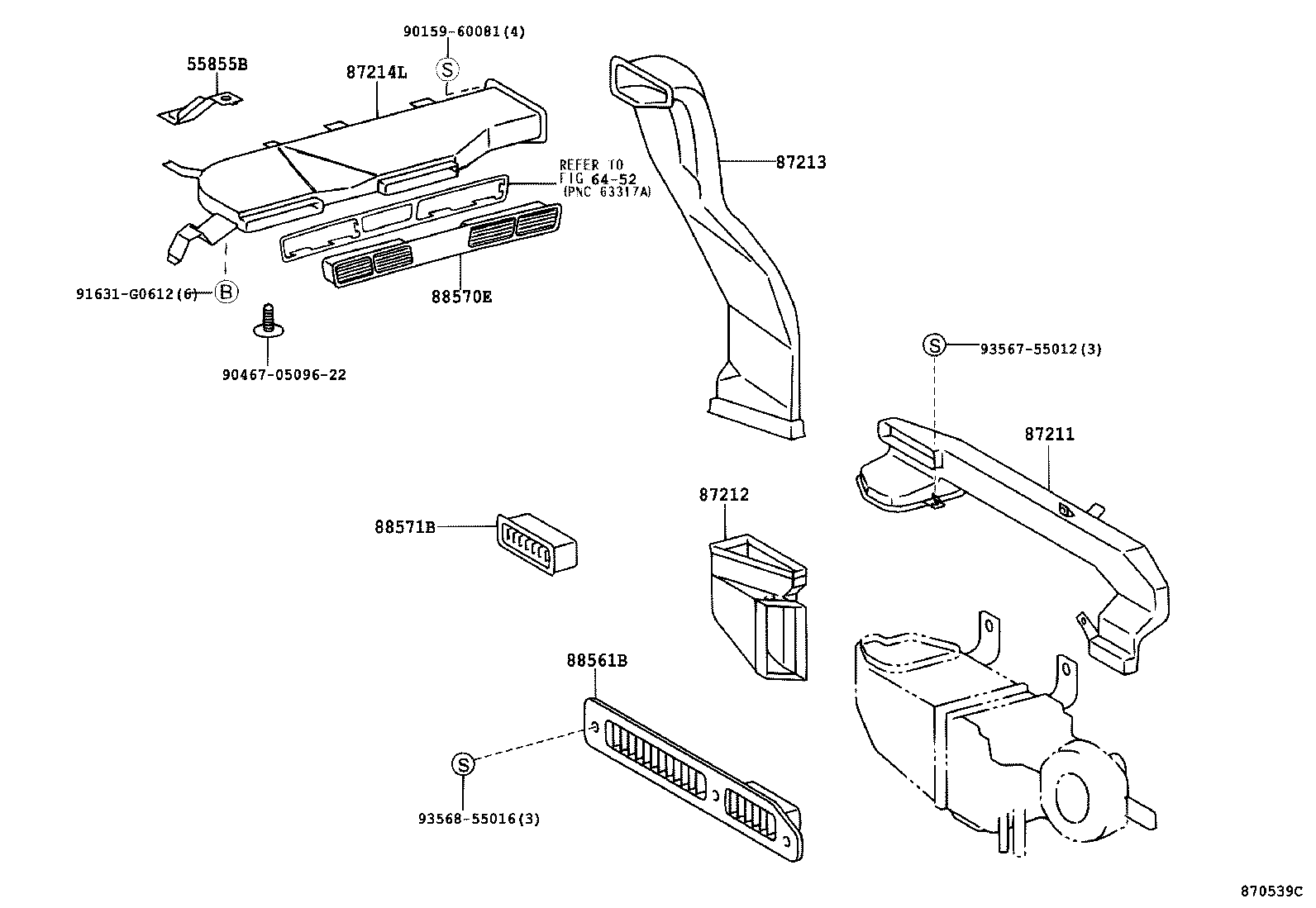

REAR DUCT

diagram 55855B 6452 87211 87212 87213 87214L 88561B 88570E 88571B 9015960081 904670509622 91631G0612 9356755012 9356855016
Part # Description Qty Price
87211 - DUCT, AIR, NO.1
87201-28150

CR41,KR4#,SR40

FRONT

 1
87201-28150

KR42

FRONT

 1
Common parts
90159-60081
90467-0509622
91631-G0612
93567-55012
93568-55016
Linked diagrams
6452

ILLUST NO. 1 OF 4(9611- )

Click highlighted areas on diagram

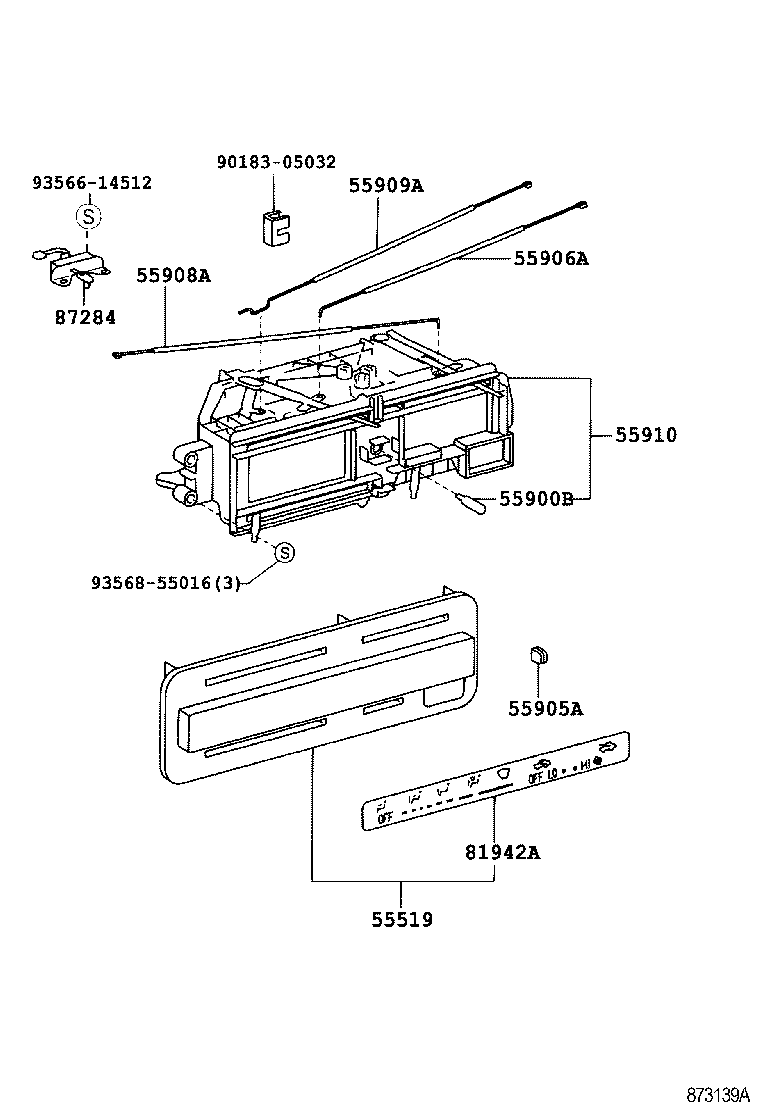

FRONT---LEVER TYPE

diagram 55519 55900B 55905A 55906A 55908A 55909A 55910 81942A 87284 9018305032 9356614512 9356855016
Part # Description Qty Price
55519 - PLATE, HEATER CONTROL NAME
55519-16110

CR41,KR4#

 1
55900B - BULB, AIR CONDITIONER CONTROL
90981-11014

CR41,KR4#,SR40

14V 1.4W,*DH OR *LHC

 1
55905A - KNOB, HEATER CONTROL
55905-89115

CR41,KR4#

 4
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-28210

CR41,KR4#,SR40

 1
55906-28210

KR42

 1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-28110

KR42

 1
55908-28110

CR41,KR4#

 1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-28110

CR41,KR4#

 1
55909-28160

KR42

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-28330

CR41,KR4#

 1
55910-28430

KR42

W(AIR CONDITIONER & HEATER)

 1
81942A - SHEET, HEATER CONTROL NAME, NO.1
81942-16200

CR41,KR4#

 1
81942-28080

KR42

W(FRONT HEATER)

 1
Common parts
90183-05032
93566-14512
93568-55016

ILLUST NO. 2 OF 4(9611- )

Click highlighted areas on diagram

REAR---W/O DUAL AIR CONDITIONER

diagram 55519R 55900 81942B 9018305032 9356755020
Part # Description Qty Price
Common parts
90183-05032
93567-55020

ILLUST NO. 1 OF 4(9812- )

Click highlighted areas on diagram

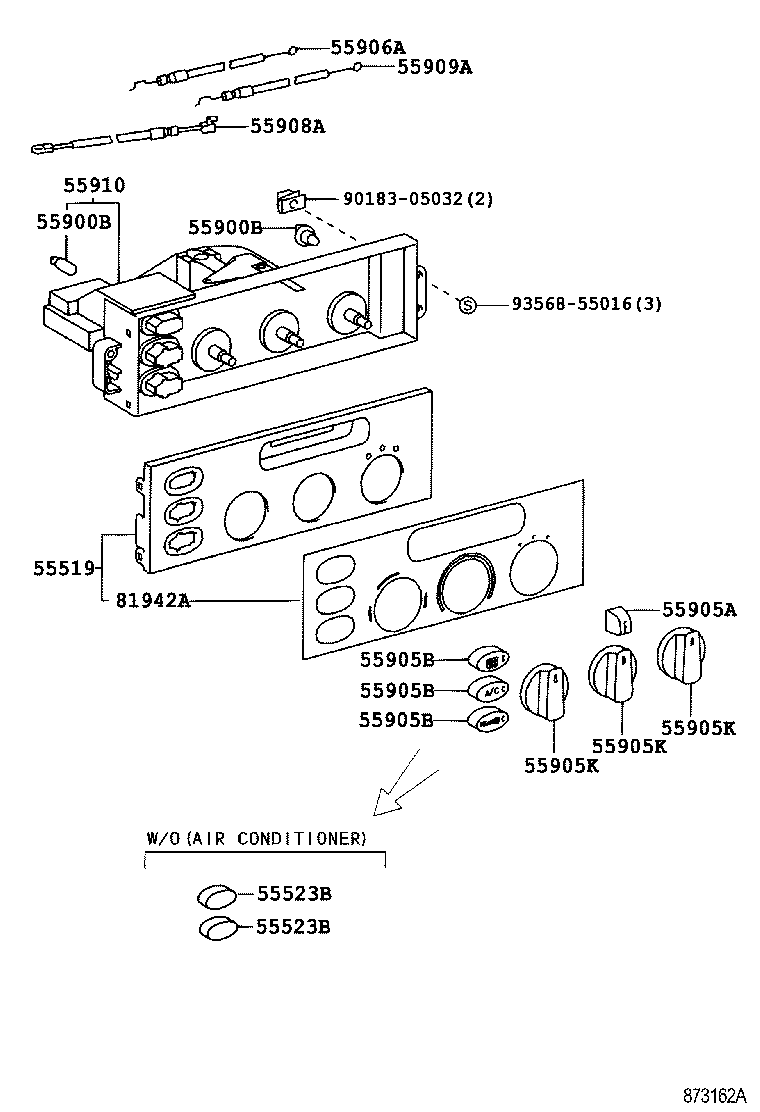

FRONT---DIAL TYPE

diagram 55519 55523B 55523B 55900B 55900B 55905A 55905B 55905B 55905B 55905K 55905K 55905K 55906A 55908A 55909A 55910 81942A 9018305032 9356855016
Part # Description Qty Price
55519 - PLATE, HEATER CONTROL NAME
55519-16110

CR41,KR4#

 1
55900B - BULB, AIR CONDITIONER CONTROL
90981-11014

CR41,KR4#,SR40

14V 1.4W,*DH OR *LHC

 1
55900B - BULB, AIR CONDITIONER CONTROL
90981-11014

CR41,KR4#,SR40

14V 1.4W,*DH OR *LHC

 1
55905A - KNOB, HEATER CONTROL
55905-89115

CR41,KR4#

 4
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-28210

CR41,KR4#,SR40

 1
55906-28210

KR42

 1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-28110

KR42

 1
55908-28110

CR41,KR4#

 1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-28110

CR41,KR4#

 1
55909-28160

KR42

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-28330

CR41,KR4#

 1
55910-28430

KR42

W(AIR CONDITIONER & HEATER)

 1
81942A - SHEET, HEATER CONTROL NAME, NO.1
81942-16200

CR41,KR4#

 1
81942-28080

KR42

W(FRONT HEATER)

 1
Common parts
90183-05032
93568-55016

ILLUST NO. 3 OF 4(9812- )

Click highlighted areas on diagram

FRONT DUCT

diagram 55835A 55843A 55846B 87138B 87211 9015960096 9015960383 9017906314 9046705142 9048026022 9095001897
Part # Description Qty Price
55835A - DUCT, HEATER TO REGISTER, CENTER
55835-28060

CR41,KR4#,SR40

 1
55835-28070

KR42

 1
55843A - DUCT, HEATER TO REGISTER, NO.1
55843-28060

CR41,KR4#,SR40

 1
55843-28040

KR42

 1
55846B - DUCT, HEATER TO REGISTER, NO.4
55846-28030

CR41,KR4#,SR40

 1
55846-28050

KR42

 1
87138B - RESISTOR, HEATER BLOWER
87138-28160

CR41,KR4#,SR40

 1
87138-28160

KR42

 1
87211 - DUCT, AIR, NO.1
87201-28150

CR41,KR4#,SR40

FRONT

 1
87201-28150

KR42

FRONT

 1
Common parts
90159-60096
90159-60383
90179-06314
90467-05142
90480-26022
90950-01897

ILLUST NO. 2 OF 4(9611- )

Click highlighted areas on diagram

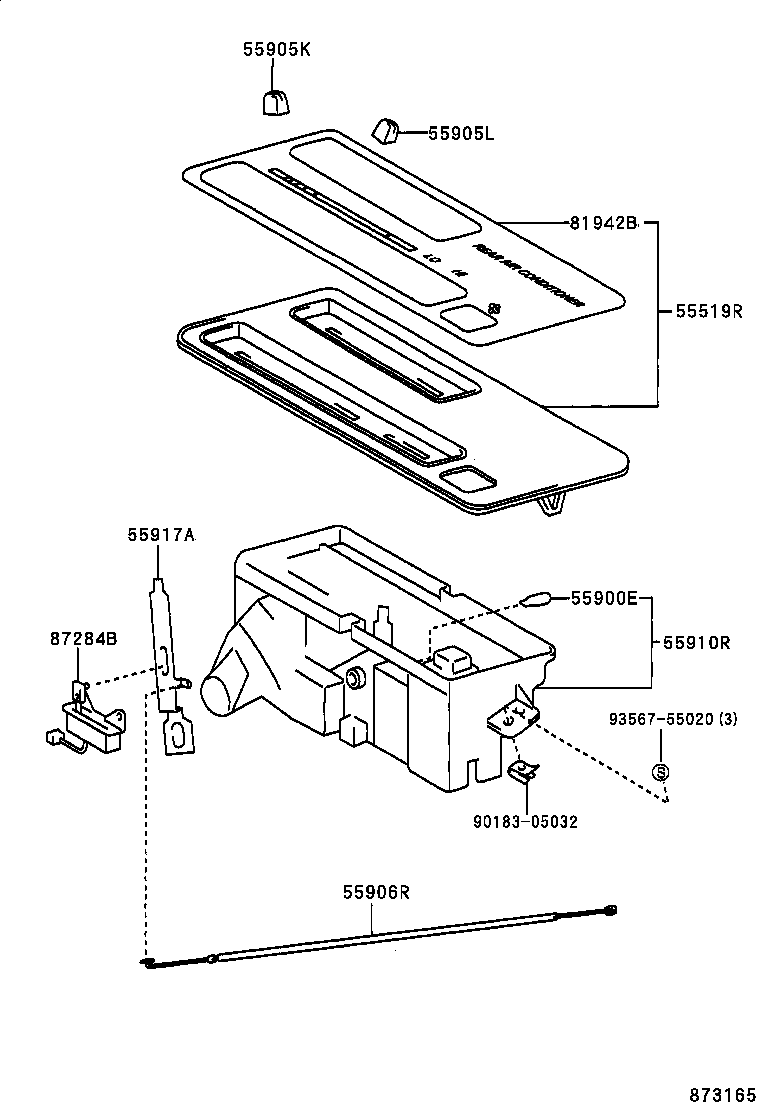

REAR

diagram 55519R 55900E 55905K 55905L 55906R 55910R 55917A 81942B 87284B 9018305032 9356755020
Part # Description Qty Price
Common parts
90183-05032
93567-55020
