KR42R-RCSREQ (1998)

Toyota Townace/Liteace

Production Dec 1998 - Oct 2003
Engine 7KE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

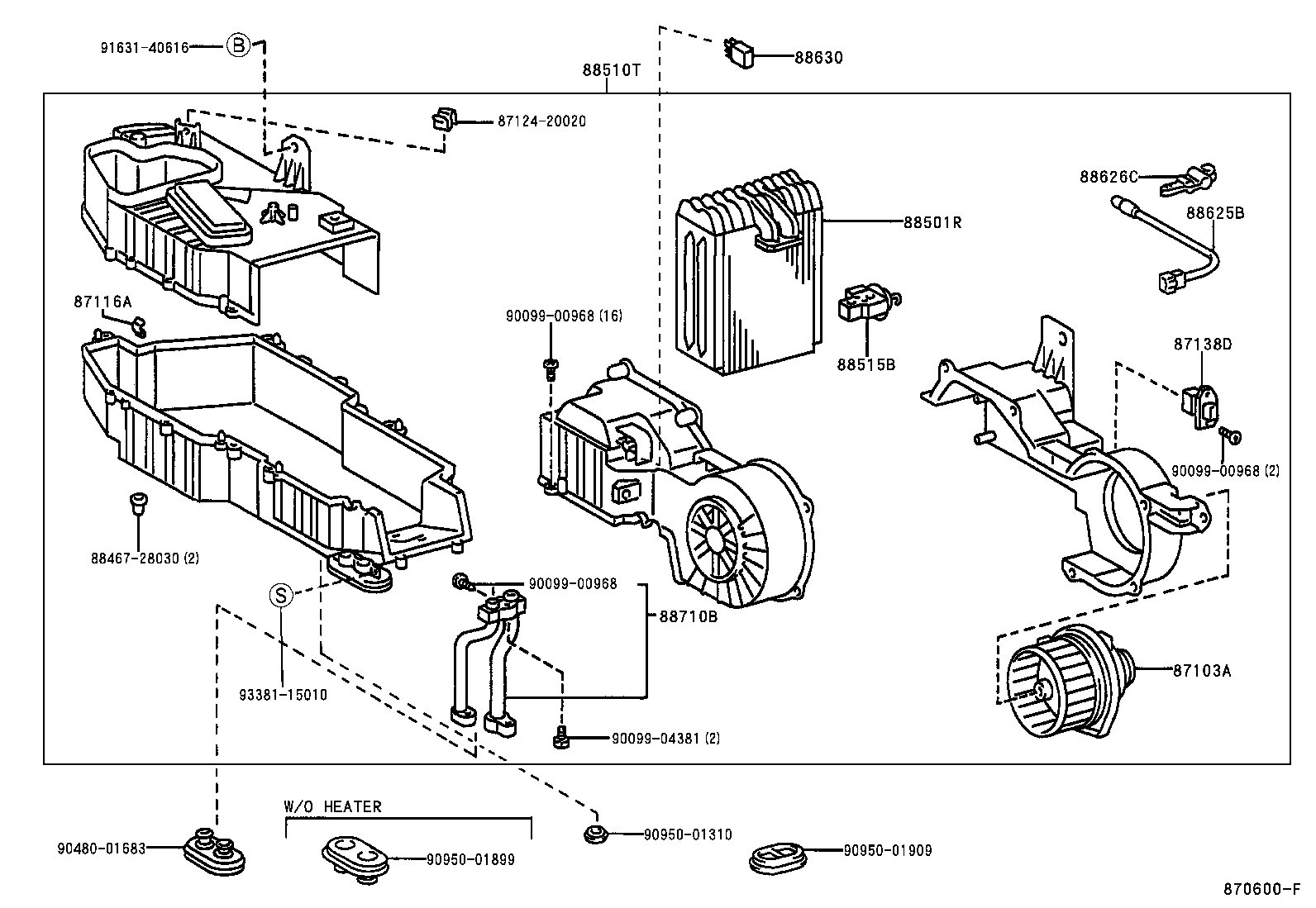

ILLUST NO. 2 OF 3(9611- )

Click highlighted areas on diagram

REAR

diagram 87103A 87116A 8712420020 87138D 8846728030 88501R 88510T 88515B 88625B 88626C 88630 88710B 9009900968 9009900968 9009900968 9009904381 9048001683 9095001310 9095001899 9095001909 9163140616 9338115010
Part # Description Qty Price
Common parts
87124-20020
88467-28030
90099-00968
90099-04381
90480-01683
90950-01310
90950-01899
90950-01909
91631-40616
93381-15010

ILLUST NO. 3 OF 3(9611- )

Click highlighted areas on diagram

O RING

diagram 9009914119 9009914120 9009914121 9009914122 9009914126
Part # Description Qty Price
Common parts
90099-14119
90099-14120
90099-14121
90099-14122
90099-14126

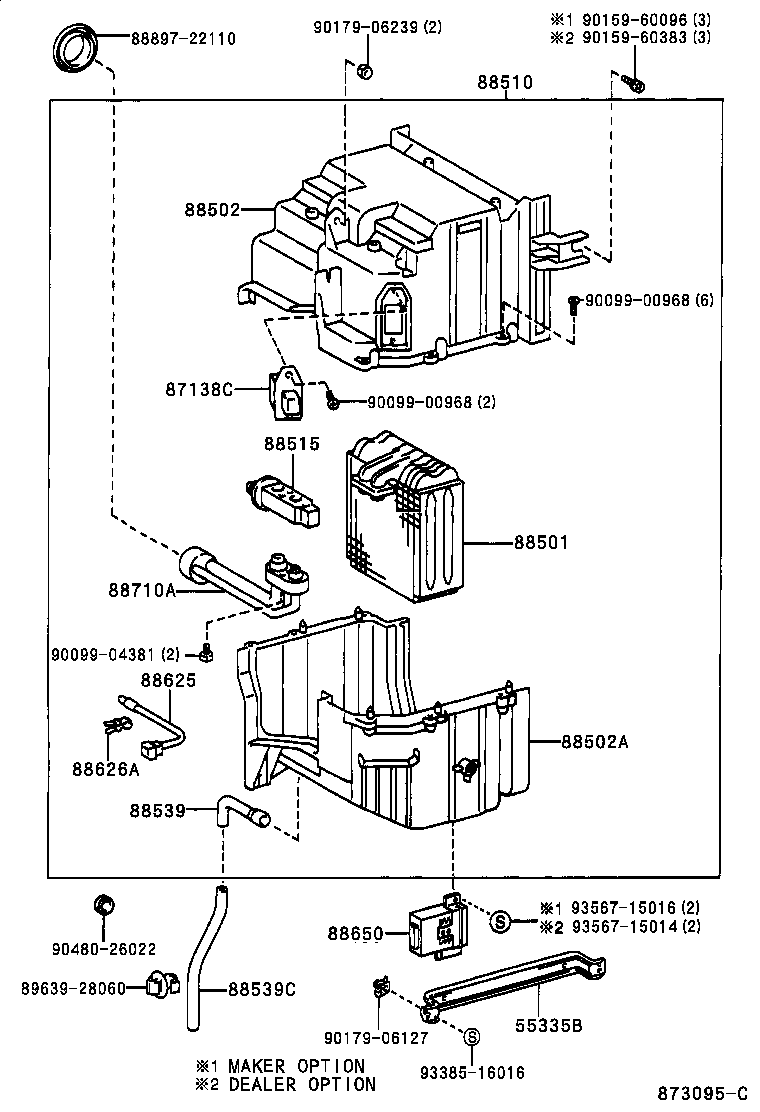

ILLUST NO. 1 OF 3(9812- )

Click highlighted areas on diagram

FRONT

diagram 55335B 87138C 88501 88502 88502A 88510 88515 88539 88539C 88625 88626A 88650 88710A 8889722110 8963928060 9009900968 9009900968 9009904381 9015960096 9015960383 9017906127 9017906239 9048026022 9338516016 9356715014 9356715016
Part # Description Qty Price
55335B - REINFORCEMENT, INSTRUMENT PANEL, LWR LH
55335-28040

KR42..ARL

 1
55335-28030

KR42;SR40..ARL

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-28290

CR41,KR4#,SR40

 1
88501-28290

KR42

 1
88502 - CASE SUB-ASSY, COOLING UNIT
88502-28460

KR42

 1
88502-28460

CR41,KR4#,SR40

 1
88502A - CASE SUB-ASSY, COOLING UNIT
88502-28470

CR41,KR4#,SR40

 1
88502-28470

KR42

 1
88510 - UNIT ASSY, COOLER
88510-28590

KR42;SR40..ARL

DEALER OPTION

 1
88515 - VALVE, COOLER EXPANSION
88515-22240

CR41,KR4#,SR40

 1
88515-22240

KR42

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-28140

CR41,KR4#,SR40

 1
88539-28140

KR42

 1
88625 - THERMISTOR, COOLER, NO.1
88625-28170

CR41,KR4#,SR40

 1
88625-60140

KR42

 1
88626A - HOLDER, THERMISTOR
88626-28010

KR42

 1
88626-28010

CR41,KR4#,SR40

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-28690

KR4#

 1
88710A - TUBE ASSY, AIR CONDITIONER
88710-2R330

KR42

 1
88710-2R090

CR41,KR4#,SR40

 1
Common parts
88897-22110
89639-28060
90099-00968
90099-04381
90159-60096
90159-60383
90179-06127
90179-06239
90480-26022
93385-16016
93567-15014
93567-15016
