KR42R-RCSREQ (1998)
Toyota Townace/Liteace
ILLUST NO. 2 OF 7(9611- )
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-10020 |
2C,5K,7K,3SFE..CR41,KR4#,SR40 |
1 | ||
| 28300-10020 |
7KE..KR42 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09007 |
CR41,KR4#,SR40 5A,MINI FUSE,TAN |
1 | ||
| 90982-09009 |
CR41,KR4#,SR40 10A,MINI FUSE,RED |
1 | ||
| 90982-09010 |
CR41,KR4#,SR40 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09010 |
KR42 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09009 |
KR42 10A,MINI FUSE,RED |
1 | ||
| 90982-09011 |
KR42 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09011 |
CR41,KR4#,SR40 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09007 |
KR42 5A,MINI FUSE,TAN |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09007 |
CR41,KR4#,SR40 5A,MINI FUSE,TAN |
1 | ||
| 90982-09009 |
CR41,KR4#,SR40 10A,MINI FUSE,RED |
1 | ||
| 90982-09010 |
CR41,KR4#,SR40 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09010 |
KR42 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09009 |
KR42 10A,MINI FUSE,RED |
1 | ||
| 90982-09011 |
KR42 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09011 |
CR41,KR4#,SR40 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09007 |
KR42 5A,MINI FUSE,TAN |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-28280 |
KR42 |
1 | ||
| 82661-28160 |
KR4# |
1 | ||
| 82740 - BLOCK ASSY, ENGINE ROOM RELAY | ||||
| 82741-28010 |
CR41,KR4#,SR40 |
1 | ||
| 82741-28030 |
KR42 |
1 | ||
| 83391 - SWITCH, VACUUM | ||||
| 83391-12210 |
KR42..ARL NO.1 |
1 | ||
| 83391-20050 |
KR42..ARL NO.2 |
1 | ||
| 83391 - SWITCH, VACUUM | ||||
| 83391-12210 |
KR42..ARL NO.1 |
1 | ||
| 83391-20050 |
KR42..ARL NO.2 |
1 | ||
| 83391 - SWITCH, VACUUM | ||||
| 83391-12210 |
KR42..ARL NO.1 |
1 | ||
| 83391-20050 |
KR42..ARL NO.2 |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
CR41,KR4#,SR40 |
1 | ||
| 90987-04002 |
KR42 |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02006 |
KR42 |
1 | ||
| 90987-02006 |
CR41,KR4#,SR40 |
1 | ||
| 89438 - SWITCH, POWER STEERING OIL PRESSURE | ||||
| 89438-30010 |
KR42 |
1 | ||
| 89620 - IGNITER ASSY | ||||
| 89621-20040 |
KR42 |
1 | ||
| 89629 - BRACKET, IGNITER ASSY | ||||
| 89629-27010 |
KR42 |
1 | ||
| 89629A - BRACKET, IGNITER, NO.2 | ||||
| 89629-28050 |
KR42 |
1 | ||
| 89701 - BLOCK SUB-ASSY, ABS RELAY | ||||
| 89701-12010 |
KR42..ARL |
1 | ||
| 89701-12010 |
CR41,KR4#,SR40 |
1 | ||
| Common parts | ||||
| 90119-06306 | ||||
| 90119-08103 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 1901 | ||||
| 2302 | ||||
| 8404 | ||||

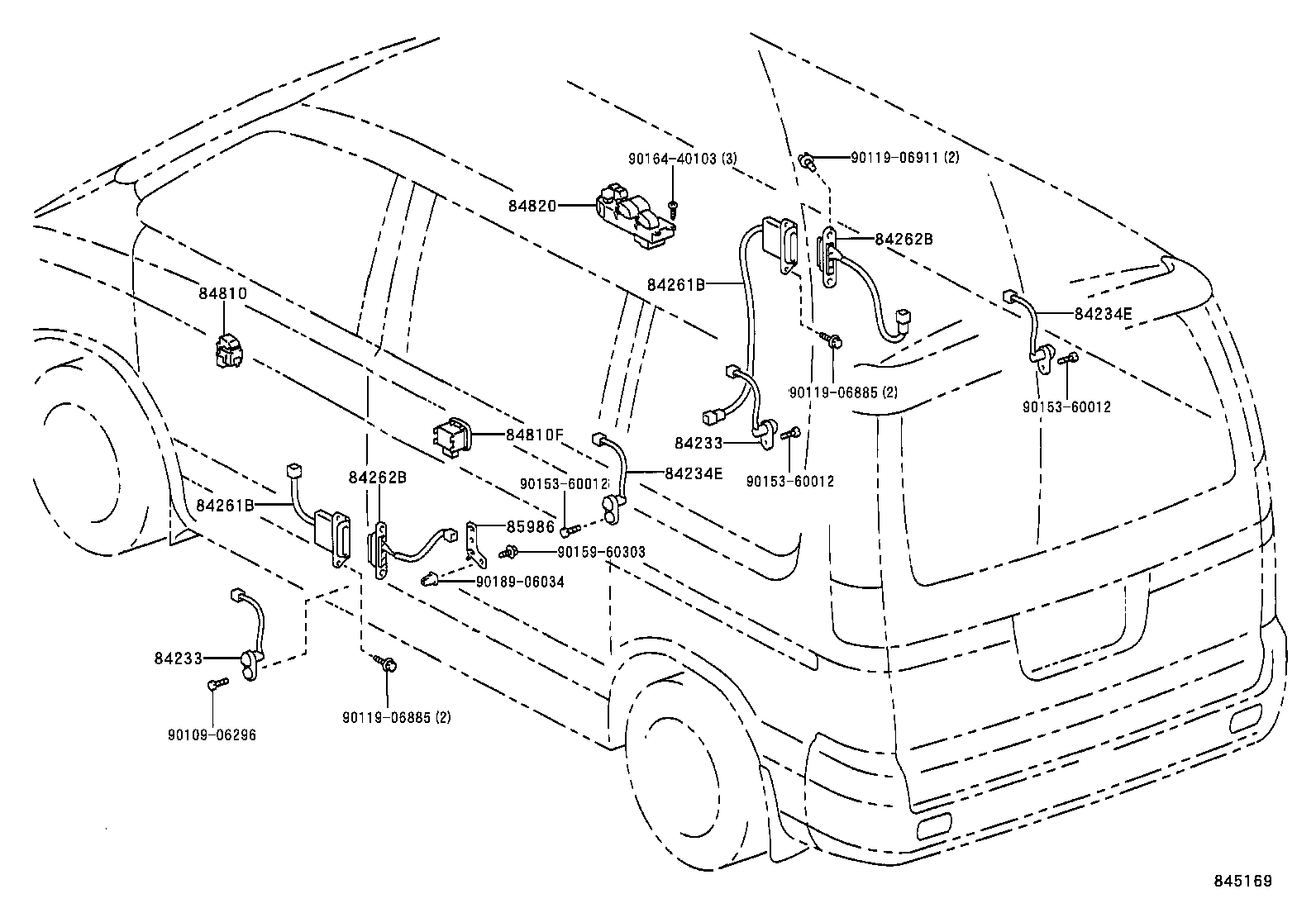

ILLUST NO. 6 OF 7(9611-0207)
DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-33071 |
CR41,KR4#,SR40 LH |
1 | ||
| 84231-32050 |
CR41,KR4#,SR40 RH |
1 | ||
| 84231-33071 |
CR42,KR42 LH |
1 | ||
| 84231-28090 |
KR42 RH |
1 | ||
| 84231-53010 |
KR42 LH |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-33071 |
CR41,KR4#,SR40 LH |
1 | ||
| 84231-32050 |
CR41,KR4#,SR40 RH |
1 | ||
| 84231-33071 |
CR42,KR42 LH |
1 | ||
| 84231-28090 |
KR42 RH |
1 | ||
| 84231-53010 |
KR42 LH |
1 | ||
| 84234E - SWITCH, COURTESY LAMP (FOR SLIDE DOOR) | ||||
| 84231-28070 |
CR41,KR4#,SR40..4D |
1 | ||
| 84231-28080 |
KR42..4D |
1 | ||
| 84234E - SWITCH, COURTESY LAMP (FOR SLIDE DOOR) | ||||
| 84231-28070 |
CR41,KR4#,SR40..4D |
1 | ||
| 84231-28080 |
KR42..4D |
1 | ||
| 84261B - JUNCTION, SLIDE DOOR CONTROL,MALE | ||||
| 84261-28110 |
KR42..4D |
1 | ||
| 84261-28080 |
CR41,KR4# LH |
1 | ||
| 84261B - JUNCTION, SLIDE DOOR CONTROL,MALE | ||||
| 84261-28110 |
KR42..4D |
1 | ||
| 84261-28080 |
CR41,KR4# LH |
1 | ||
| 84262B - JUNCTION, SLIDE DOOR CONTROL, FEMALE | ||||
| 84262-28060 |
CR41,KR4# LH |
1 | ||
| 84262B - JUNCTION, SLIDE DOOR CONTROL, FEMALE | ||||
| 84262-28060 |
CR41,KR4# LH |
1 | ||
| Common parts | ||||
| 90109-06296 | ||||
| 90119-06709 | ||||
| 90153-60012 | ||||
| 90159-60303 | ||||
| 90164-40103 | ||||
| 90189-06034 | ||||
ILLUST NO. 7 OF 7(9611- )
ROOF,FLOOR,TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80347 |
KR42..ARL |
1 | ||
| 83320-80371 |
CR4#,KR42,SR40 |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 77169-14020 |
CR41,KR4#,SR40 |
1 | ||
| 77169-14020 |
KR42 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-16060 |
CR41,KR4#,SR40 |
1 | ||
| 84550-16060 |
KR42 |
1 | ||
| Common parts | ||||
| 93315-14014 | ||||
| 93319-A4010 | ||||

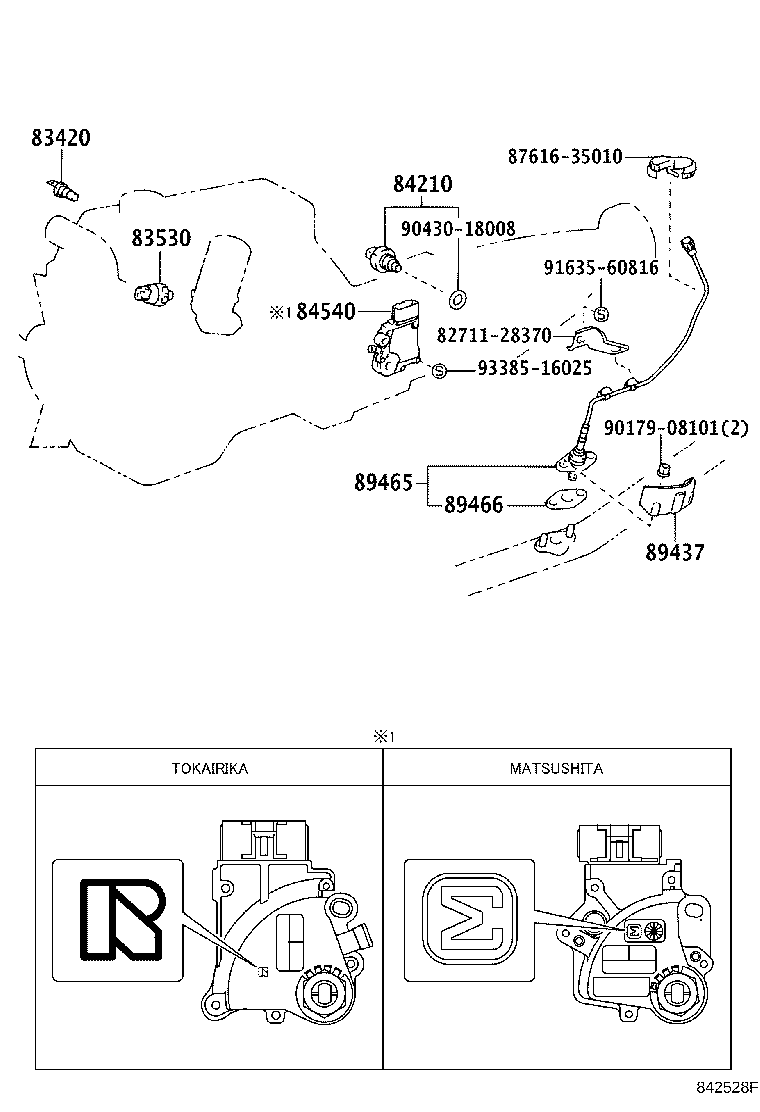

ILLUST NO. 1 OF 7(9812- )KR42
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16040 |
KR4# |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30090 |
KR4#,SR40 |
1 | ||
| 83530-60020 |
KR42 YAZAKI |
1 | ||
| 83530-28020 |
KR42 DENSO |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-30300 |
KR42,SR40..ATM MATSUSHITA |
1 | ||
| 84540-30290 |
KR42,SR40..ATM TOKAIRIKA |
1 | ||
| 84540-30290 |
KR42,SR40..ATM TOKAIRIKA |
1 | ||
| 84540-30300 |
KR42,SR40..ATM MATSUSHITA |
1 | ||
| 89437 - COVER, SENSOR | ||||
| 89437-42010 |
KR42..ARL |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-28200 |
KR42..ARL |
1 | ||
| 89465-80039 |
KR42..ARL |
1 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-20020 |
KR42..ARL |
1 | ||
| Common parts | ||||
| 82711-28370 | ||||
| 87616-35010 | ||||
| 90179-08101 | ||||
| 90430-18008 | ||||
| 91635-60816 | ||||
| 93385-16025 | ||||
ILLUST NO. 5 OF 7(9812- )
TURN SIGNAL SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-12070 |
KR42..ATM |
1 | ||
| 84052-32030 |
KR42,SR40..ATM;SR40..MTM..ARL |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-20570 |
KR42,SR40..02S,08S |
1 | ||
| 84140-32220 |
KR42 |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-52010 |
KR42..ARL |
1 | ||
| 84312-26010 |
KR42..ARL;SR40..GEN |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12200 |
CR41,KR4#,SR40 |
1 | ||
| 84450-52010 |
KR42..ATM |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-1A510 |
KR42,SR40..02S,08S |
1 | ||
| 84652-28580 |
KR42 W(REAR WIPER---W/INT) |
1 | ||
| Common parts | ||||
| 90168-40129 | ||||
| Linked diagrams | ||||
| 4501 | ||||
ILLUST NO. 5 OF 7(9812- )
TURN SIGNAL SWITCH---W(AIR BAG)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-12070 |
KR42..ATM |
1 | ||
| 84052-32030 |
KR42,SR40..ATM;SR40..MTM..ARL |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-20570 |
KR42,SR40..02S,08S |
1 | ||
| 84140-32220 |
KR42 |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-52010 |
KR42,SR40..02S,08S |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12200 |
CR41,KR4#,SR40 |
1 | ||
| 84450-52010 |
KR42..ATM |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-1A510 |
KR42,SR40..02S,08S |
1 | ||
| 84652-28580 |
KR42 W(REAR WIPER---W/INT) |
1 | ||
| Common parts | ||||
| 90168-40129 | ||||
| Linked diagrams | ||||
| 4501 | ||||
ILLUST NO. 3 OF 7(9812- )
COWL,INSTRUMENT PANEL RELAY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-50030 |
CR4#,KR42,SR40 |
1 | ||
| 81980-28010 |
KR42 |
1 | ||
| 81980-12070 |
CR41,KR4#,SR40 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09007 |
CR41,KR4#,SR40 5A,MINI FUSE,TAN |
1 | ||
| 90982-09009 |
CR41,KR4#,SR40 10A,MINI FUSE,RED |
1 | ||
| 90982-09010 |
CR41,KR4#,SR40 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09010 |
KR42 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09009 |
KR42 10A,MINI FUSE,RED |
1 | ||
| 90982-09011 |
KR42 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09011 |
CR41,KR4#,SR40 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09007 |
KR42 5A,MINI FUSE,TAN |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09007 |
CR41,KR4#,SR40 5A,MINI FUSE,TAN |
1 | ||
| 90982-09009 |
CR41,KR4#,SR40 10A,MINI FUSE,RED |
1 | ||
| 90982-09010 |
CR41,KR4#,SR40 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09010 |
KR42 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09009 |
KR42 10A,MINI FUSE,RED |
1 | ||
| 90982-09011 |
KR42 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09011 |
CR41,KR4#,SR40 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09007 |
KR42 5A,MINI FUSE,TAN |
1 | ||
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82683-28430 |
CR41,KR4#;SR40..GEN |
1 | ||
| 82683-28280 |
KR42 |
1 | ||
| 82661A - COVER, RELAY BLOCK, NO.2 | ||||
| 82661-28290 |
KR42 |
1 | ||
| 82661-28170 |
CR41,KR4#,SR40 |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-28030 |
CR41,KR4#;SR40..GEN |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32050 |
KR42 |
1 | ||
| 84340-32050 |
CR41,KR4#,SR40 |
1 | ||
| 85916C - RELAY, BACK UP LAMP | ||||
| 90987-02012 |
KR42,SR40..ARL |
1 | ||
| 90987-02012 |
KR42,SR40..ARL DENSO |
1 | ||
| 90987-02024 |
KR42..ARL MATSUSHITA |
1 | ||
| Common parts | ||||
| 91635-60616 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8404 | ||||
ILLUST NO. 4 OF 7(9812- )
INSTRUMENT PANEL SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-60040 |
KR42,SR40..ARL |
1 | ||
| 84119-28040 |
KR42,SR40..ARL |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-28130 |
CR41,KR4#,SR40 |
1 | ||
| 84332-28150 |
KR42 |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10860 |
KR42 14V 0.91W |
1 | ||
| 84999-10320 |
CR41,KR4#,SR40 14V 0.84W |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-10110 |
KR42..ARL;CR41,KR41,SR40 |
1 | ||
| 84660D - BULB(FOR COOLER SWITCH) | ||||
| 88607-10020 |
CR41,KR4#,SR40 14V 0.08A |
1 | ||
| 88607-10020 |
KR42 14V 0.08A |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-28070 |
KR42 |
1 | ||
| 84790-28050 |
CR41,KR4#,SR40 |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10320 |
KR42 14V 0.84W |
1 | ||
| 84999-10320 |
CR41,KR4#,SR40 14V 0.84W |
1 | ||
| 90010-01043 |
KR42 14V0.84W,W/ORANG CAP |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10320 |
KR42 14V 0.84W |
1 | ||
| 84999-10320 |
CR41,KR4#,SR40 14V 0.84W |
1 | ||
| 90010-01043 |
KR42 14V0.84W,W/ORANG CAP |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-87003 |
CR41,KR4#;SR40..GEN |
1 | ||
| 84930-87003 |
KR42 |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-28050 |
CR41,KR4#,SR40 |
1 | ||
| 85500-28050 |
KR42 |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-28010 |
KR42 |
1 | ||
| 85513-12020 |
CR41,KR4#,SR40 |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-26010 |
CR41,KR4#,SR40 |
1 | ||
| 85533-26010 |
KR42 |
1 | ||
| Linked diagrams | ||||
| 8301 | ||||
ILLUST NO. 6 OF 7(0207- )
DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-33071 |
CR41,KR4#,SR40 LH |
1 | ||
| 84231-32050 |
CR41,KR4#,SR40 RH |
1 | ||
| 84231-33071 |
CR42,KR42 LH |
1 | ||
| 84231-28090 |
KR42 RH |
1 | ||
| 84231-53010 |
KR42 LH |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-33071 |
CR41,KR4#,SR40 LH |
1 | ||
| 84231-32050 |
CR41,KR4#,SR40 RH |
1 | ||
| 84231-33071 |
CR42,KR42 LH |
1 | ||
| 84231-28090 |
KR42 RH |
1 | ||
| 84231-53010 |
KR42 LH |
1 | ||
| 84234E - SWITCH, COURTESY LAMP (FOR SLIDE DOOR) | ||||
| 84231-28070 |
CR41,KR4#,SR40..4D |
1 | ||
| 84231-28080 |
KR42..4D |
1 | ||
| 84234E - SWITCH, COURTESY LAMP (FOR SLIDE DOOR) | ||||
| 84231-28070 |
CR41,KR4#,SR40..4D |
1 | ||
| 84231-28080 |
KR42..4D |
1 | ||
| 84261B - JUNCTION, SLIDE DOOR CONTROL,MALE | ||||
| 84261-28110 |
KR42..4D |
1 | ||
| 84261-28080 |
CR41,KR4# LH |
1 | ||
| 84261B - JUNCTION, SLIDE DOOR CONTROL,MALE | ||||
| 84261-28110 |
KR42..4D |
1 | ||
| 84261-28080 |
CR41,KR4# LH |
1 | ||
| 84262B - JUNCTION, SLIDE DOOR CONTROL, FEMALE | ||||
| 84262-28060 |
CR41,KR4# LH |
1 | ||
| 84262B - JUNCTION, SLIDE DOOR CONTROL, FEMALE | ||||
| 84262-28060 |
CR41,KR4# LH |
1 | ||
| Common parts | ||||
| 90109-06296 | ||||
| 90119-06885 | ||||
| 90119-06911 | ||||
| 90153-60012 | ||||
| 90159-60303 | ||||
| 90164-40103 | ||||
| 90189-06034 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
