KR42R-RCSREQ (1998)

Toyota Townace/Liteace

Production Dec 1998 - Oct 2003
Engine 7KE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9611- )

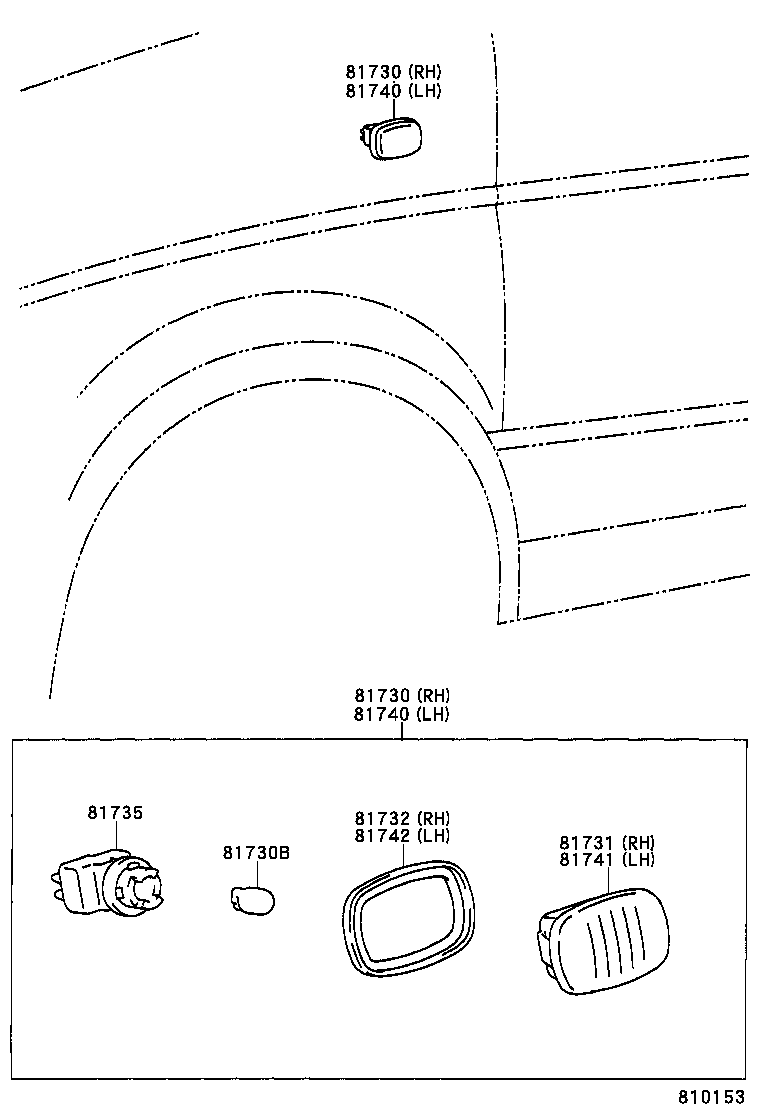

Click highlighted areas on diagram

diagram 81730 81730 81730B 81731 81732 81735 81740 81740 81741 81742
Part # Description Qty Price
81730 - LAMP ASSY, SIDE TURN SIGNAL, RH
81730-17051

KR42

 1
81730-17051

CR41,KR4#,SR40

 1
81730 - LAMP ASSY, SIDE TURN SIGNAL, RH
81730-17051

KR42

 1
81730-17051

CR41,KR4#,SR40

 1
81730B - BULB (FOR SIDE TURN SIGNAL LAMP)
99132-12050

KR42

12V 5W

 2
99132-12050

CR41,KR4#,SR40

12V 5W

 2
81731 - LENS, SIDE TURN SIGNAL LAMP, RH
81731-17051

KR42

 1
81731-17051

CR41,KR4#,SR40

 1
81732 - GASKET, SIDE TURN SIGNAL LAMP LENS, RH
81732-17050

CR41,KR4#,SR40

 1
81732-17050

KR42

 1
81735 - SOCKET AND WIRE, SIDE TURN SIGNAL LAMP
90075-99012

KR42

 2
90075-99012

CR41,KR4#,SR40

 2
81740 - LAMP ASSY, SIDE TURN SIGNAL, LH
81730-17051

CR41,KR4#,SR40

 1
81730-17051

KR42

 1
81740 - LAMP ASSY, SIDE TURN SIGNAL, LH
81730-17051

CR41,KR4#,SR40

 1
81730-17051

KR42

 1
81741 - LENS, SIDE TURN SIGNAL LAMP, LH
81731-17051

CR41,KR4#,SR40

 1
81731-17051

KR42

 2
81742 - GASKET, SIDE TURN SIGNAL LAMP LENS, LH
81732-17050

CR41,KR4#,SR40

 1
81732-17050

KR42

 2
